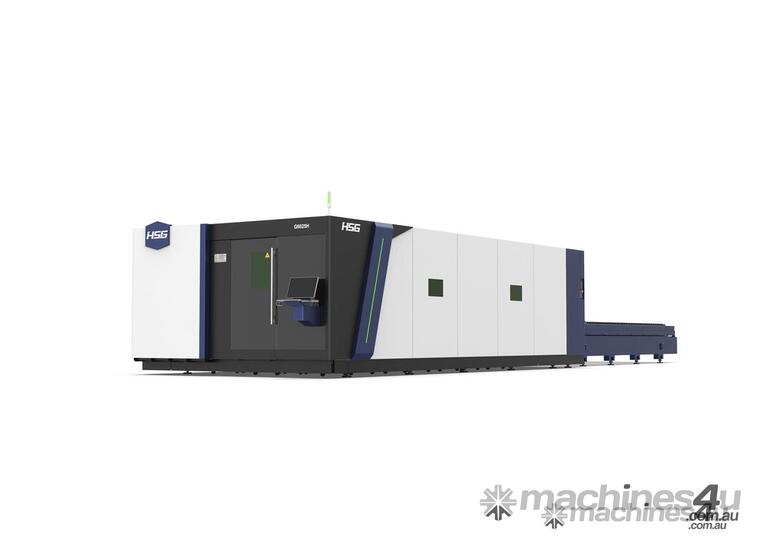

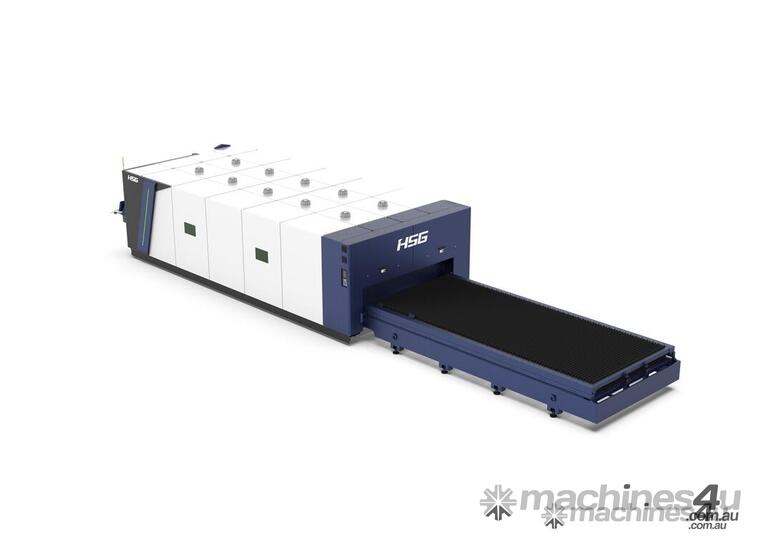

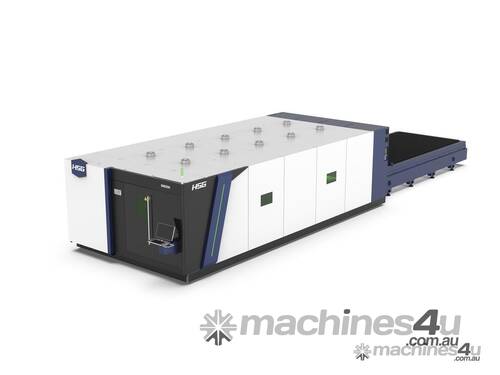

JTECH - HSG 6025 GH Raycus 30kw Fiber Laser Cutting Machine

HSG is proud to unveil its latest generation HSG 6025 GH 30kW Raycus Fiber Laser; a powerful laser cutting machine that ensures accuracy and speed in processing a large range of cutting thicknesses.

HSG pride themselves on using the highest quality component parts at the most affordable price. Their strict quality processes ensure high speed cutting of an exceptional accuracy and reliability.

HSG are the global industry leader in Fiber Laser sales, having already sold to over 80 countries worldwide. With precise, reliable cutting at a great price, it’s easy to see why.

Price includes:
Delivery
Installation
Training into major metro areas
12 months all-inclusive onsite support.
No hidden extras. Unlike other dealers


Feel free to ask us which model is best suited to your application and budget.

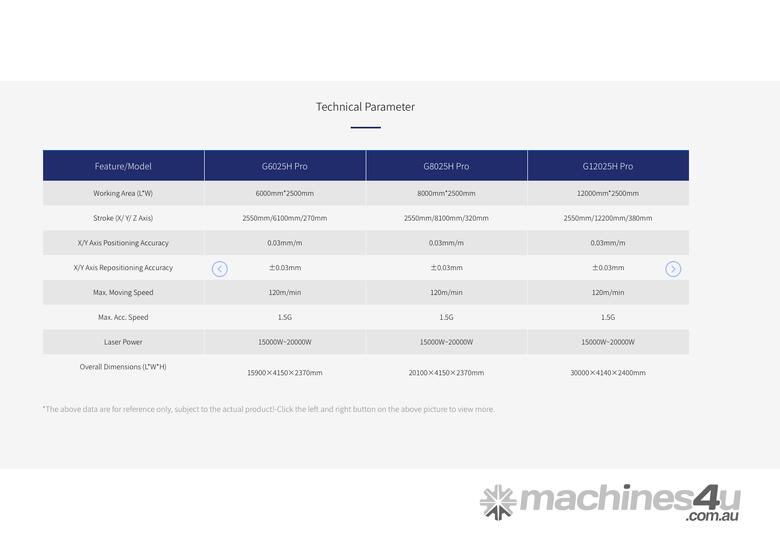

BASIC SPECIFICATIONS: HSG 6025 GH Pro
-6048mm x 2524mm dual table with fabricated bed.
- Safety enclosure with camera
- Fiber laser 20kw
- Full Class one laser safety enclosure with door interlocks
- HSG own cutting head with programmable motorised lens and Collision Protection (designed
and built in Japan)
- Max sheet weight is 900kg
- Rack & pinion drive (X & Y), ball screw (Z) servos & motors are Schneider France
- Positioning accuracy 0.03mm
- Reposition accuracy 0.03mm
- Max acceleration 1.5G
- Max. compound moving speed (X&Y) 120m/min
- Min. kerf width 0.1mm
- HSG own Alpha T Software
- File formats accepted G Code, DXF,DWD,PLT,ENG
- Active obstacle avoidance function.

CUTTING CAPACITY:
-Mild Steel up to 60mm
-Stainless Steel up to 60mm
-Aluminium up to 30mm

Based in Melbourne but service Australia

Who is HSG

HSG is one of the top-rated machine manufacturers out of China, producing cost-effective, reliable machines using high-quality parts. HSG laser cutter machines run on intuitive, simple-to-use software and can handle heavy usage without overheating or loss of precision.
The high volume of machines produced by HSG means that repairs, replacement parts, and after-sale and tech support are widely available from local and factory-trained technicians.
HSG laser cutting machines arrive prebuilt so that you can get your machine installed fast and get back to production. Easy and cost-effective to maintain, our HSG laser cutters come with a 2-year laser source warranty and 3-year machine bed warranty.

Who is J Tech Laser
With over 20 years of experience, J Tech Lasers specialises in machine maintenance, technical support, and breakdowns on laser cutting machines, CNC plasma cutting machines, press brakes, and guillotine shears.

Our Australian owned and operated business offers expert laser cutting machine servicing at competitive prices as well as laser consumables and spare parts for a wide range of machines, including tooling for press brakes. Whether you are looking to buy your first machine or replace or update an existing machine, we can source the right machine for your workplace.

We’ll provide you with a quote within 1-2 days and with our expert advice ensure you get the machine that best suits your company’s needs and budget.

Along with offering new machines, we also provide preventative servicing, which helps your machines run better for longer and reduces machine downtime and loss of production. Our expert technicians will help you get and keep your laser cutting machine in top condition, so it’s always ready to go.

Go to the J Tech Lasers showroom on Machines4u to see the range of machinery that we are carrying and send us a message about the item that you are interested in, or give J Tech Lasers a call, we are happy to answer any of your questions and provide professional advice for your business solutions.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
