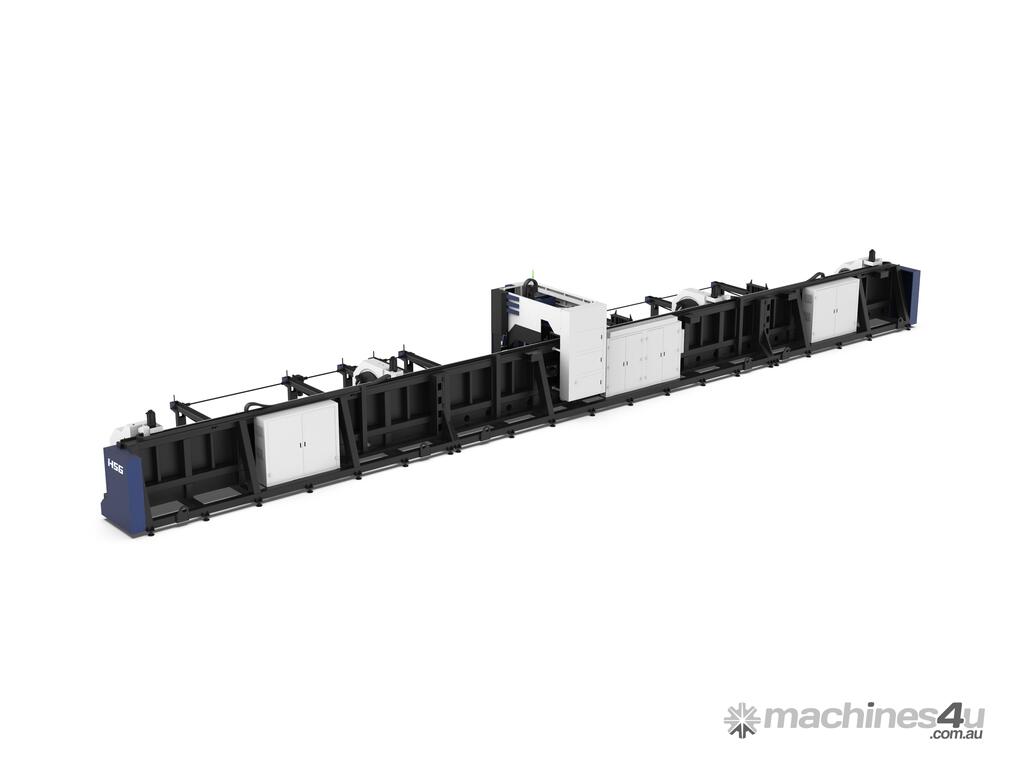

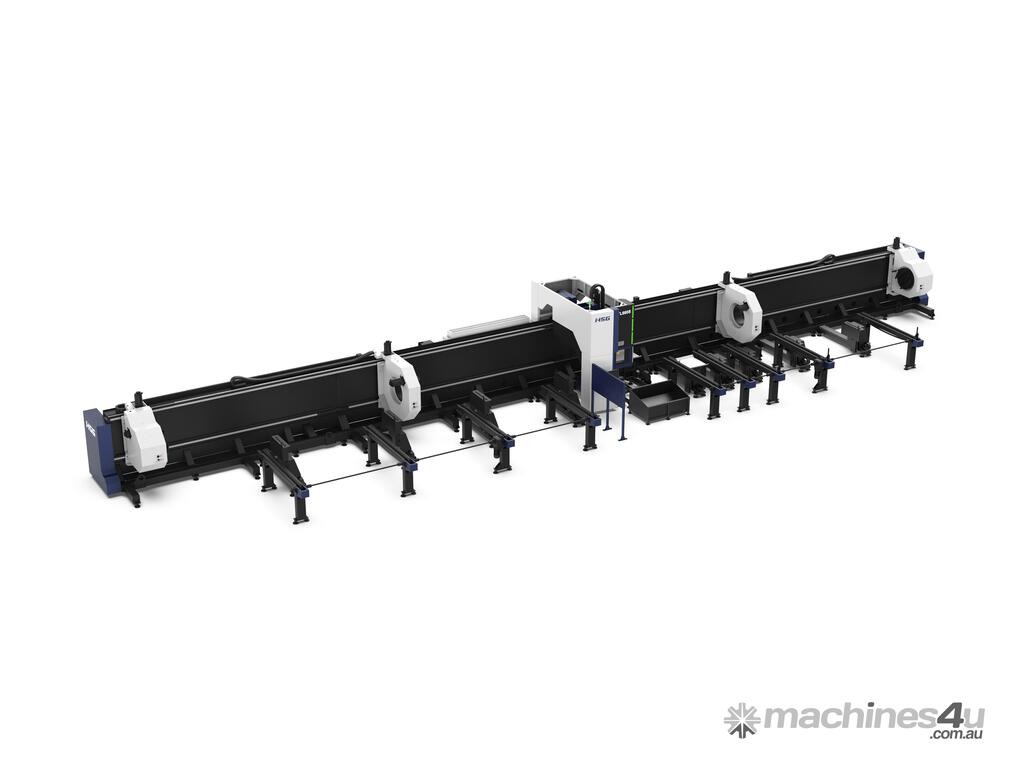

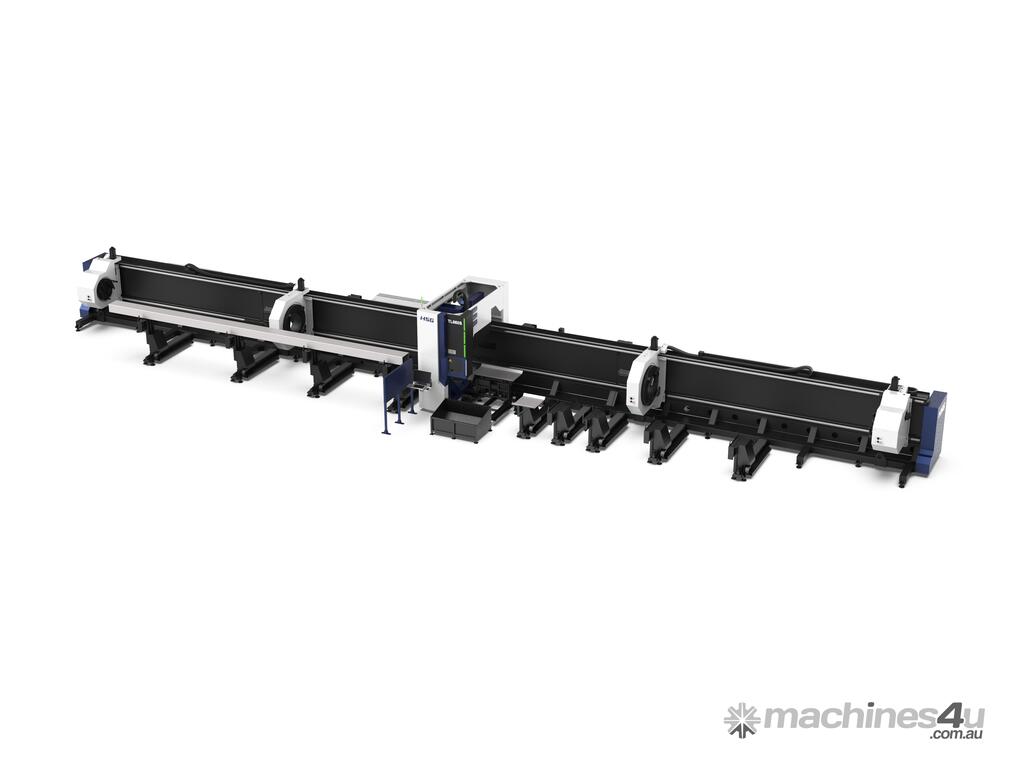

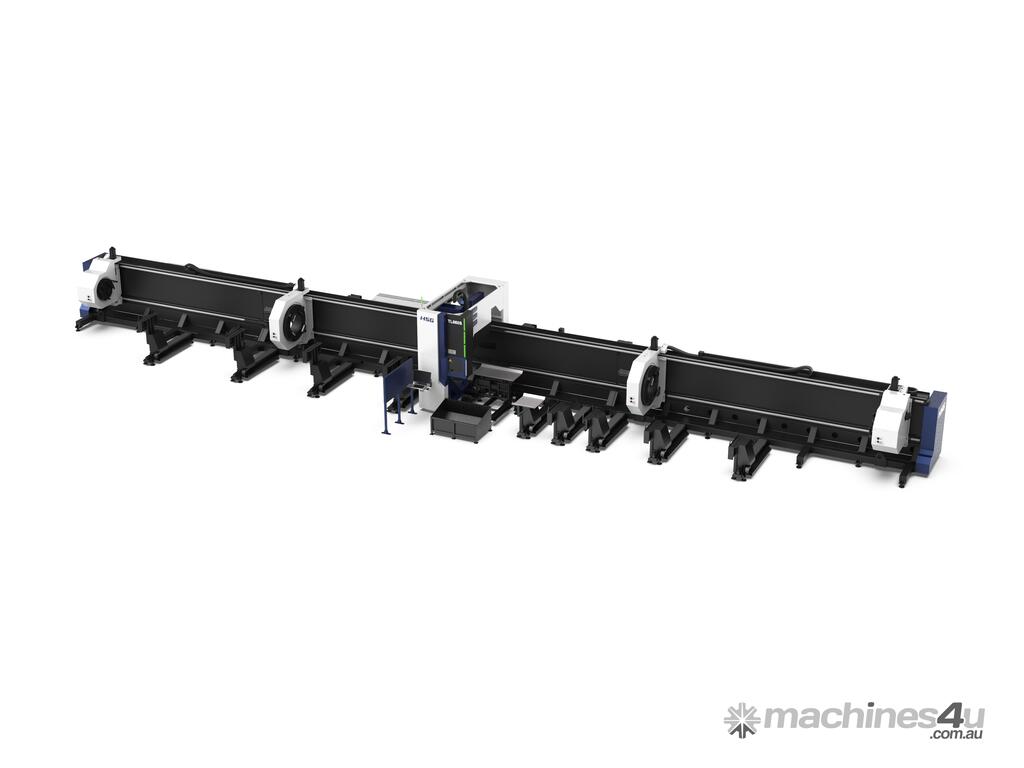

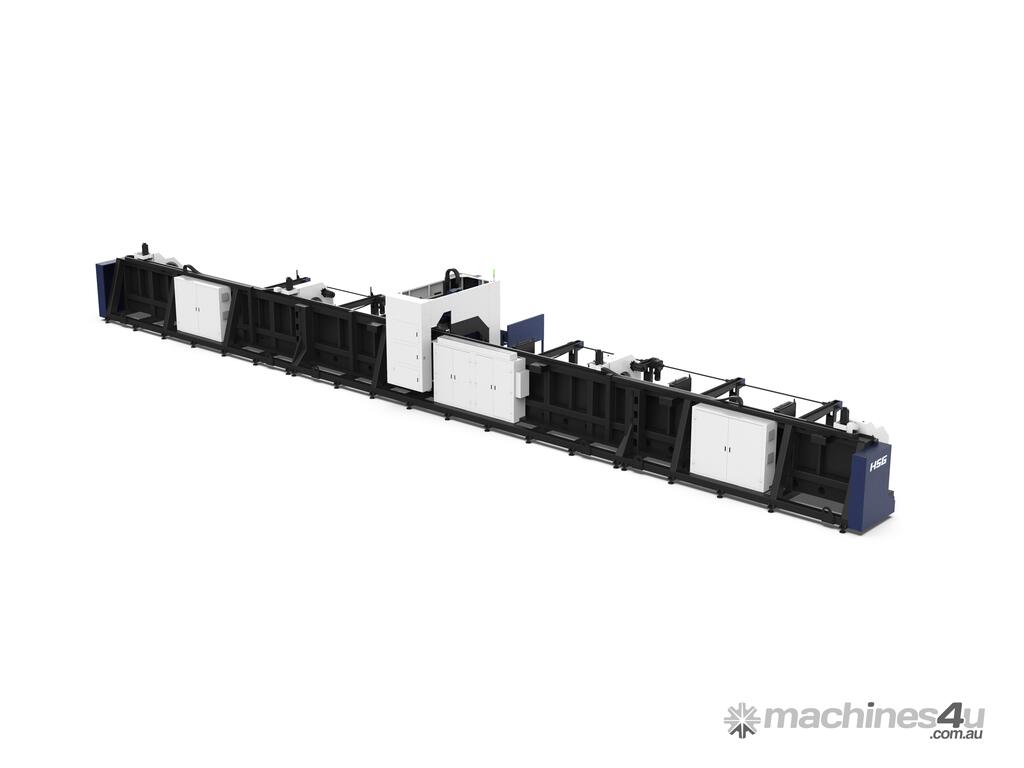

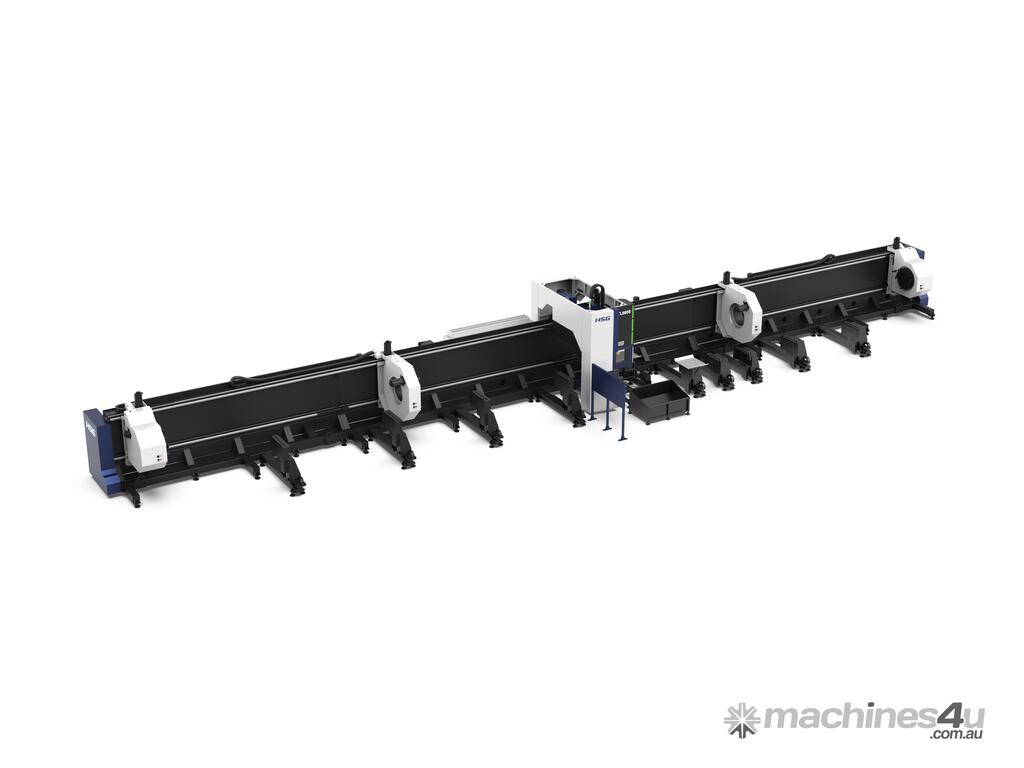

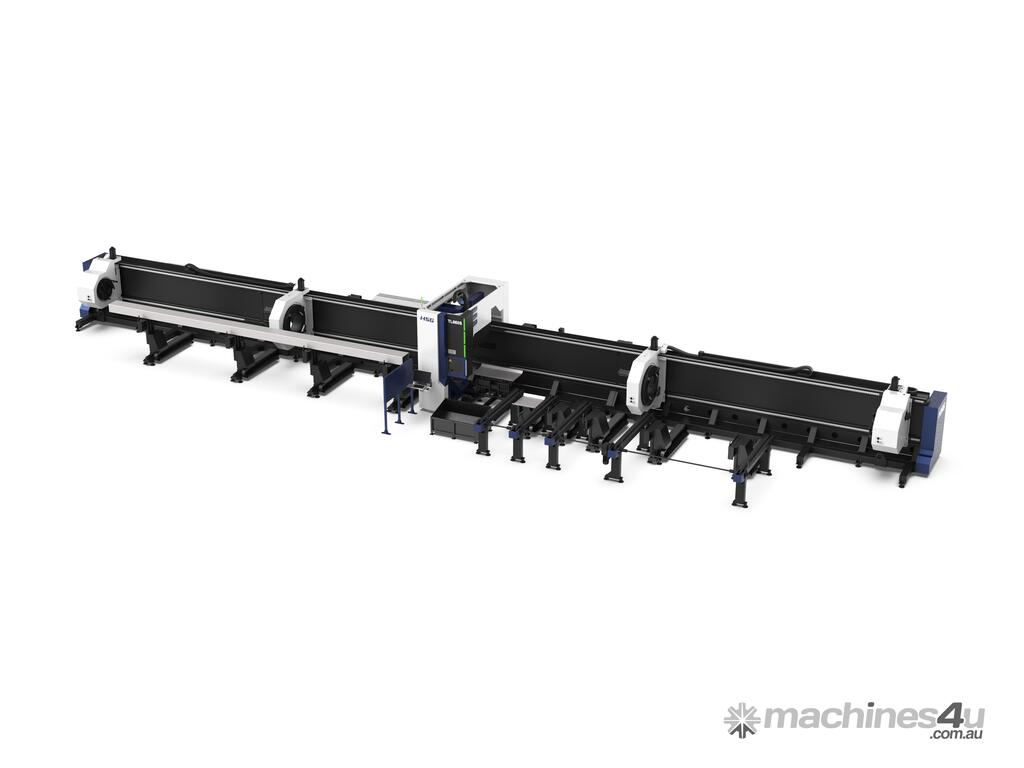

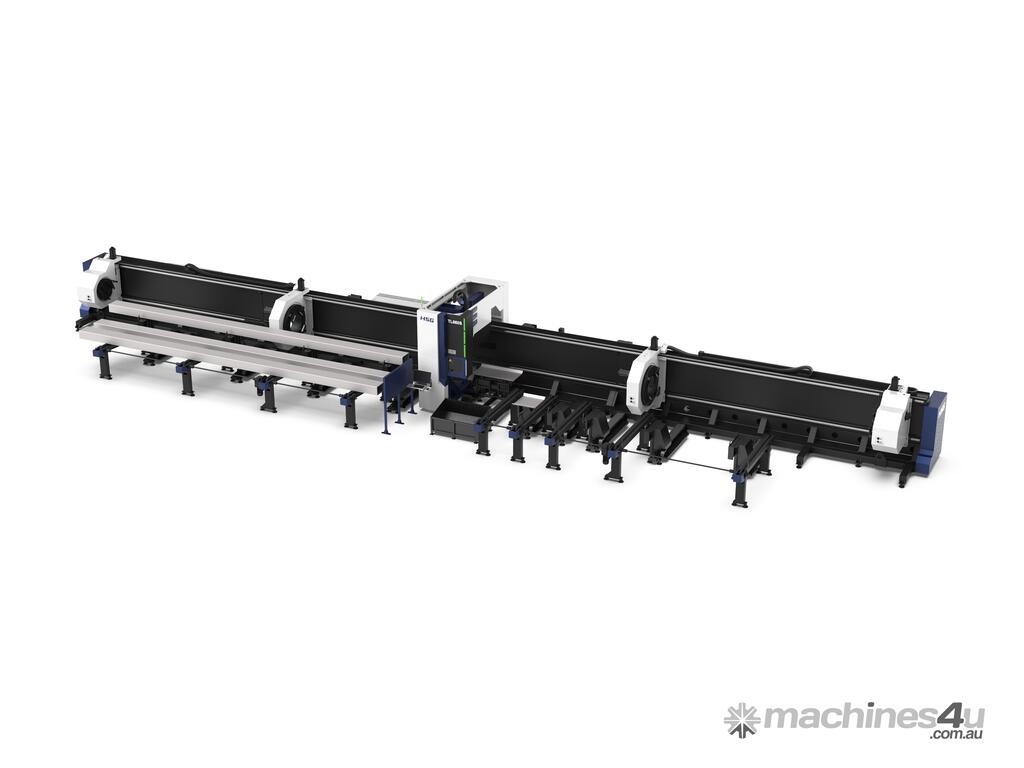

JTECH - HSG TL660 12kw Tube Laser Cutting Machines

The HSG TL660 12mt 12kw Bevel Tube Laser Cutting Machines are the perfect solution for precision cutting of round, square, rectangular, and oval tubes. With advanced technology and high cutting speeds, these machines offer the perfect combination of efficiency and accuracy.

The machines are equipped with a user-friendly interface and intelligent control system, making them easy to operate and maintain. Constructed with durable and sturdy frames, they're designed for long-term and reliable performance. Whether for industrial or personal use, the TL Series Tube Laser Cutting Machines are the ideal choice for all your tube cutting needs.

FEATURES:

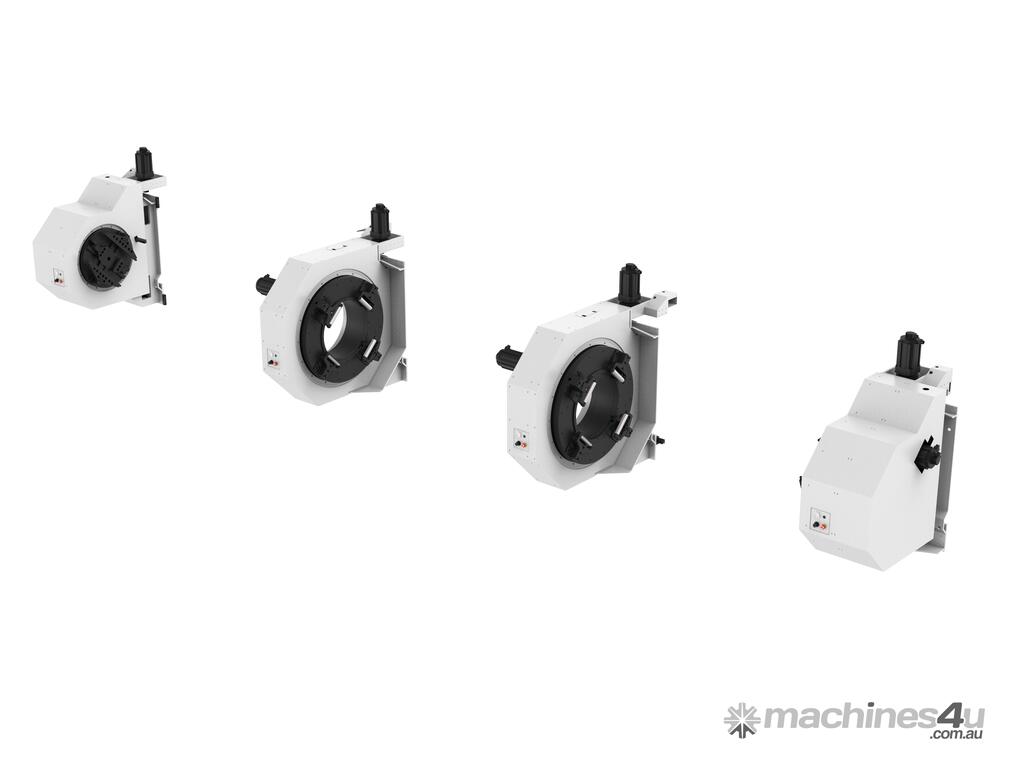

3+1 TWIN-CHUCKS CLAMPING
Patented by HSG Laser, these chucks address common challenges associated with two, three, and four-chuck systems whilst offering users remarkably robust solutions for heavy tube cutting. By combining both the C3 and C4 chucks, it enables synchronous rotation and movement, surpassing current technical constraints. Additionally, they can move at full-stroke, overcoming the limitation of loaded tubes extending only to the length of the machine body.


Cutting:
Round tube: 80- 660
Square tube: 80*80 to 450*450
Rectangular tube: diagonal 660


TECHNICAL PARAMETERS:
- Overall Dimensions (L*W*H) with Loading Racks: 29000 x 5500 x 4000mm
- Weight of Single Tube (kg): 3000
- Tailing Length (mm): 0
- X/Y-axis Repositioning Accuracy: ±0.05mm
- X/Y-axis Positioning Accuracy: ±0.05mm/m
- Max. Linkage Acceleration: 0.6G
- Max. Linkage Speed: 60m/min
- Rotating Speed of Chucks: 30r/min
- Power (W): 12000

Who is HSG

HSG is one of the top-rated machine manufacturers out of China, producing cost-effective, reliable machines using high-quality parts. HSG laser cutter machines run on intuitive, simple-to-use software and can handle heavy usage without overheating or loss of precision.
The high volume of machines produced by HSG means that repairs, replacement parts, and after-sale and tech support are widely available from local and factory-trained technicians.
HSG laser cutting machines arrive prebuilt so that you can get your machine installed fast and get back to production. Easy and cost-effective to maintain, our HSG laser cutters come with a 2-year laser source warranty and 3-year machine bed warranty.

Who is J Tech

With over 20 years of experience, J Tech Lasers specialises in machine maintenance, technical support, and breakdowns on laser cutting machines, CNC plasma cutting machines, press brakes, and guillotine shears.

Our Australian owned and operated business offers expert laser cutting machine servicing at competitive prices as well as laser consumables and spare parts for a wide range of machines, including tooling for press brakes. Whether you are looking to buy your first machine or replace or update an existing machine, we can source the right machine for your workplace.

Along with offering new machines, we also provide preventative servicing, which helps your machines run better for longer and reduces machine downtime and loss of production. Our expert technicians will help you get and keep your laser cutting machine in top condition, so it’s always ready to go.

Go to the J Tech Lasers showroom on Machines4u to see the range of machinery that we are carrying and send us a message about the item that you are interested in, or give J Tech Lasers a call, we are happy to answer any of your questions and provide professional advice for your business solutions.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
