JTECH - Laser Cutting Machine

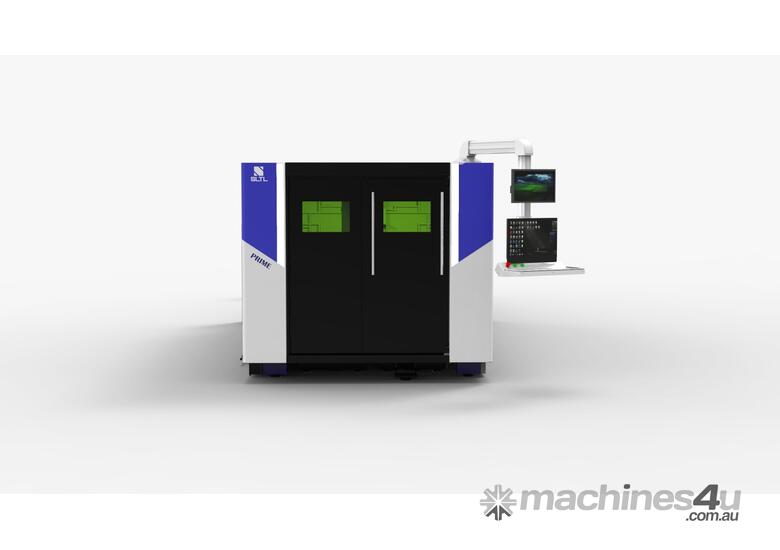

SLTL is proud to unveil its latest generation Prime Series Fiber Laser, a powerful laser cutting machine that ensures accuracy and speed in processing a large range of cutting thicknesses.

SLTL pride themselves on using the highest quality component parts at the most affordable price. Their strict quality processes ensure high speed cutting of an exceptional accuracy and reliability.

SLTL are the global industry leader in fiber laser sales, having already sold to over 100 countries worldwide.
Recommended for heavy usage in large industrial applications, the Prime Series Fiber Laser Cutters provide precise, reliable cutting at a great price.

Prime Series have IPG laser sources, IPG Photonics is the world leader in fiber laser technology. The beam is of the highest quality, allowing constant cutting with extreme precision. IPG features a compact, water-cooled, modular design, which allows for easy maintenance and relocation as required. IPG also boasts a class-leading wall plug efficiency of 50%, making them the industry standard for good reason.


Machine Configuration:
3kW IPG Laser

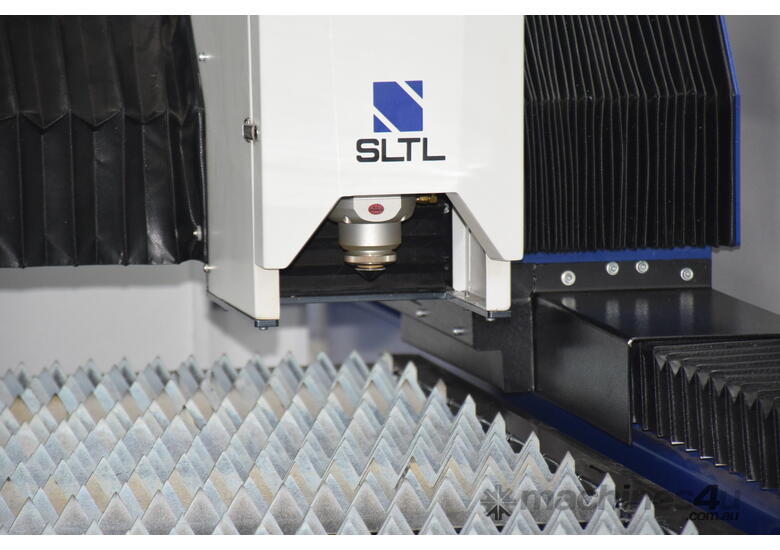

Raytools Cutting Head (China)
Controller FSCUT 2000 (China)
Hiwin Linear Motion and Guide (Taiwan)
YYC Rack and Pinions (Taiwan)
Fuji (Japanese) Precision Servo Motors and Drives (X, Y1, Y2, Z)
SMC/ ASCO (Japan) NC Oxygen, Nitrogen, Air Assist Cutting Gas Control Siemens / C&S (German/ India) Electrics
3000*1500 Working Tables with
Full CE certified enclosure with OD-6 (Optical Density 6) Viewing Windows S&A Dual circuit industrial chiller
SLTL Butterfly Valve Sectionalized Suction Bays
Voltage Stabilizer and Transformer
Air conditioned enclosure for IPG laser source

Machine Specifications:
1550x3050 (X & Y) Travel to ±0.03mm repositioning accuracy ±0.03mm/m positioning accuracy
True 1.5G Acceleration
140m/min Max. Travelling Speed
1400kg Max. Workbench Weight


OUR SERVICES

• New and Used machinery sales

• Machine Installation and relocation

• Servicing and preventative maintenance

• Machine breakdown support

• Operator and software training

• Consumables and Spare parts


COMPANY BACKGROUND

J Tech Lasers and Sheetmetal Machinery Solutions have joined forces to bring you the very best in the laser and sheetmetal industry.
With over a combined 40 years of experience, this Australian owned and operated alliance will deliver exceptional servicing at competitive prices. We specialise in machine servicing, technical support and breakdowns on all brands of Laser Cutting Machines, CNC Plasma Cutting Machines, Pressbrakes and Guillotine Shears
Preventative servicing measures result in better quality running of your machines and reduces the need for breakdown servicing meaningless machine downtime and loss of production. We provide spare parts for a wide range of machines including tooling for press brakes.
As an independent machinery business we have a genuine desire to see best operating outcomes for our clients and we are also able to source your new machine whether you are looking to either replace or update your current one.
We can provide you with a quote within 1-2 days and with our expert advice ensure you get the machine that best suits your company’s needs and budget.

Go to the J Tech Lasers showroom on Machines4u to see the range of machinery that we are carrying and send us a message about the item that you are interested in, or give J Tech Lasers a call, we are happy to answer any of your questions and provide professional advice for your business solutions.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
