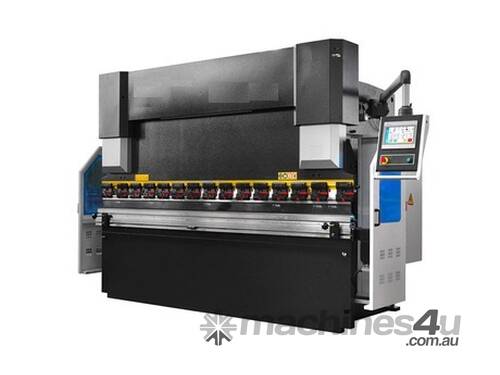

JTECH - New Pearson 3200 x 160 ton NC Hydraulic Pressbrake

New Pearson NC Hydraulic Press Brake
Capacity: 3200 mm x 160 Tonnes
Robust design with up to 4 axis control for increased productivity & versatility
With fast and precise automatic X & R axis back-gauge
With automatic motorised crowning system
Euro style tooling & quick release top tool clamps
Light curtain guards or Laser guards
Commissioning & training Australia wide from a service team that have a genuine interest in your success

One New Pearson NC Hydraulic Pressbrake
Capacity: 3200 mm x 160 Tonnes

• Twin cylinder down-stroking

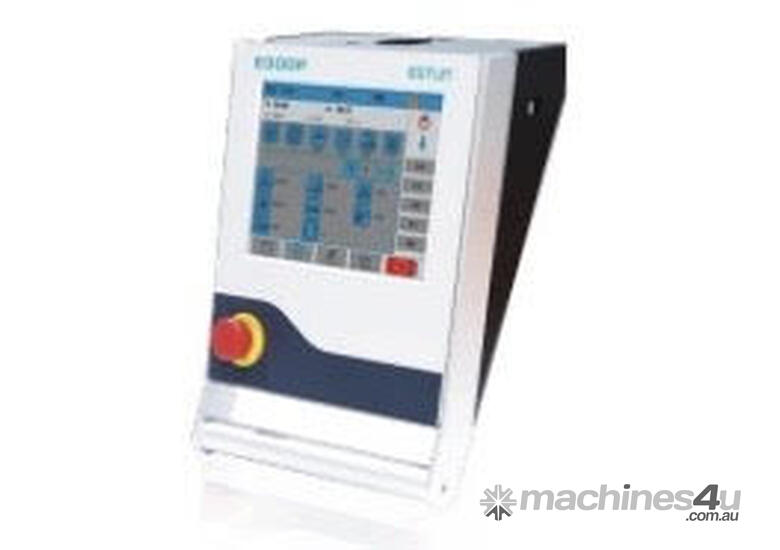

• Motorised Y Axis mechanical depth stops within the cylinders with programmable control and
display (via Estun E300 NC Controller)
• Mechanical Ram parallelism via heavy duty solid anti torsion bar
• Adjustable fast approach / working speed change over point
• Adjustable open day light
• Tonnage regulator with pressure gauge
• Motorised X & R Axis back gauge with recirculating ball screws to 600 mm, with programmable control
and display (via Estun E300 NC Controller) complete with three heavy-duty flip type gauge fingers.
• Motorised crowning system in lower table
• 2 x 500 mm front support arms
• Euro style adjustable top tool holders & a set of euro style top tools
• Full length multi vee die or euro style dies
• Full tank of hydraulic oil
• Operation & technical manual

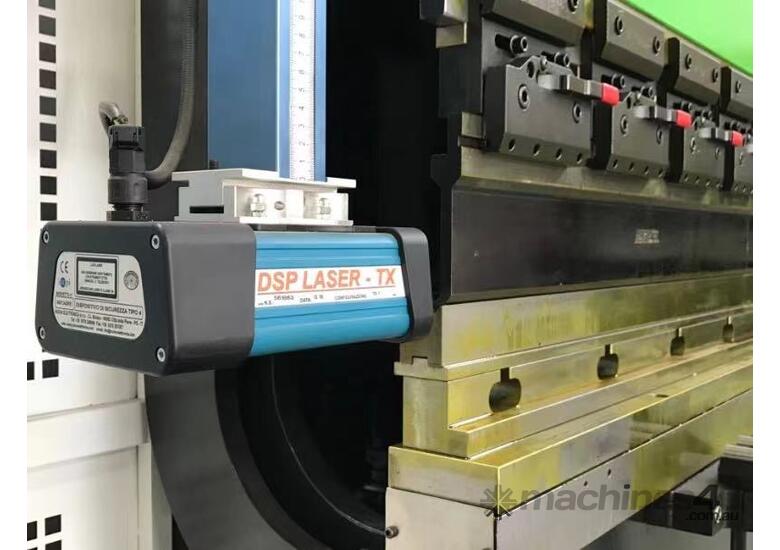

• Machine guarding: Vertical light curtains mounted upon powder coated hinged side fences plus
rear interlocked gate.
