JTECH - Slat Shark Laser Machine Grid Cleaner

The Slat Shark grid cleaning system is Italian Made and built to last..

Better System – Better Cleaning
The Slat Shark’s rotating cleaning heads remain straight and grind from the bottom up, reducing overall vibrations while keeping the slats in place.
Our components are HSS (High Speed Steel) which delivers a grinding life of
over 25 km, longer than competitors using hardened steel.

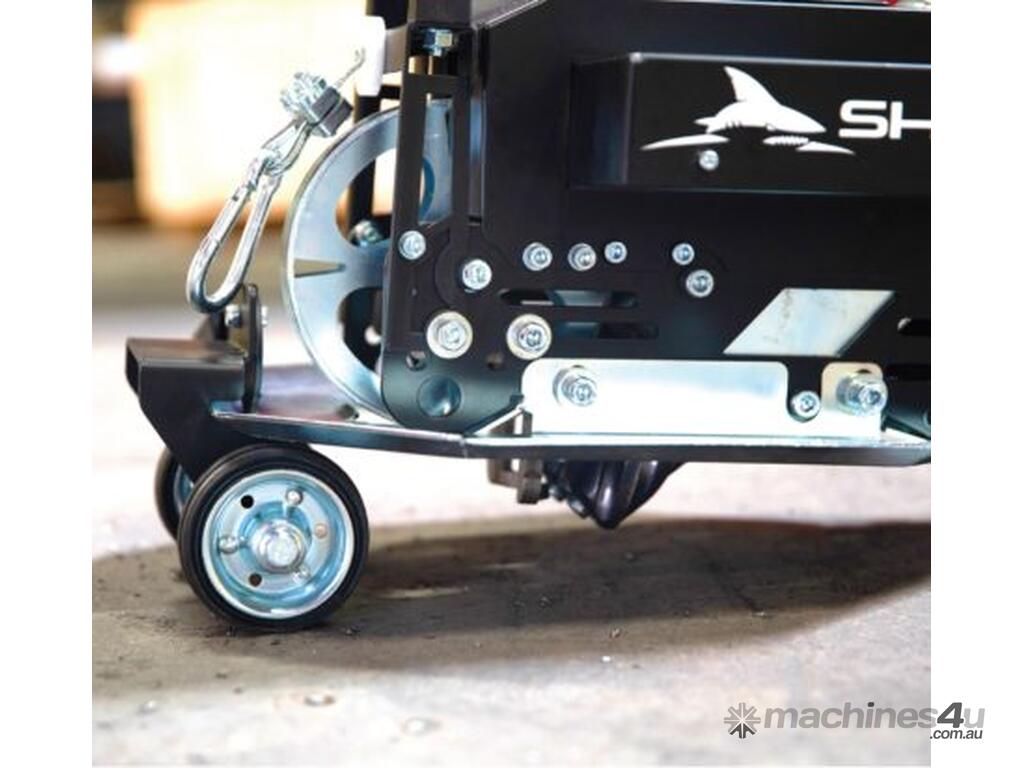

Our innovation traction system allows effortless movement across the table.

Advantages:
* Reduces Down Time
* Cleaner Table
* Increased Slat Life
* Improves quality of laser cuts
* Reduces strains on operator
* Safer, Easier and Faster to use
* Removes over 90% of the slag accumulation without grinding the flat surface

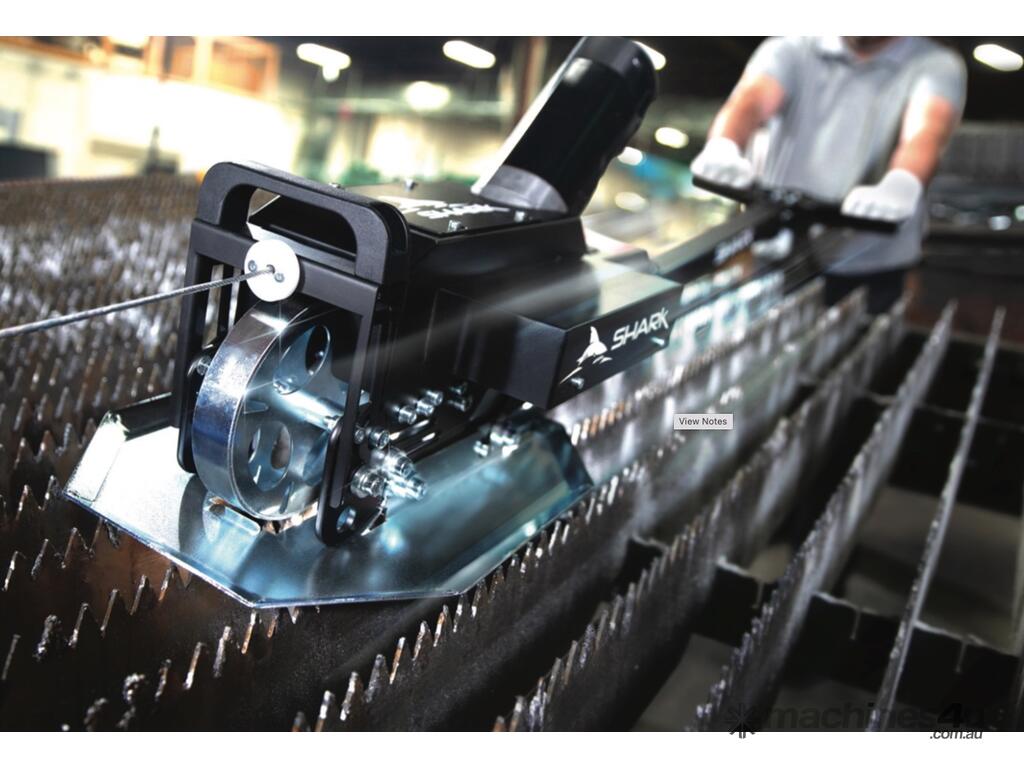

The Slat Shark is designed to remove the toughest slag and dross build-up from your fiber-optic (or CO2) laser with minimum effort.

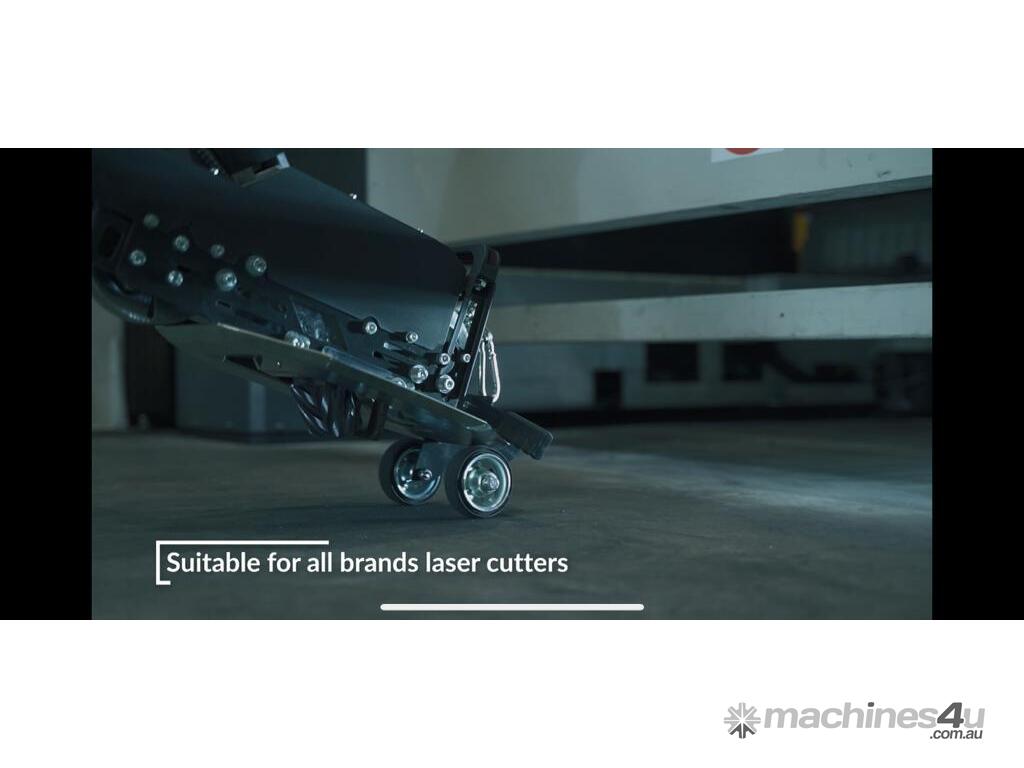

It’s Patented, motorized system includes a controlled traction device that allows a single operator to handle the job with minimal effort. The Slat Shark works on any support slats and even on some Plasma tables.
Its ergonomic design minimise strain on hands and upper body, making it safe and OSHA approved.

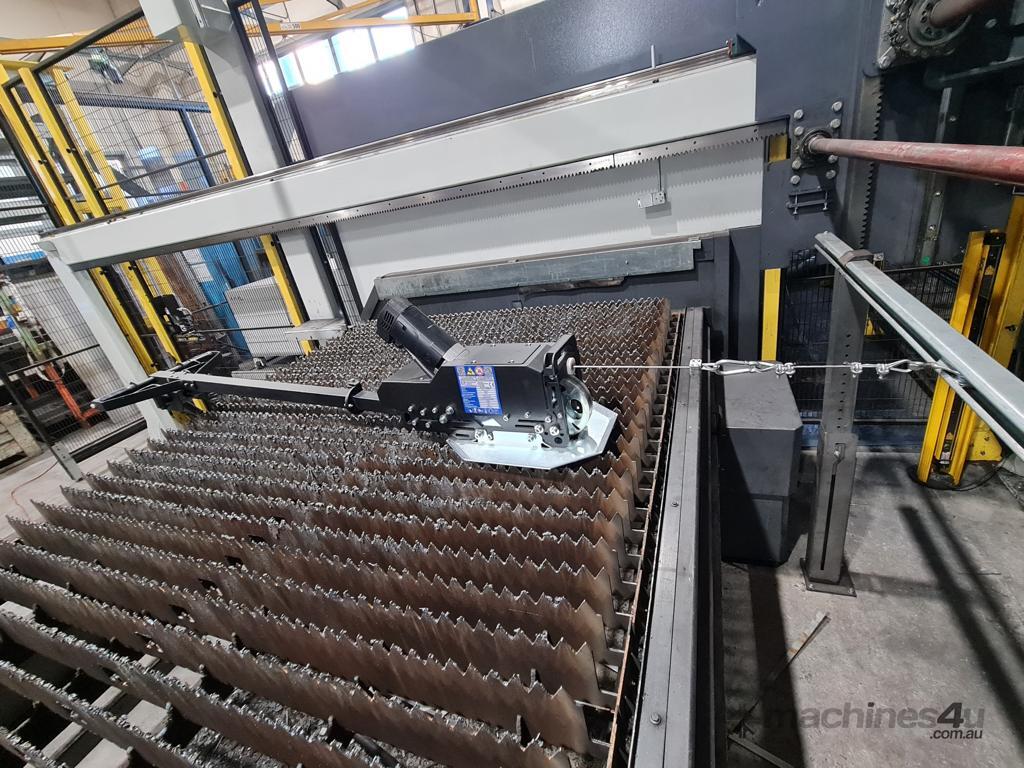

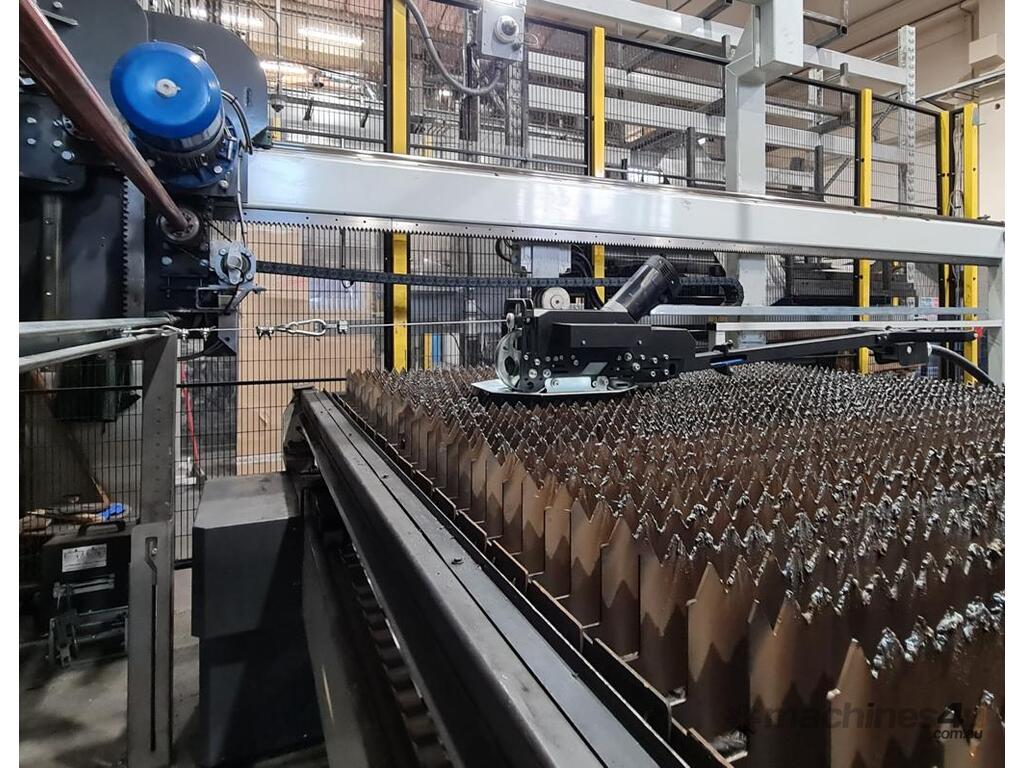

The Slat Shark also brings a new level of efficiency to the cleaning operation, thanks to the winch system which can span a full 3m x 1.5m table and can be cleaned in less than 10min without breaking a sweat.

CUTTERS:

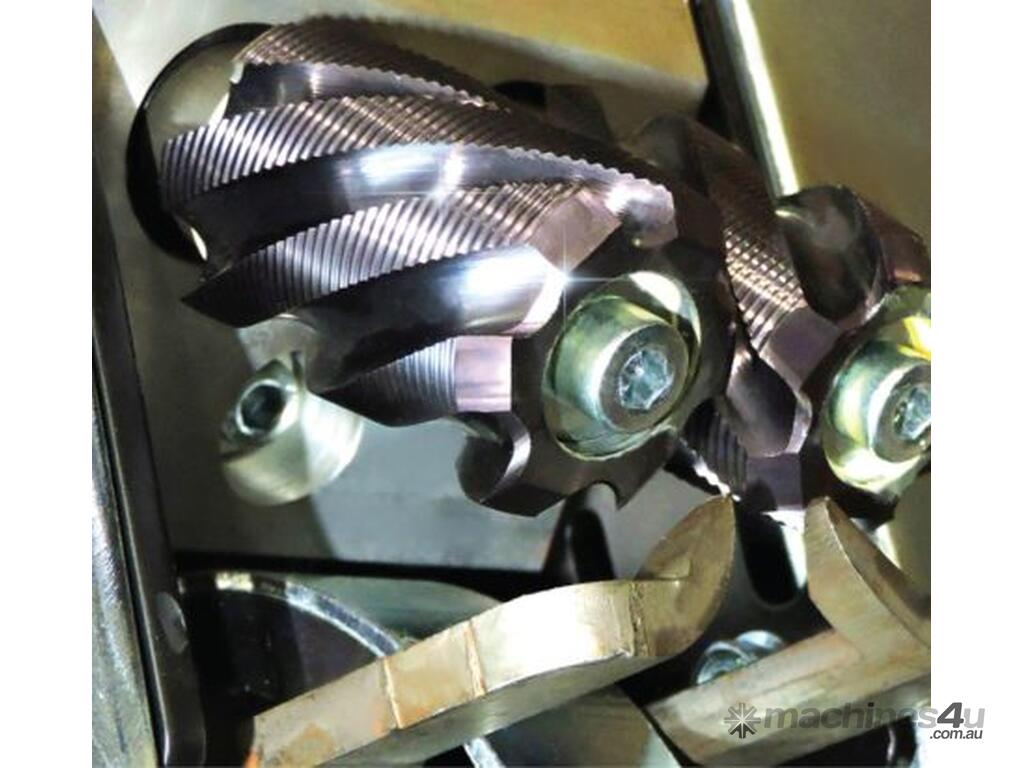

The SHARK uses HSS cutters which will clean on average of 25 kms in standard working conditions, before they need to be replaced. Cutters are available for a variety of slat thickness

Slat thickness
Type 2mm
Type 3mm
Type 4mm
Type 6mm

OPERATIONAL SPEEDS:
Grid conditions Fwd travel Speed
Light 28 meters per minute
Moderate 13.5 meters per minute
Heavy 8.5 meters per minute

REQUIREMENTS:
10A -240V 50Hz required

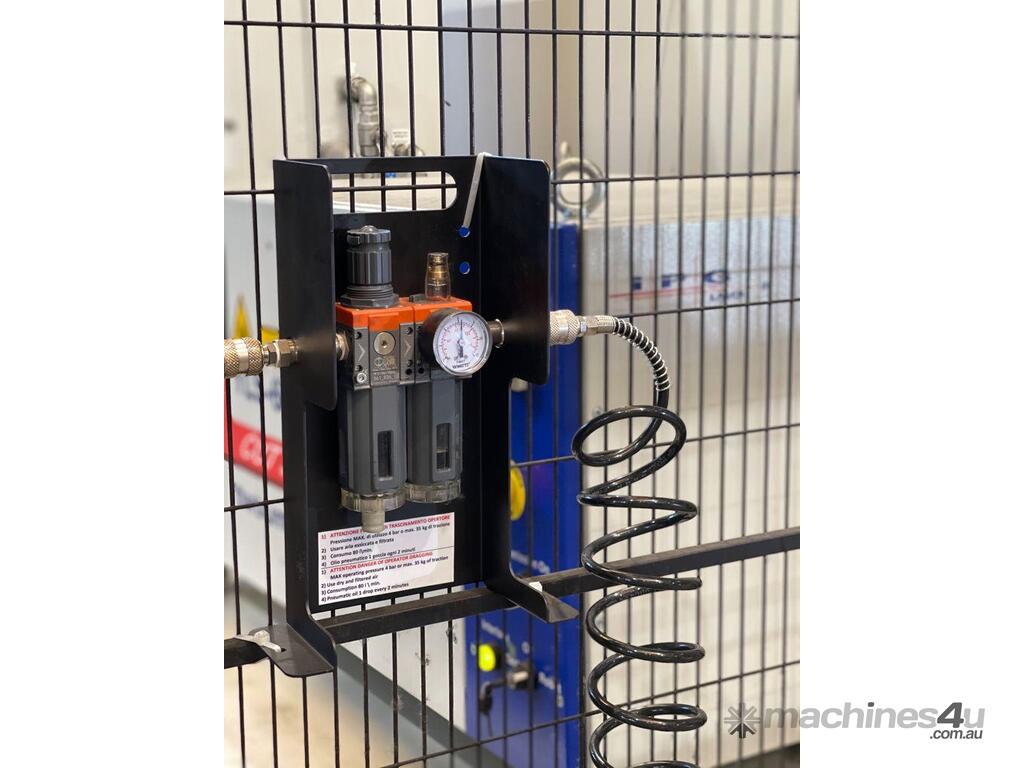

Min 58 PSI air connection
12 months warranty — CE certified & PATENTED

Go to the J Tech Lasers showroom on Machines4u to see the range of machinery that we are carrying and send us a message about the item that you are interested in, or give J Tech Lasers a call, we are happy to answer any of your questions and provide professional advice for your business solutions.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
