JTECH - Used Deratech CNC Electro-Hydraulic Press brake 3100 mm x 110 Tonnes 7 Axis

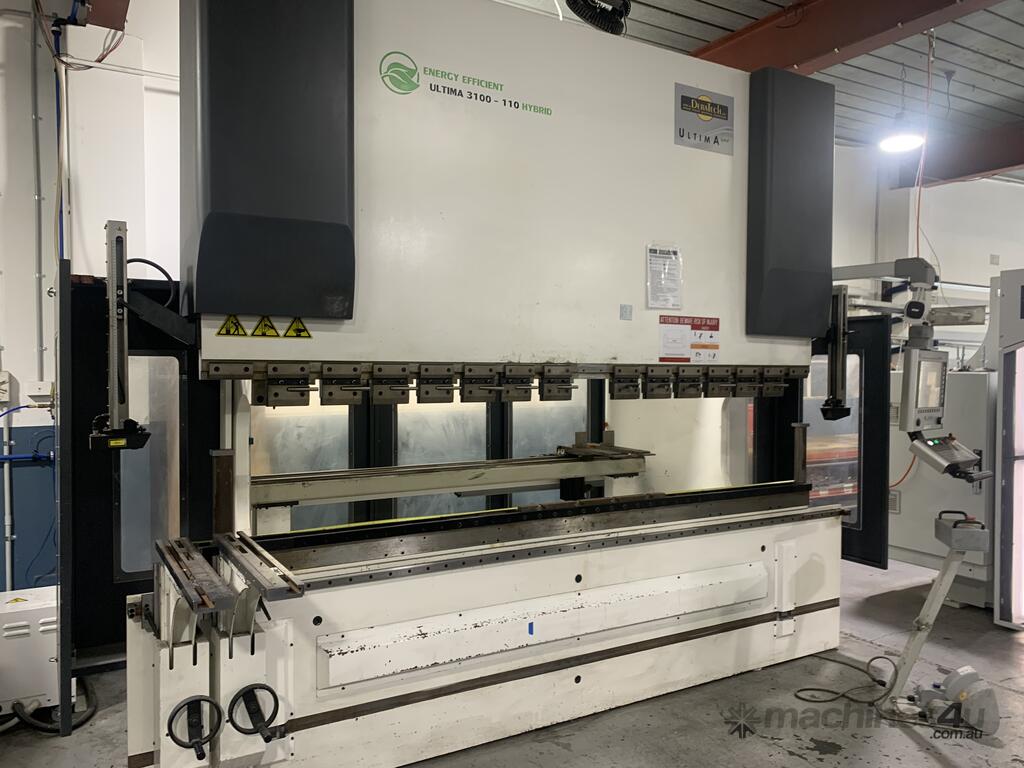

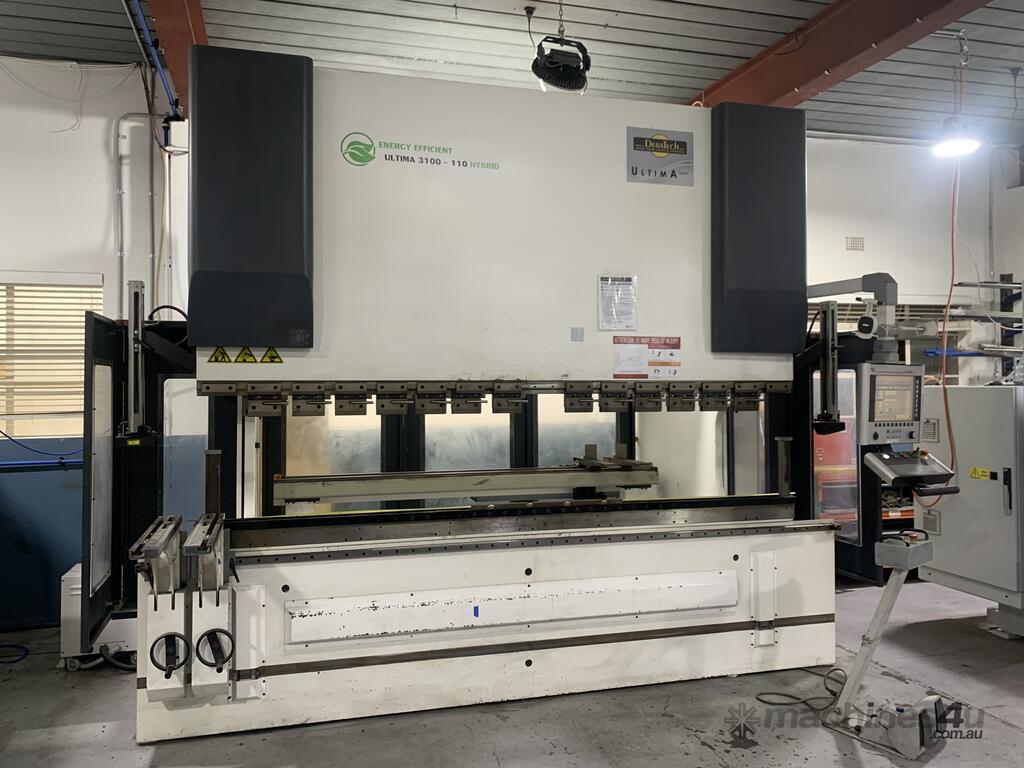

Used Deratech Ultima CNC Hydraulic Pressbrake

This Deratech electric-hydraulic CNC press brake has huge open daylight (600 mm plus) and increased cylinder stroke (400 mm), providing for increased tool heights and therefore a greater variety of products to be handled without compromise. With fast speed and high precision, thanks to optimized performance parameters and a hybrid electro hydraulic power measurement system. The back gauge system is fast and precise, and the press brake also has a crowning system with hydraulic cylinders in the lower beam providing higher precision and stability.


General Specifications:

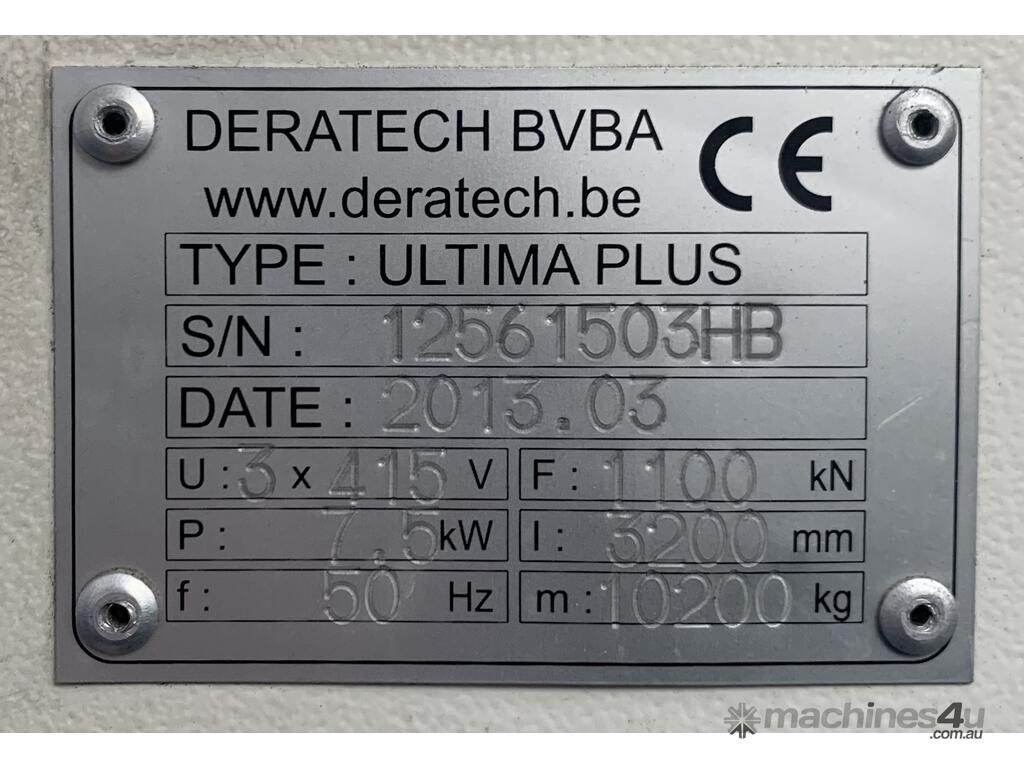

Twin cylinder, down-stroking hydraulic press brake with electronic synchronism of hydraulic cylinders (Y1, Y2) and high speed, precise rear gauging system. CNC (Computer Numeric Control) of all axes and incorporating appropriate machine guarding equipment. Wired 415 volts, 3 phase, 50 cycles supply, generally as described and illustrated in the attached brochure and to the following specifications.

Machine Features:
• Heavy duty machine construction from high quality steel
• Twin cylinder CNC synchronised hydraulic down-stroking.

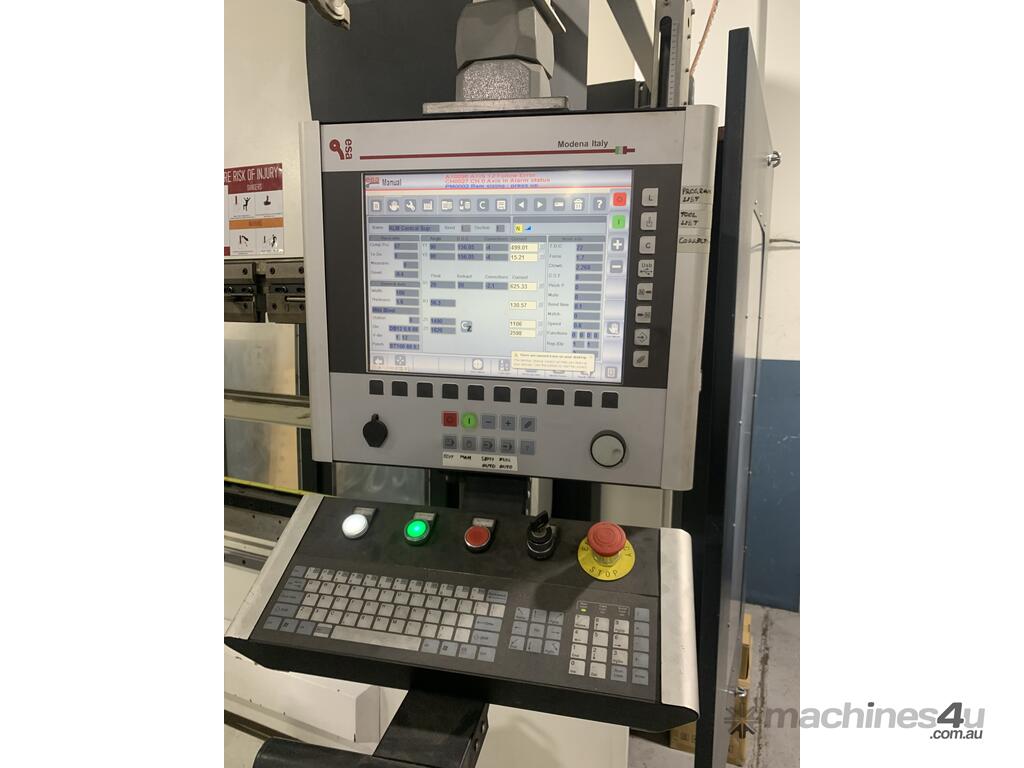

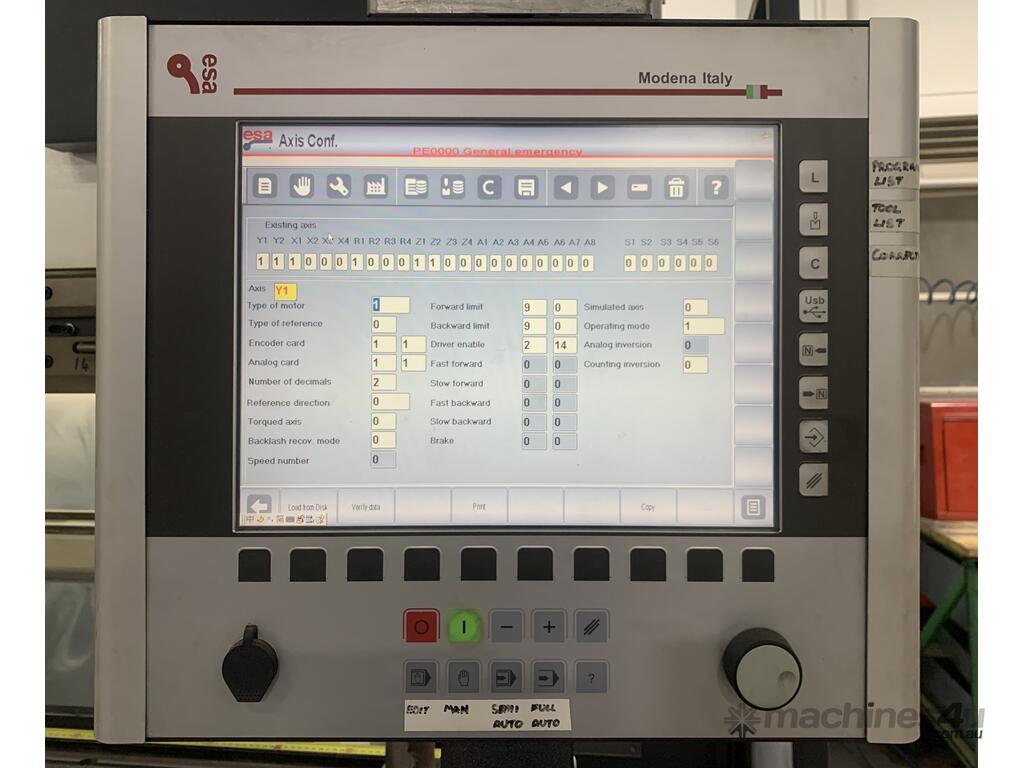

• ESA multi axis CNC controller with 2D colour graphical programming and
display for Y1, Y2 levelling and ram depth control
• Bend angle programming and correction, depth accuracy within 0.01 mm
• Linear scales mounted on independent side frames (deflection free)

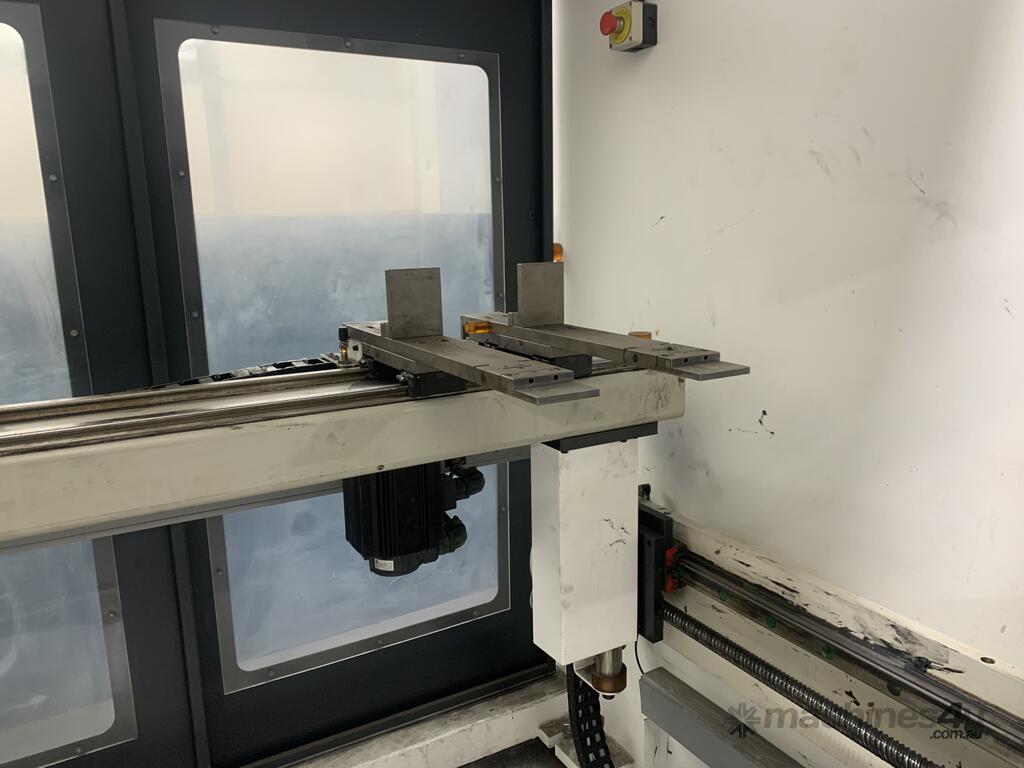

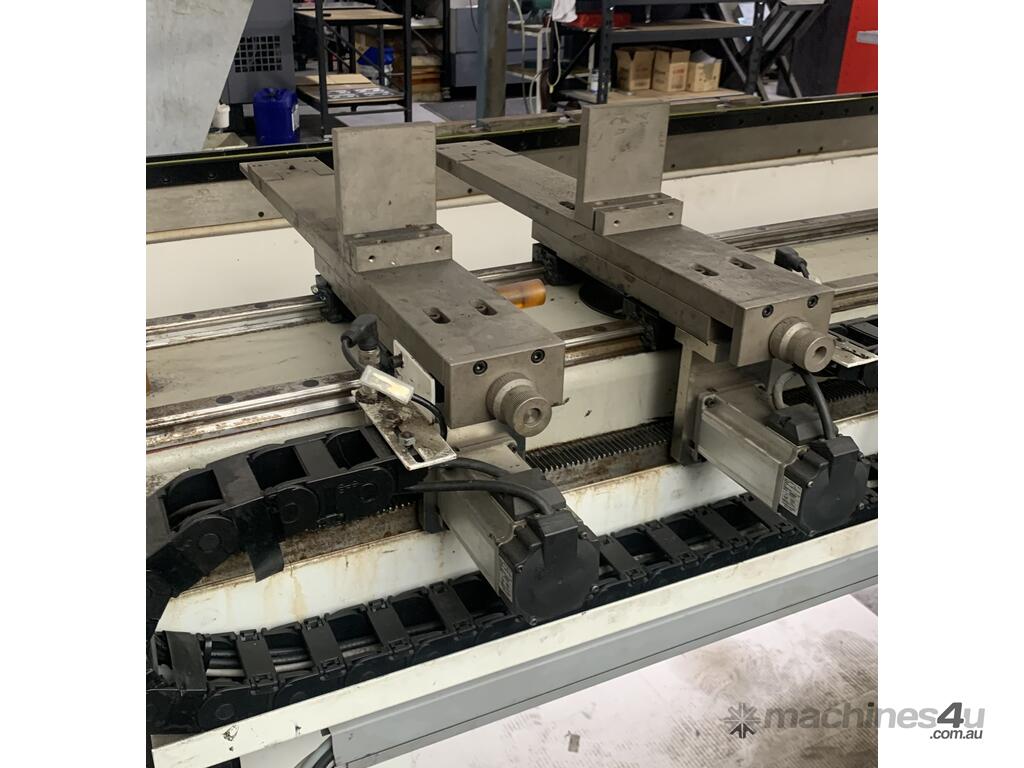

• CNC X, R, Z1 and Z2 axis back gauge with recirculating ball screws to 800 mm, AC motor
driven complete with 2 (four) heavy duty flip type gauge fingers
• CNC controlled hydraulic deflection compensation system in die table.
• Programmable fast approach / working speed change over point.
• Programmable open day light
• Programmable tonnage control

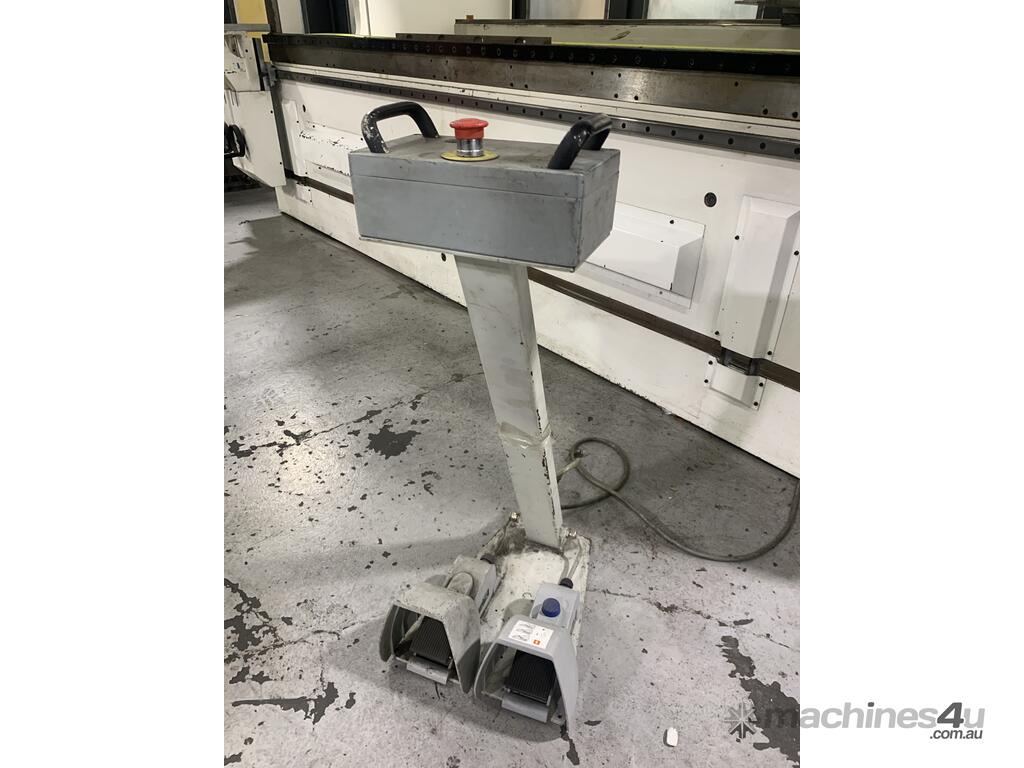

• Control station with dual foot pedal
• Low noise pump and hydraulic system utilizing Hoerbiger equipment.

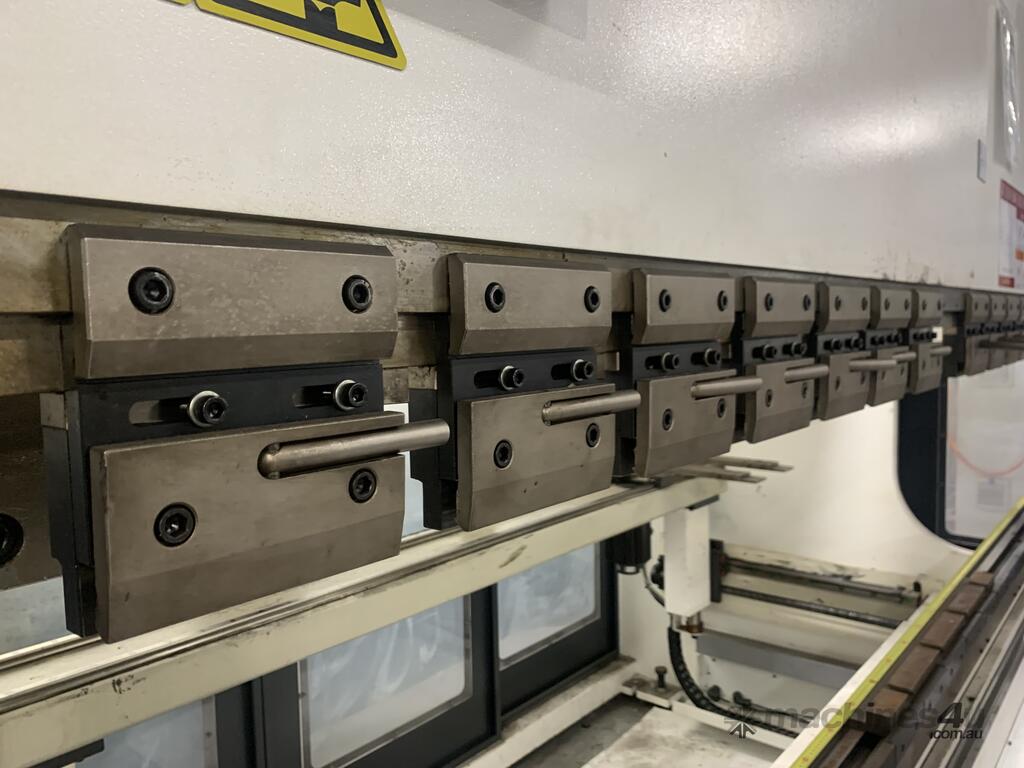

• Euro Style adjustable top tool holders with manual quick release clamping
• Narrow table with die clamps

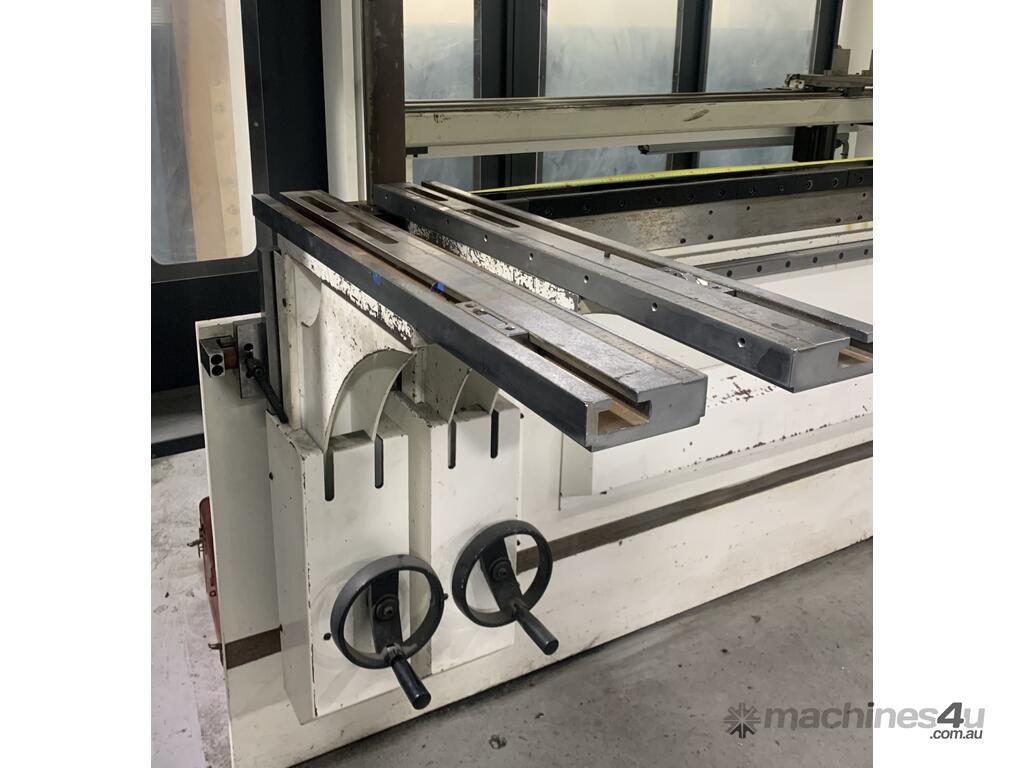

• 2 x front support arms x 600 mm, running upon bearing rail for quick adjustment.
• Full tank of hydraulic oil and operator’s manual
• Built to C E Regulations

Machine Guarding:

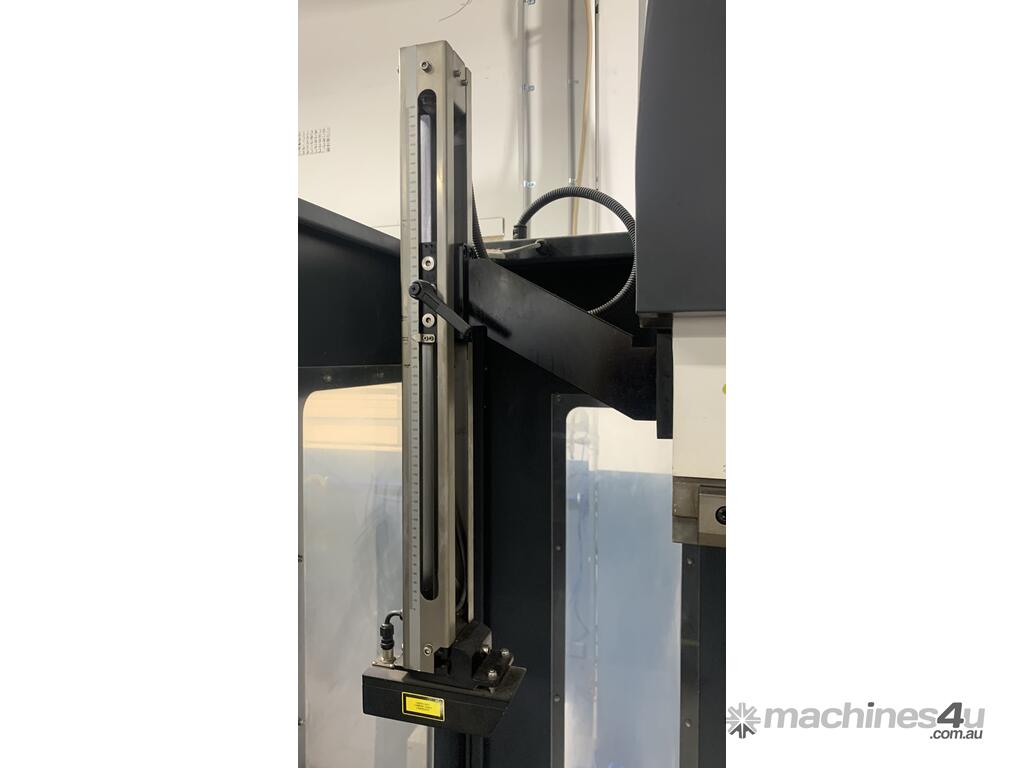

• Lasersafe laser guards, fully integrated with press brake operation.
Transmitter and receiver mounted upon top beam (ram) in line with top tool, side and rear fence guards with
electric interlock switches

Standard Tooling:
• Top tool (punch) Euro Style induction hardened and ground.
• Vee dies Euro Style induction hardened and ground.
