JUNGHEINRICH EFX 410 Electric Front Seat/Tri-Lateral Stacker

Maximum Load Capacity: 1000 kg
Maximum Lift (h3) 7000 mm
Travel Speed 9 km/h
Overall Length 3135 mm
Battery Voltage 48 V

The EFX 410 and EFX 413 tri-lateral stackers with 48-V 3-phase AC technology, 1000 to 1250 kg capacity and lift heights up to 7000 mm represent versatility and excellent flexibility in the narrow aisle warehouse. The EFX can be used in guided or free-ranging mode. The main area of application is the combined operation in narrow aisles, wide aisles and the apron area.

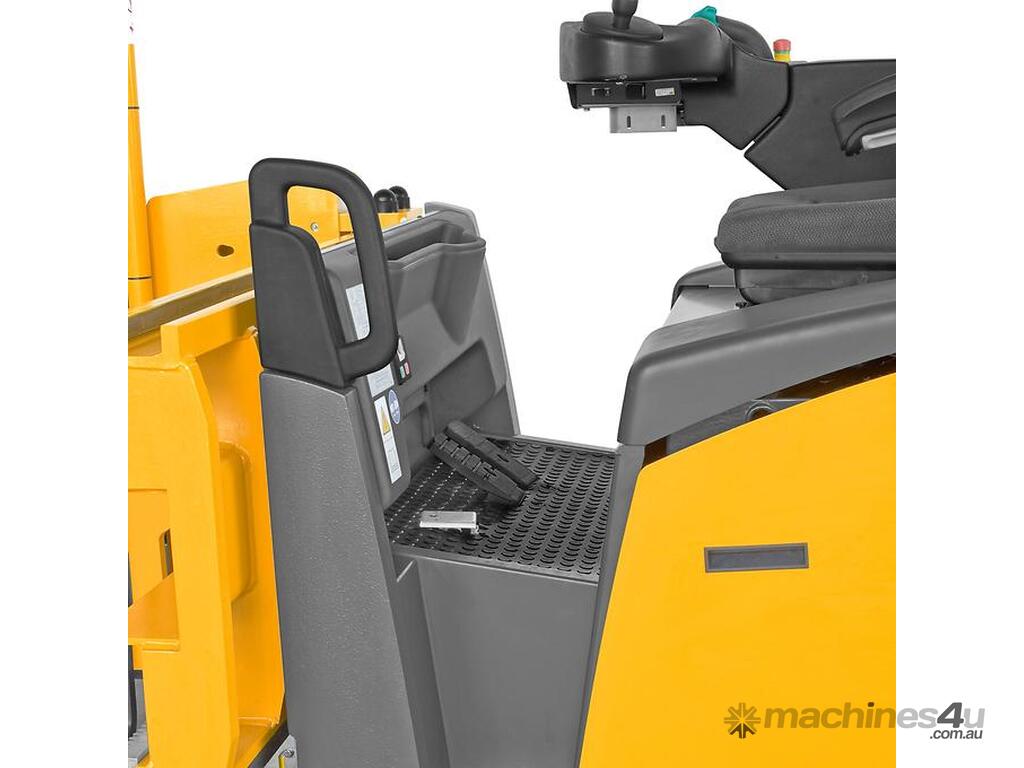

The EFX 410 and EFX 413 tri-lateral stackers impress with their ergonomic workstation with comfortable entry and exit, the vibration-absorbing comfort seat which can be adjusted to the operator's weight and height and automotive-style pedal configuration. Large storage areas, clear contours and ergonomic operational devices make work significantly more pleasant and thus faster.



The focal point is the unique truck concept with a front seat and side-mounted mast for an unrestricted view of forks, load and travel route. The performance-enhancing operating concept also features a control panel with infinitely variable height and distance adjustment and large-format display.



With a whole range of innovative features, this system represents the very latest in ergonomics:


Ergonomic controls with thumb-activated control of hydraulic functions for lifting, lowering, turning and reaching.
Integrated sure-grip steering wheel to aid precise, safe handling.
Information is transmitted via graphic display. Important operating data is displayed rapidly and clearly in icon form.
Outstanding visibility – unrestricted view of forks, load and travel route.
