JUNGHEINRICH EJD 220 Pedestrian stacker

Lift Height: 1660 - 2560 mm
Load Capacity: 2000 - 2000 kg

3-phase AC drive motor
Crawl speed button for full manoeuvrability with tiller upright
Optimum driving characteristics with ProTracLink
Exact load positioning
Multifunctional tiller arm for intuitive operation

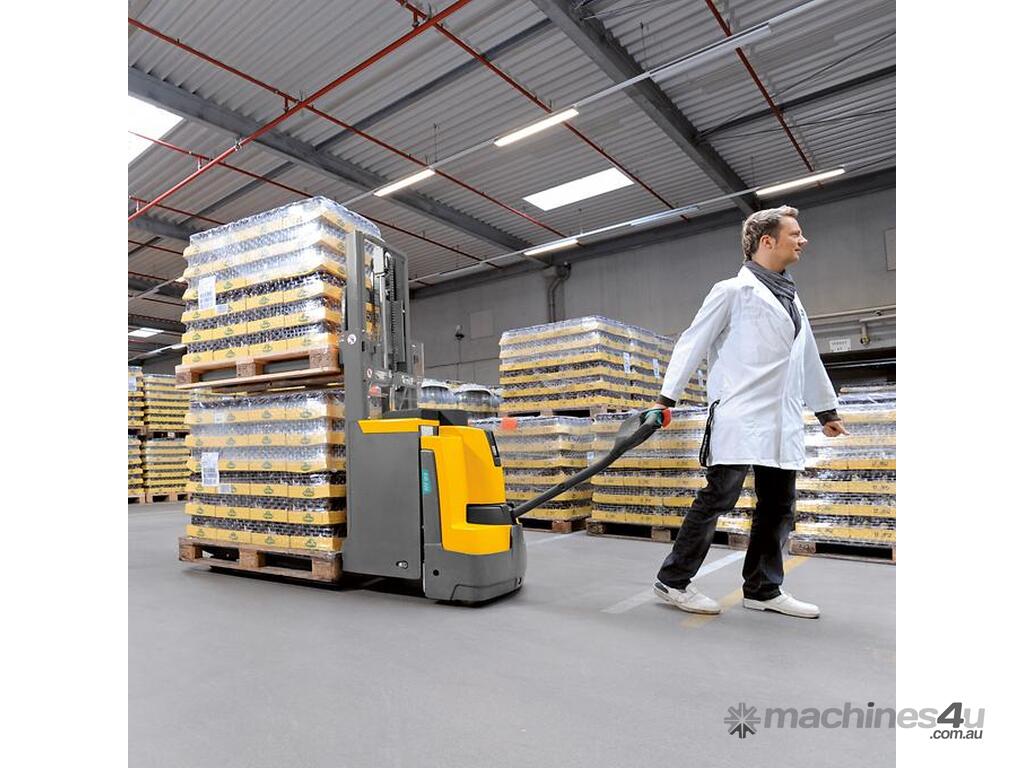

The EJD 220 is a multi-talented truck when it comes to the handling of loads. It combines the features of a pedestrian pallet truck and stacker in one truck: From loading and unloading HGVs to the transporting and stacking of pallets (max. 2560 mm lift height), it really is a convincingly flexible truck.

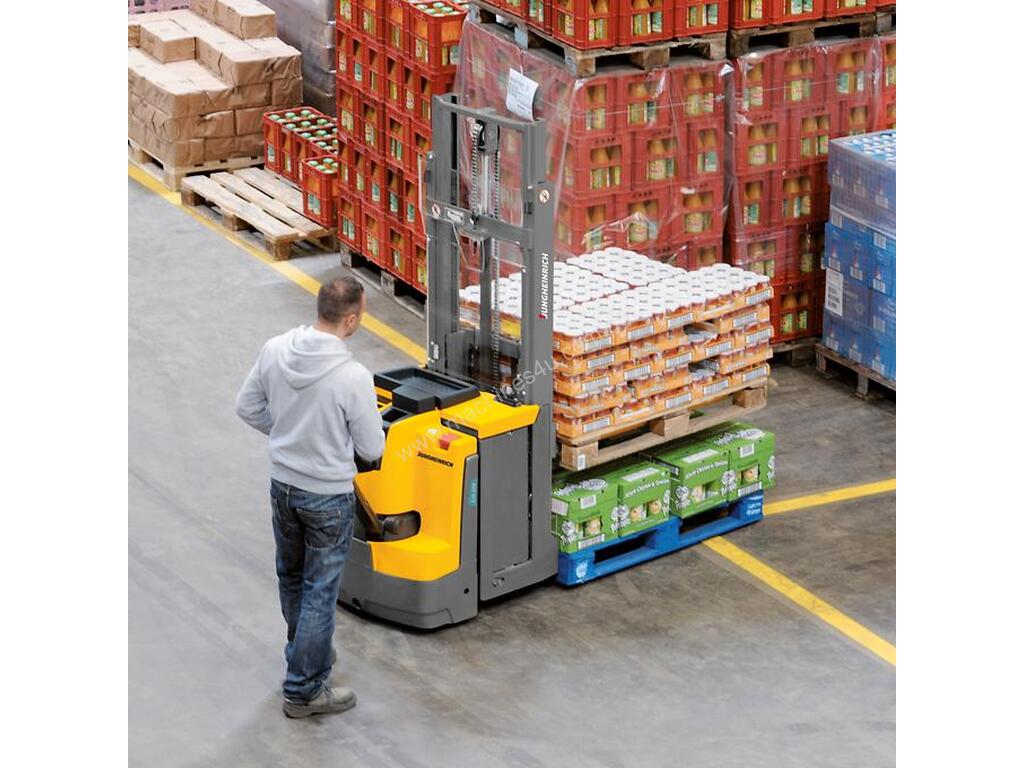

Its greatest advantage: As a double-deck stacker, it is able to lift 2 Euro pallets at the same time. All operations can therefore be performed twice as quickly in comparison with a conventional low lift/stacker truck. The EJD can carry 2000 kg when used as a low lift pallet truck, 1000 kg with the forks raised or 2 x 1000 kg in double-deck operation.



The EJD is an extremely powerful and reliable truck: The robust 8-mm frame, the powerful 1.6-kW drive with the latest 3-phase AC technology, batteries up to 375 Ah and lateral exchange, as well as the rigid mast ensure extremely efficient operation in even the most demanding environments.



The patented ProTracLink support wheel system with hydraulic locking ensures the necessary stability and safe travel. The lifting support arms also contribute to safe travel, for instance on thresholds, ramps and uneven floors. They increase the floor clearance, thereby ensuring simple and safe crossing.

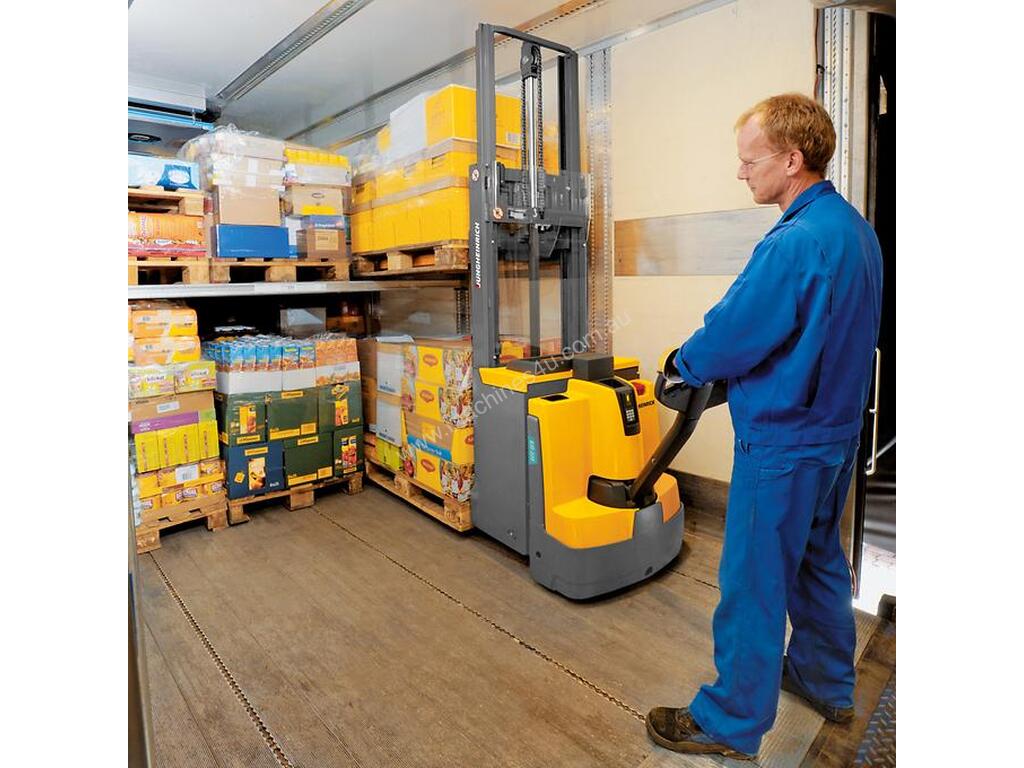

And if space becomes too cramped on HGVs or in narrow aisles, the crawl speed button facilitates safe travel with the tiller in the upright position. At the touch of a button, the brake is released and activation of the travel switch automatically reduces the speed of travel significantly.
