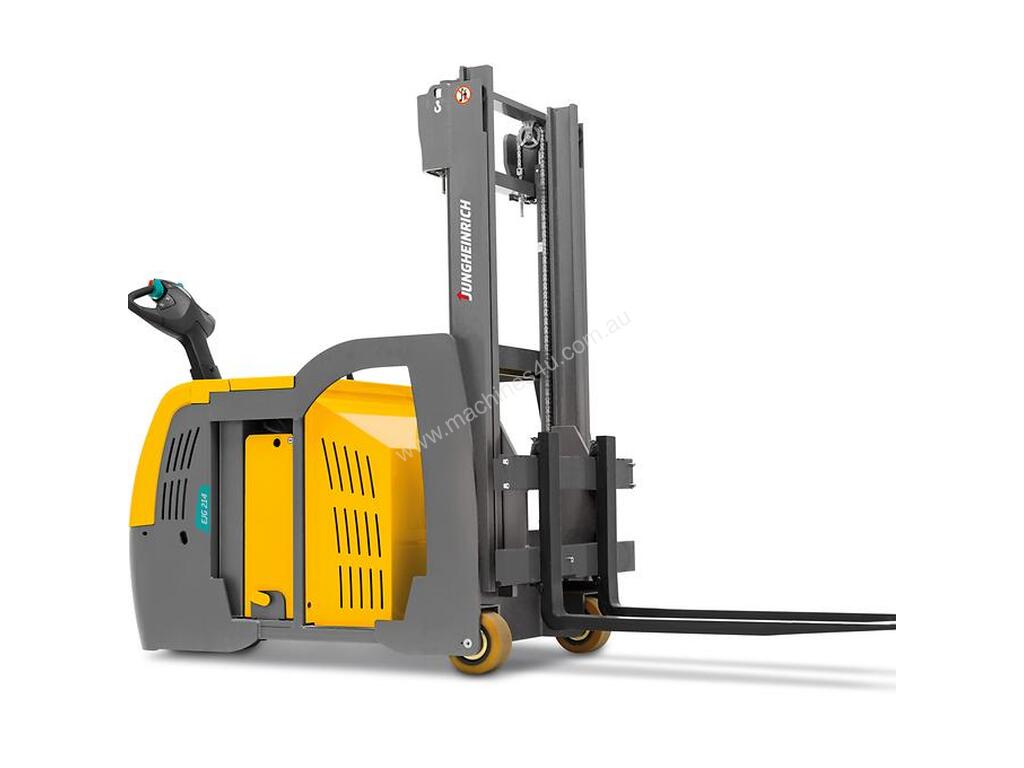

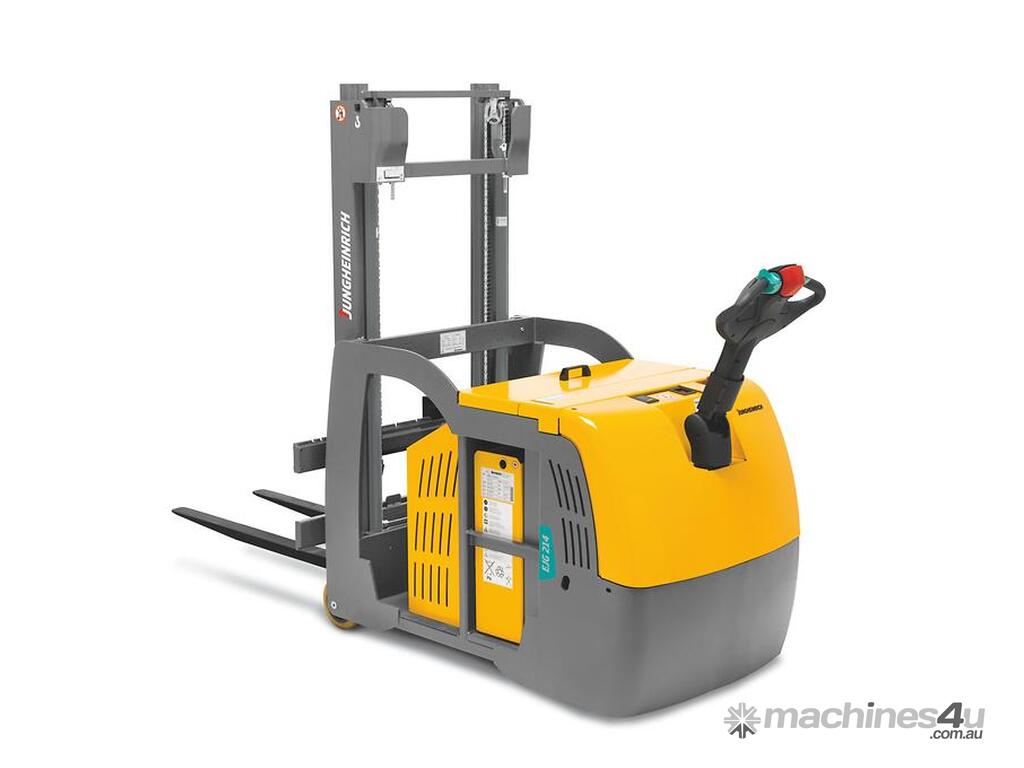

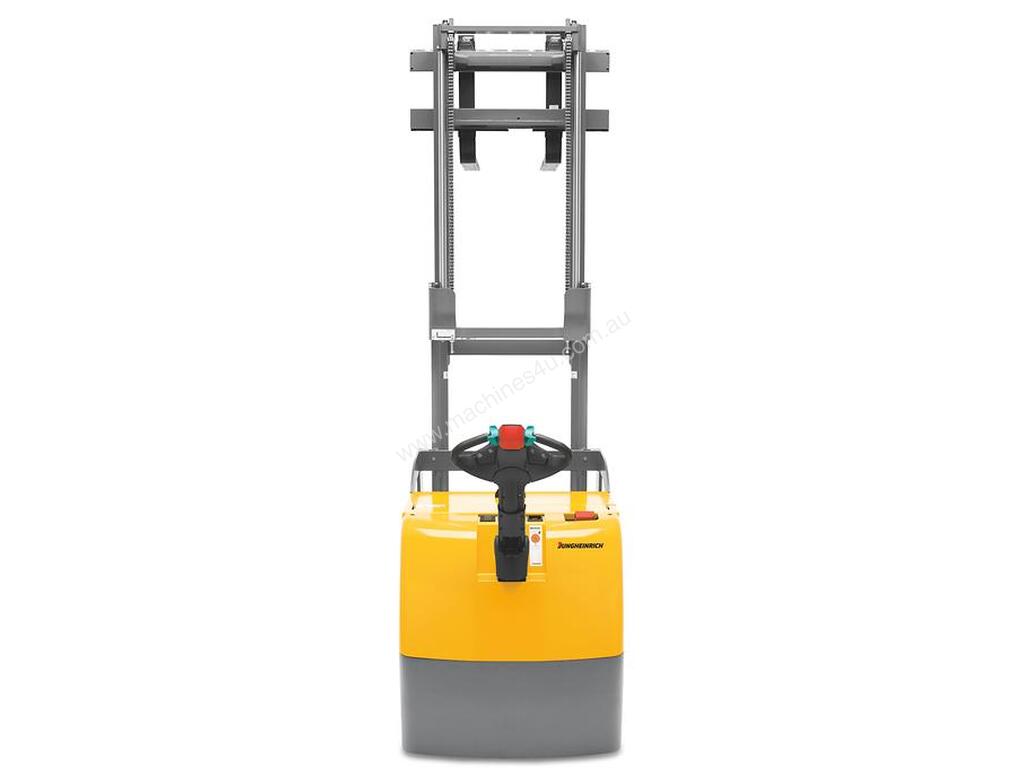

JUNGHEINRICH EJG 214 Pedestrian stacker

Model: EJG 214
Maximum Load Capacity 1400 kg
Maximum Lift (h3) 5350 m
Travel Speed 6 km/h
Overall Length 2750 mm
Battery Voltage 24 V

The EJG is a pedestrian controlled counterbalance truck which can be used wherever support arm stacker trucks cannot operate (e.g. lifting perimeter based pallets from the floor, special load sizes, racking with collision protection). With an overall width of 910 mm and a high degree of manoeuvrability, it can also be operated with ease in confined warehouse areas. Above all, the EJG 212 offers a very short front chassis length.



The EJG in pedestrian mode can be operated without a driver certificate and is therefore suitable for applications where personnel change frequently. As a universal truck, the EJG offers a number of advantages:


Gentle depositing of the load on the floor or in the racking with proportional hydraulics.
Minimum noise during lifting.
Electric tiller steering means greatly reduced steering force for fatigue-free steering.
Extremely sturdy frame and load section.
High ground clearance and large load wheels for comfortable travel on uneven ground.

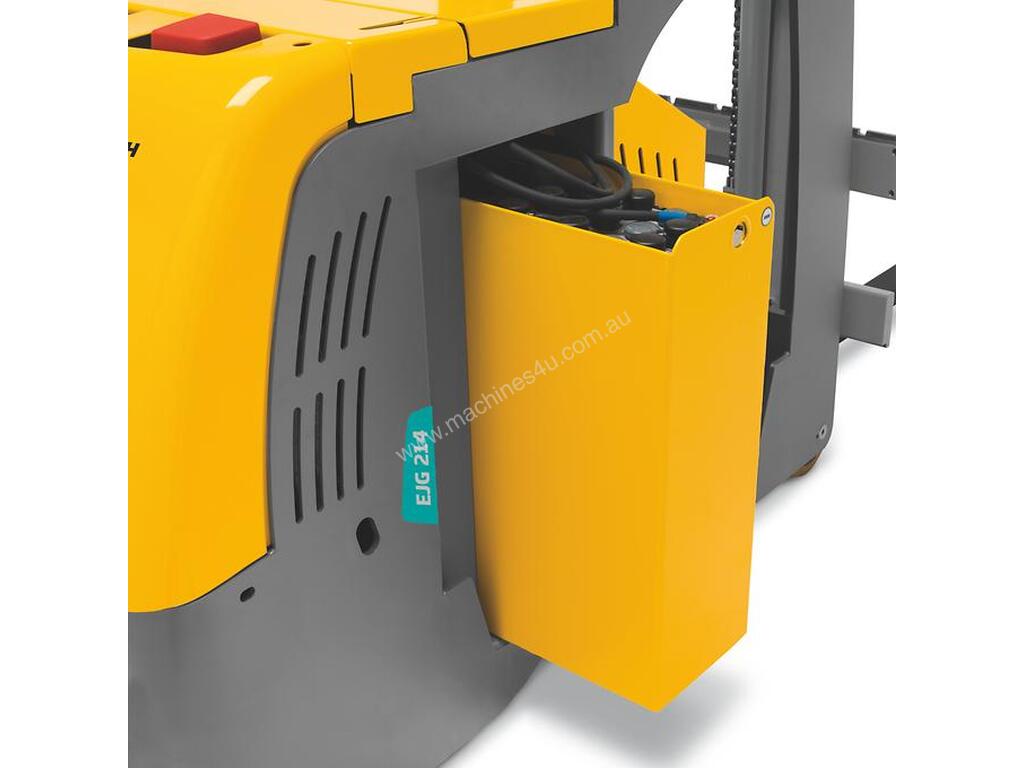

The EJG draws its energy from batteries with capacities of up to 375 Ah. Battery compartments for lateral battery exchange are available for multi-shift operations (optional). A built-in charger (optional) ensures comfortable and reliable charging at any standard 230-V mains socket.
