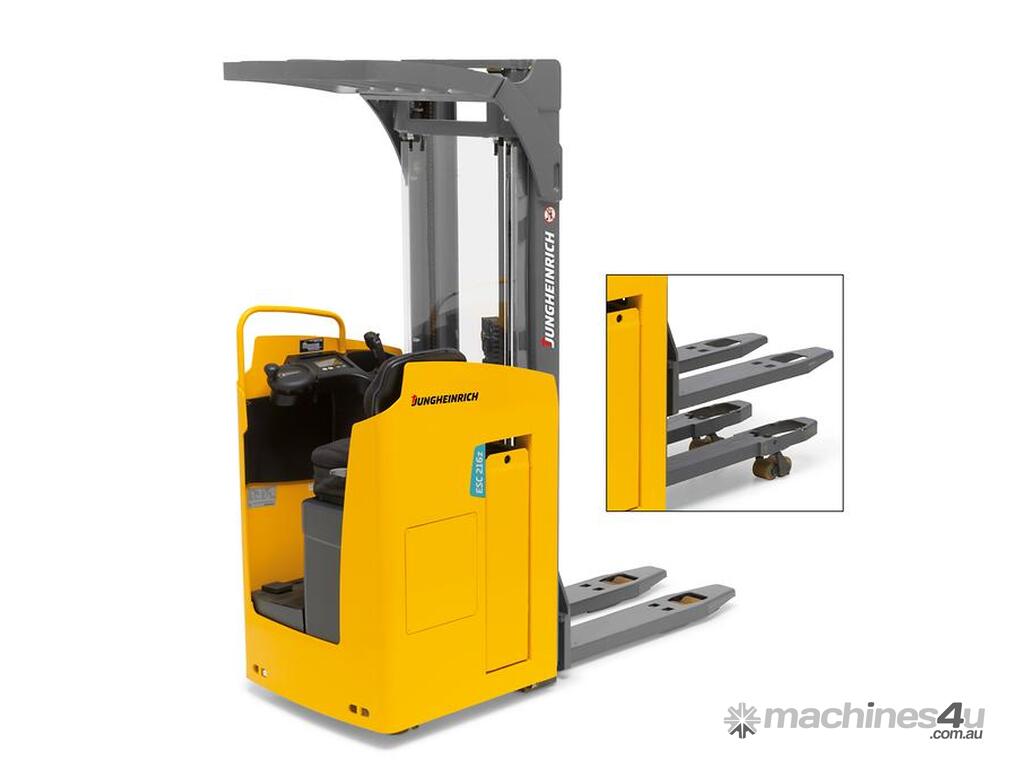

JUNGHEINRICH ESC 216 Sideways-seated Stacker

Model: ESC 216
Maximum Load Capacity 1600 kg
Maximum Lift (h3) 5350 mm
Travel Speed 9,1 km/h
Overall Length 2125 mm
Battery Voltage 24 V

This electric sideways-seated stackers are ideal for longer transport distances during stacking and retrieval. With a width of just 820 mm and a short working aisle width, the ESC shows particular strength in applications where space is limited and in block storage warehouses.

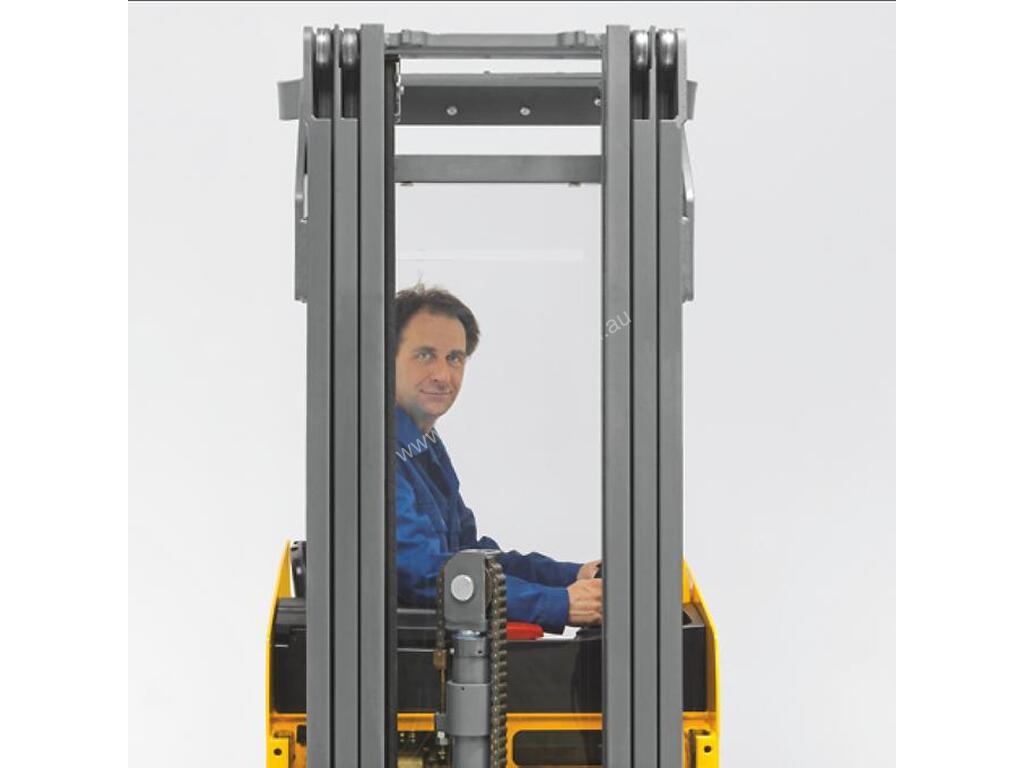

The comfortable sideways seating position provides the operator with excellent visibility. This is a great advantage, especially where frequent changes of direction are required. The individual height adjustment of the foot-well provides a relaxed work environment for operators of different heights.



Other advantages include:


Powerful, innovative 2.8 kW 3-phase drive motor for high acceleration and performance.
High residual capacities and powerful lift motor.
Extremely durable frame for exceptionally high operational demands.

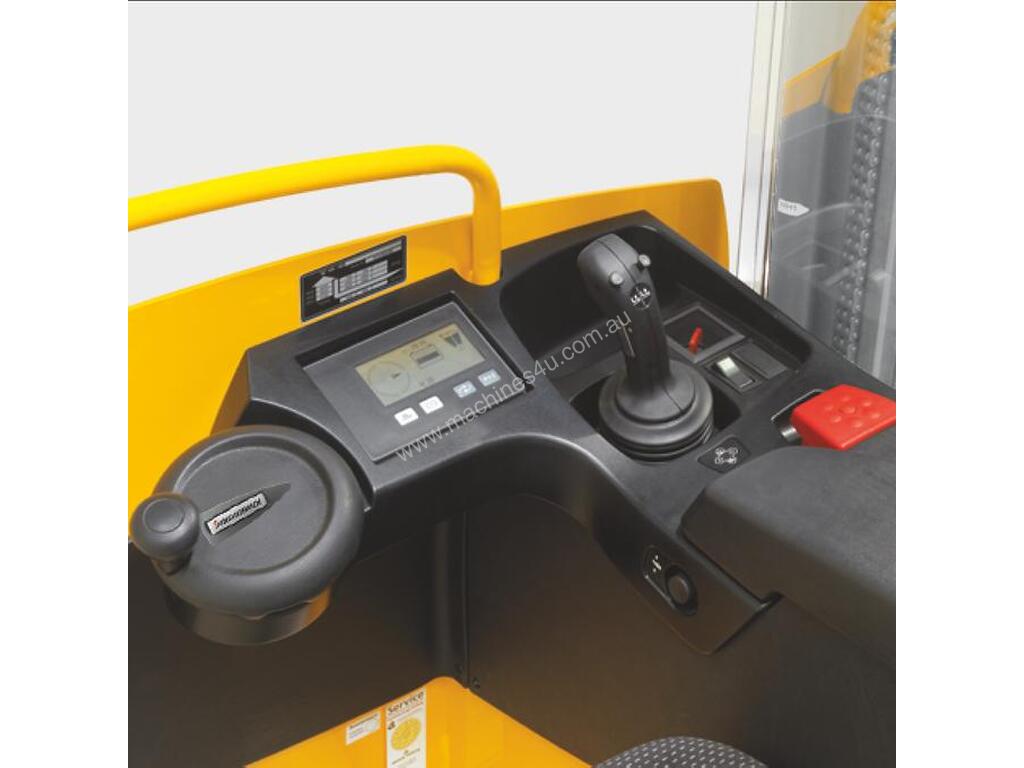

Display showing steering position and travel program selection (optional).
Electric steering for easy manoeuvring with a few turns of the steering wheel.
Low operating costs due to excellent energy management.


Thanks to its initial lift, the ESC 214z/216z is also able to cope effortlessly with uneven floors. All drive and lift functions are performed using the multifunctional lever within easy reach. Thanks to the compact design and excellent ergonomics, the ESC is the ideal stacker for working in restricted spaces.
