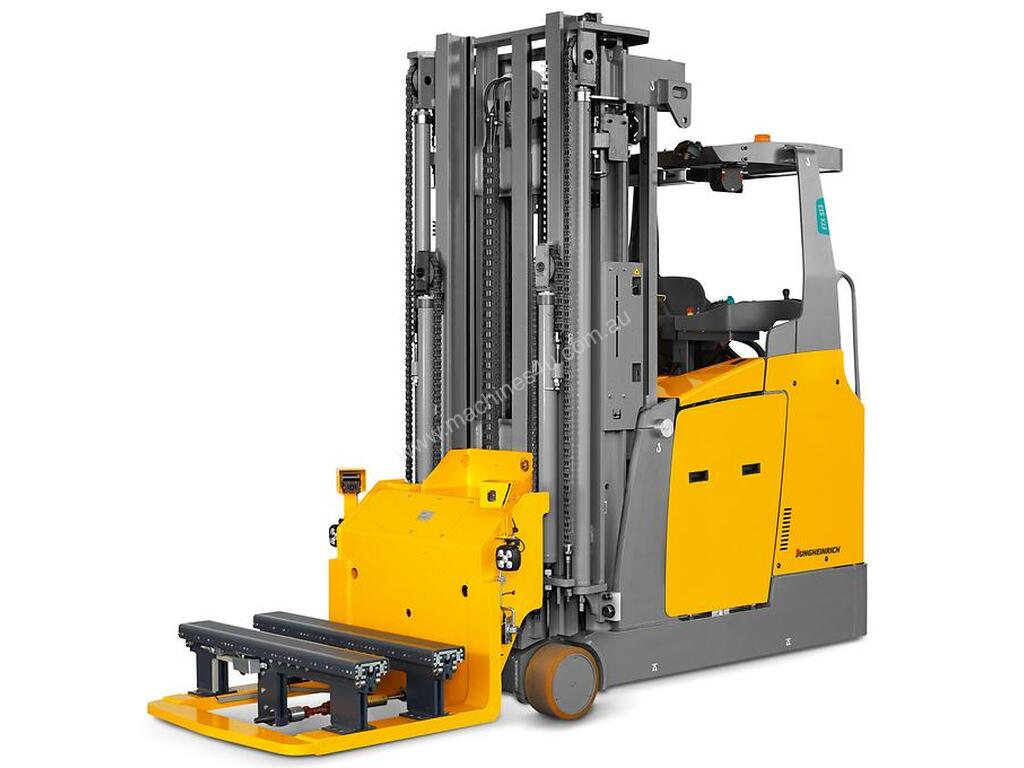

JUNGHEINRICH ETX 513 Sideways-seated / tri-lateral stacker

Maximum Load Capacity: 1250 kg
Maximum Lift (h3) 13000 mm
Travel Speed 10,5 km/h
Overall Length 3492 mm
Battery Voltage 80 V

This high rack stackers offer maximum performance in the 'high end area' of a narrow aisle warehouse. They set new benchmarks when it comes to flexibility, efficiency and ergonomics.



Flexibility through modular construction: The Jungheinrich modular system has more than 5 million possible configurations providing flexibility from the outset. The advantage: Optimum adaptation to any warehouse and logistics strategy. An intelligent truck management system with TÜV certified control and CAN-Bus system, means the performance range is adaptable to any requirements and offers a range of additional safety features.



Excellent performance and energy efficiency lead to fast throughput and high cost-effectiveness. This is precisely what is offered by our 3-phase AC technology with higher performance data and greater dynamics, matched by improved energy utilisation. The advantage: Fully usable throughout two shifts in normal operation without battery change. Accessing all these applications is child's play for the ETX operator:


Informative colour display. Important operating data is easily and legibly laid out.
All parameters and programs can be set individually.
Softkeys to control functions and menus.
Camera/monitor system for effective stacking and retrieval of pallets at great lift heights.
Hydraulic control by thumb movement.
Automotive style pedal arrangement for control and braking.

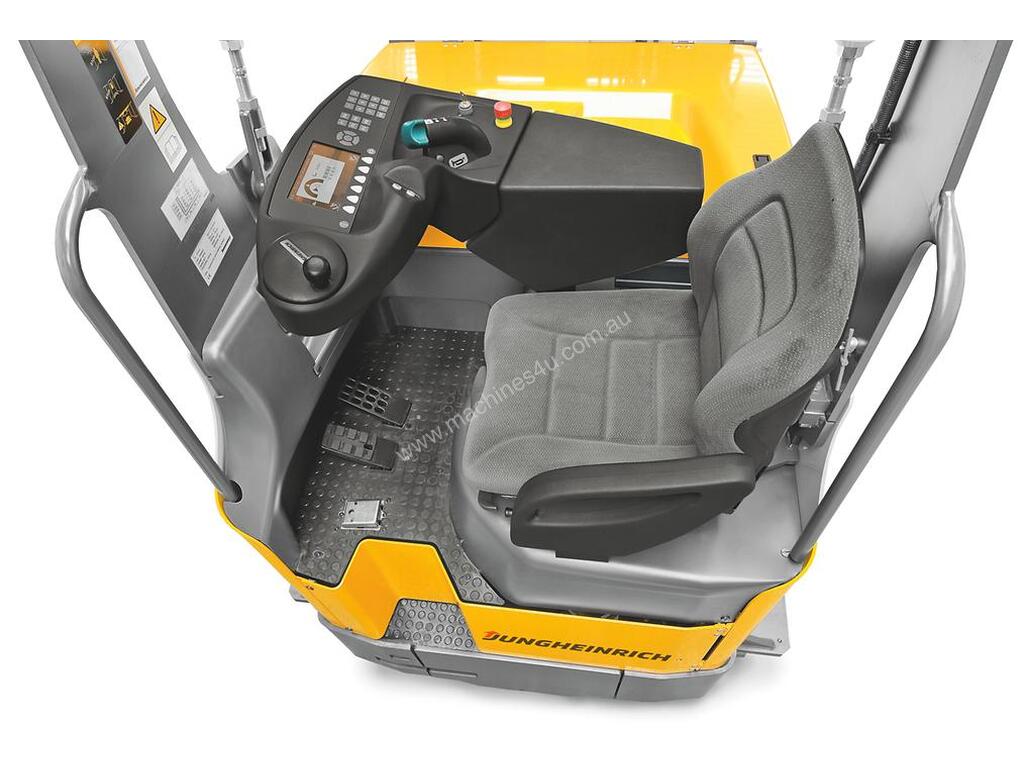

Side-seated position for fatigue-free operation.
