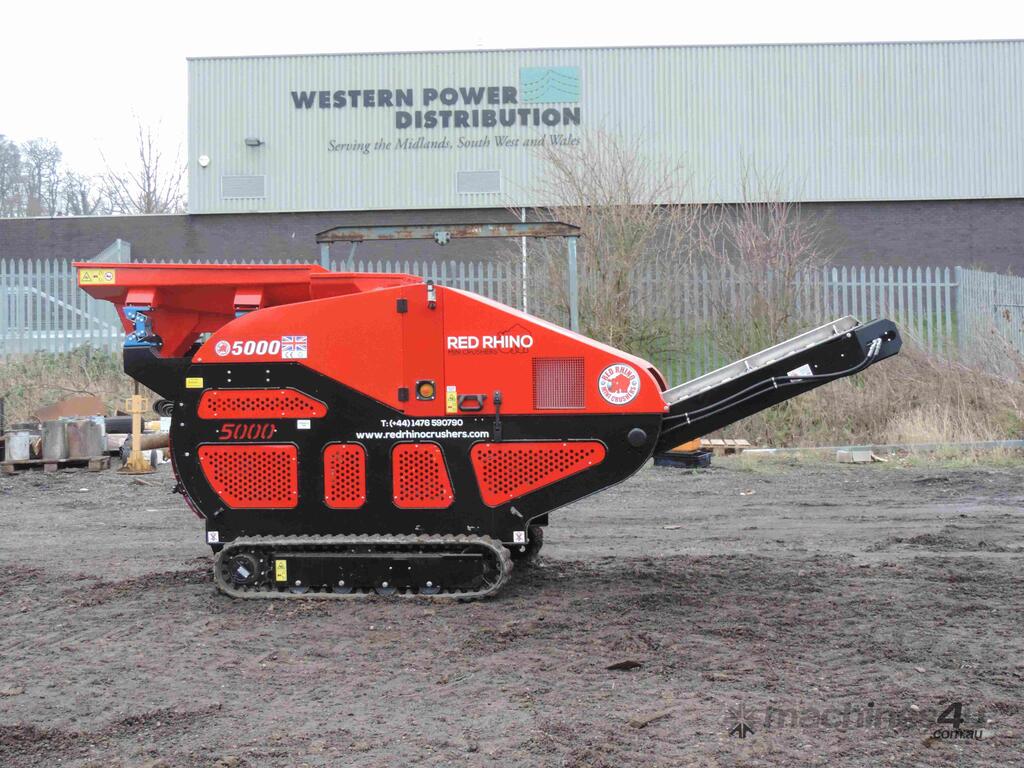

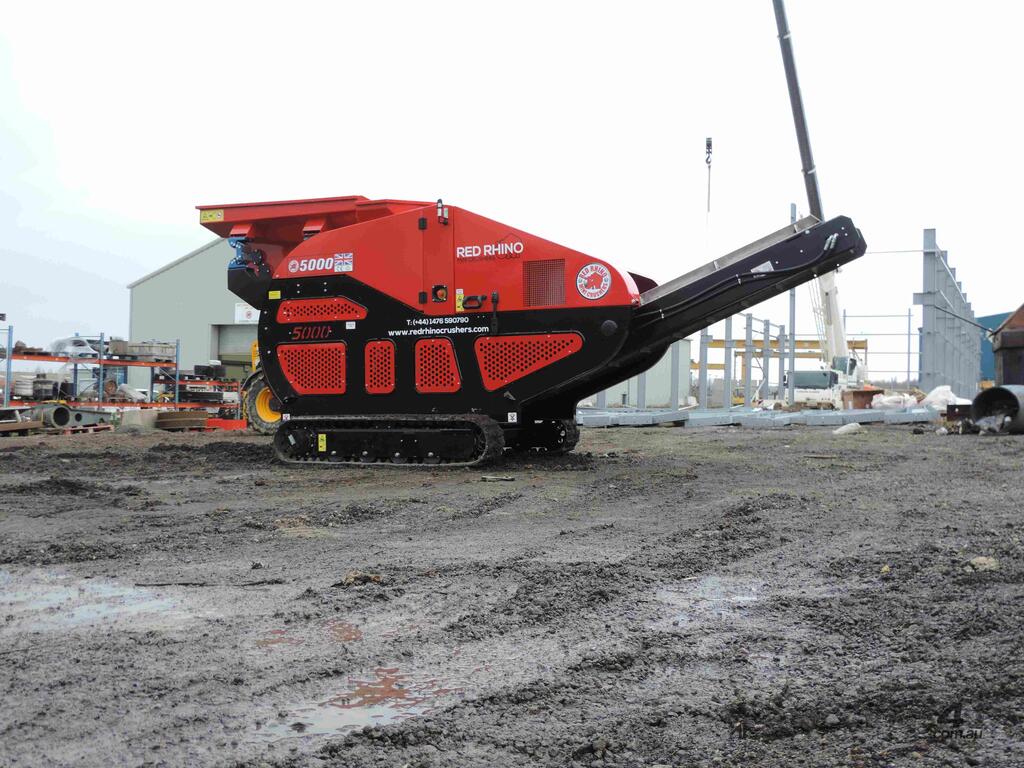

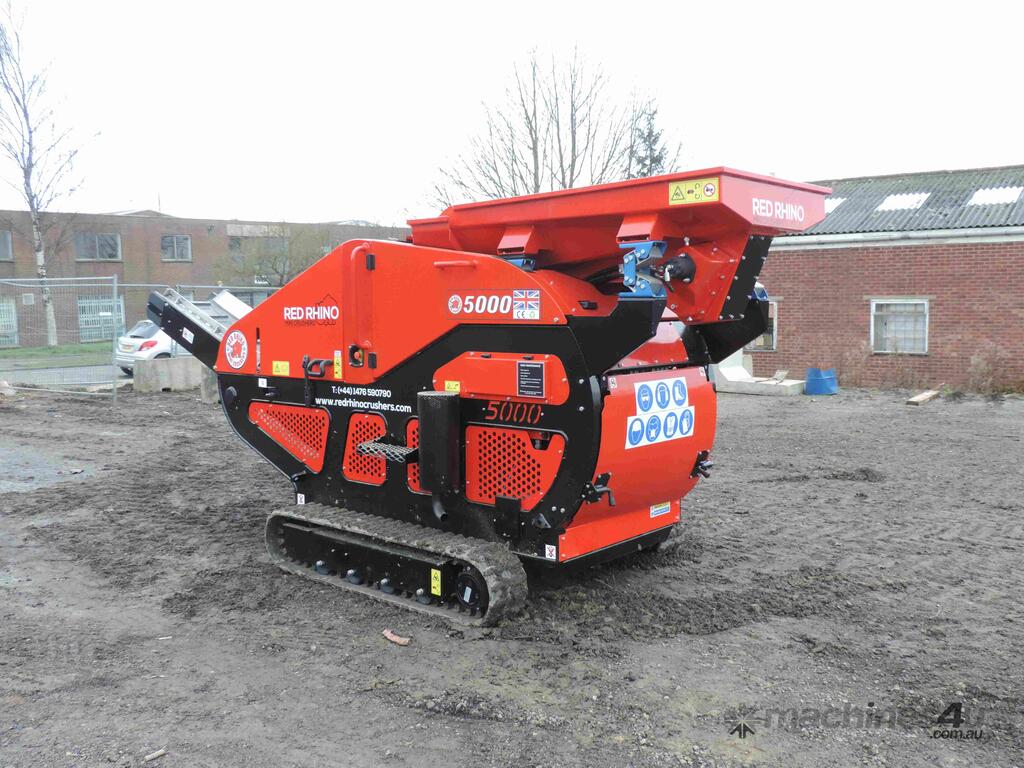

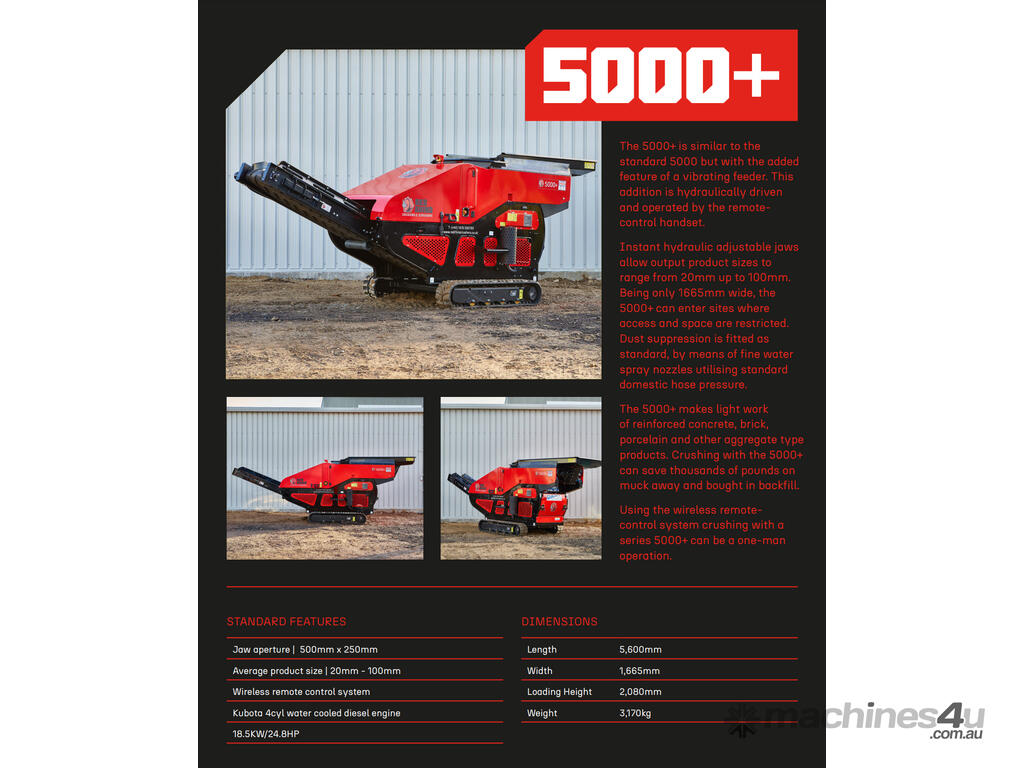

Jaw Crusher Model 5000+

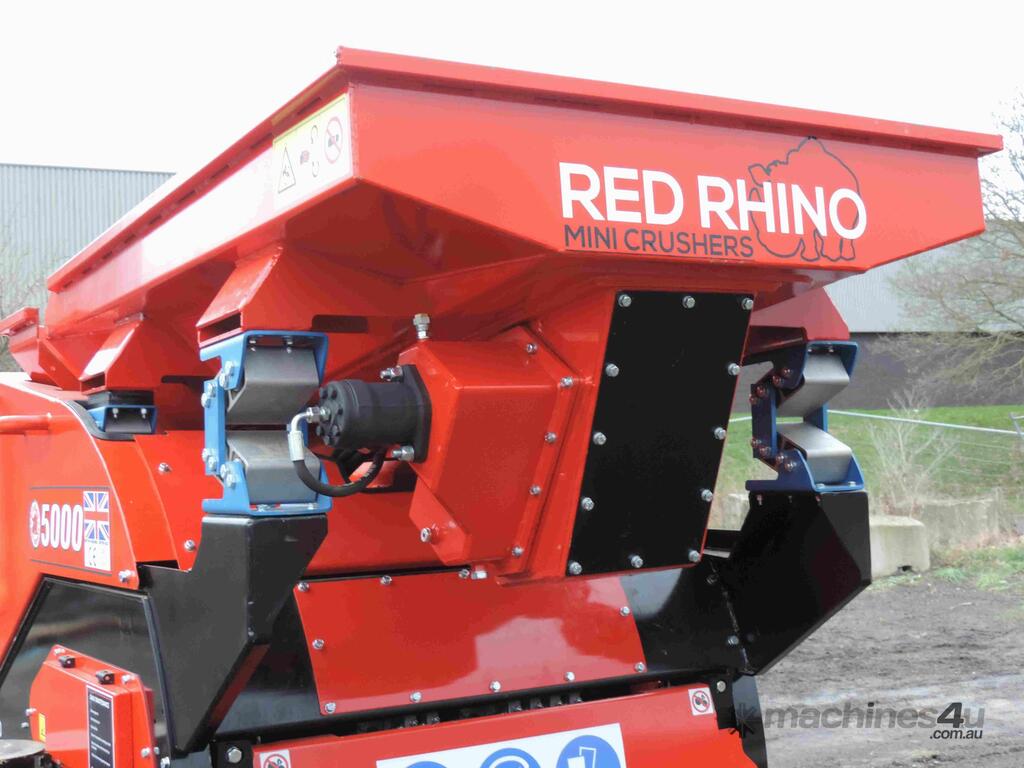

The 5000 Plus is similar to the standard 5000 but with the added feature of a vibrating feeder. This addition is hydraulically driven and operated by the remote-control handset.

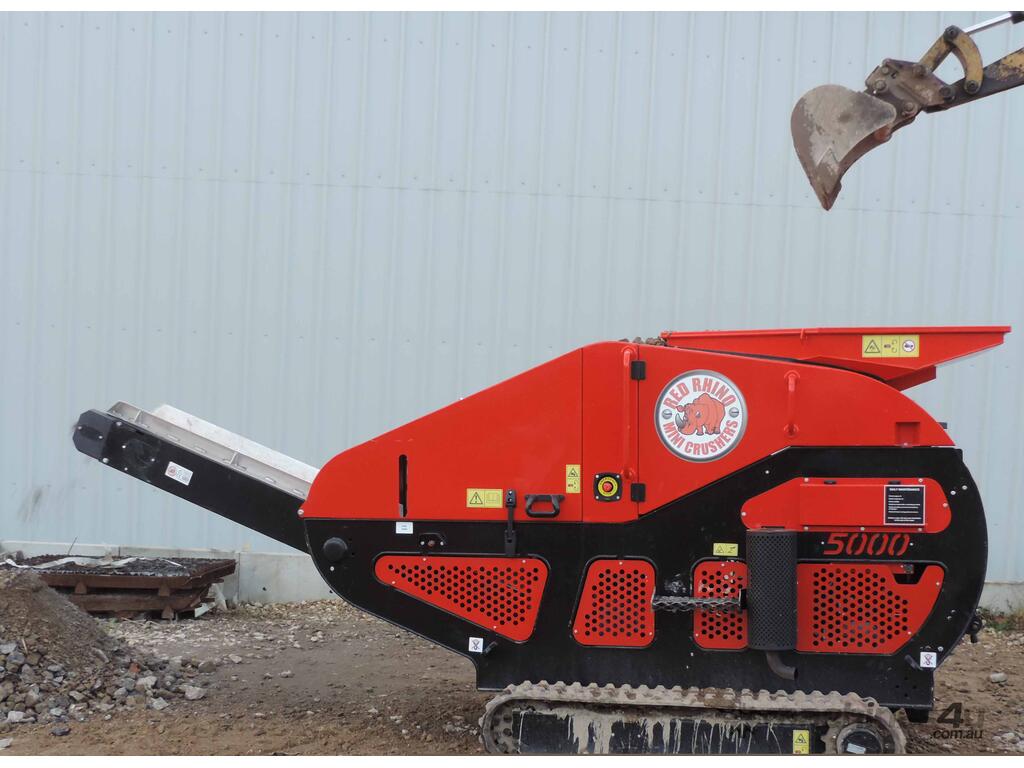

The 5000 series is a jaw action crusher that will crush a full UK kerbstone in approximately 30 seconds. Instant hydraulic adjustable jaws allow output product sizes to range from 10mm up to 100mm. Being only 1663mm wide, the 5000 series can enter sites where access and space are restricted. Dust suppression is fitted as standard, by means of fine water spray nozzles utilising standard domestic hose pressure.

This crusher is very popular with civil engineering companies wanting to crush onsite, or skip companies looking to reduce their liabilities to landfill. The 5000 series makes light work of reinforced concrete, brick, porcelain and other aggregate type products. Crushing with the 5000 series can save thousands of pounds on muck away and bought
in backfill.

It is easily transported from site to site using a plant trailer and can be up and crushing within 5 minutes of arrival.

Using the wireless remote control system crushing with a 5000 series can be a one man operation. The 5000 series can not be matched for its reliability and performance by any other product on the market.

STANDARD FEATURES

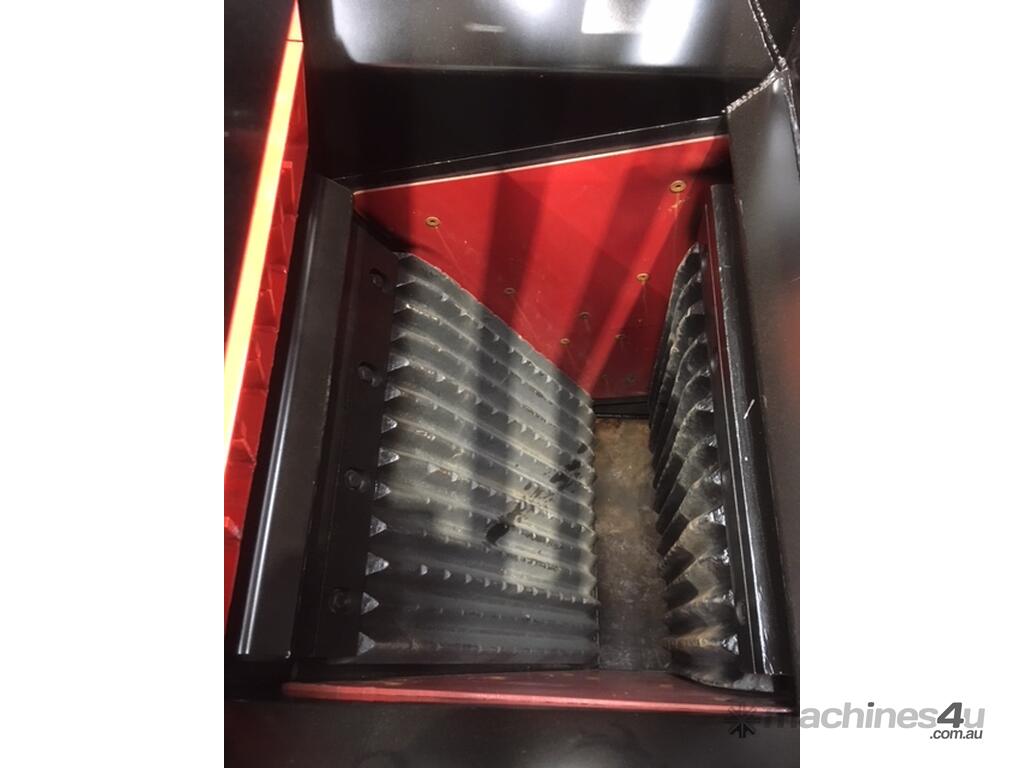

• Jaw aperture of 500mm x 250mm
• Output size choice from 10mm to 100mm

•Additional product sizes on request

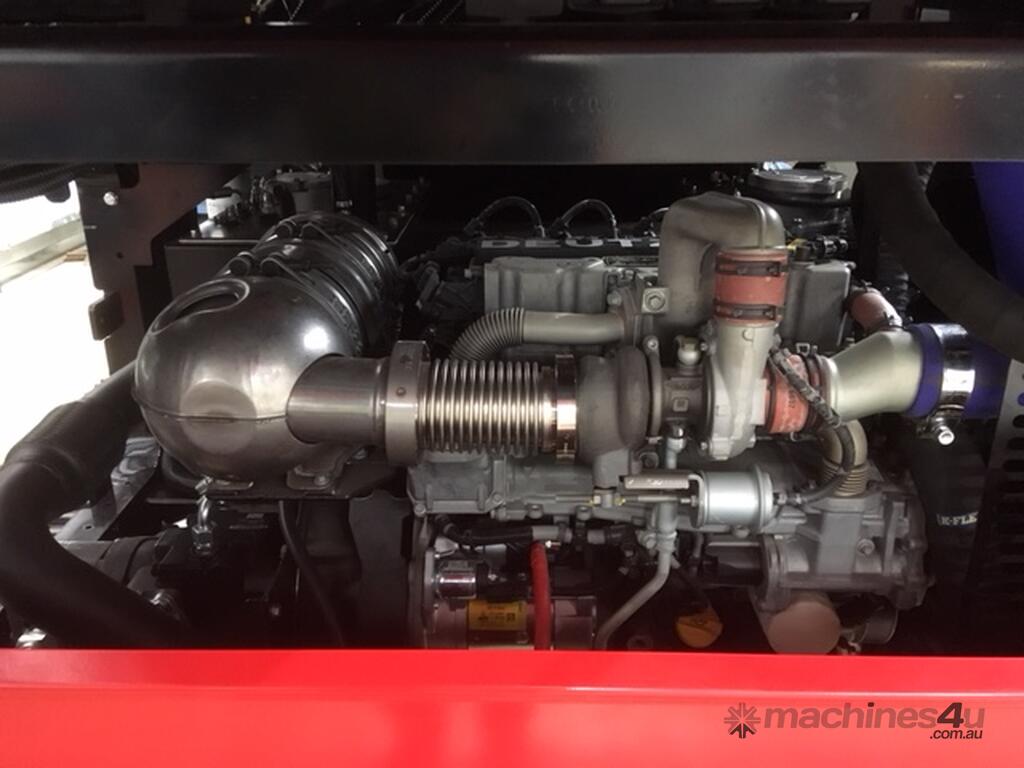

•Kubota V1505-E4B 4 Cylinder Water Cooled Diesel
•18.5KW/ 24.8HP
• Fuel consumption is approximately 5 litres per hour
• Output can be up to 15t – 20t per hour

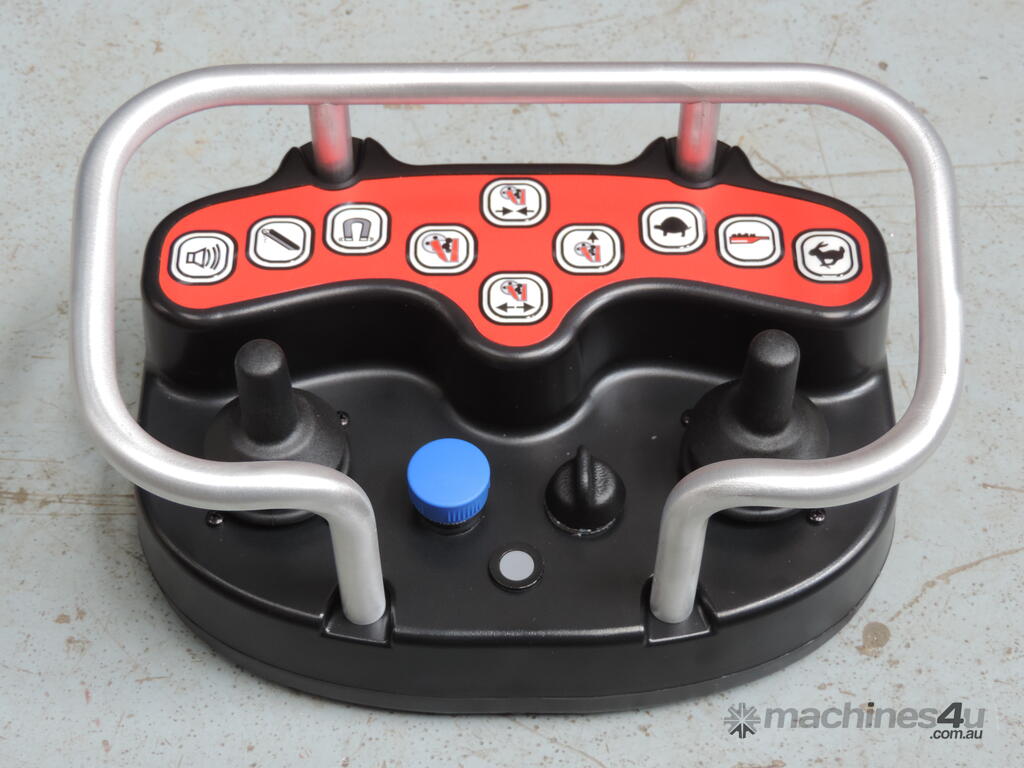

• Wireless remote control system for all functions
• Excavator loaded
• Vibrating feeder

DIMENSIONS
• Length: 5400mm
• Width: 1663mm
• Loading Height: 2050mm
• Weight: 3.05 tonnes
