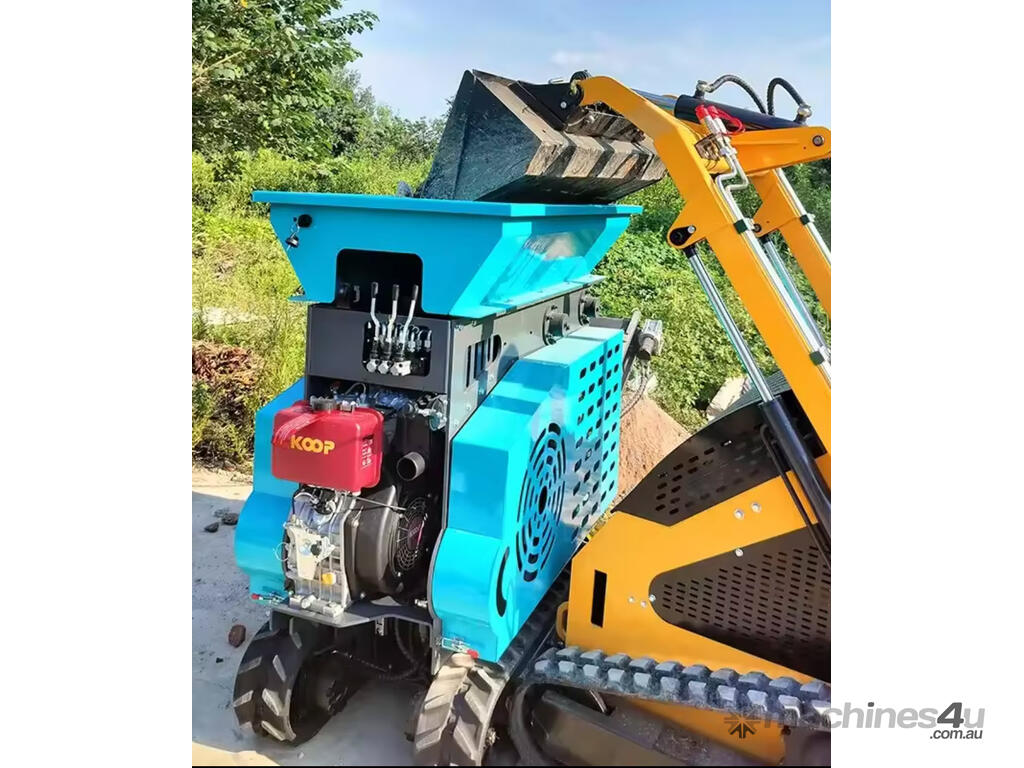

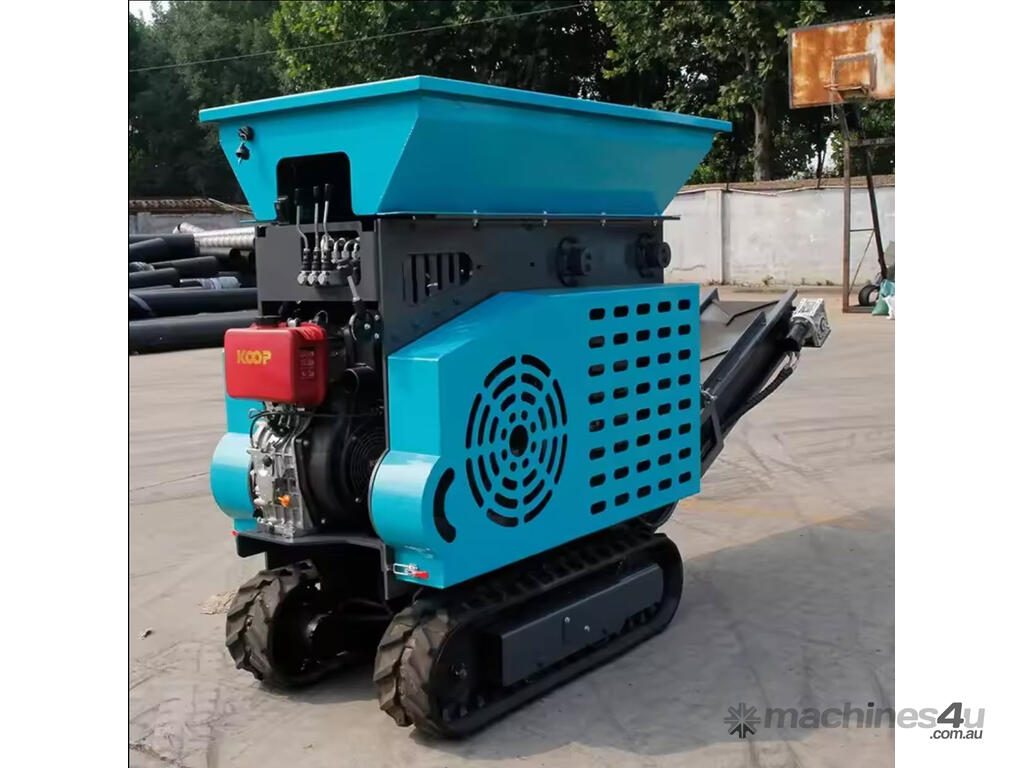

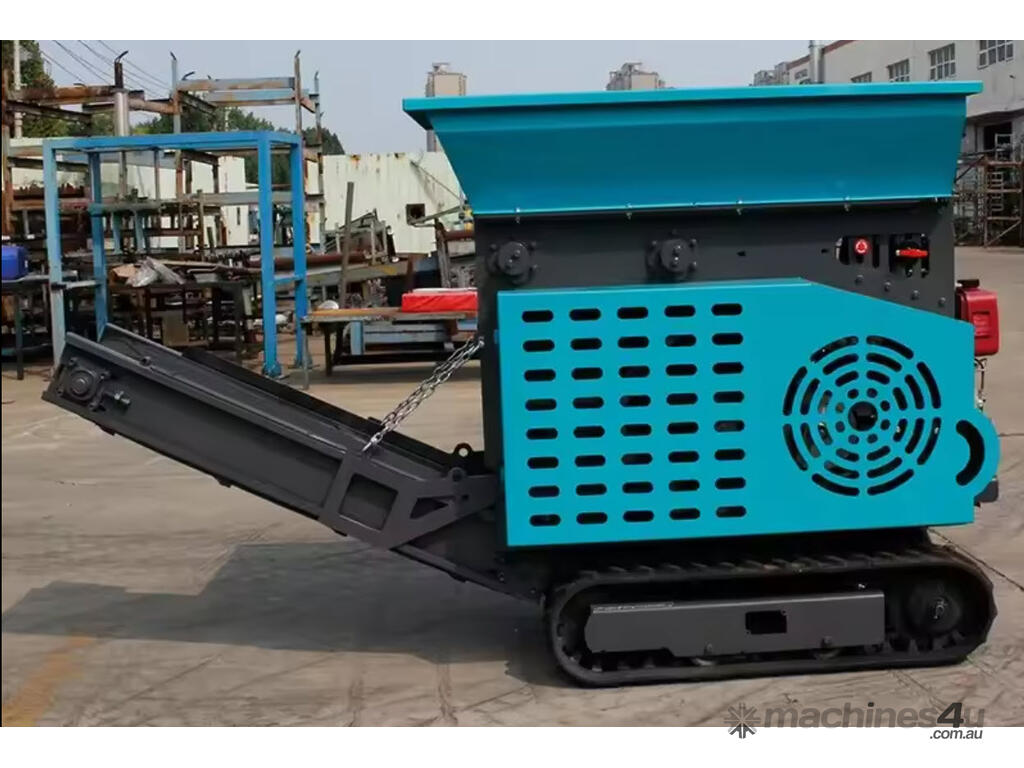

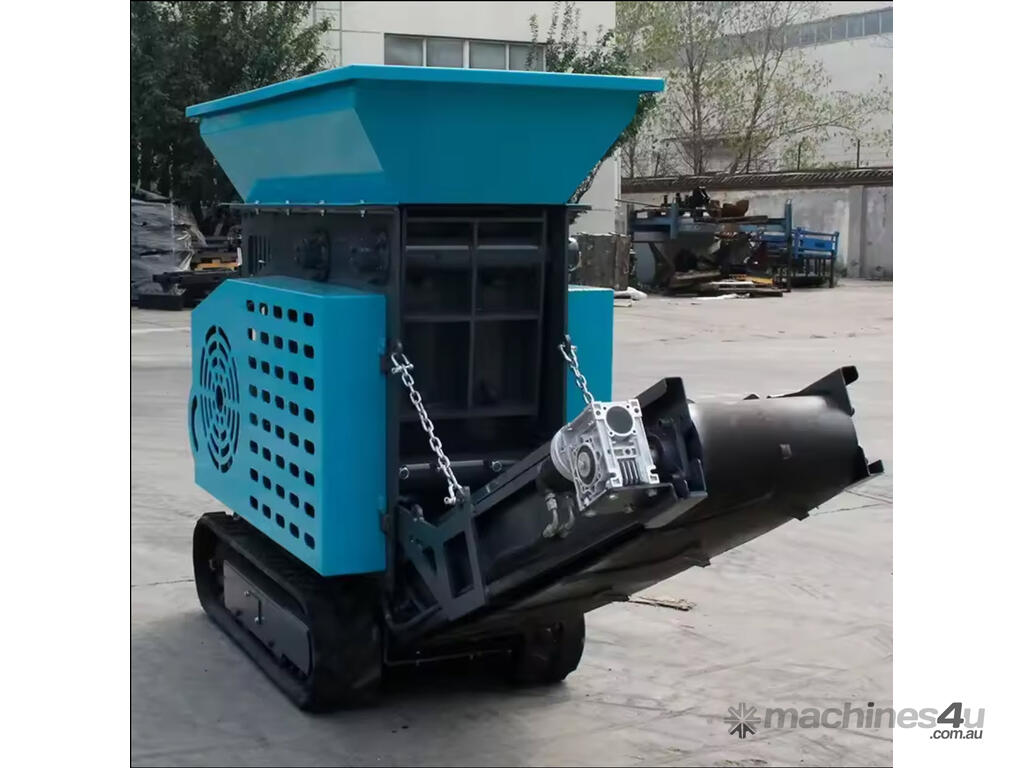

Jaw Crusher, Tracked,

Feeding Equipment HopperVolume (m3) 1. 0
Crushing Equipment Model PE425
Feed port size(mm) 400*250
Max. Feeding Size(mm) 200*300
Jaw plate material ZgMn 18CR2
Outlet adjustment range (mm) 10-50
Capacity(t/h) 6-10
Driving Mode Hydraulic motor
Discharging Equipment Conveyor B280X 2000mm
Stacking height 1000mm
Engine Model Petrol : Vanguard 400(14HP)
OiI Ccapacity 1. 5L
Walking System Track Chassis (Rubber)B180X1100
Overal Unit Weight 1350KG
Working size (LXWXH) 2800X760X1450mm
Transportation size (LXWXH) 1800X760X1850mm


Viscon International specialises in the supply of demolition machines to recycling, maintenance of greenery, road maintenance, right up to a complete line of earthmoving machinery. Inquire now to score some great machinery.
