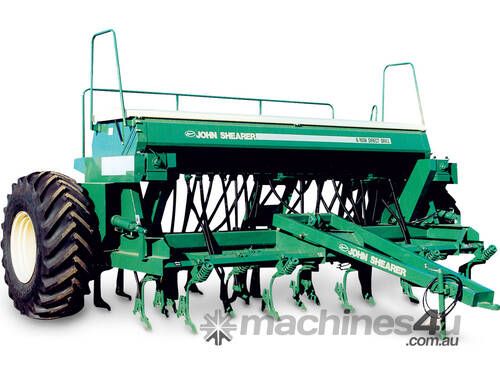

John Shearer 4 Bin Direct Drill - Versatile Seed Drill - Sow Four Products in a Single Pass!

Sow 4 products in one pass
4 or 6 ranks of sowing tynes
Dual drive systems

SOW FOUR DIFFERENT PRODUCTS SIMULATENOUSLY.
A versatile seed drill combining the ability to sow four products in a single pass with massive trash clearance. These models are adaptable to summer and winter sowing practices.

Full hydraulic level lift and large wheels provide excellent depth control. The double spring tyne assemblies provide ample underframe clearance and breakout force for direct drilling, trashfarming or conventional seeding.

FEATURES
4 Bin Hopper – sow 4 products in one pass
Proven 620 tyne assemblies – greater than 113kg / 250lb breakout
Fluted rollers – suitable for a wide variety of products
Large wheel equipment – for excellent flotation
Easy to calibrate wide range gearboxes – for both seed and fertilizer
Hydraulic level lift system – depth control from the tractor seat
4 or 6 ranks of sowing tynes – maximum trash flow
Remote greasing of grain and fertilizer shaft bearings
Gas struts on lid
Standard, cab mounted, area and speed monitor
Optional electronic bin level sensors

EASE OF OPERATION
Standard features all designed to help the farmer operate the drill include, gas struts on the hopper lid, remote greasing for the seed and fertilizer shaft bearings and a large platform with handrail.

HEAVY DUTY CONSTRUCTION
In the Shearer tradition the whole machine is built to last with particular attention paid to the frame and axles. Robust construction means your machine will hold its value and keep on going season after season.

DUAL DRIVE SYSTEM
Product from the 4 bins is metered out by way of dual 31 speed gearboxes. For ultimate control, the machine is also able to be factory-fitted with our updated electric drive system.

SUPERCHARGE YOUR SEEDER
Many options are available to enhance your 4 bin drill. Electric drive, blower kits, swivelling coulters (pictured below), double cups and bolt-on extensions tailor the machine to your specific needs.

LARGE SEED AND FERTILIZER HOPPERS
More hopper capacity means fewer refills and faster sowing.

CHOICE OF OPENERS
Choose from our proven range of ground engaging tools to build a machine tailored to your conditions. Our time-tested 620 edge-on double spring tyne assemblies are fitted by default with heavy duty 630 tynes (pictured below) available as an option for soil conditions requiring greater breakout forces. Knife and seeder point options are also available for fitment.
