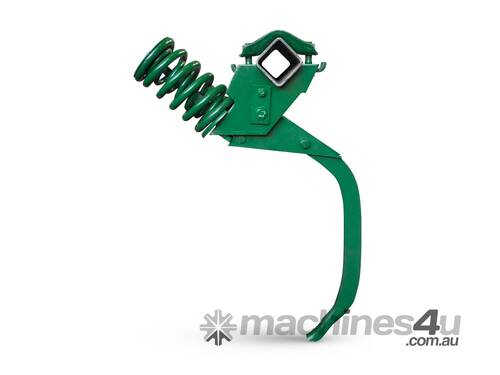

John Shearer 620 Spring Release Tyne Assembly

Introducing the 620 Tyne Assembly, designed with a clamp-on feature to suit most beam sizes and provide efficient trash clearance. This assembly includes dual springs with a maximum breakout force of 143 kg (315 lb), ideal for various soil conditions.

The adjustable spring pressure allows for flexibility, whether you need to back off for lighter soil or remove the inner spring for stony ground, offering easier jump action. The assembly features greaseable, hardened, and replaceable pivot pins and bushes, ensuring long-term durability.

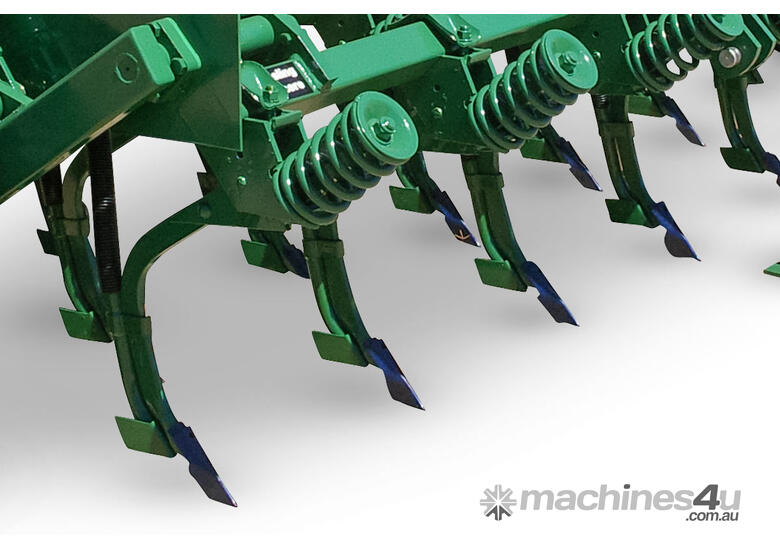

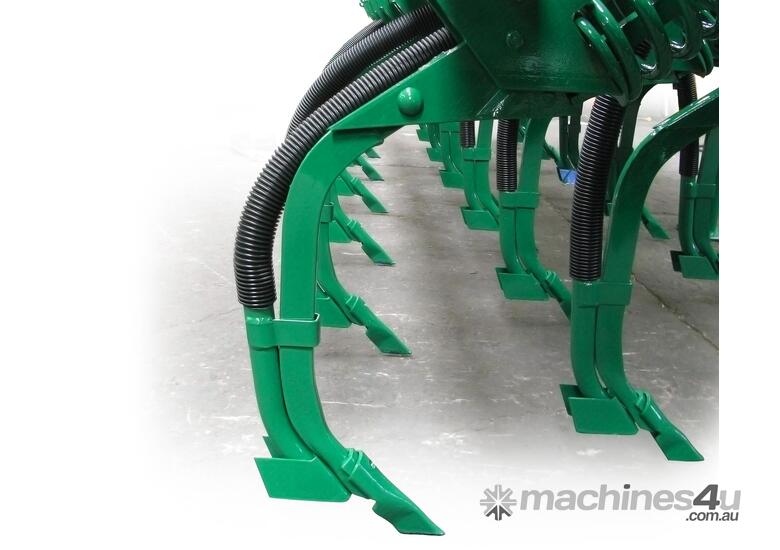

The multi-point adaptor on the tyne foot accepts a range of ground engaging tools, including super seeder points, ‘T’-boots, and lucerne points. The Shearer T-boot is specially developed for sowing a variety of pasture seeds. With a generous 620 mm under-frame clearance, this assembly is built to handle tough conditions while providing reliable performance.
