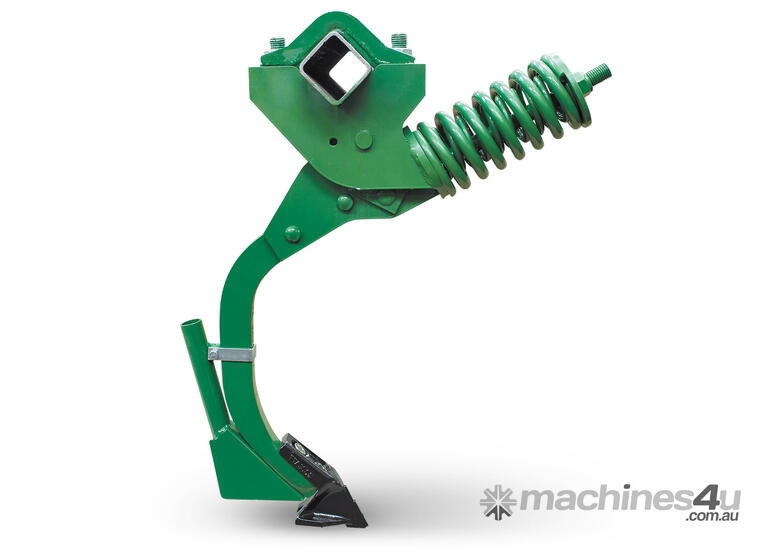

John Shearer 630 Spring Release Tyne Assembly

Introducing the 630 Tyne Assembly, a robust upgrade designed to enhance your John Shearer drill or cultivator. This clamp-on, spring adjustable tyne is engineered to suit most beam sizes and offers an adjustable breakout pressure greater than 158 kg (350 lb), providing superior performance in tough conditions.

Built on the proven 620 tyne design, the 630 has been reinforced to deliver higher breakout force while minimizing the load on the drill frame. It features dual springs, a heat-treated spring steel shank, and a large diameter greasable pivot pin with hardened bushes, ensuring long-lasting durability. Heavy-duty clamp bolts and a strong spring rod further contribute to its rugged construction.

With a 25 mm x 50 mm edge-on tyne and 614 mm under-frame clearance, this assembly is designed for efficient trash flow and can accommodate multiple points and fittings through its 2-bolt foot mounting. A seeding tube option is also available. The low-profile design facilitates easy fitment on various drills and cultivators, including the 4 and 6 row Direct Drills and the 4/150 and 5/160 Cultivators.

Upgrade your equipment with the 630 Tyne Assembly for enhanced performance and reliability in your farming operations.
