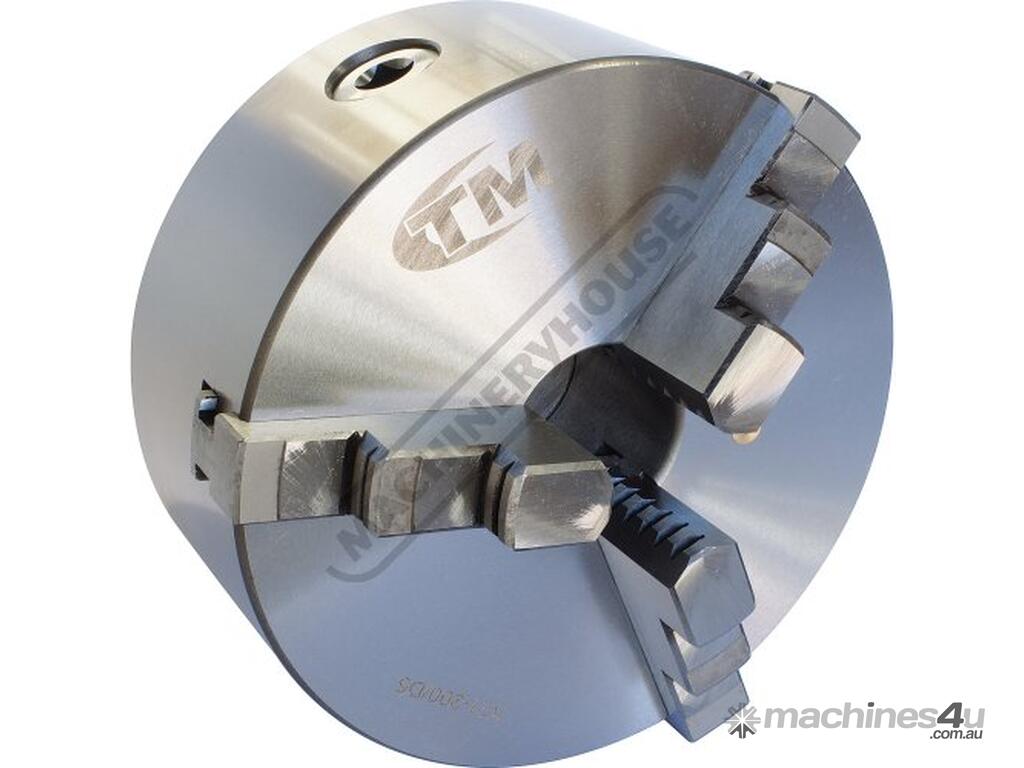

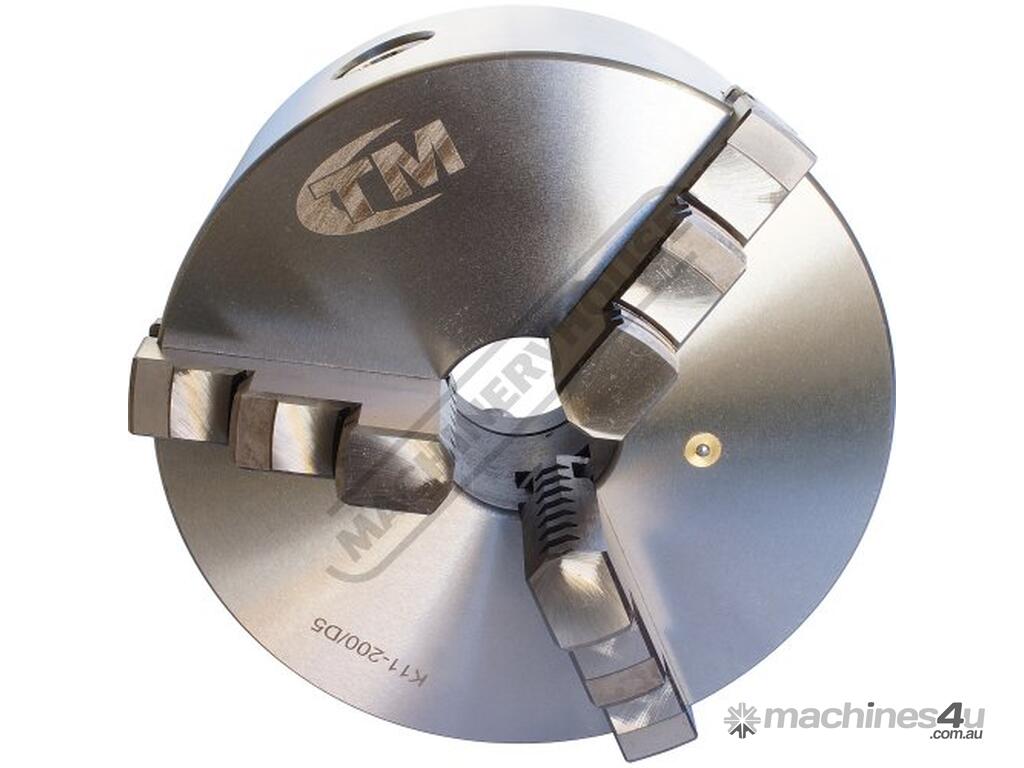

K11-200/D15 3 Jaw Self Centring Lathe Chuck Ø200mm D1-5 Camlock Mount

TOOLMASTER K11-200/D15 3 Jaw Self Centring Lathe Chuck Ø200mm D1-5 Camlock Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C2625

K11 SERIES Cast Iron Body
Standard GB/T 4346.2-2002

Features:
World-class and industry leader in the manual lathe chuck field with over 30 years of manufacturing
ToolMaster quality assurance and accuracy testing ensure standards remain high. ToolMaster is ISO 9001-2000 approved
Each chuck is supplied with a set of inside and outside jaws and a chuck key

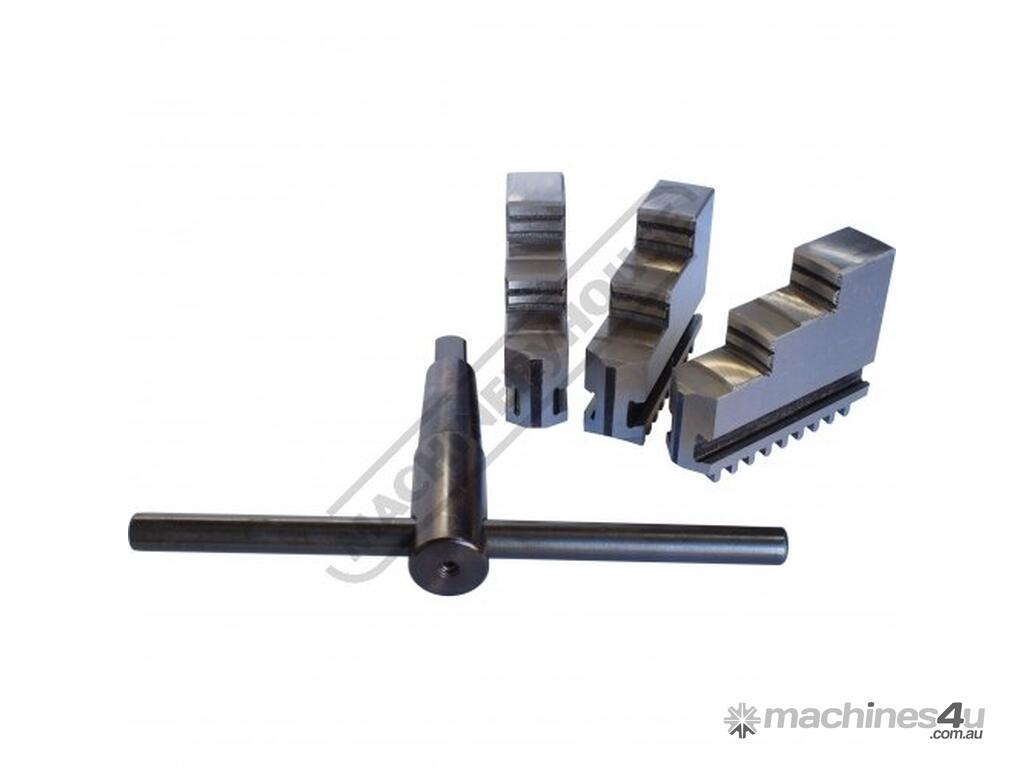

Includes:
- Outside jaws
- Inside jaws
- Chuck key



Specifications:
ORDER CODE: C2625
Chuck Size (mm): Ø200

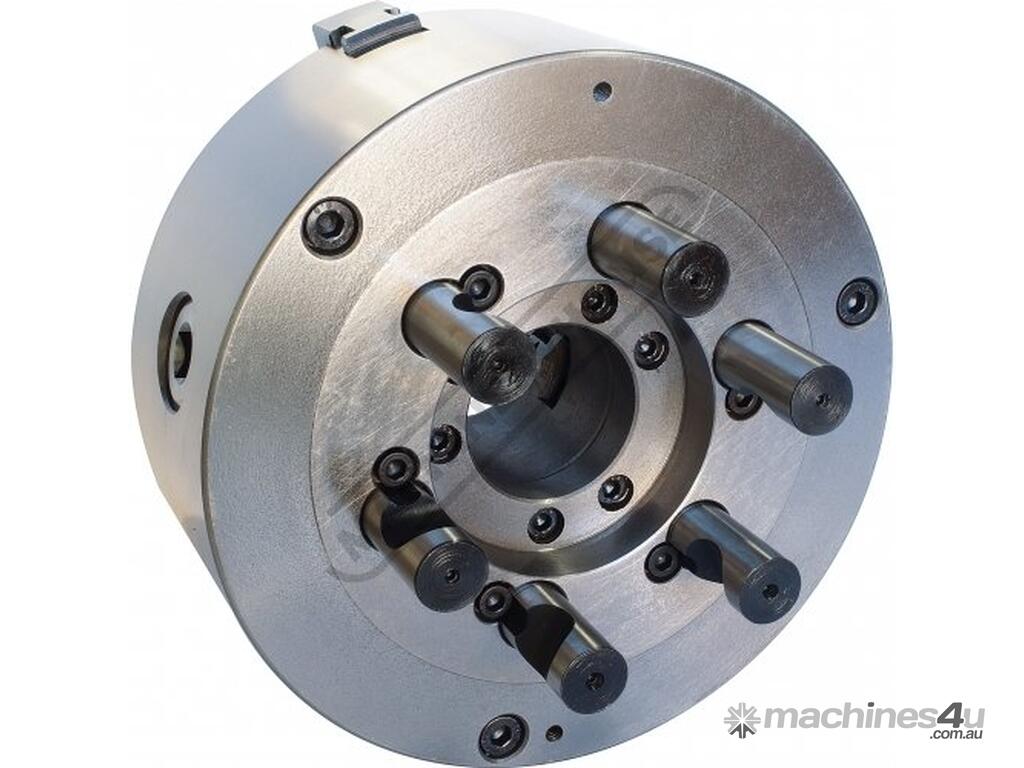

Camlock: D1-5
Outside Jaw (mm): 4 - 85
Inside Jaw (mm): 65 - 200
Speed (rpm): 2000
D1 (mm): 165
D2 (mm): 104.8
D3 (mm): 50
H (mm): 109
H1 (mm): 75
h (mm): 5
Nett Weight (kg): 18.5
