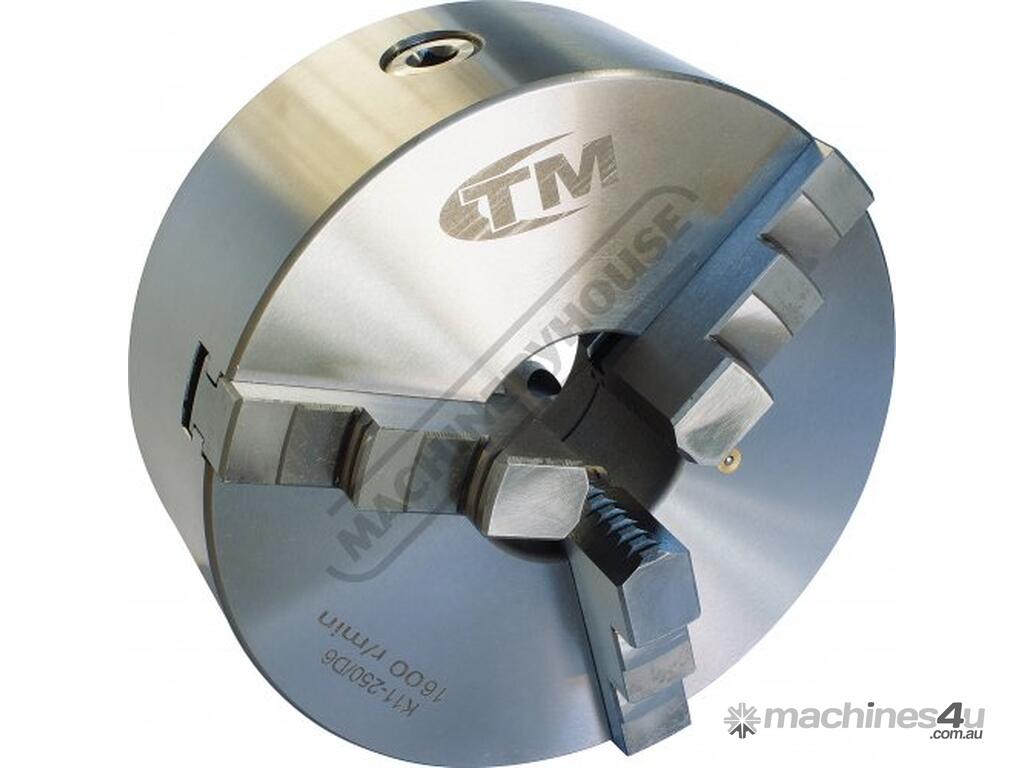

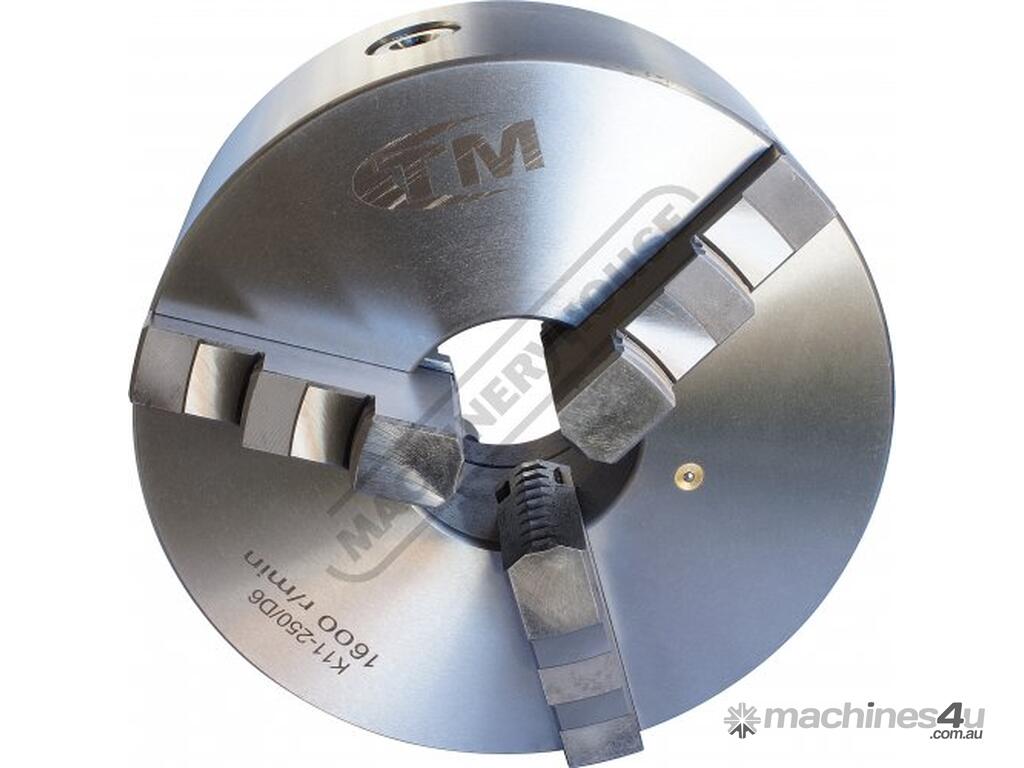

K11- 250/D16 3 Jaw Self Centring Lathe Chuck Ø250mm D1-6 Camlock Mount

TOOLMASTER K11- 250/D16 3 Jaw Self Centring Lathe Chuck Ø250mm D1-6 Camlock Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C263

K11 SERIES Cast Iron Body
Standard GB/T 4346.2-2002

Features:
World-class and industry leader in the manual lathe chuck field with over 30 years of manufacturing
ToolMaster quality assurance and accuracy testing ensure standards remain high. ToolMaster is ISO 9001-2000 approved
Each chuck is supplied with a set of inside and outside jaws and a chuck key

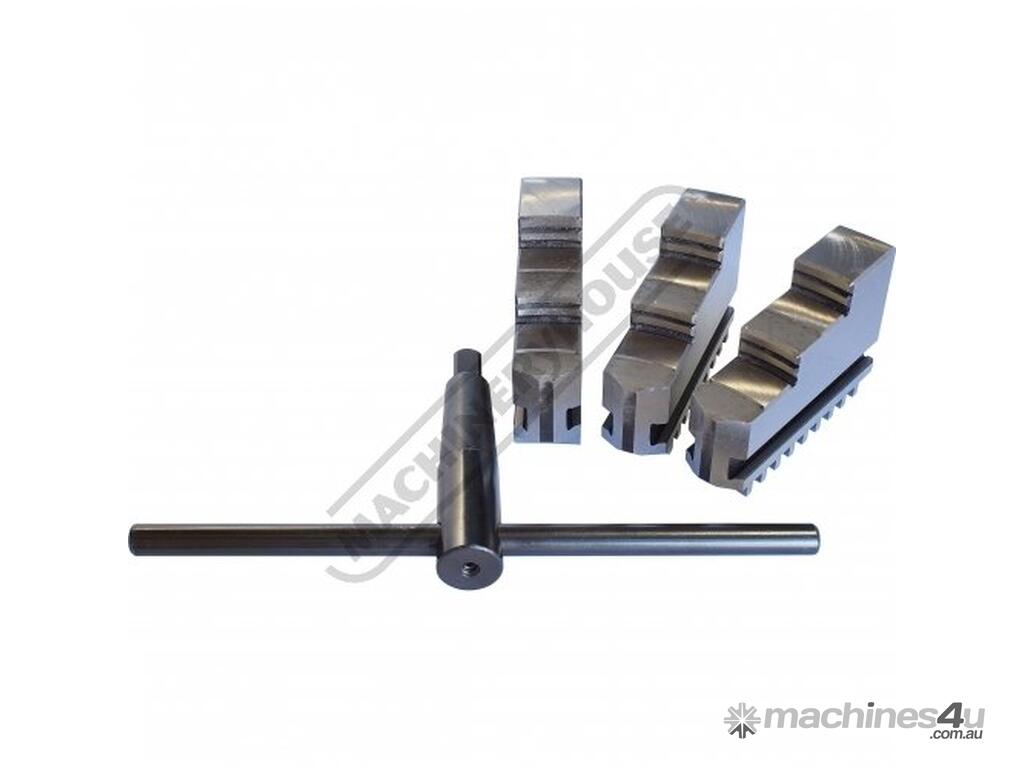

Includes:
- Outside jaws
- Inside jaws
- Chuck key



Specifications:
ORDER CODE: C263
Chuck Size (mm): Ø250
Camlock: D1-6
Outside Jaw (mm): 6 - 110
Inside Jaw (mm): 90 - 250
Speed (rpm): 1600
D1 (mm): 106.3
D2 (mm): 133.4
D3 (mm): 80
H (mm): 120
H1 (mm): 80
h (mm): 5
Nett Weight (kg): 26
