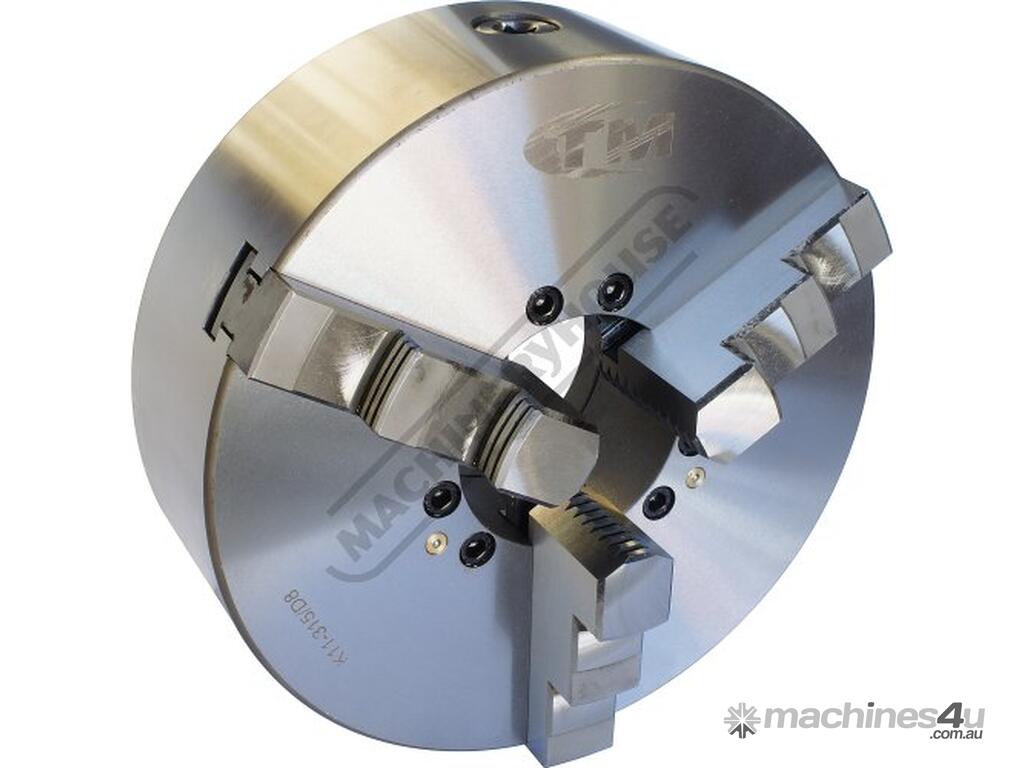

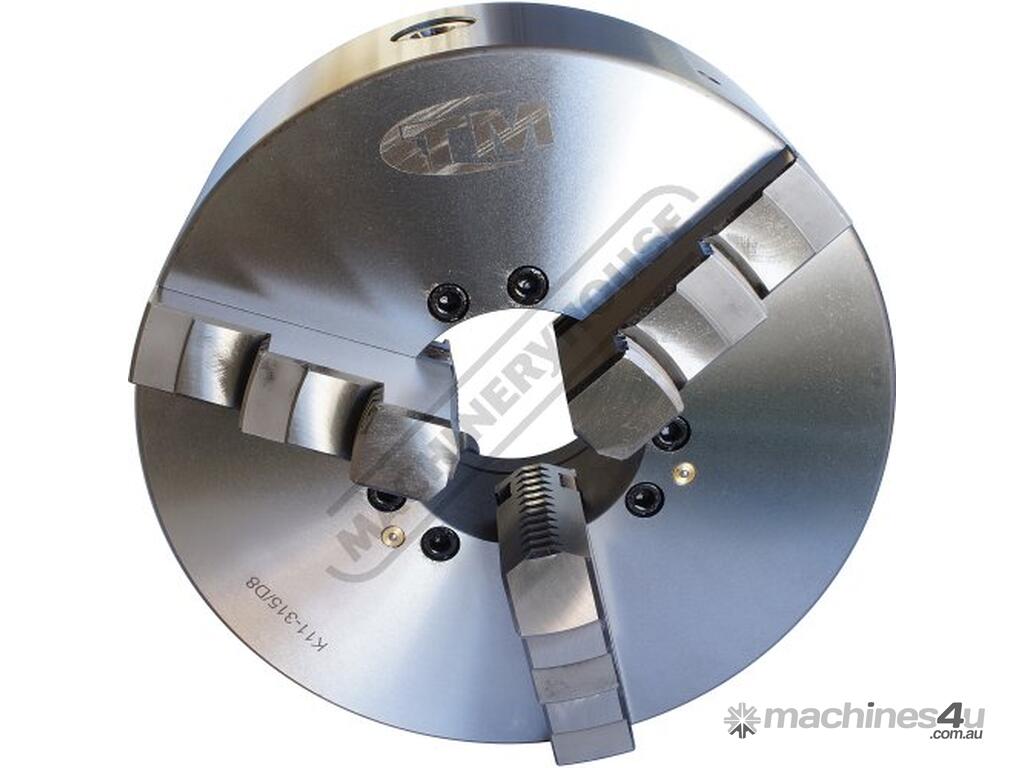

K11-320/D18 3 Jaw Self Centring Lathe Chuck Ø315mm D1-8 Camlock Mount

TOOLMASTER K11-320/D18 3 Jaw Self Centring Lathe Chuck Ø315mm D1-8 Camlock Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C269

K11 SERIES Cast Iron Body
Standard GB/T 4346.2-2002

Features:
World-class and industry leader in the manual lathe chuck field with over 30 years of manufacturing
ToolMaster quality assurance and accuracy testing ensure standards remain high. ToolMaster is ISO 9001-2000 approved

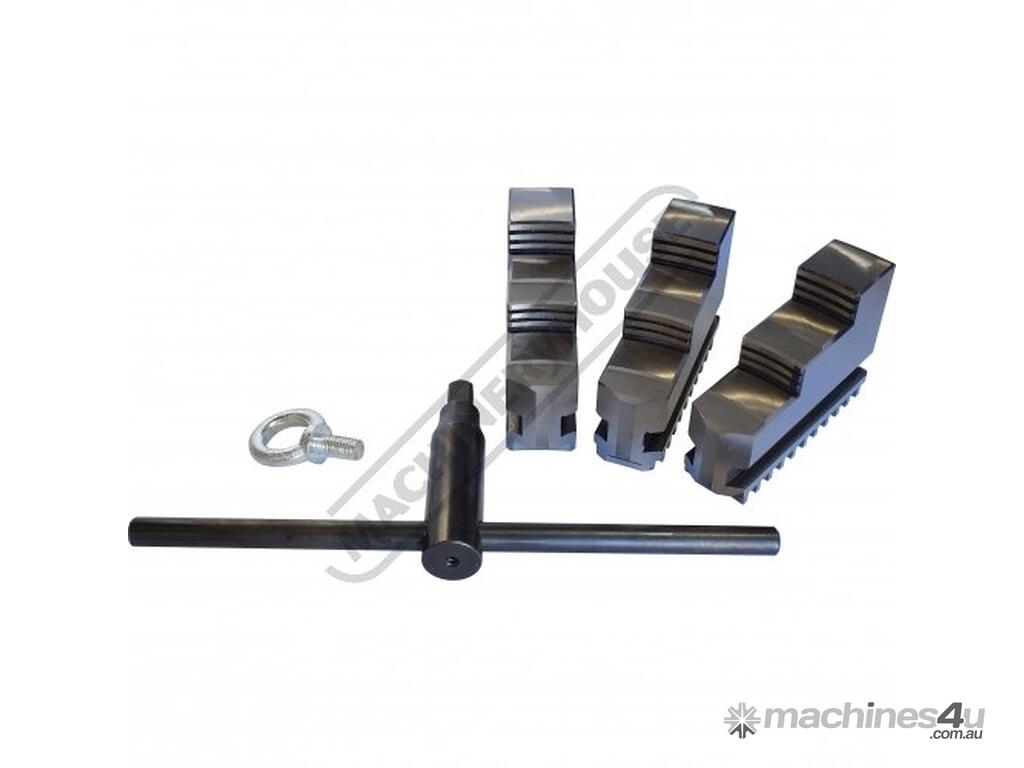

Each chuck is supplied with a set of inside and outside jaws and a chuck key

Includes:
- Outside jaws
- Inside jaws
- Chuck key



Specifications:
ORDER CODE: C269
Chuck Size (mm): Ø315

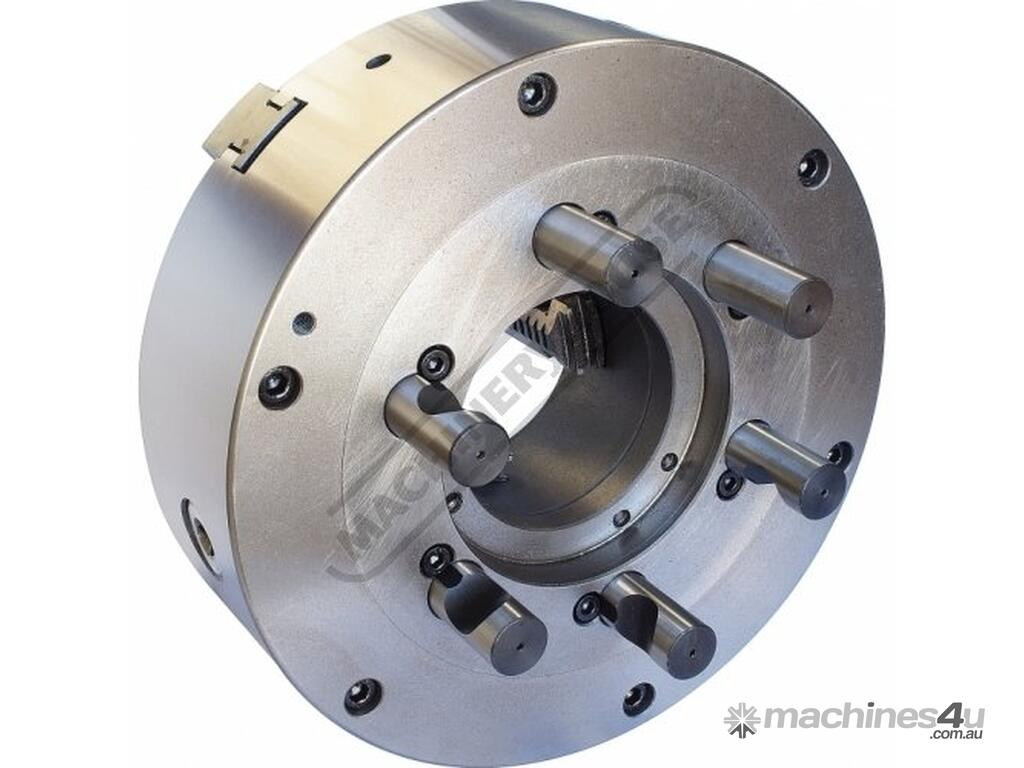

Camlock: D1-8
Outside Jaw (mm): 11.5 - 165
Inside Jaw (mm): 110 - 320
Speed (rpm): 1200
D1 (mm): 260
D2 (mm): 285
D3 (mm): 100
H (mm): 136
H1 (mm): 90
h (mm): 6
Nett Weight (kg): 60
