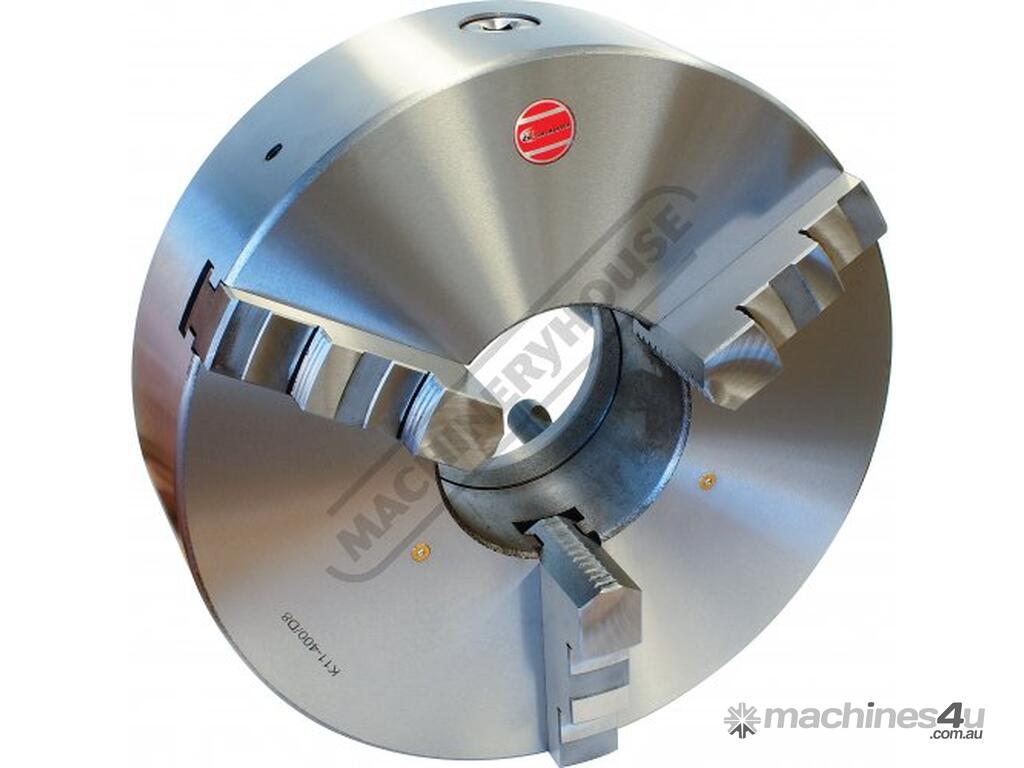

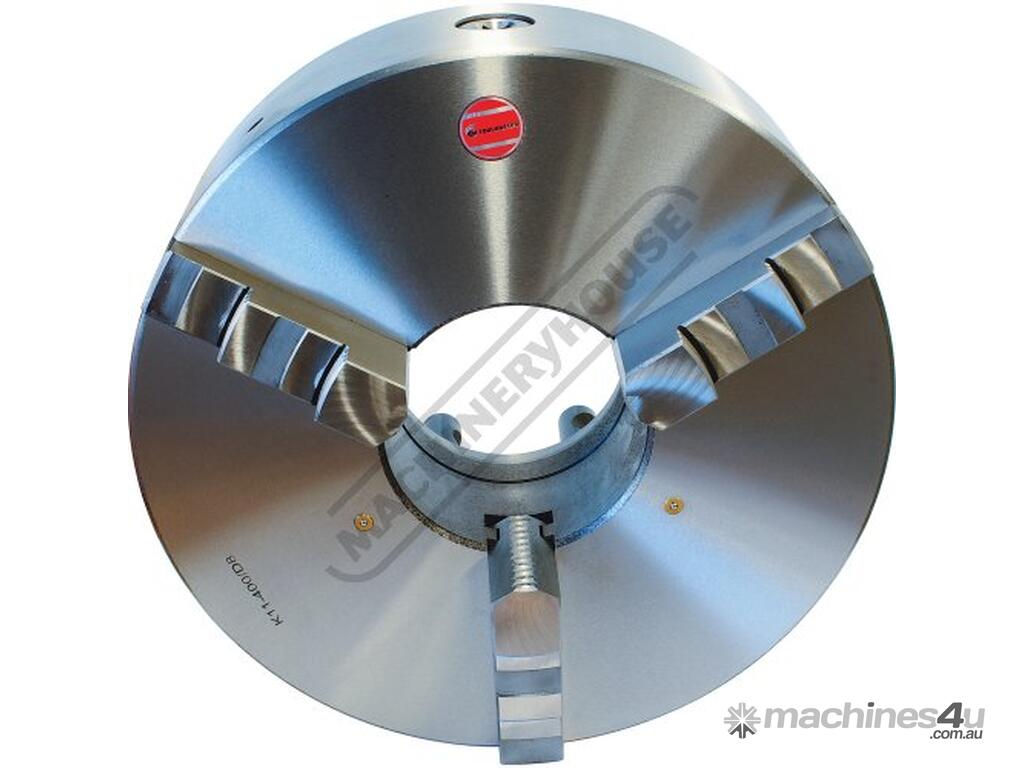

K11-400/D18 3 Jaw Self Centring Lathe Chuck Ø400mm D1-8 Camlock Mount

TOOLMASTER K11-400/D18 3 Jaw Self Centring Lathe Chuck Ø400mm D1-8 Camlock Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C2695

K11 SERIES Cast Iron Body
Standard GB/T 4346.2-2002

Features:
Manufactured by the world's largest chuck producer established in 1938
ToolMaster quality assurance and accuracy testing ensure standards remain high. ToolMaster is ISO 9001-2000 approved
Each chuck is supplied with a set of inside and outside jaws and a chuck key

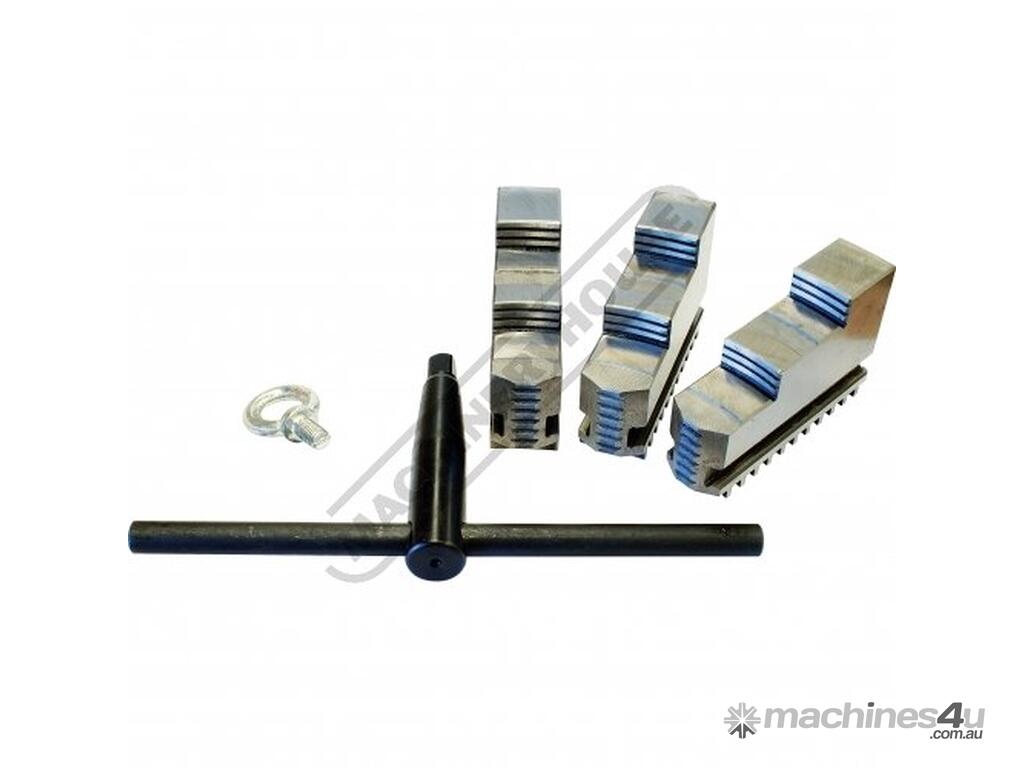

Includes:
- Outside jaws
- Inside jaws
- Chuck key



Specifications:
ORDER CODE: C2695
Chuck Size (mm): Ø400

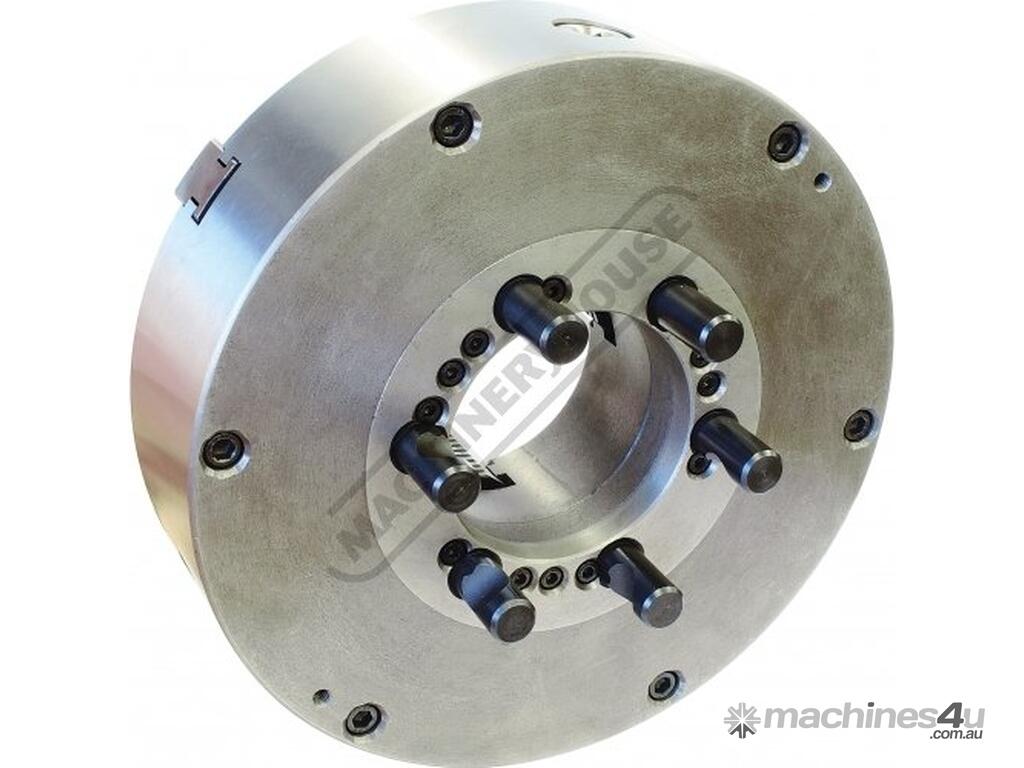

Camlock: D1-8
Outside Jaw (mm): 11.5 - 210
Inside Jaw (mm): 110 - 400
Speed (rpm): 1000
D1 (mm): 139.72
D2 (mm): 171.4
D3 (mm): 130
H (mm): 191.5
H1 (mm): 118
h (mm): 18
Nett Weight (kg): 81
