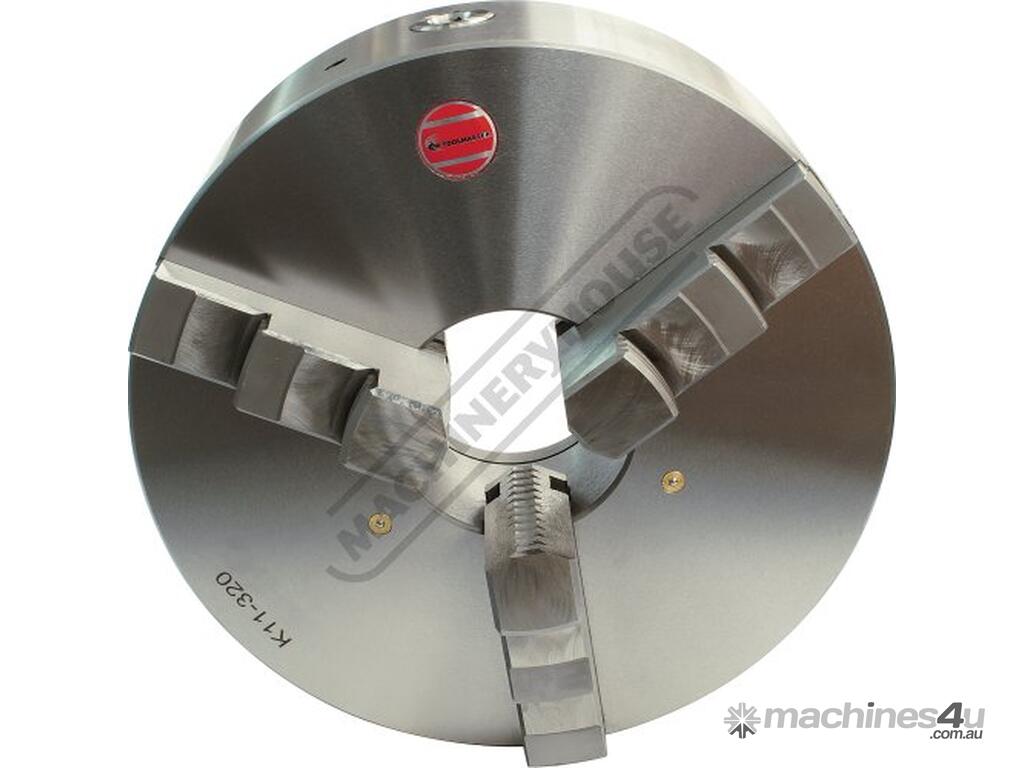

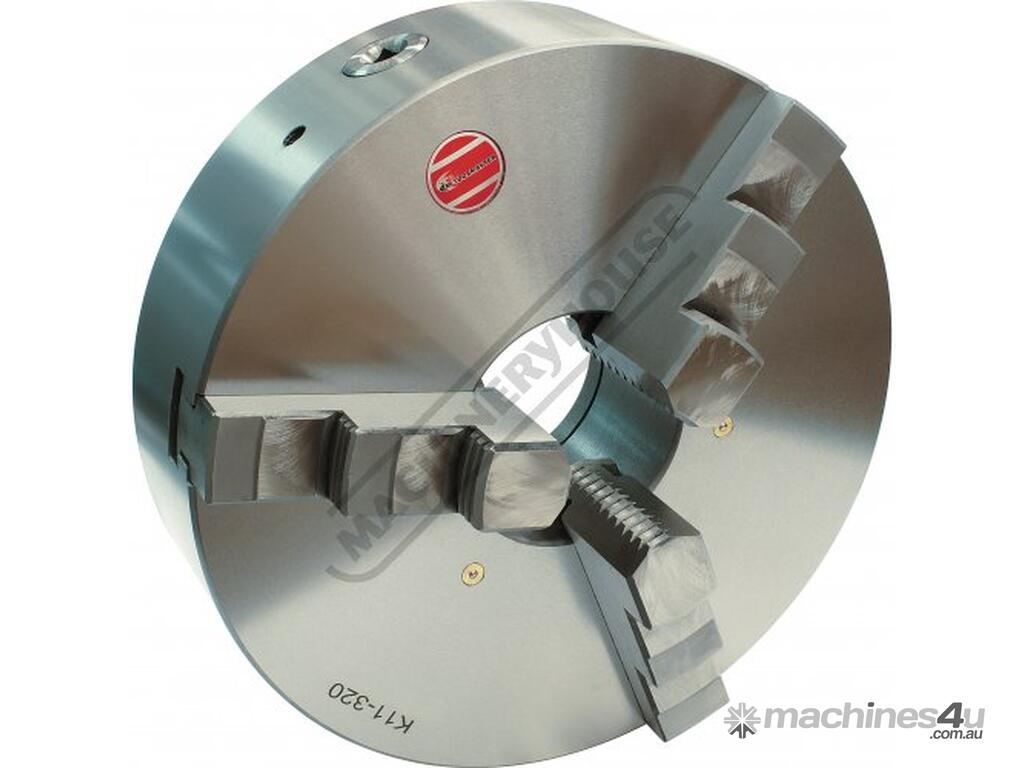

K11 SERIES 3 Jaw Self Centring Lathe Chuck Ø320mm Back Plate Mount

TOOLMASTER K11 SERIES 3 Jaw Self Centring Lathe Chuck Ø320mm Back Plate Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C208

K11 Series cast iron body lathe chucks are built to GB/T 4346.2-2002 standard, and supplied with one piece standard and reverse jaws.

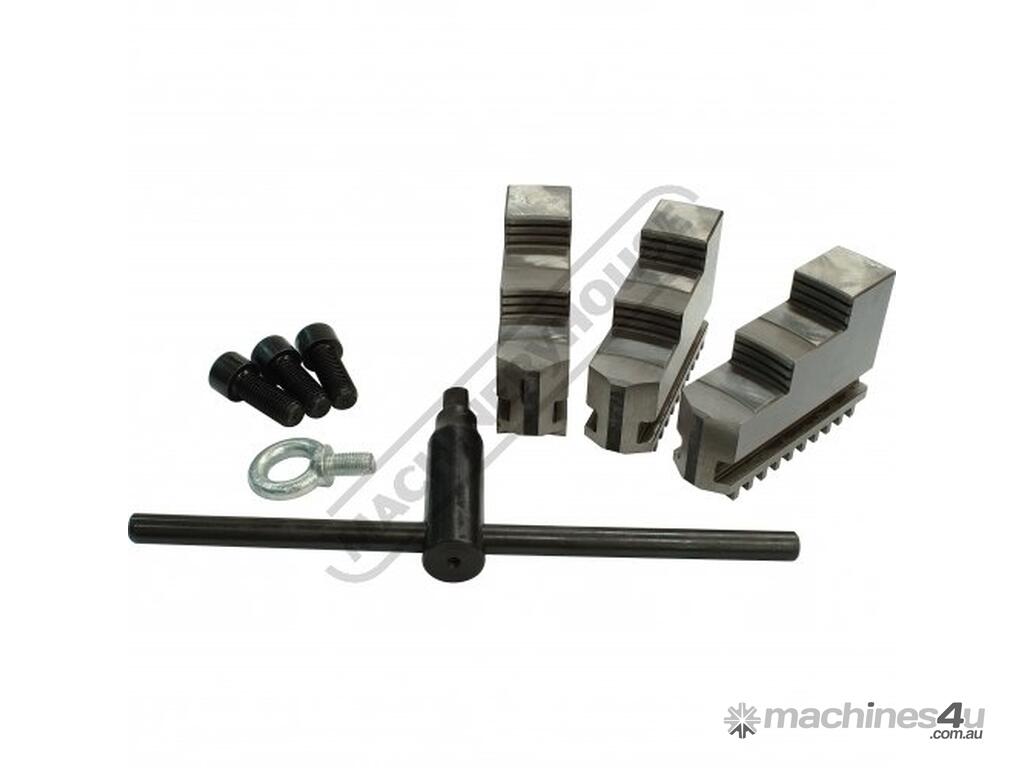

World-class and industry leader in manufacturing manual lathe chucks for over 30 years. ToolMaster precision tolerance lathe chucks are ISO 9001-2000 approved, and ensure high quality with accuracy testing on every chuck.Includes:
- Outside jaws
- Inside jaws
- Mounting screws
- Chuck key



Specifications:
ORDER CODE: C208

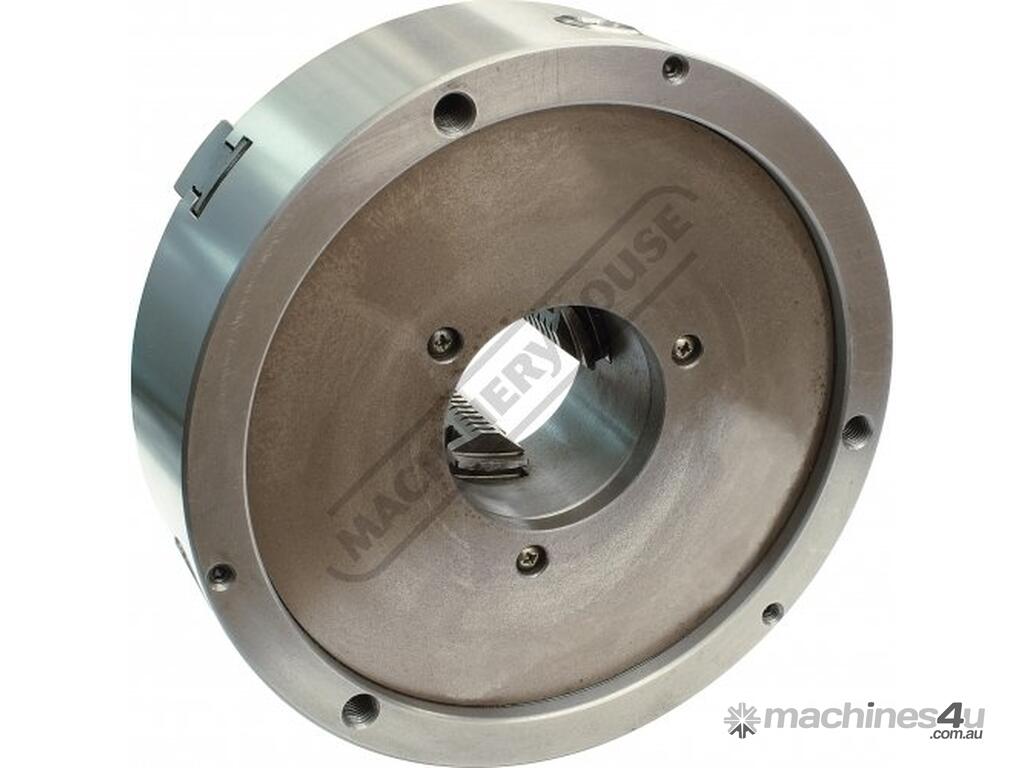

Mounting Type: Back Plate Mount
Chuck Size (mm): Ø320
Outside Jaw (mm): 11.5 - 165
Inside Jaw (mm): 110 - 340
Speed (rpm): 1200
D1 (mm): 270
D2 (mm): 290
D3 (bore) (mm): 100
H (mm): 142
H1 (mm): 95
H2 (mm): ~
h (lowercase) (mm): 11
z-d (mm): 3 x M16
Nett Weight (kg): 47.5
