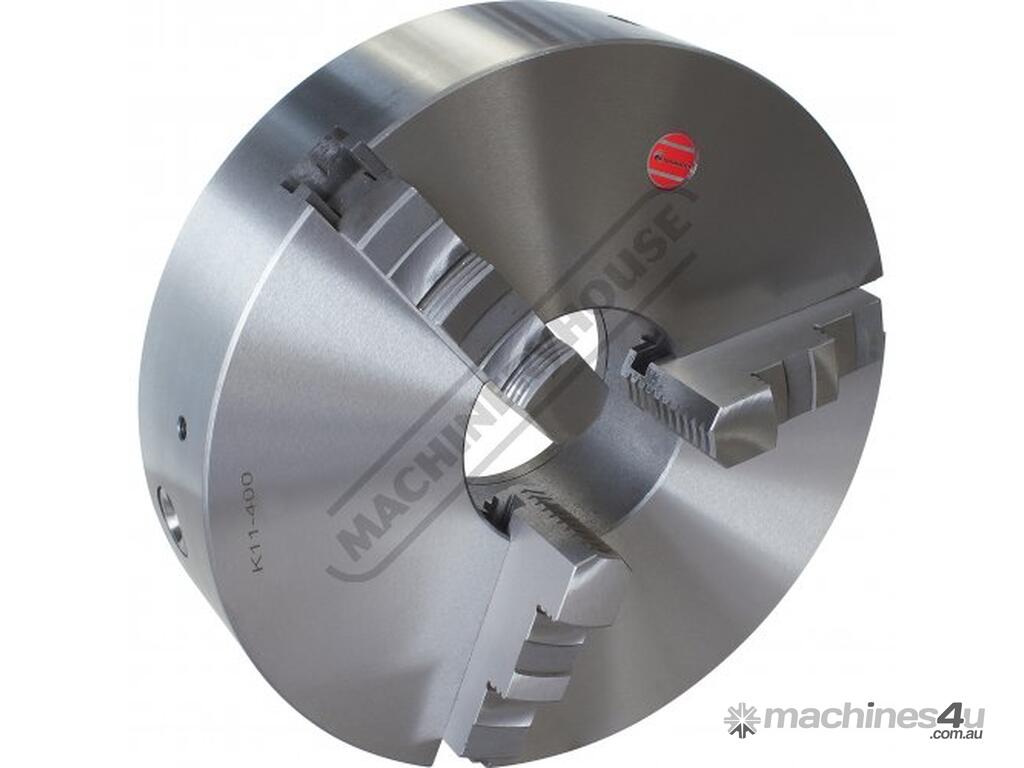

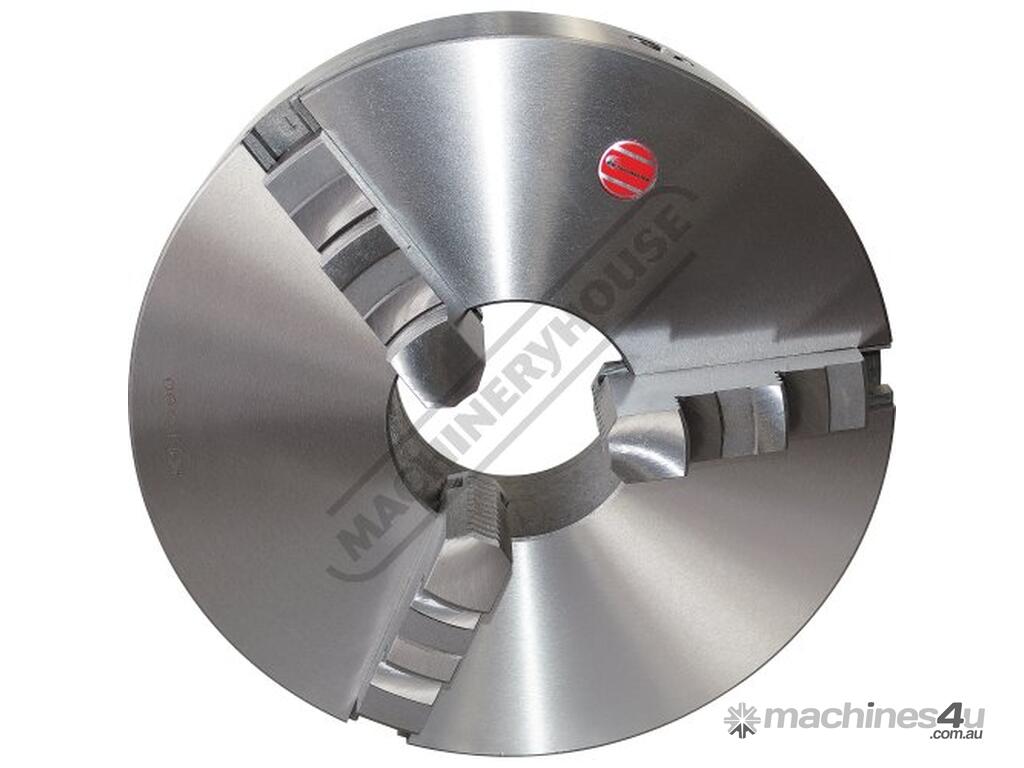

K11 SERIES 3 Jaw Self Centring Lathe Chuck Ø400mm Back Plate Mount

TOOLMASTER K11 SERIES 3 Jaw Self Centring Lathe Chuck Ø400mm Back Plate Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C210

K11 Series cast iron body lathe chucks are built to GB/T 4346.2-2002 standard, and supplied with one piece standard and reverse jaws.

World-class and industry leader in manufacturing manual lathe chucks for over 30 years. ToolMaster precision tolerance lathe chucks are ISO 9001-2000 approved, and ensure high quality with accuracy testing on every chuck.Includes:

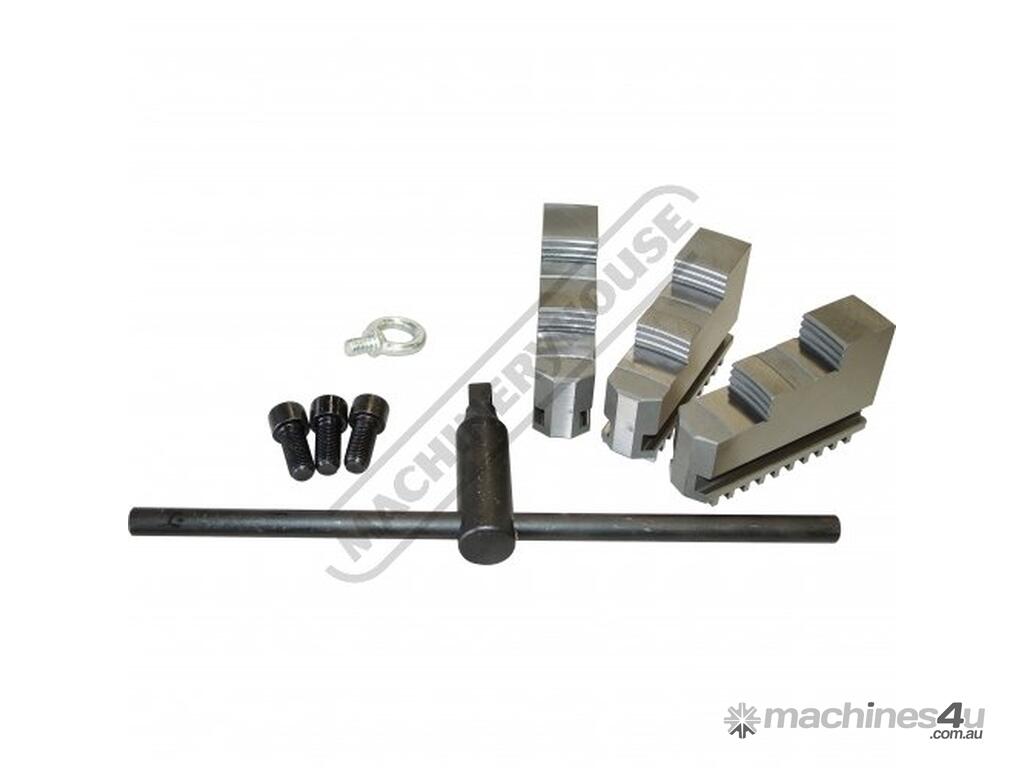

- Outside jaws
- Inside jaws
- Mounting screws
- Chuck key



Specifications:
ORDER CODE: C210

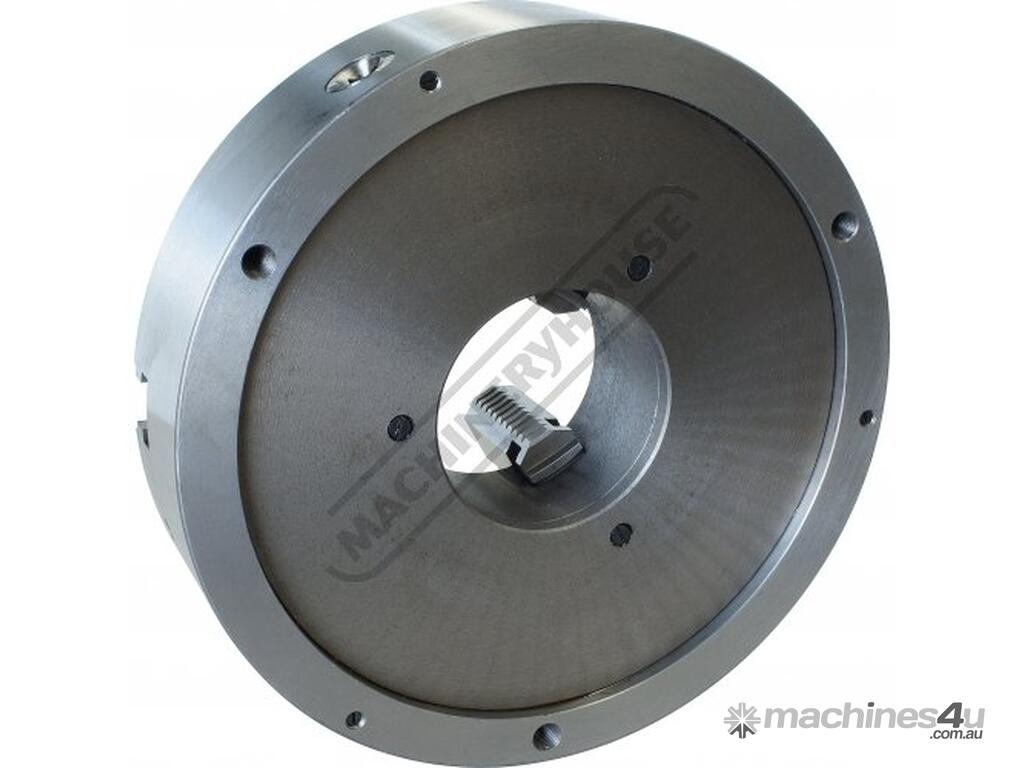

Mounting Type: Back Plate Mount
Chuck Size (mm): Ø400
Outside Jaw (mm): 15 - 210
Inside Jaw (mm): 120 - 400
Speed (rpm): 1000
D1 (mm): 340
D2 (mm): 368
D3 (bore) (mm): 145
H (mm): 154
H1 (mm): 106.5
H2 (mm): ~
h (lowercase) (mm): 6
z-d (mm): 3 x M16
Nett Weight (kg): 71


To Purchase Online Please Visit The Machineryhouse & Search For 'C210'
