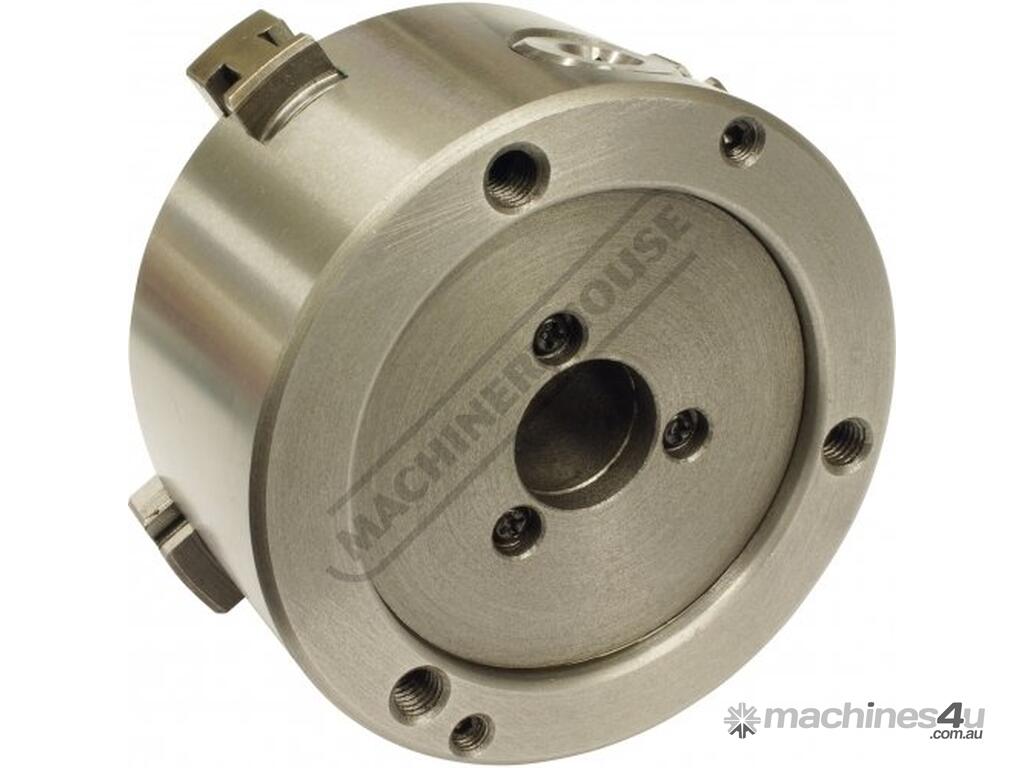

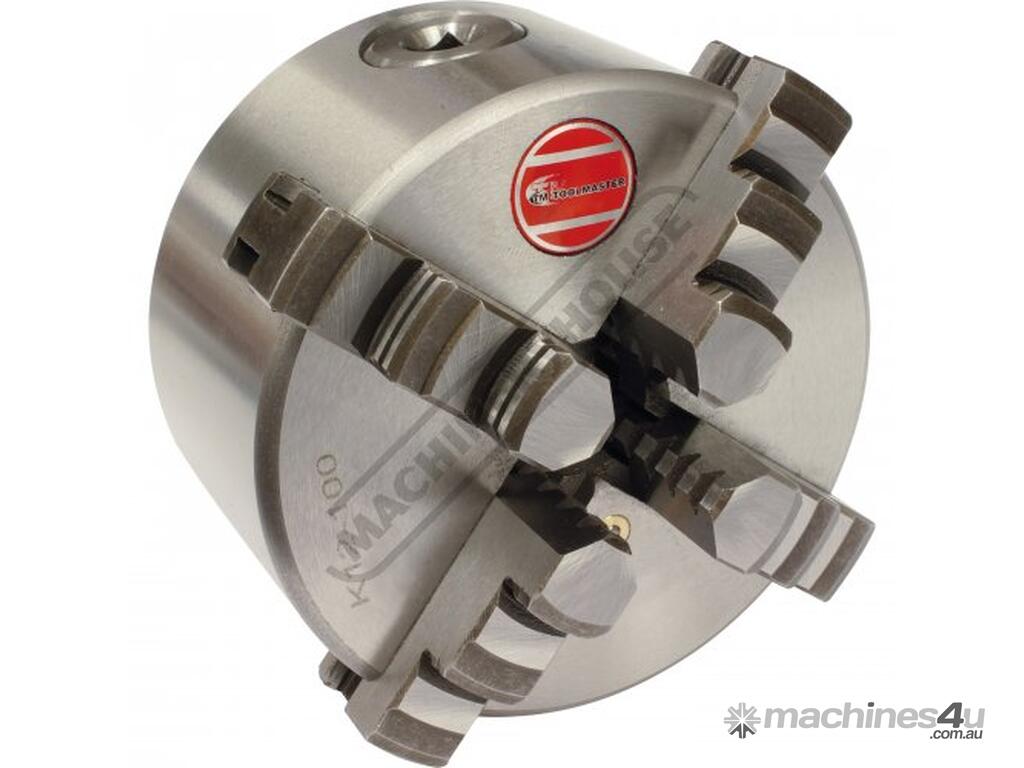

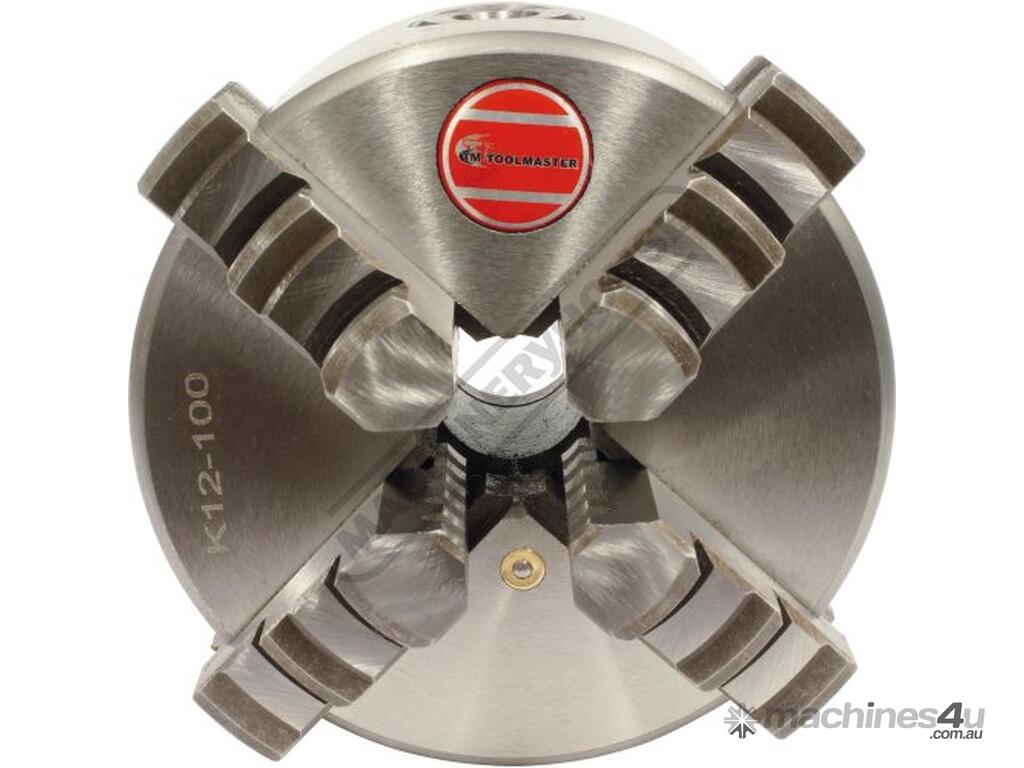

K12-100 4 Jaw Self Centring Lathe Chuck Ø100mm

TOOLMASTER K Jaw Self Centring Lathe Chuck Ø100mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C721

100mm 4-JAW SELF-CENTRING LATHE CHUCK
Manufactured from cast iron.

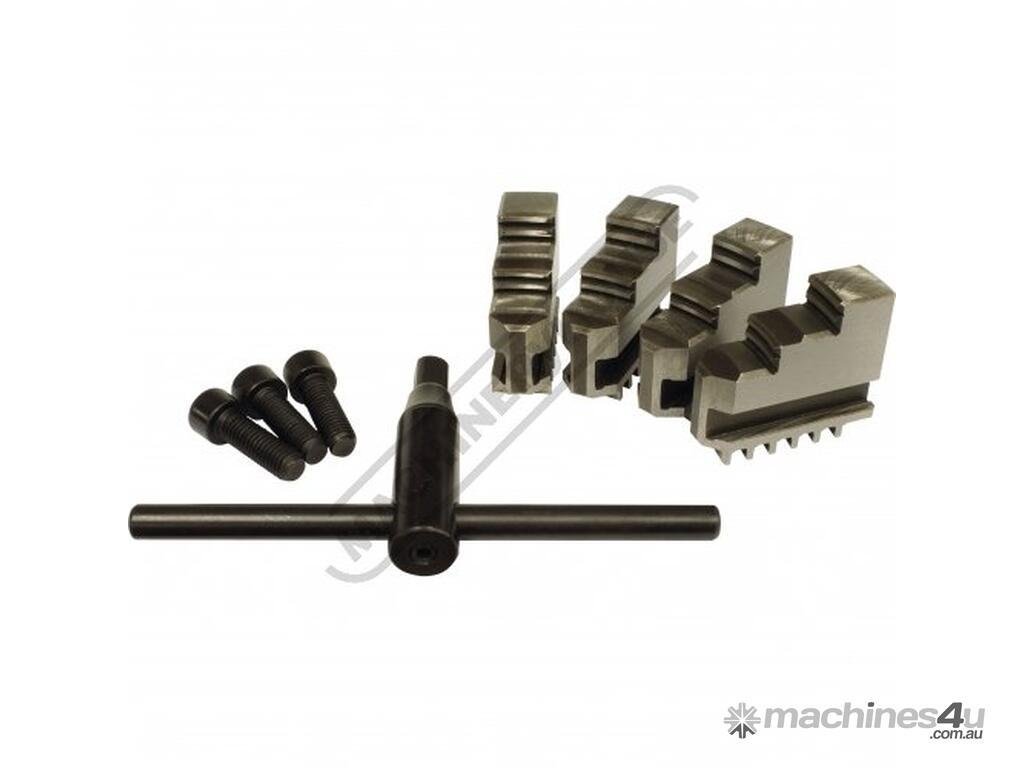

Available only in back mount.Includes:
- 1 x set of outside hard jaws
- 1 x set of inside hard jaws
- 1 x key
- 1 x set of mounting screws



Specifications:
ORDER CODE: C721
Size (mm): Ø100
Outside Jaw (mm): 2 - 30
Inside Jaw (mm): 30 - 80
Speed (rpm): 3500
D1 (mm): 72
D2 (mm): 84
D3 (bore) (mm): 22
H (mm): 74.5
H1 (mm): 55
h (mm): 3.5
z-d (mm): 3-M8
Nett Weight (kg): 3


To Purchase Online Please Visit The Machineryhouse & Search For 'C721'
