K12-160 4 Jaw Self Centring Lathe Chuck Ø160mm

TOOLMASTER K Jaw Self Centring Lathe Chuck Ø160mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C723

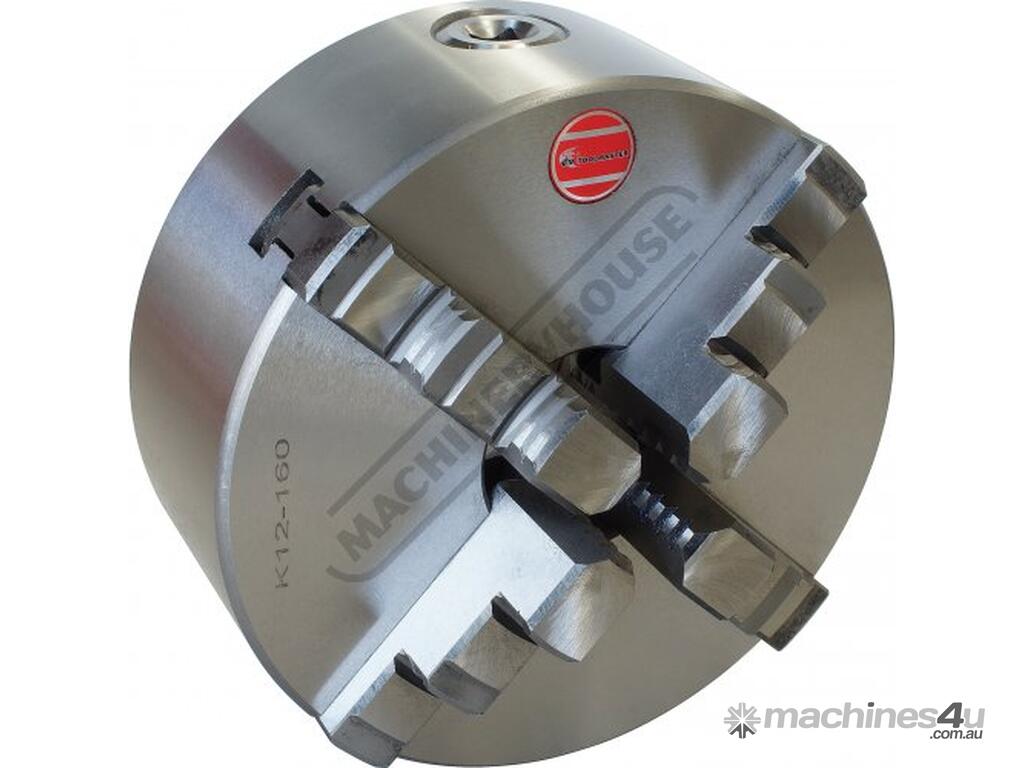

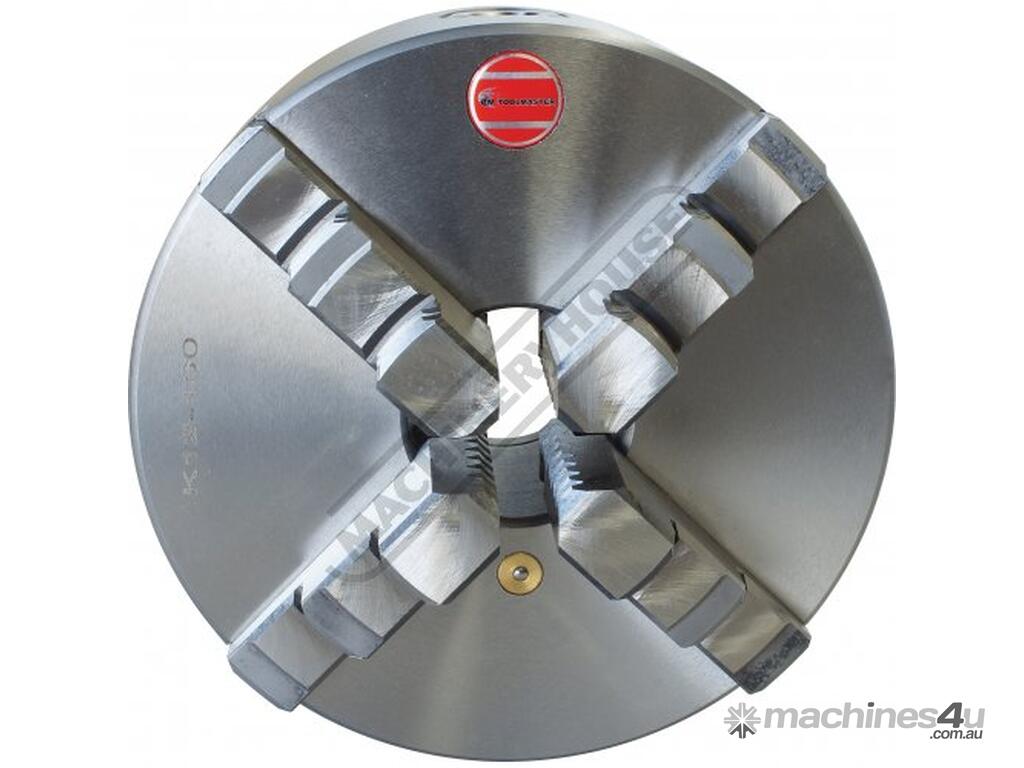

160mm 4-JAW SELF-CENTRING LATHE CHUCK
Manufactured from cast iron.

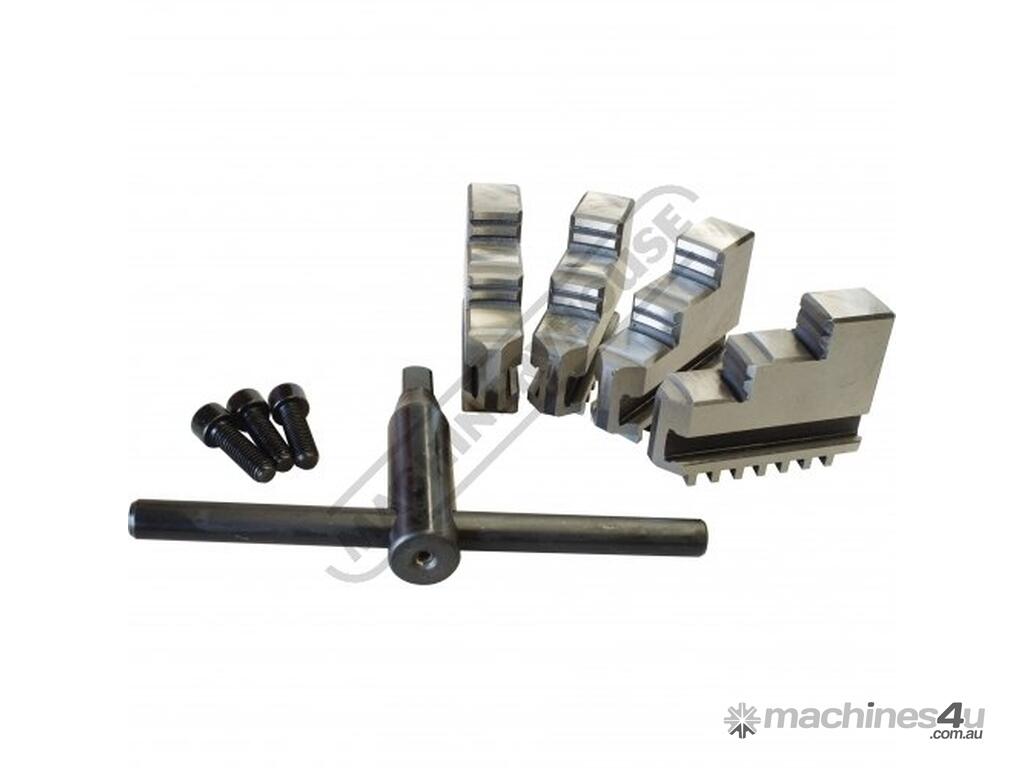

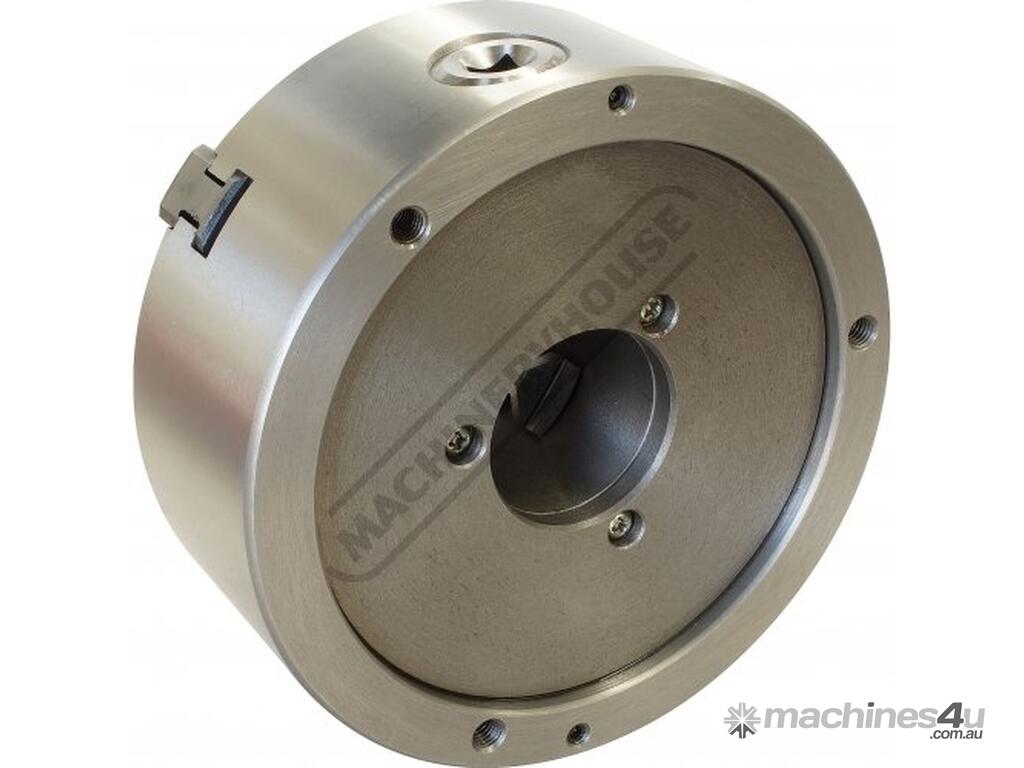

Available only in back mount.Includes:
- 1 x set of outside hard jaws
- 1 x set of inside hard jaws
- 1 x key
- 1 x set of mounting screws



Specifications:
ORDER CODE: C723
Size (mm): Ø160
Outside Jaw (mm): 3 - 55
Inside Jaw (mm): 55 - 145
Speed (rpm): 2500
D1 (mm): 130
D2 (mm): 142
D3 (bore) (mm): 45
H (mm): 95
H1 (mm): 65
h (mm): 5
z-d (mm): 3-M8
Nett Weight (kg): 8.7


To Purchase Online Please Visit The Machineryhouse & Search For 'C723'
