K12-200 4 Jaw Self Centring Lathe Chuck Ø200mm

TOOLMASTER K12-200 4 Jaw Self Centring Lathe Chuck Ø200mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C724

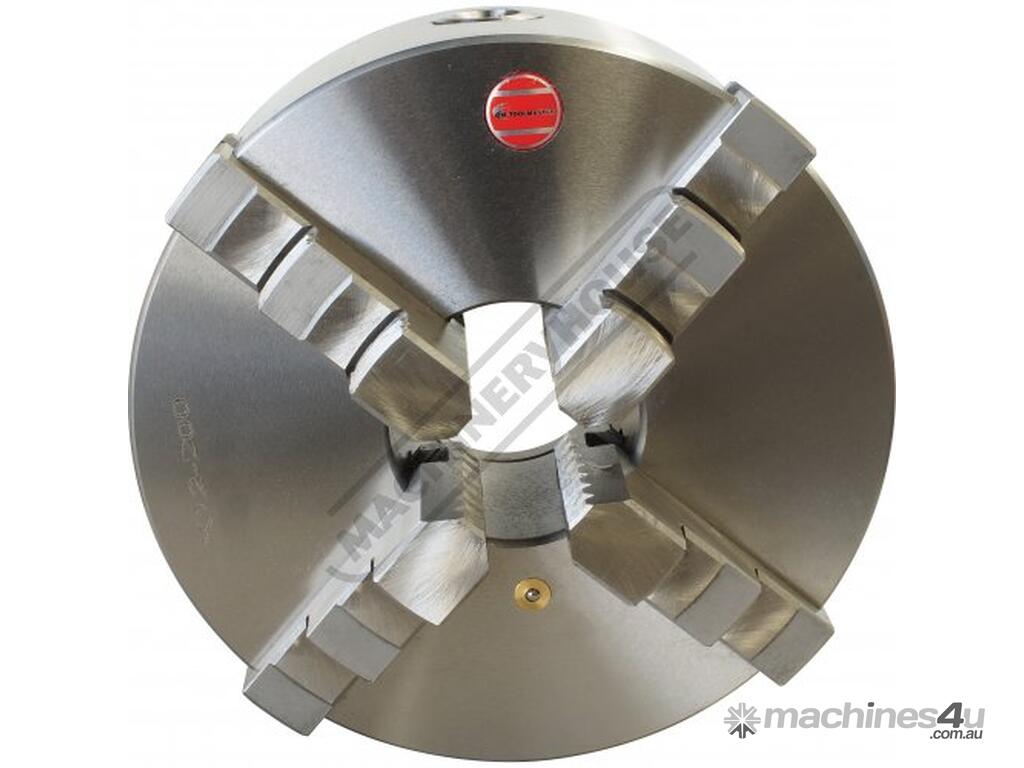

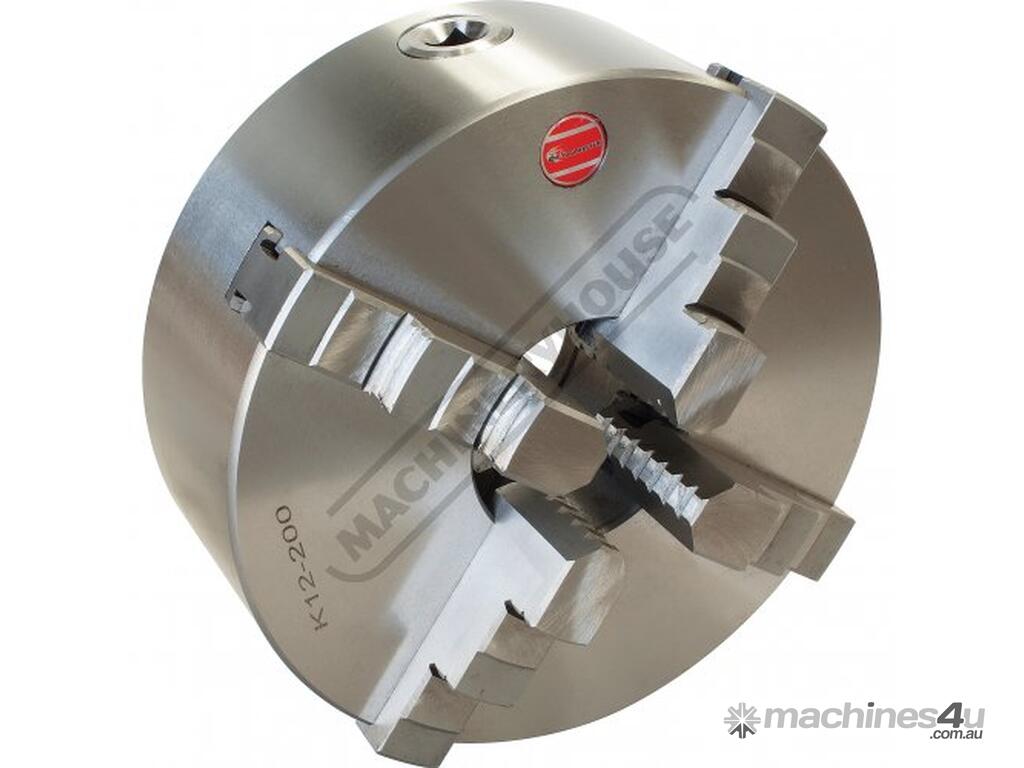

200mm 4-JAW SELF-CENTRING LATHE CHUCK
Manufactured from cast iron.

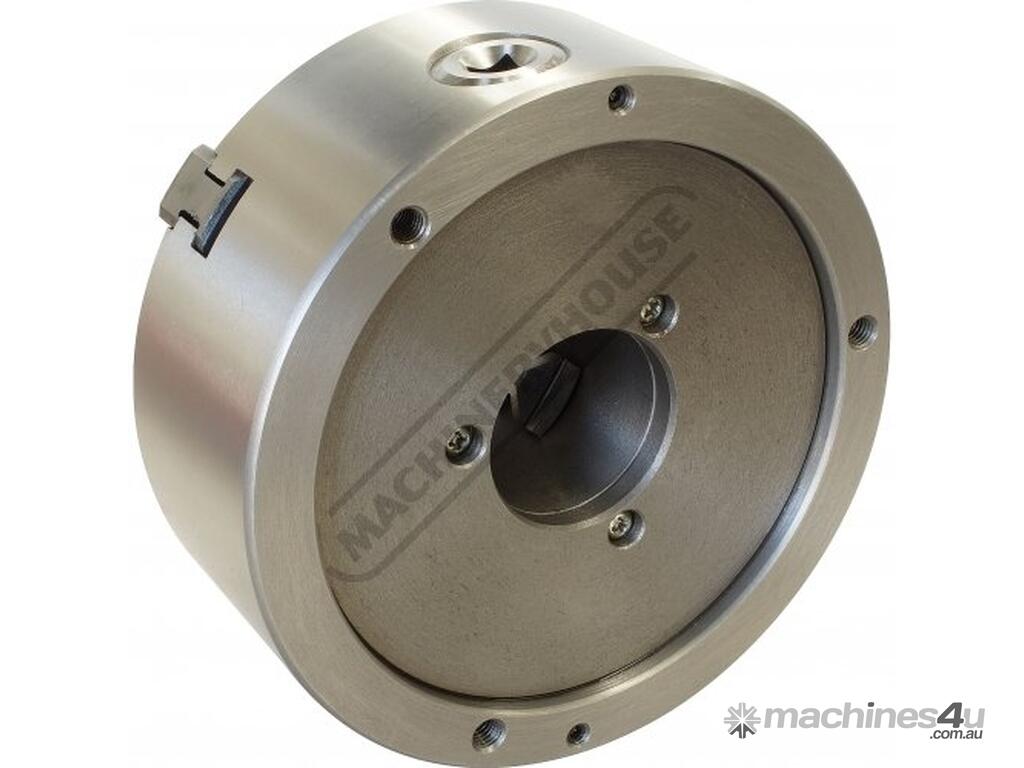

Available only in back mount.Includes:

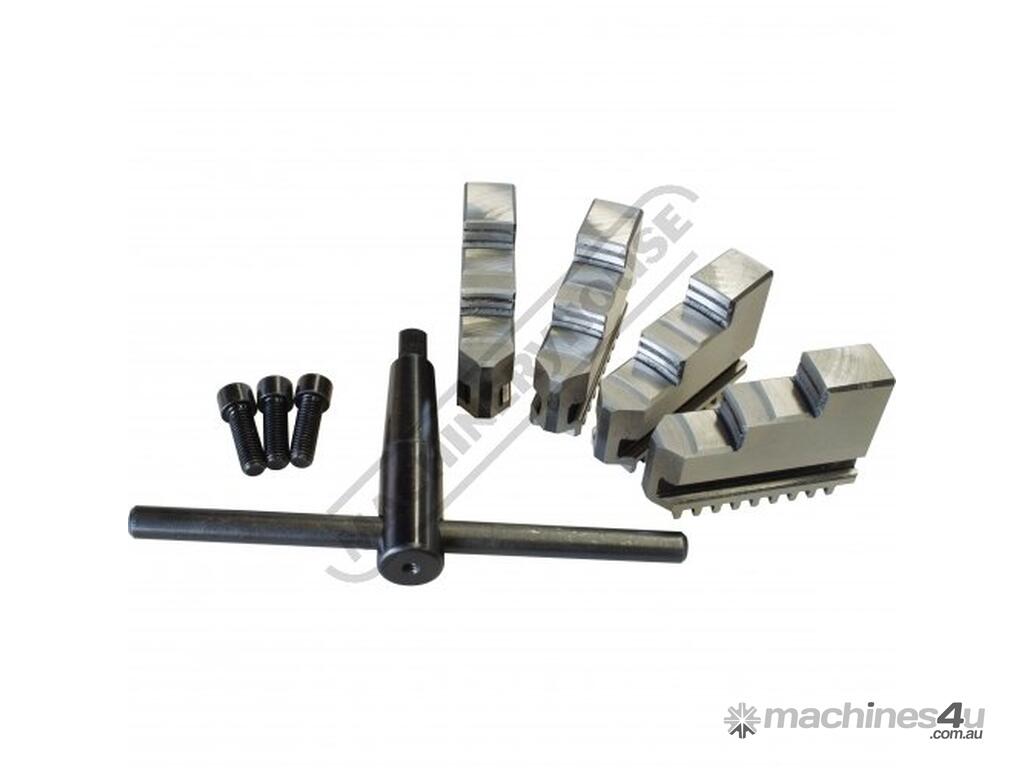

- 1 x set of outside hard jaws
- 1 x set of inside hard jaws
- 1 x key
- 1 x set of mounting screws



Specifications:
ORDER CODE: C724
Size (mm): Ø200
Outside Jaw (mm): 4 - 85
Inside Jaw (mm): 65 - 200
Speed (rpm): 2000
D1 (mm): 165
D2 (mm): 180
D3 (bore) (mm): 65
H (mm): 109
H1 (mm): 75
h (mm): 5
z-d (mm): 3-M10
Nett Weight (kg): 17


To Purchase Online Please Visit The Machineryhouse & Search For 'C724'
