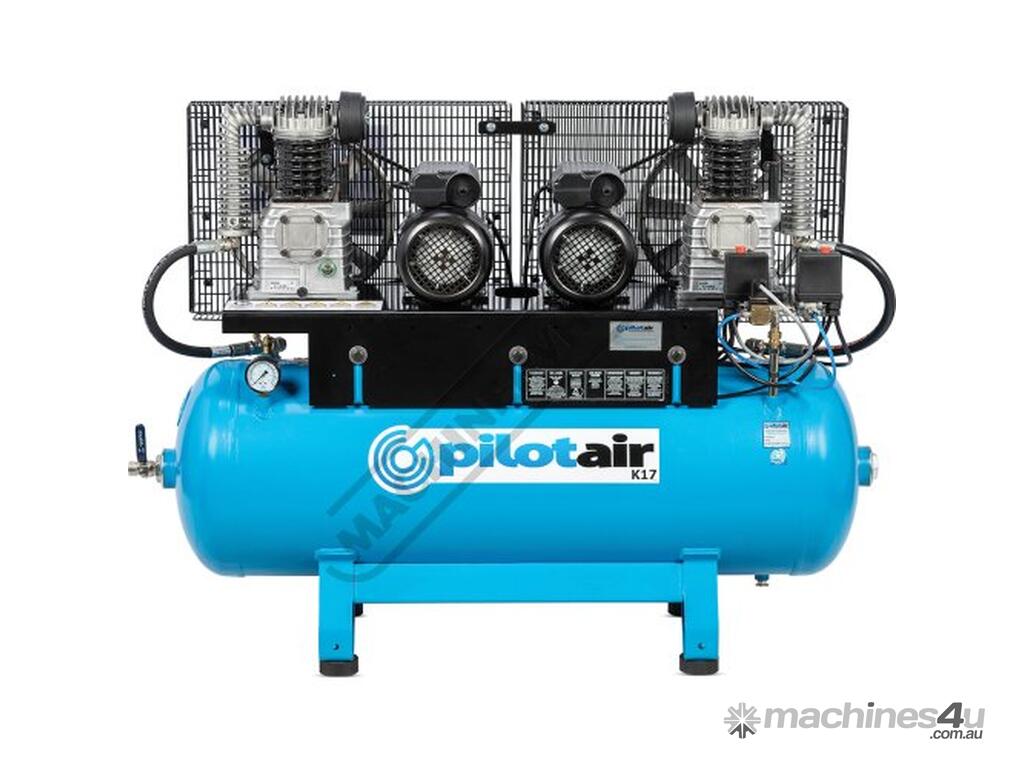

PILOT AIR COMPRESSORS K17 DUPLEX Pilot Super Duty Air Compressor 147 Litre Tank / 3hp
Get the maximum performance from single phase power supply 29.6cfm / 838lpm Piston Displacement
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C515
The Pilot Air “Classic K” Series. Setting the industry standard for over 40 years.
Get three phase performance from single phase power supply
Exceptional durability and efficiency make these 240V compressors suitable for any heavy duty industrial use
Two pump and motor combination mounted on a single 147 litre air receiver manufactured to AS1210
Features:
Australian designed and built
Industrial grade hammer-tone enamel finish
Tough 'K' series Italian made compressor pumps for ultra long life & reliability
2 x cast iron cylinder 2-stage pump
Electric motor overload
Warranty: 3 Years on pump 1 Year on all other components
Please Notre: 2 x separate 15 amp circuits are required to operate this compressor
Specifications:
ORDER CODE: C515
MODEL: K17DUPLEX
Drive Type: V-Belt
Piston Displacement (CFM / LPM): 29.6 / 838
Free Air Delivery (CFM / LPM): 19.6 / 557.4
Cylinders (Type): 2 x Twin
Max. Pressure (kPa): 1000
Max. Pressure (PSI): 145
Air Receiver Tank Size (Litre): 147
Motor Speed (rpm): 2800
Motor Power (kW / hp): 2 x 2.2 / 3
Voltage / Amperage (V / amp): 2 x 240 / 15
Nett Weight (kg): 185
