K3000XMC Plasma Cutting System

Plasma & Oxy Fuel Cutting
Bevel & Multi Torch Cutting
Drilling, Milling & More

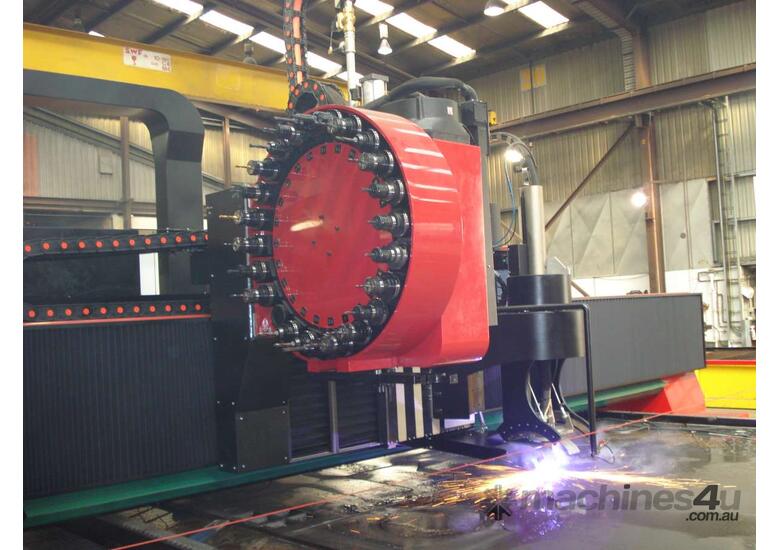

Our K3000xmc plasma cutting system helps plate processors increase output and maximize productivity by combining a state-of-the-art plasma and oxy fuel cutting system with a vertical machining center.

This means you can process parts on a single setup without fixtures, and without moving work pieces from station to station, saving valuable time and dramatically increasing the efficiency of your operation.

Plasma to 3" Thick
Oxy to 8" Thick
Table to 18' Wide
Drilling to 1-1/2" Hole
Tapping up to 5/8" Hole
BT 40 Spindle


CAPABILITIES
Cutting Capabilities
Plasma up to 3" thick
Oxy Fuel up to 8" thick
Plasma Beveling
Oxy Fuel Beveling
Triple Oxy Beveling
Pipe cutting

Machining Capabilities
Drilling up to 1-1/2" hole
Tapping up to 5/8" hole
Milling
Counter Boring
Chamfering
Hole Interpolation
Thread Milling
Part Marking

Table Size
Up to 18' wide
Up to 200' long


BENEFITS
Maximize Productivity
Cutting, milling, drilling and more in the same step
Multiple lifter stations for up to 2 independently driven plasma torches

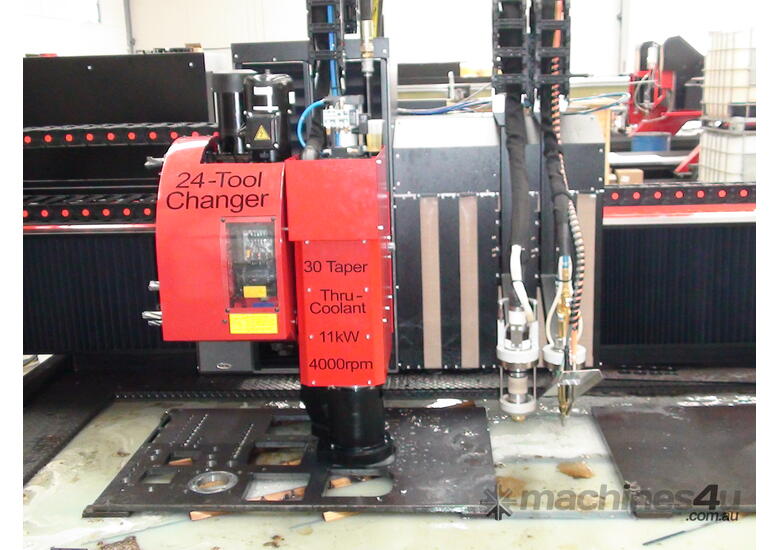

BT 40 spindle with 24 tool stations
Automated tool changes in under 3 seconds
Part marking via plasma marking, percussion marking, inkjet, stamping or scribing with the spindle

Minimize Downtime
Automated tooling alerts prevent breakdowns
Auto tool height measurement reduces loading time
High performance downdraft table minimizes smoke and fumes
Innovative self-cleaning table design saves time
Travelling dross bins for fast under-carriage cleanout
Modular table slats for fast changeout
Closed chip extraction system automates chip collection
Coolant recycling system minimizes refills
Standardized, quick-ship replacement parts

Speed & Accuracy
Best-in-class plasma accuracy
Best-in-class machining accuracy
Best-in-class repeatability
Traverse speed of 800”/min
Dual driven rack and pinion drive system
Linear rails with helical racking
Programmable ball screw drives for vertical axes
Linear bearing guide system on all axes
19" LCD touchscreen for fast setup and easy control
Fiber optic link to load programs quickly

Durability
One-piece welded gantry designed for the rigors of modern manufacturing
Full protection for all lines and drives
Heavy-duty frame and component parts
Floor mounted rails with protection
Through-spindle coolant to extend tooling life


OPTIONS & ACCESSORIES
Available Cutting Heads
Hypertherm HPR800XD, for stainless steel applications
Hypertherm HPR400XD
Hypertherm XPR 300XD
Hypertherm XPR170
Oxy Fuel cutting
Plasma bevel cutting
Oxy fuel bevel cutting
Multi torch cutting

Options & Accessories
Part marking via plasma marking, percussion marking, inkjet, stamping or scribing with the spindle
Water table for wider spans
Automated part removal system
Pass-through table technology
Complete customization for your specific application


Please note that our machine features and specifications are subject to change based on the latest engineering improvements. Contact NC TECH today with questions about specific machines and which Kinetic system will work best for your application.
