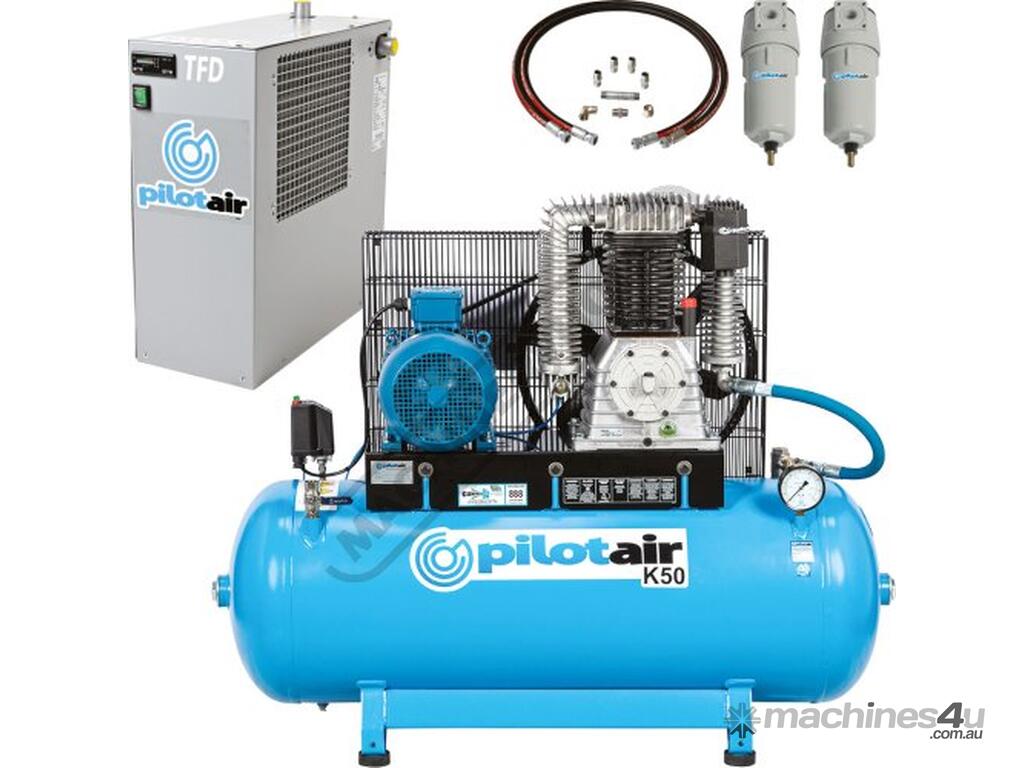

K50 Industrial Pilot Air Compressor & TFD-10 Refrigerated Air Dryer Package Deal 268 Litre / 10hp 39

PILOT AIR COMPRESSORS K50 Industrial Pilot Air Compressor & TFD-10 Refrigerated Air Dryer Package Deal 268 Litre / 10hp 39.6cfm /1120lpm Piston Displacement
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K0202

The Pilot Air three phase industrial range, setting the standard for long life and reliability for over 40 years.

Features:

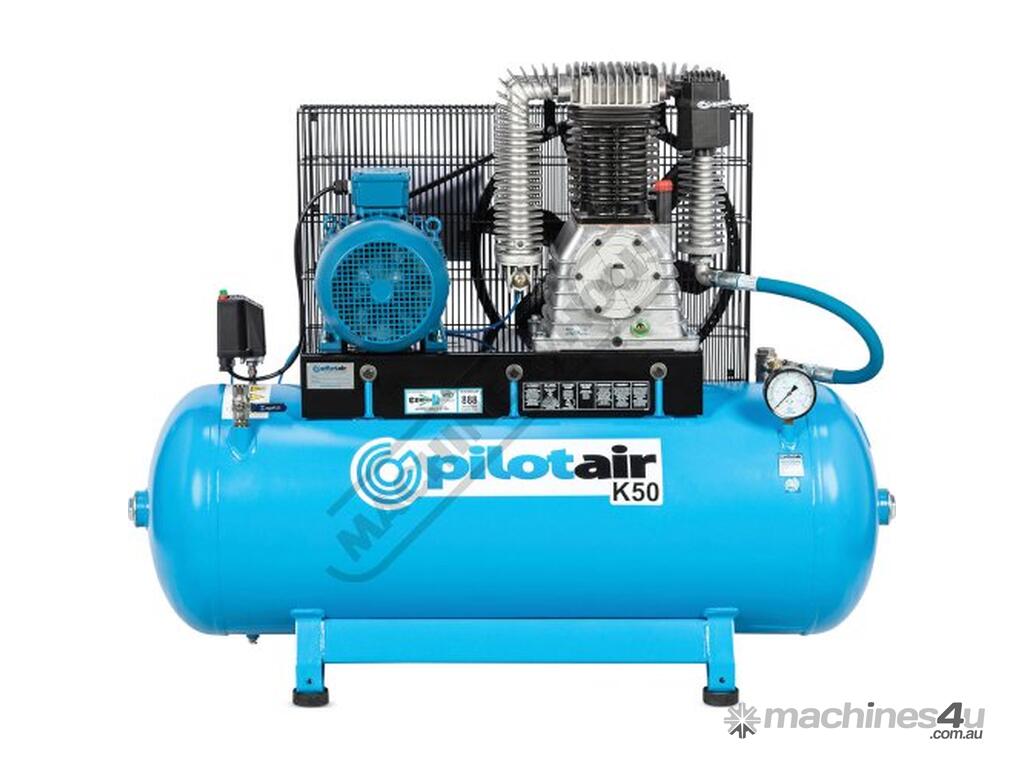

K50 - Industrial Air Compressor - (C529)
Pilot Air has over 30 years experience providing reliability & versatility in the compressed air industry
Two stage Italian made compressor pumps with after-cooler and intercooler for greater free air delivery and higher pressure
Cast iron cylinders and stainless steel valves give long life high efficiency & reliability
3-year warranty on Italian pumps 12 months warranty on other components backed by Nationwide service network
Supplied with high pressure high temp resistant hoses for durability
TEFC motors with auto stop/start control
Performance tested to AS 4637
Made to Australian Standard AS1210
Custom built compressors available on request

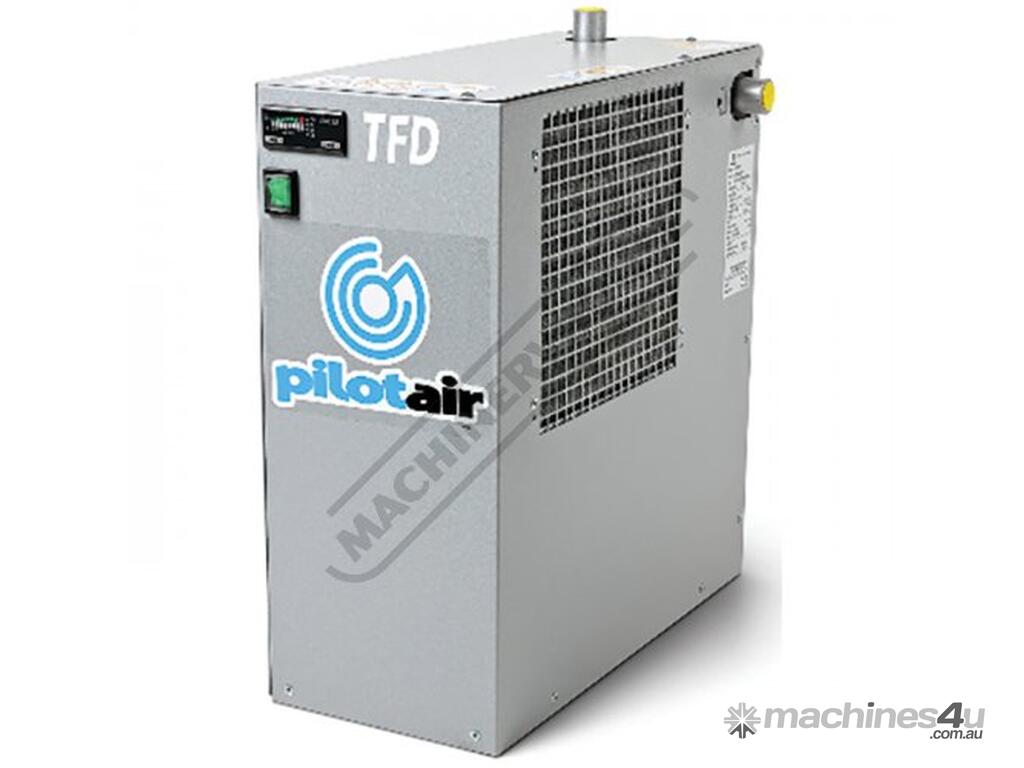

TFD-10 - Refrigerated Compressed Air Dryer - (C5451)
Flow Rate - L/min - cfm 990L/min - (35cfm)
Flow Rate - L/sec - 16.5 L/sec
The New TFD Series supersedes the ACT Dryer Series
Manufactured by the same supplier as the ACT Dryer
Price competitive –savings of up to 18.2% versus the ACT Dryer
Up to 30.9% higher flow rate versus the ACT Dryer
Upgraded Electronic Control Panel –DMC35
Operation of the dryer is monitored by a digital thermometer in the control panel
Upgrade available for alarm monitoring
Three new models added to the range making it easier for you to size the best option for the right application
Tested and Rated at 35oC
Full range of spare parts available
Warranty: 12 months on all new dryers

ALU-DRY MODULE:
The counter flows of compressed air in the air to air heat exchanger ensure maximum heat transfer.
Generous dimensions of the air to refrigerant heat exchanger plus the counter flow gas streams allow full and complete evaporation of the refrigerant (preventing liquid returning to the compressor).
The high efficiency condensate separator is located within the heat exchange module.
The large capacity separator is designed to operate even with high humidity levels in compressed inlet air.
The large cross section of flow channels within the heat exchanger module aids flow rates and leads to reduced power requirements.

PLEASE NOTE:
It is mandatory to install a dryer pre-filter with a grade of a least 3 microns before the dryer to prevent rust scale or other pollutants clogging the Alu-Dry module and the condensate drain. Failure to do so will void warranty on the dryer.

FTP012 - Refrigerated Air Dryer - Pre-Filter 3 Micron - (C546A)

FTX012 - Refrigerated Air Dryer - Post-Filter 1 Micron - (C546B)

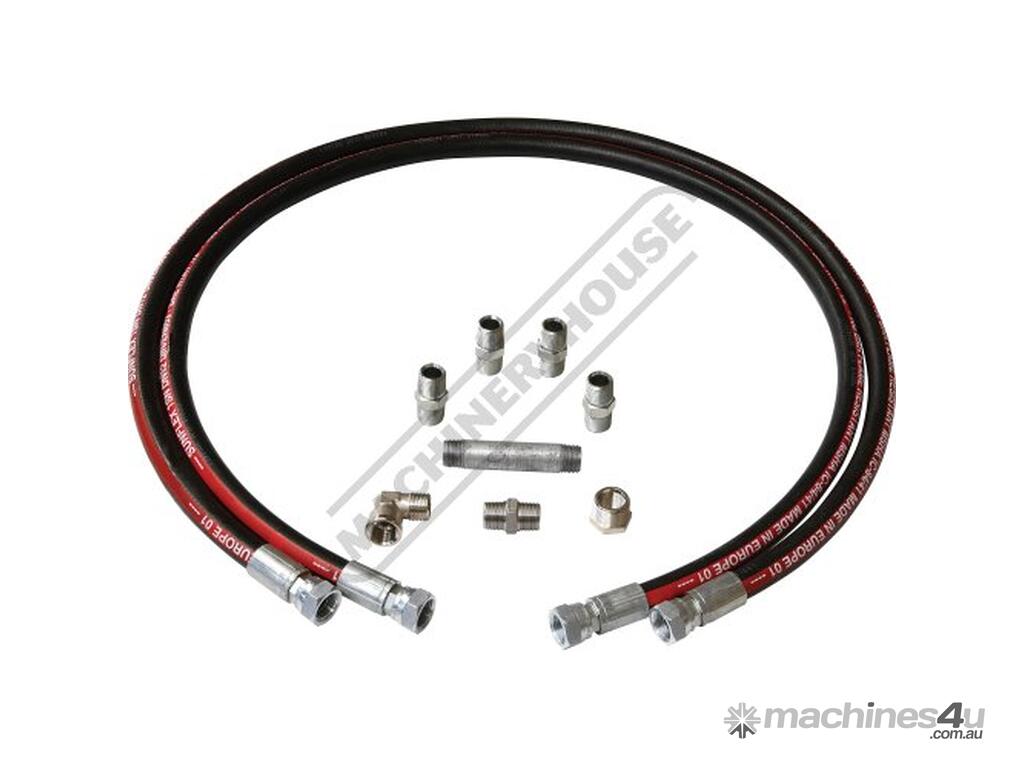

HH-12 - 2 x Connector Hoses With Fittings 1500mm Length (each) - (A218)


Specifications:
ORDER CODE: K0202
MODEL: K50 Package Deal
Type: Horizontal
Piston Displacement (CFM / LPM): 39.6 / 1120
Free Air Delivery (CFM / LPM): 31.3 / 888
Cylinders (Type): 2
Stages (No.): 2
Max. Pressure (PSI): 160
Max. Pressure (kPa): 1100
Tank Capacity (Litre): 268
Motor Power (kW / hp): 7.5 / 10
Voltage (V): 415
Nett Weight (kg): 295


To Purchase Online Please Visit The Machineryhouse & Search For 'K0202'
