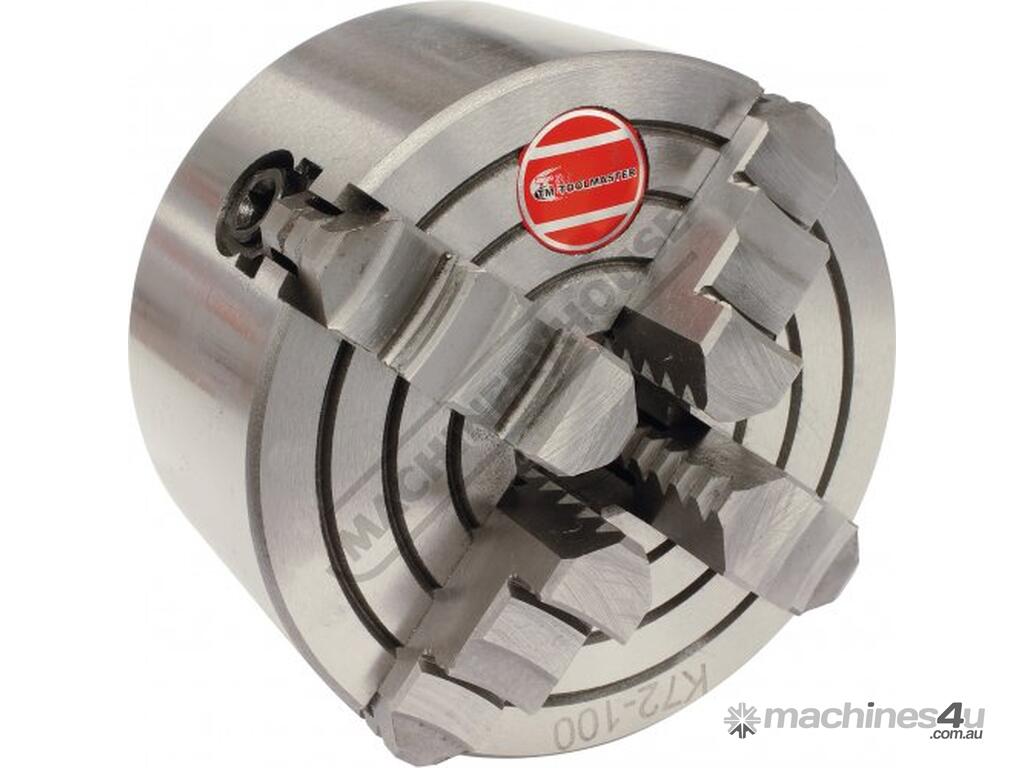

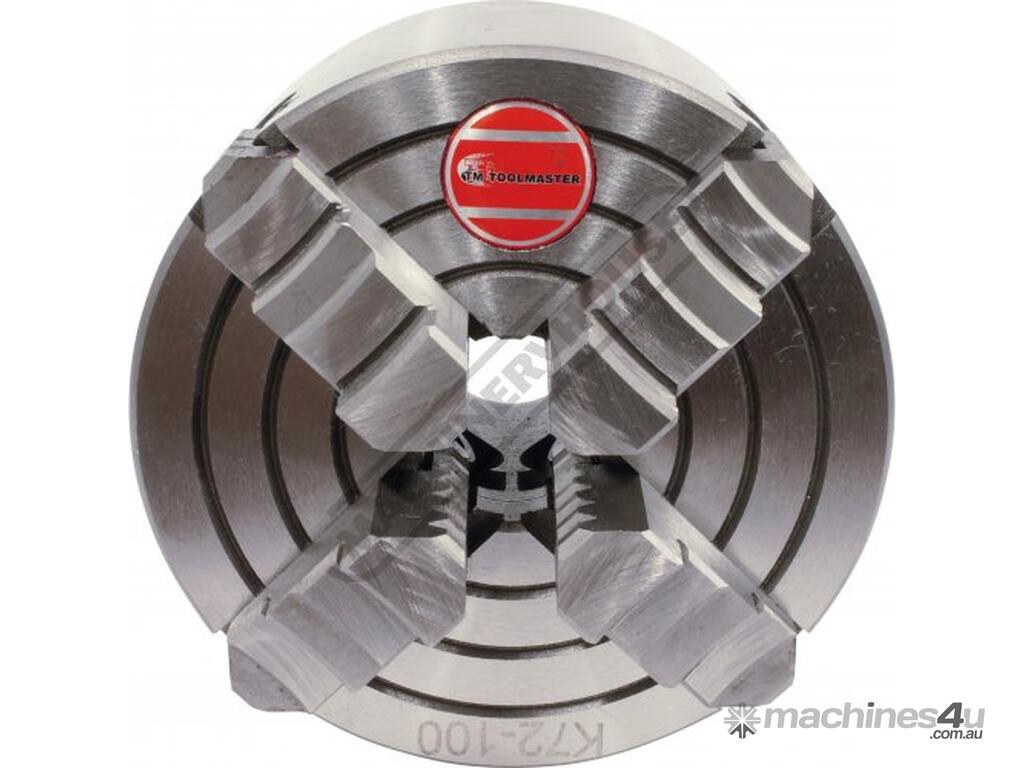

K72-100 4 Jaw Independent Lathe Chuck Ø100mm Back Plate Mount

TOOLMASTER K Jaw Independent Lathe Chuck Ø100mm Back Plate Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C230

Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened

Features:

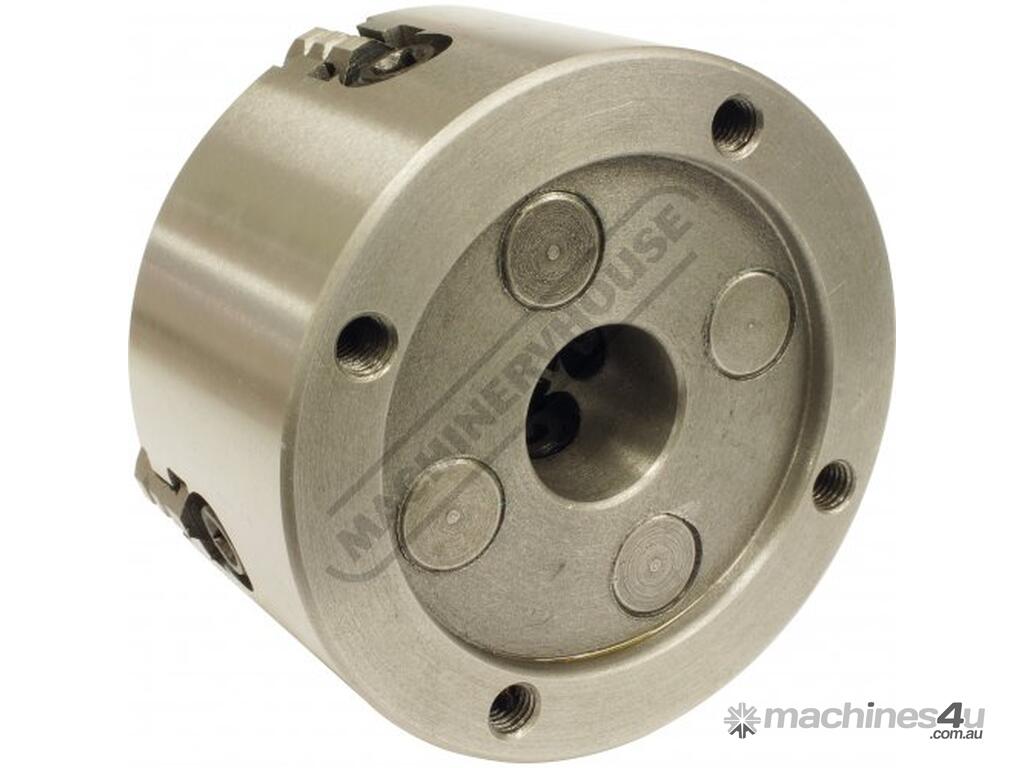

Rear Mounting


Specifications:
ORDER CODE: C230
Chuck Size: Ø100
External Jaw Range (mm): 40 - 100
Internal Jaw Range (mm): 6 - 45
Speed (rpm): 3500
D1 (mm): 72
D2 (mm): 84
D3 (mm): 25
H1 (mm): 54
h (mm): 4
z-d (mm): 4 - M8
Nett Weight (kg): 3.2
