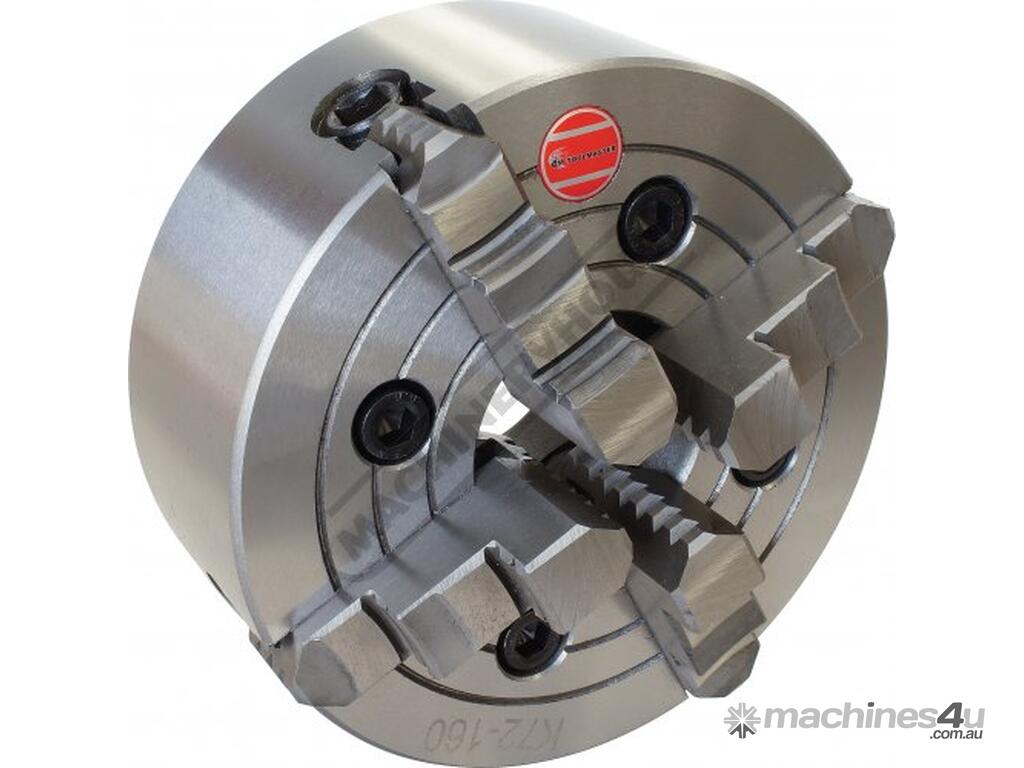

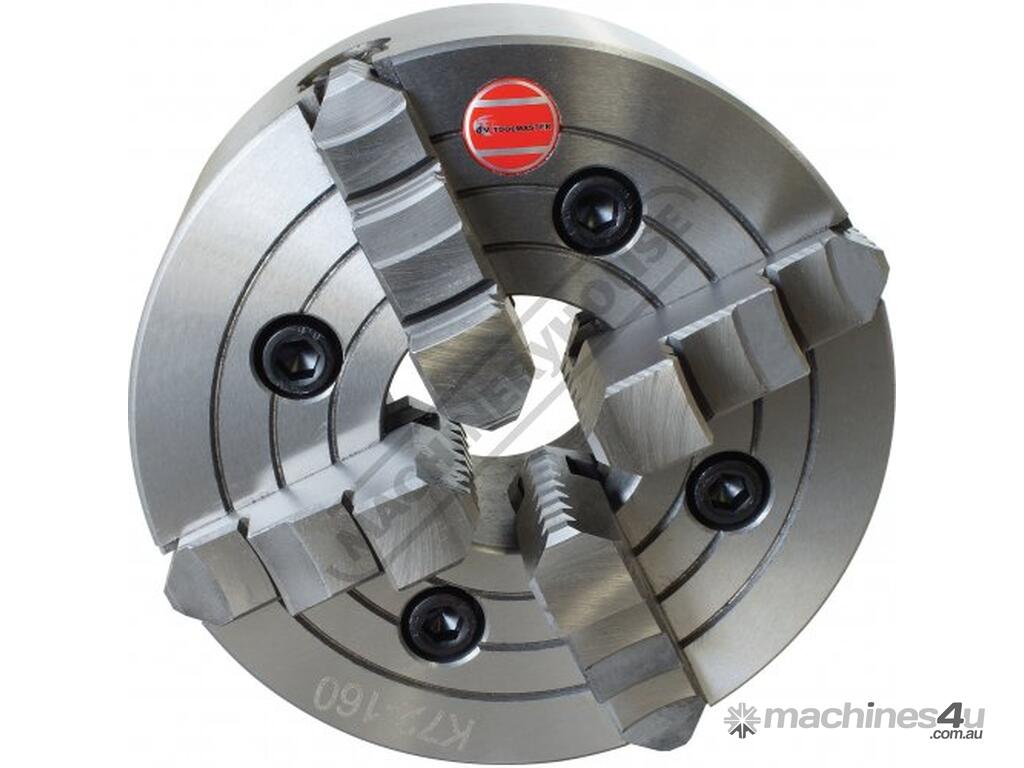

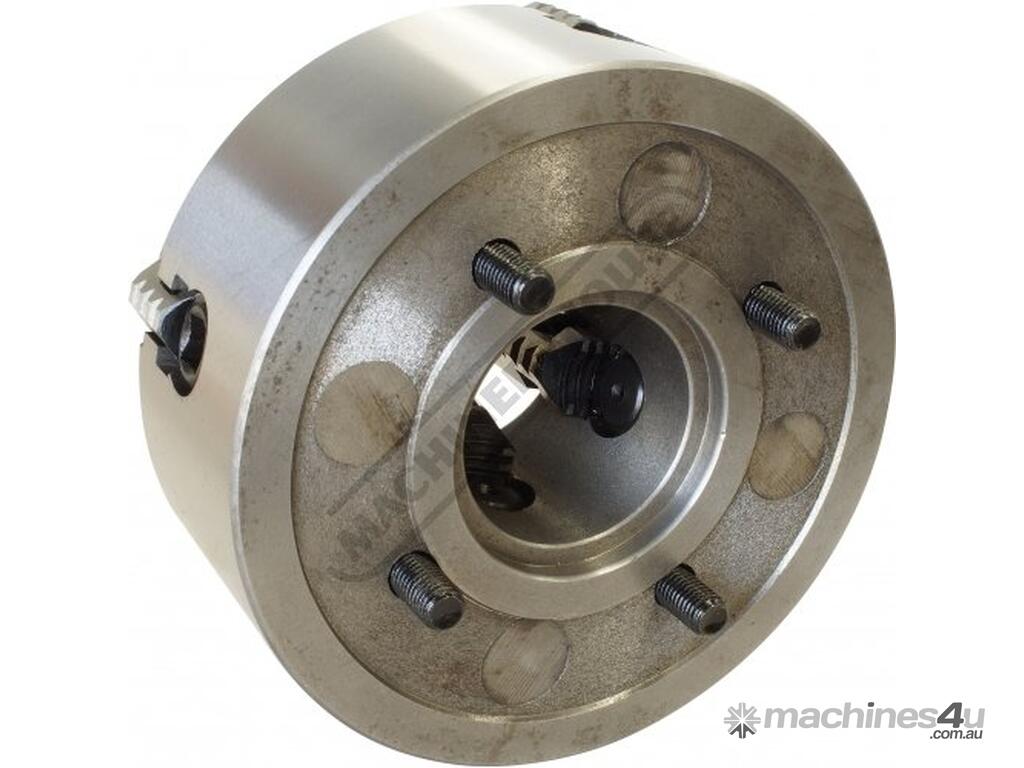

K72-160 4 Jaw Independent Lathe Chuck Ø160mm Back Plate Mount

TOOLMASTER K Jaw Independent Lathe Chuck Ø160mm Back Plate Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C250

Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened

Features:
Front Mounting


Specifications:
ORDER CODE: C250
Chuck Size: Ø160
External Jaw Range (mm): 50 - 160
Internal Jaw Range (mm): 8 - 80
Speed (rpm): 2500
D1 (mm): 65
D2 (mm): 95
D3 (mm): 55
H1 (mm): 65
h (mm): 5
z-d (mm): 4 - M10
Nett Weight (kg): 9.2
