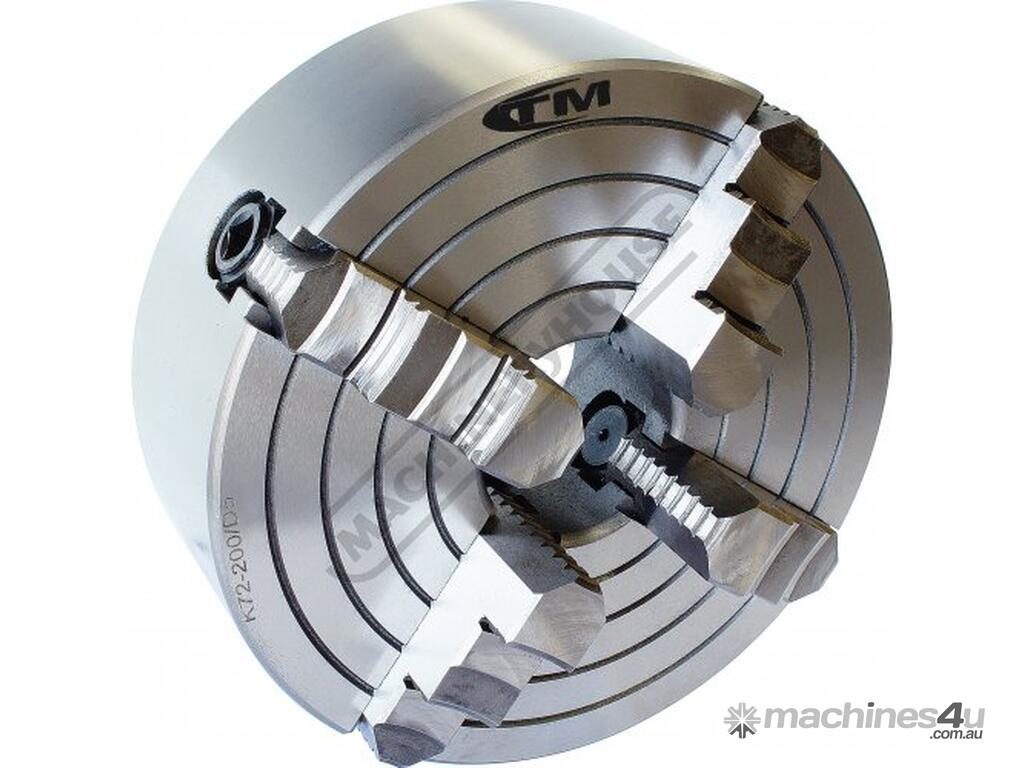

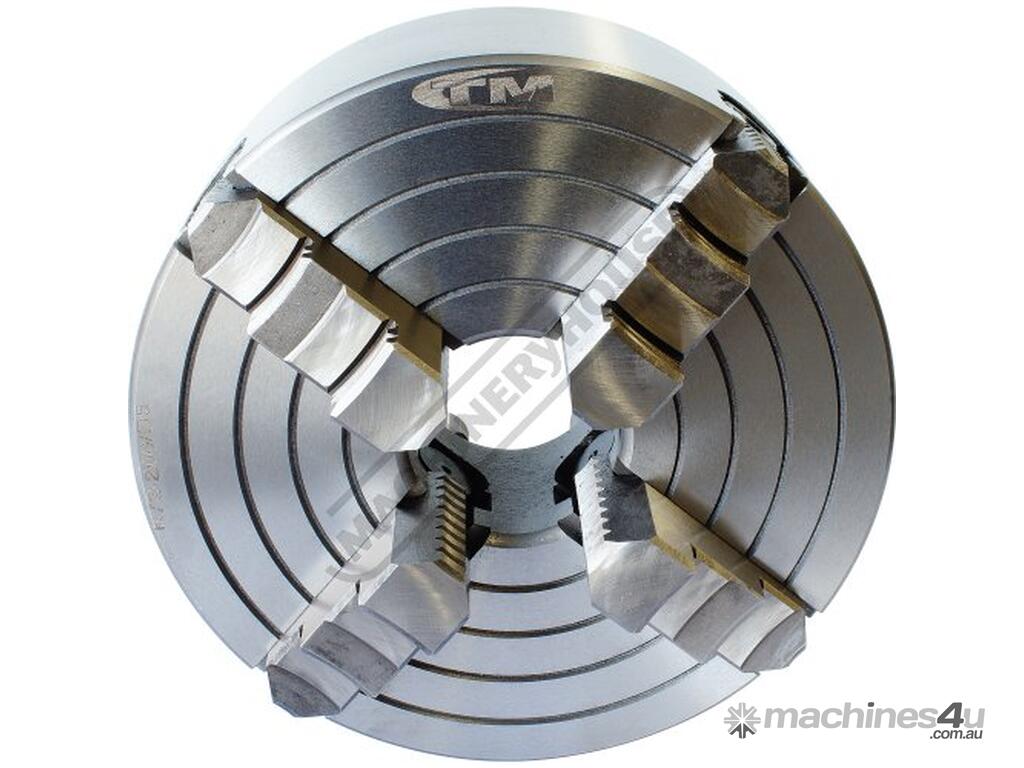

K72-200/D1-5 4 Jaw Independent Lathe Chuck Ø200mm D1-5 Camlock Mount

TOOLMASTER K72-200/D Jaw Independent Lathe Chuck Ø200mm D1-5 Camlock Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C253

Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened.

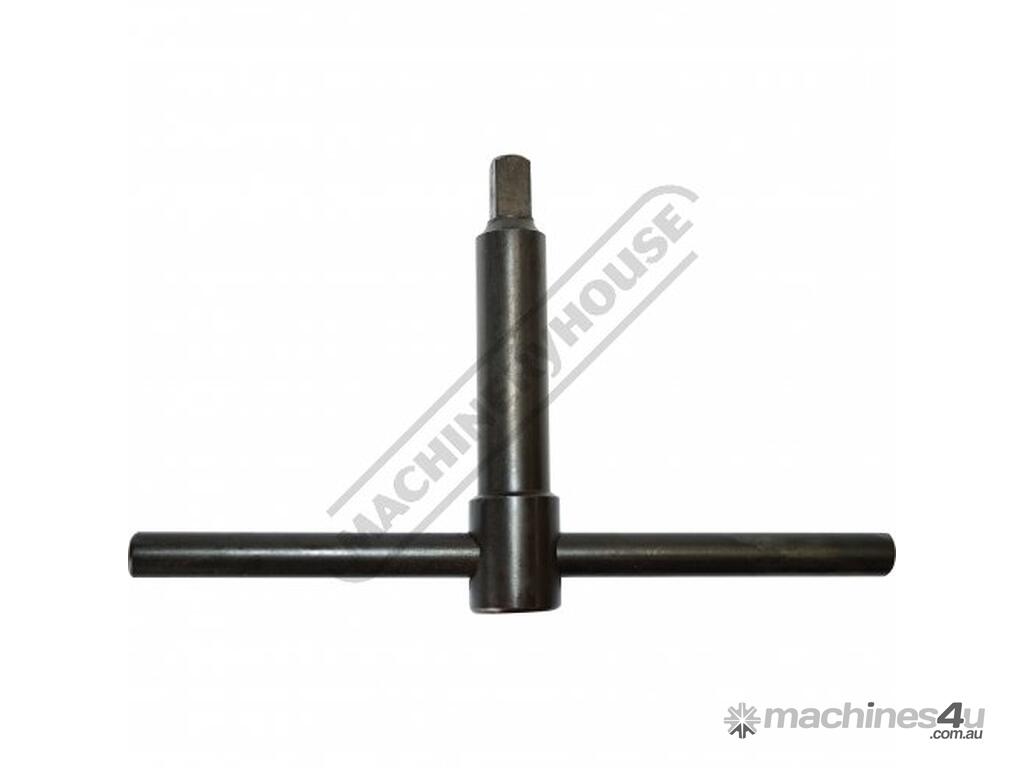

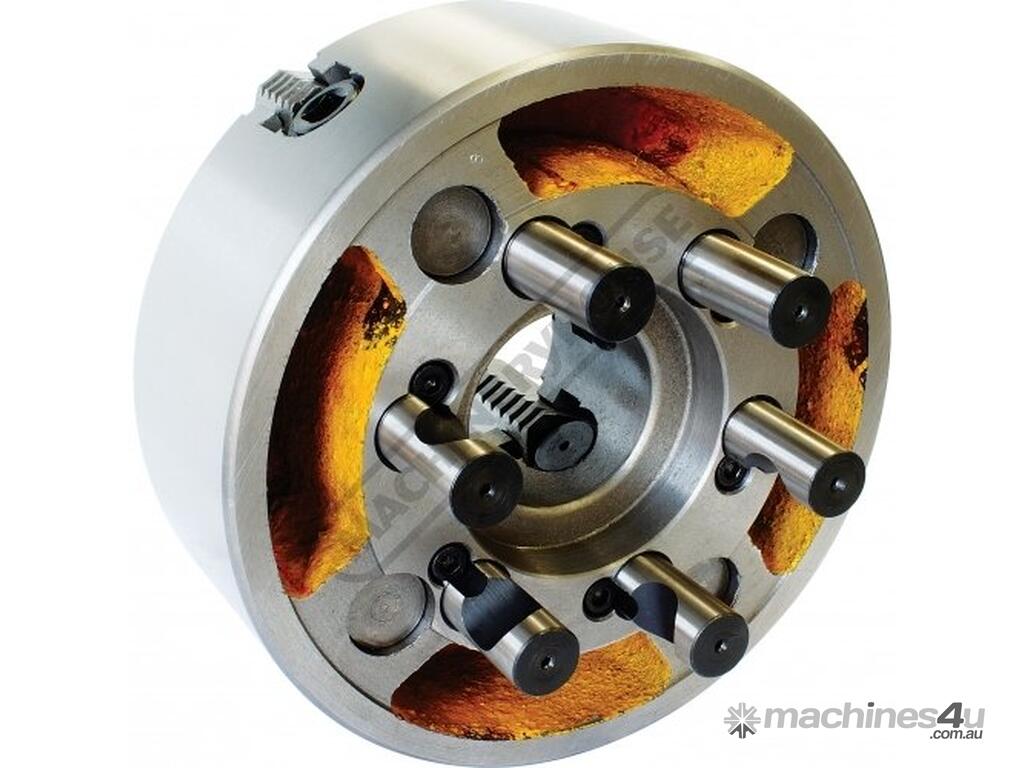

Supplied with camlock pins, 1 set of jaws and wrench.

Specifications:
ORDER CODE: C253
Chuck Size (mm): Ø200
Camlock: D1-5
Speed (rpm): 2000
D1 (mm): 82.5
D2 (mm): 104.8
D3 (mm): 56
H1 (mm): 75
h (mm): 12
Nett Weight (kg): 17.5
