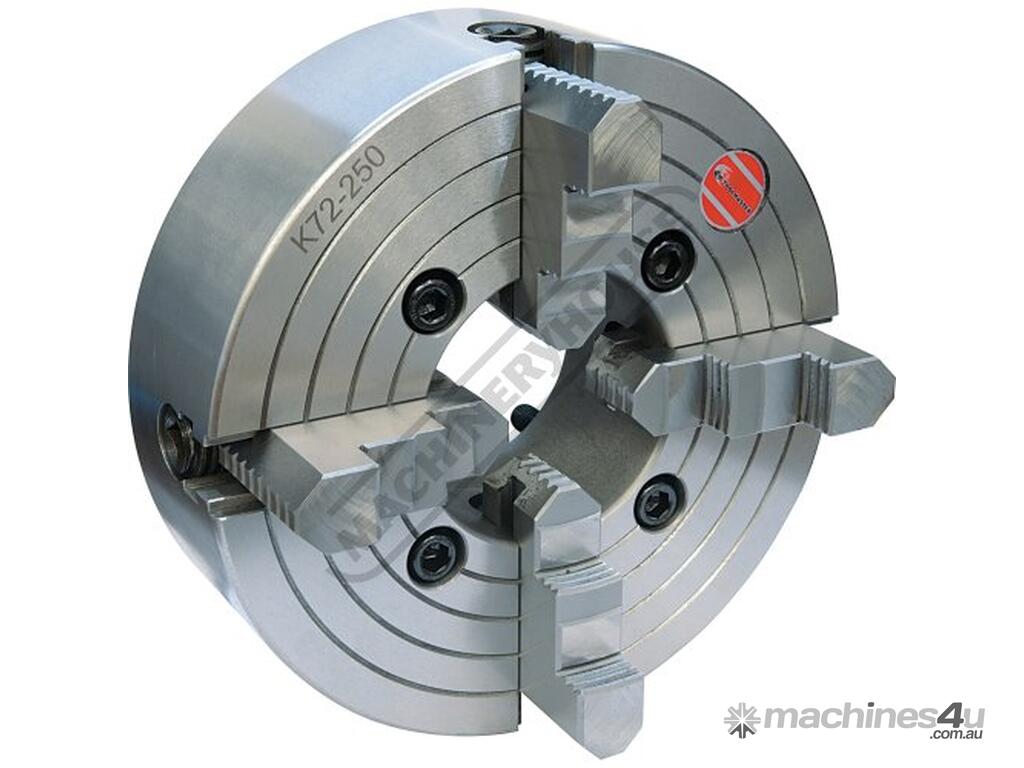

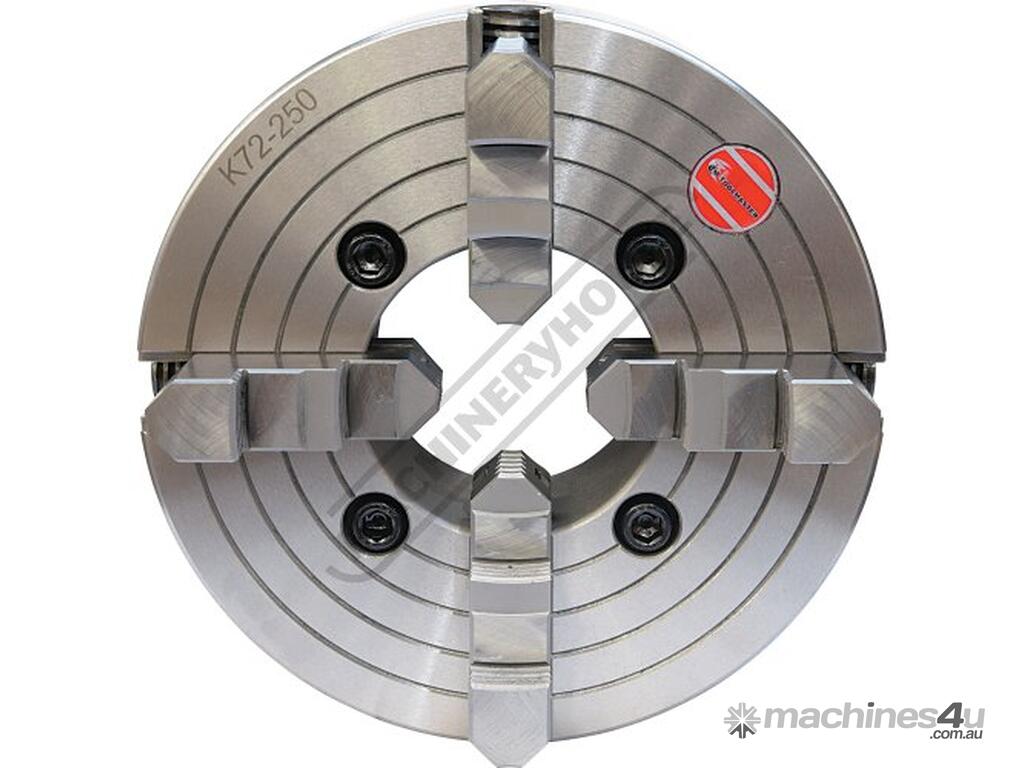

K72-250 4 Jaw Independent Lathe Chuck Ø250mm Back Plate Mount

TOOLMASTER K Jaw Independent Lathe Chuck Ø250mm Back Plate Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C255

Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened

Features:
Front Mounting


Specifications:
ORDER CODE: C255
Chuck Size: Ø250
External Jaw Range (mm): 160 - 250
Internal Jaw Range (mm): 5 - 118
Speed (rpm): 1600
D1 (mm): 110
D2 (mm): 130
D3 (mm): 100
H1 (mm): 80
h (mm): 6
z-d (mm): 4 - M12
Nett Weight (kg): 23


To Purchase Online Please Visit The Machineryhouse & Search For 'C255'
