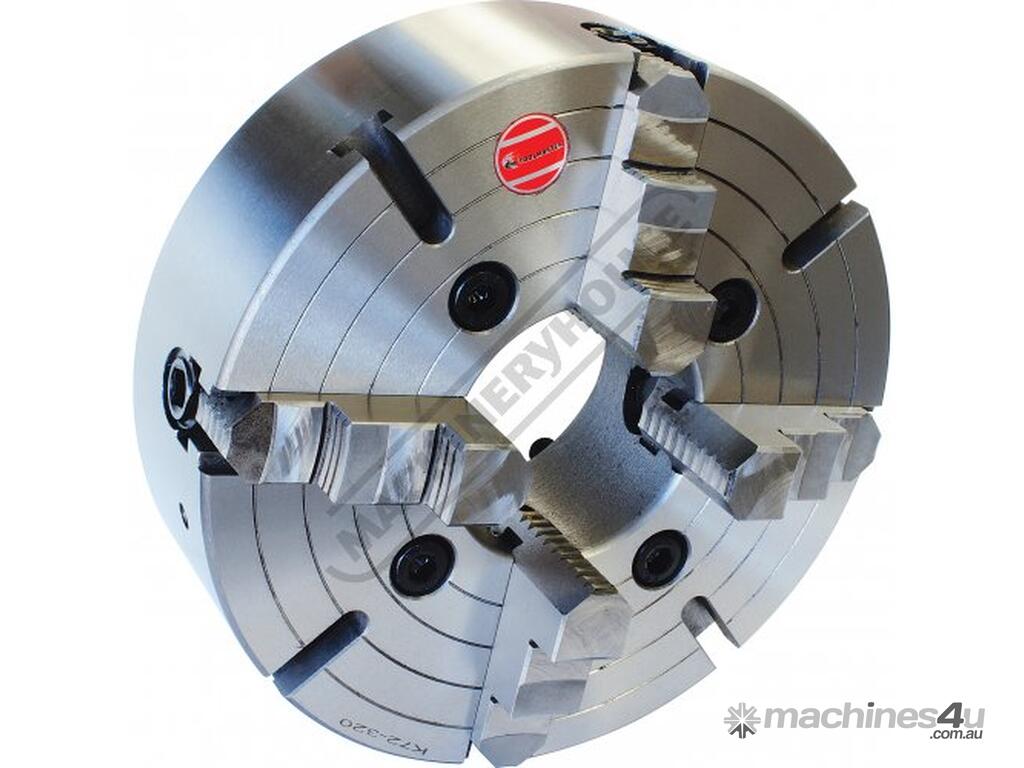

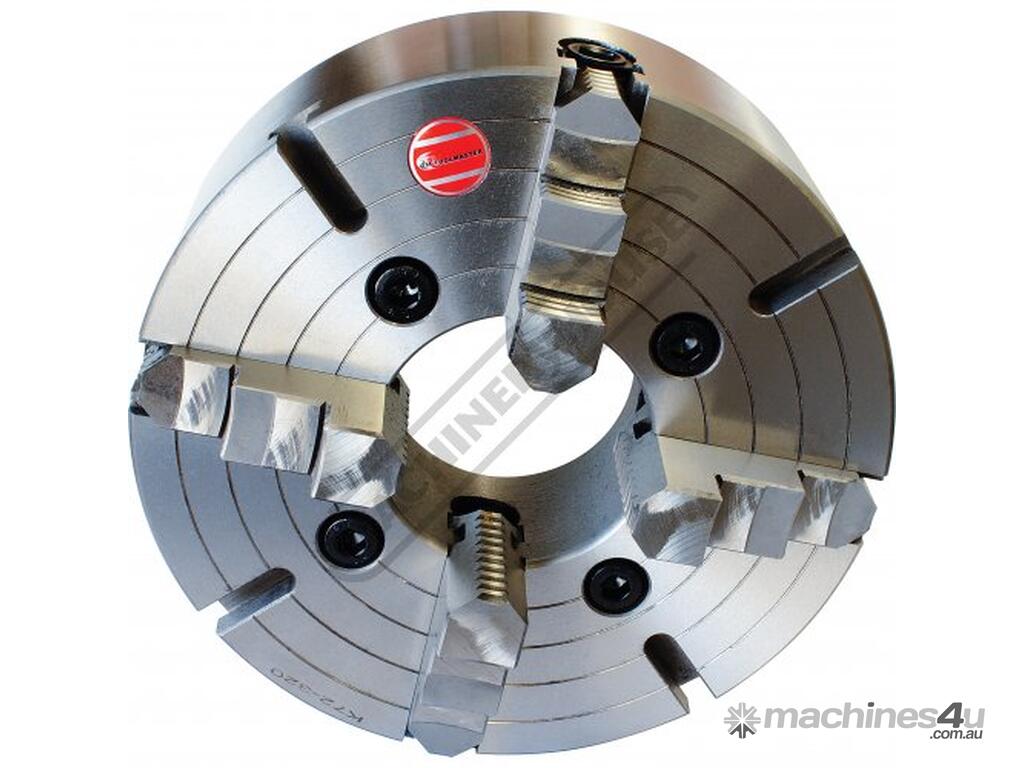

K72-320 4 Jaw Independent Lathe Chuck Ø320mm Back Plate Mount

TOOLMASTER K Jaw Independent Lathe Chuck Ø320mm Back Plate Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C257

Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened

Features:
Front Mounting


Specifications:
ORDER CODE: C257
Chuck Size: Ø320
External Jaw Range (mm): 100 - 315
Internal Jaw Range (mm): 20 - 170
Speed (rpm): 1200

D1 (mm): 140
D2 (mm): 165
D3 (mm): 115
H1 (mm): 100
h (mm): 16
z-d (mm): 4 - M16
Nett Weight (kg): 40


To Purchase Online Please Visit The Machineryhouse & Search For 'C257'
