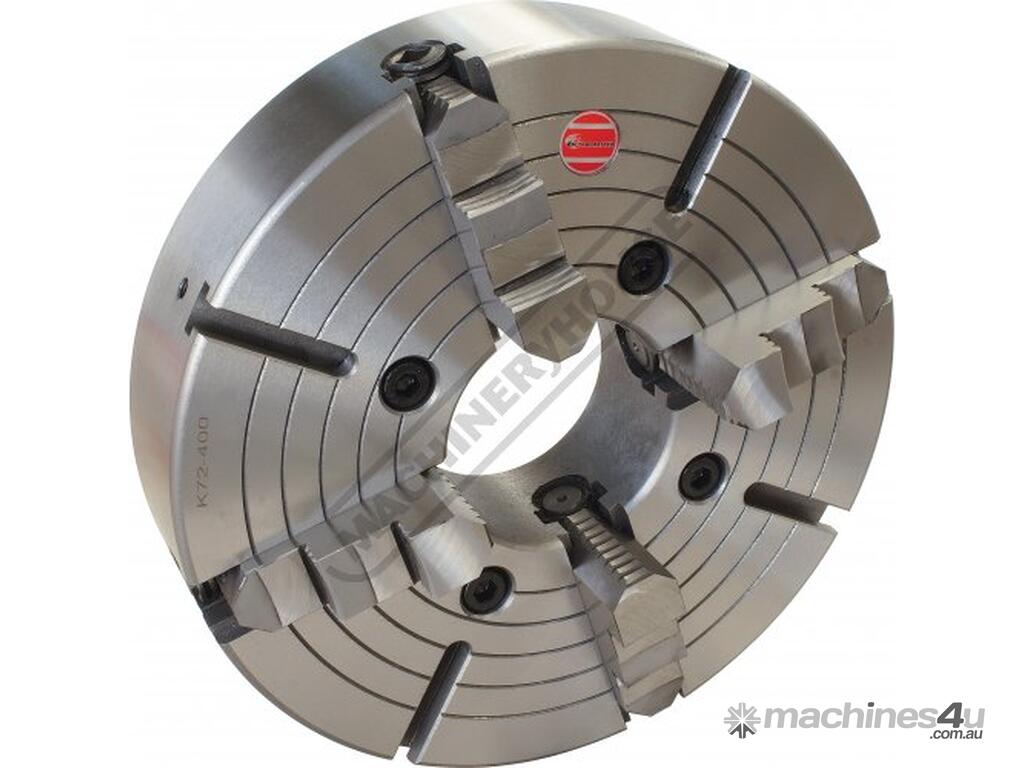

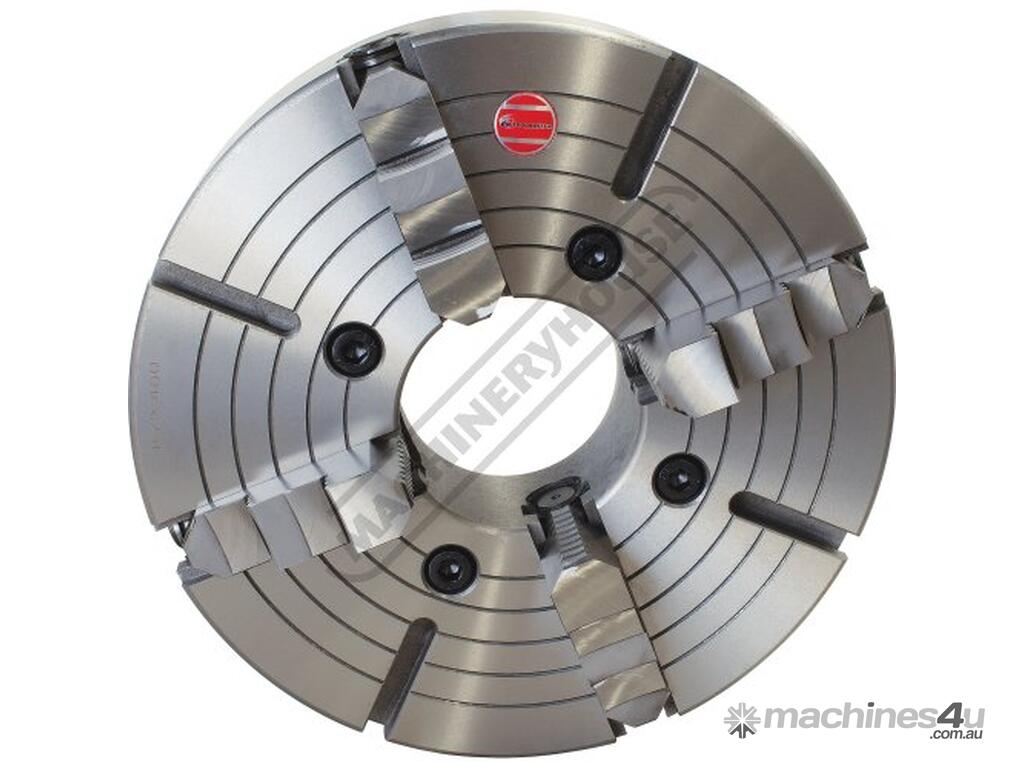

K72-400 4 Jaw Independent Lathe Chuck Ø400mm Back Plate Mount

TOOLMASTER K Jaw Independent Lathe Chuck Ø400mm Back Plate Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C258

Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened

Features:

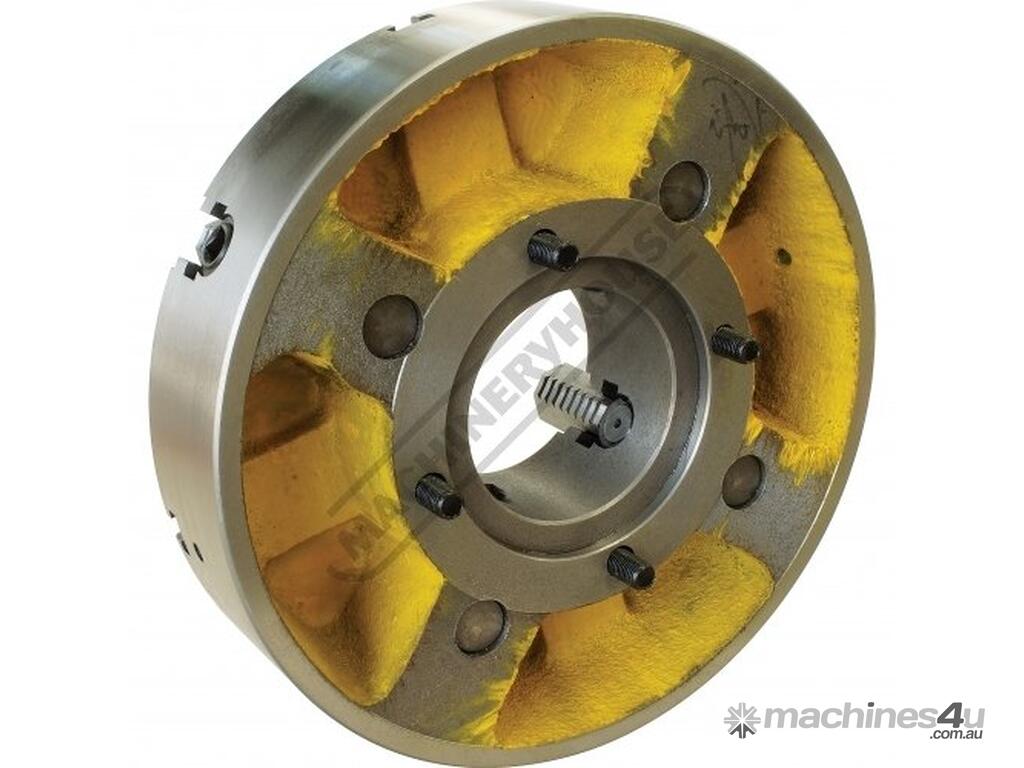

Front Mounting


Specifications:
ORDER CODE: C258
Chuck Size: Ø400
External Jaw Range (mm): 118 - 400
Internal Jaw Range (mm): 25 - 250
Speed (rpm): 1000
D1 (mm): 160
D2 (mm): 185
D3 (mm): 125
H1 (mm): 100
h (mm): 8
z-d (mm): 4 - M16
Nett Weight (kg): 55
