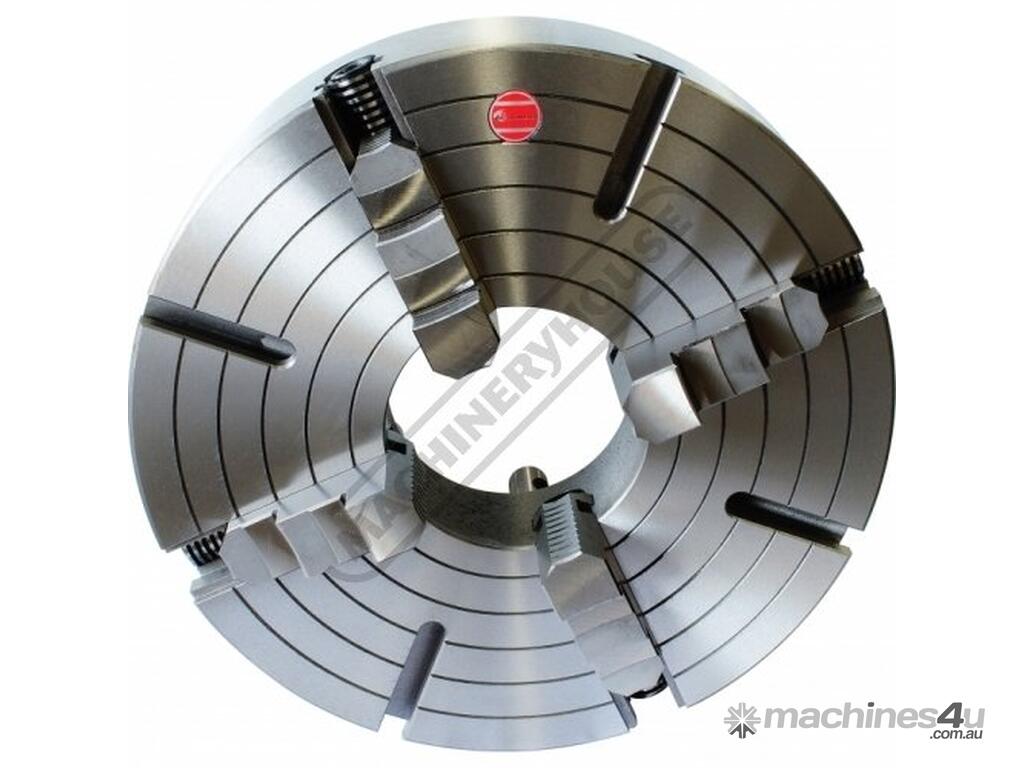

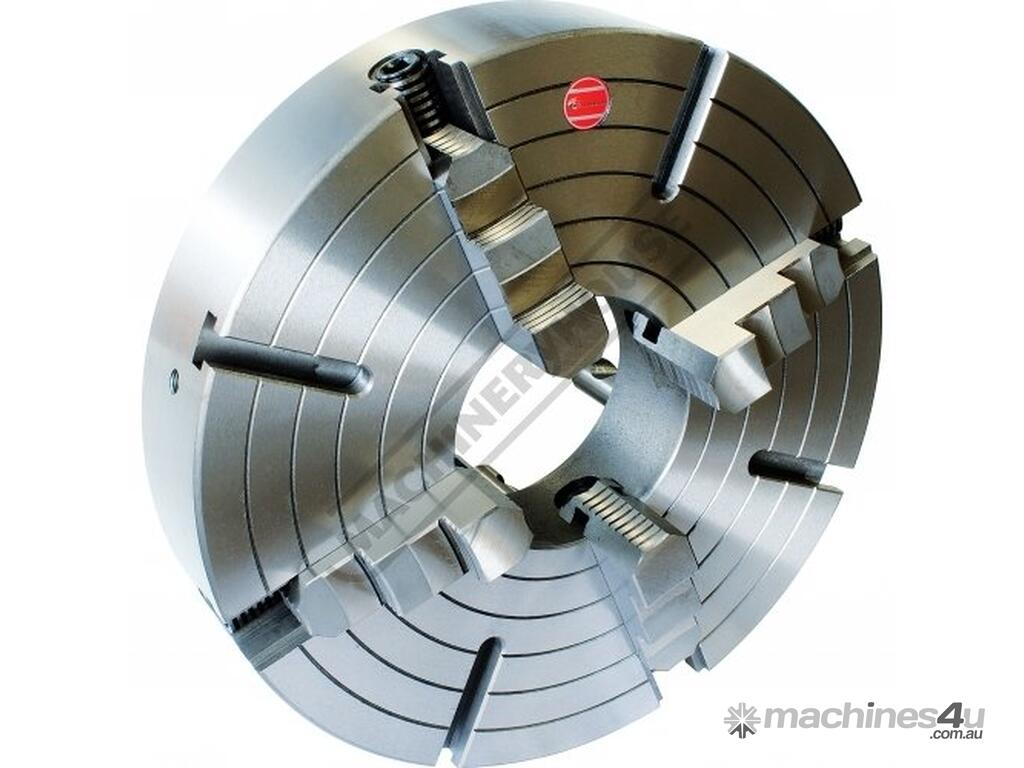

K72-500/D1-11 4 Jaw Independent Lathe Chuck Ø500mm D1-11 Camlock Mount

TOOLMASTER K72-500/D Jaw Independent Lathe Chuck Ø500mm D1-11 Camlock Mount
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C274

Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened.

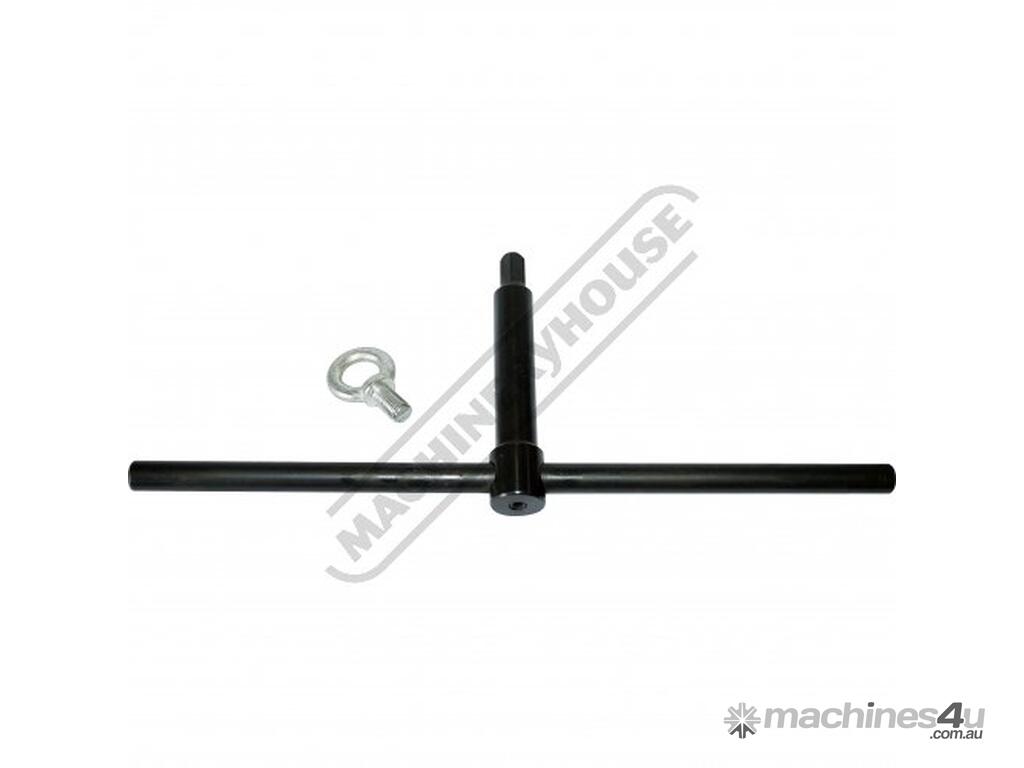

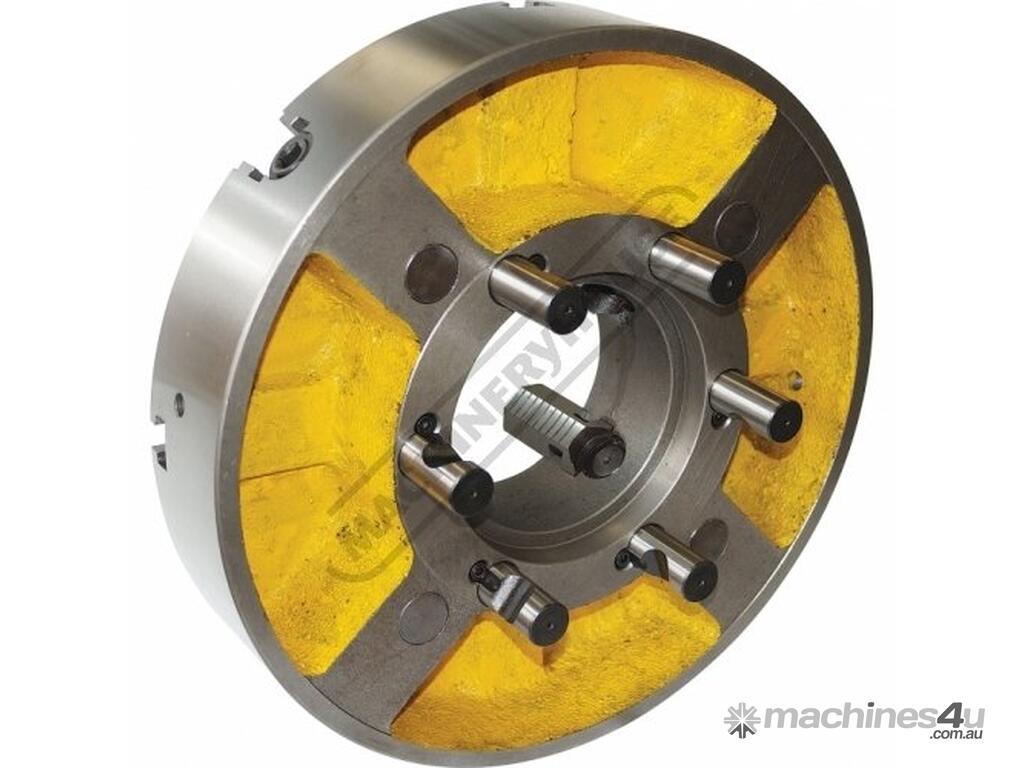

Supplied with camlock pins, 1 set of jaws and wrench.

Specifications:
ORDER CODE: C274
Chuck Size (mm): Ø500
Camlock: D1-11
Speed (rpm): 800
D1 (mm): 196.8
D2 (mm): 235
D3 (mm): 160
H1 (mm): 106
h (mm): 16
Nett Weight (kg): 124
