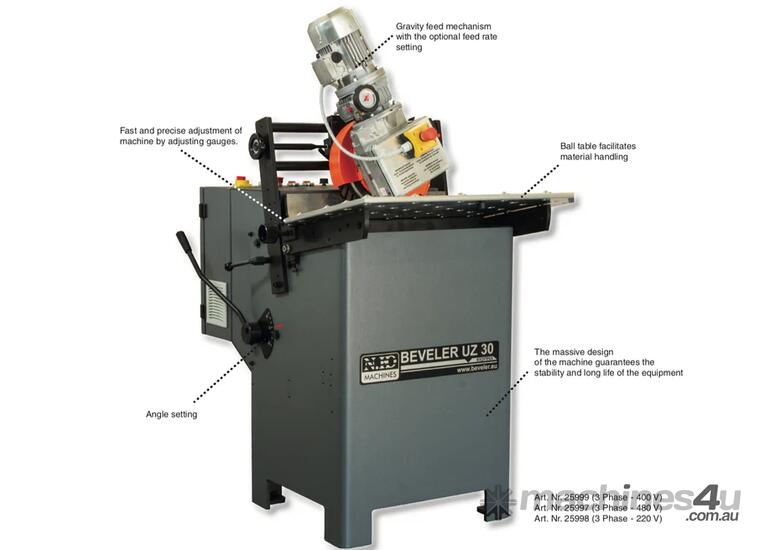

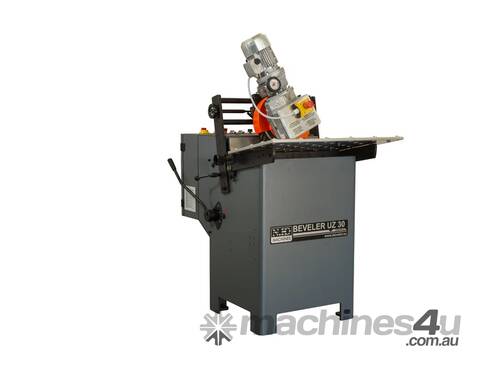

KA 30 Table Beveller

KA 30 Table Beveler

Key features:

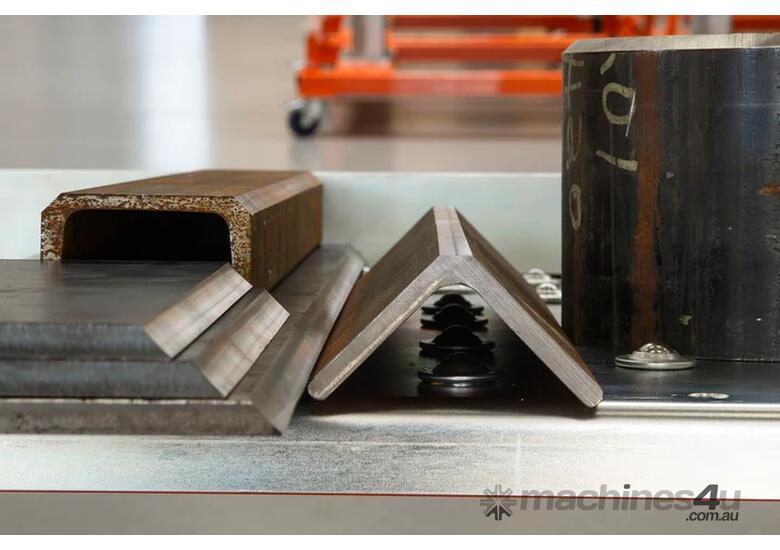

- Powerful, stationary bevelling and deburring machine for the efficient bevelling of flat steel, plates and profile material.
- For all carbon steels, cast iron, aluminium and light metal alloys, non-ferrous metals and all cuttable materials.
- The feed permits bevel machining without tight camping of the workpiece.
- The swiveling milling spindle permits a milling angle within a continuous range of 30° - 60°.

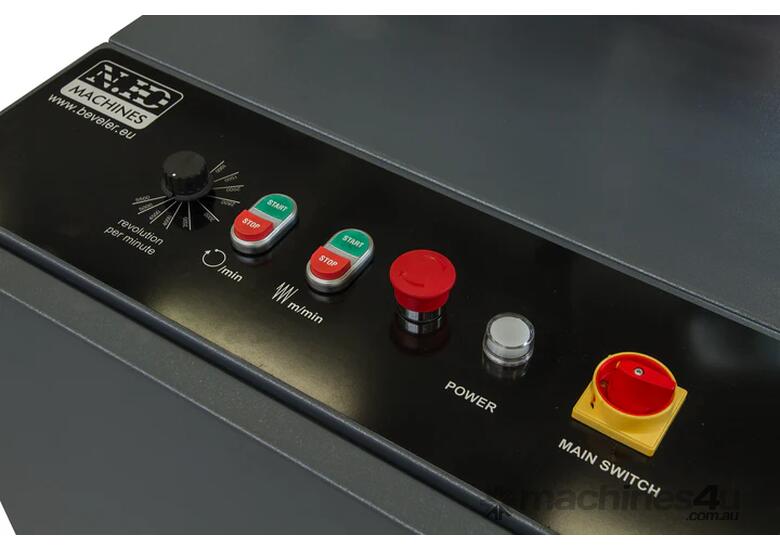

- Regulation of feed speed and cutting tool.
- Option to buy additional accessories such a milling devide for pipes, table extension left and right (total 2800 mm) with adjustable sidestops left and right.


Technical data:

- Bevel angle: Infinitely adjustable within the range from 30°to 60°
- Bevel width: 0 to 30mm ? 400 N/mm2 - 0 to 15mm ? 400 N/mm2
- Cutter motor: 4kW
- Speed: 0-5500 rpm
- Tool diameter: Ø 94mm
- Number of indexable inserts: 5 pieces
- Thickness of the material: 2 - 100 mm
- Feed motor: 0,45kW
- Feed speed: 0,6-3,5m/min
- Feed motor:400V /50Hz, 3phase, speed 0,6-3,5m/min
- Minimum workpiece dimensions: L=60mm, W=20mm
- Dimensions: 825 x 1200 x 1615 mm
- Weight: 400kg
- Working height: 1,000mm
- Pipe treatment: Ø 102-156mm
