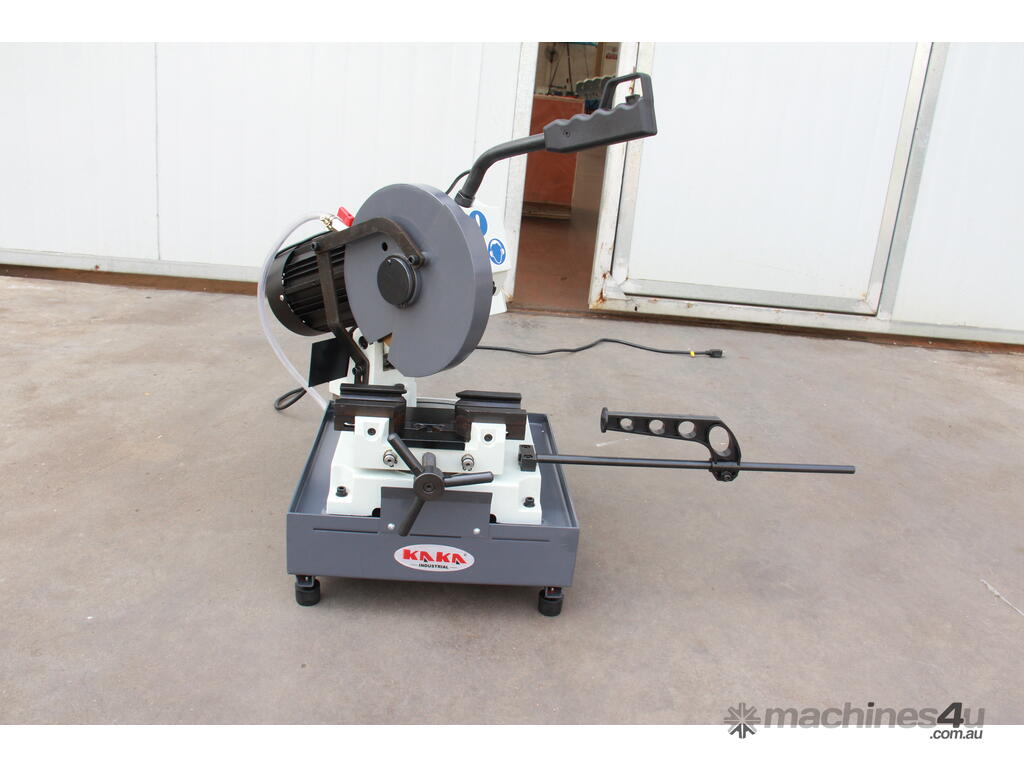

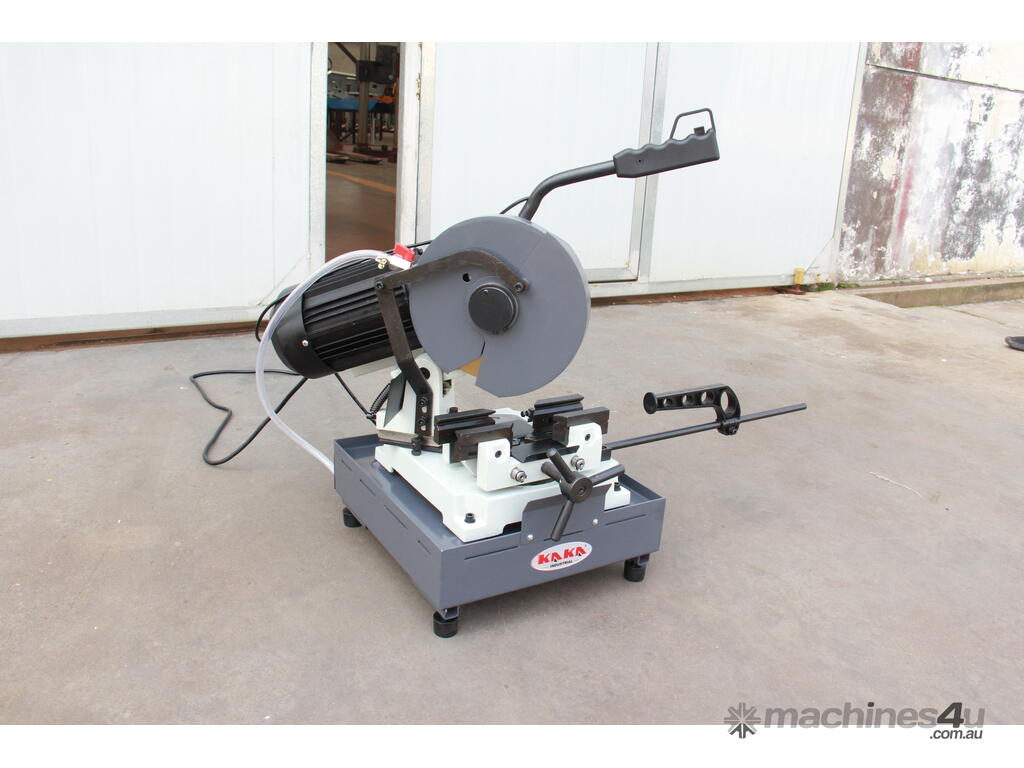

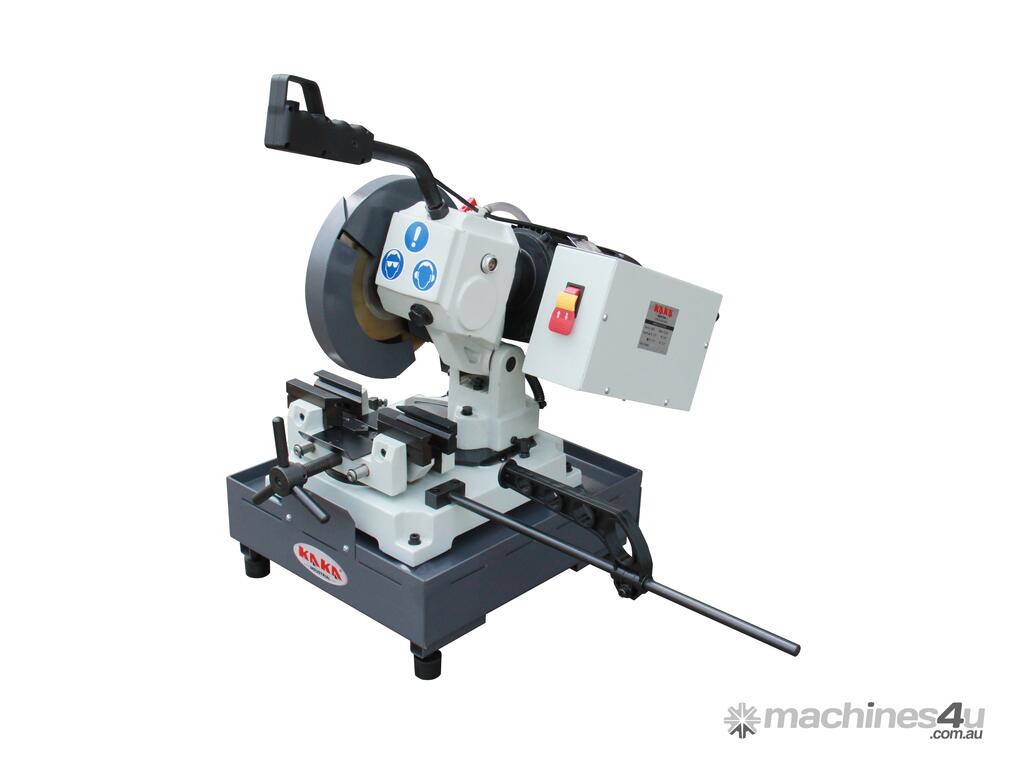

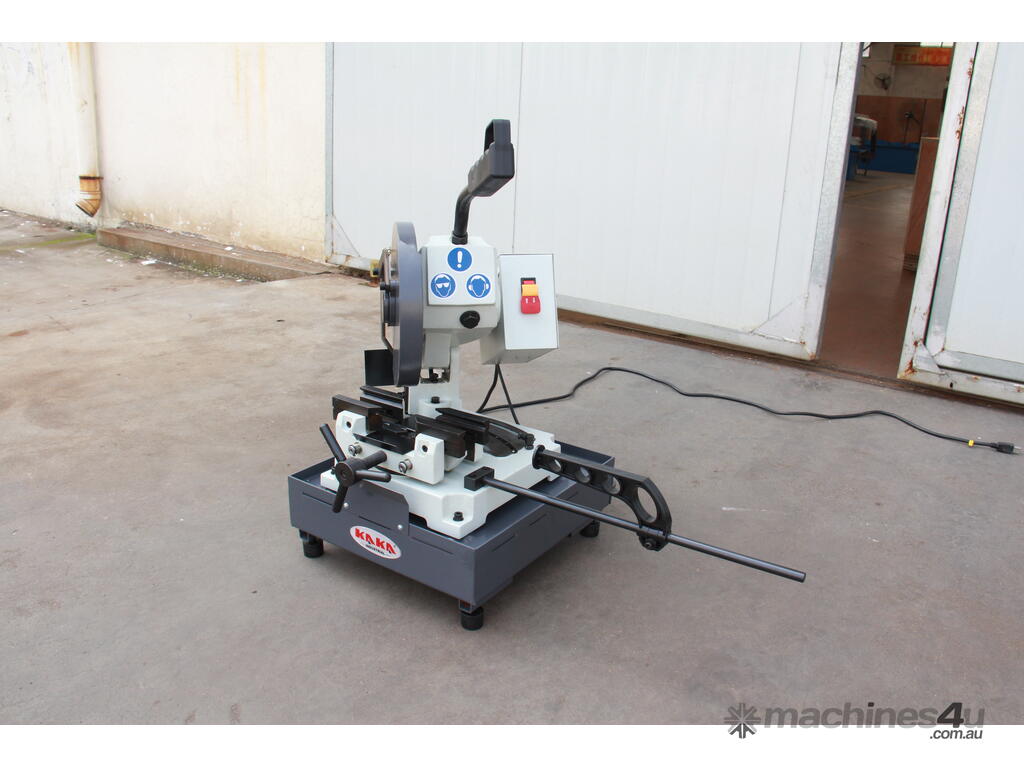

Comes with a 9” blade
60mm round tube maximum capacity at 90°.
Miters up to 45° to the left.
Cuts tubing, pipe, angle iron, solids, and much more.

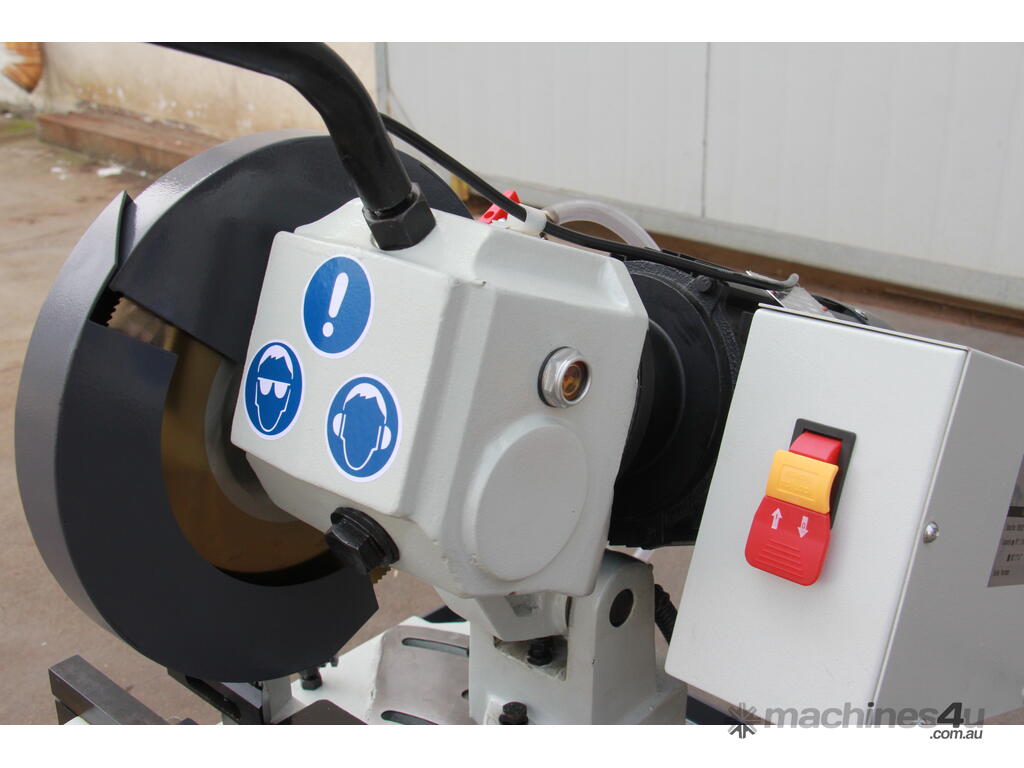

1 hp motor runs on 240 volts, so you can plug it in anywhere.

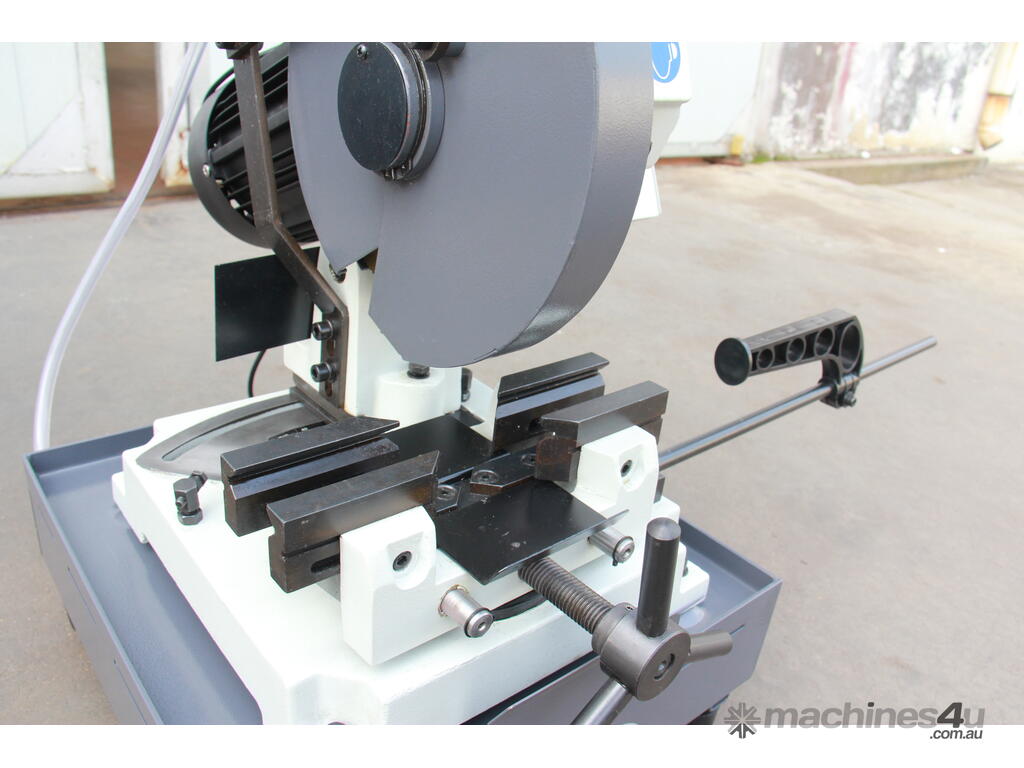

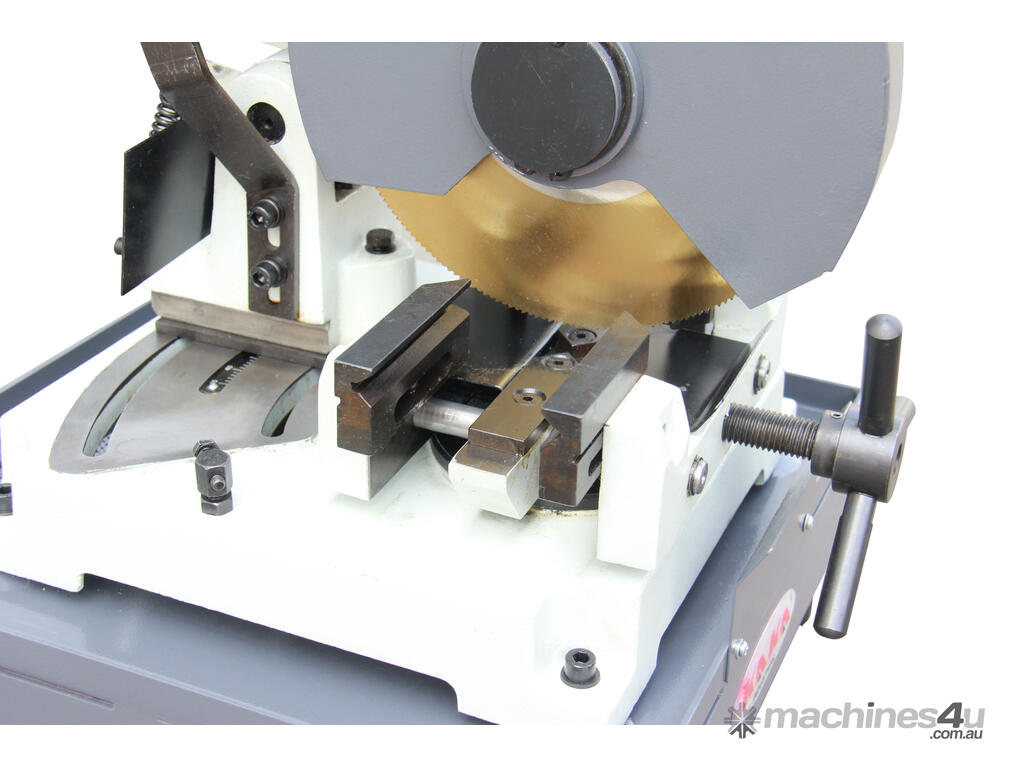

Self-centering vise keeps the material in the right position with respect to the blade.
A direct-drive gearbox ensures proper alignment and a long lifetime of use.

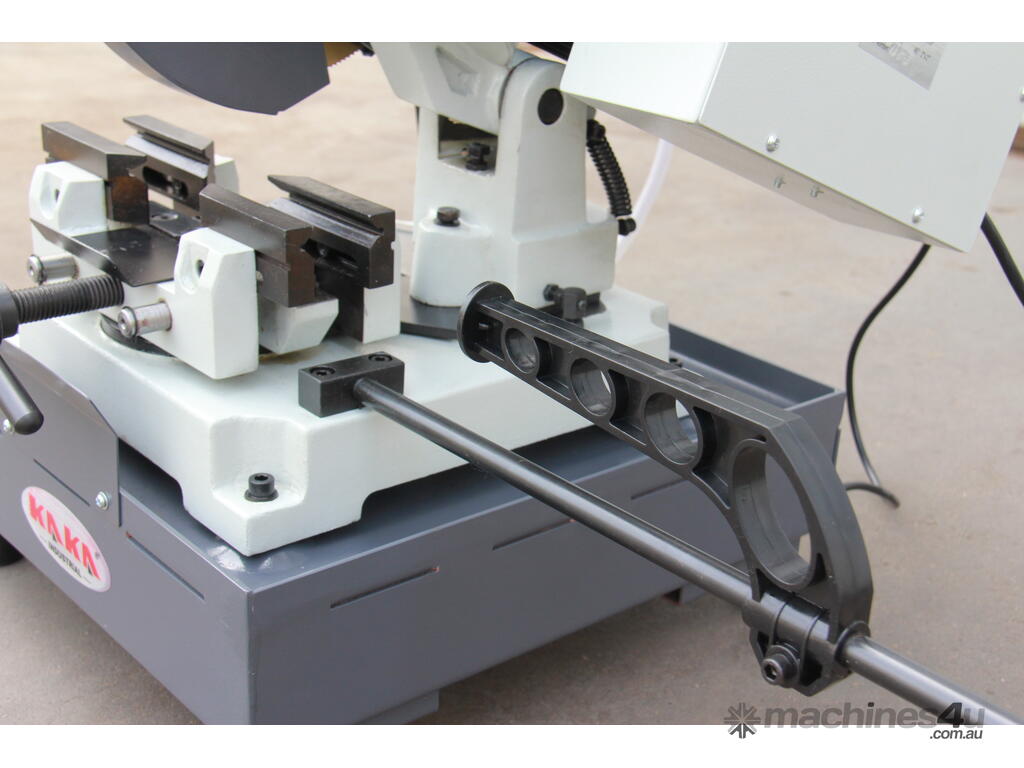

The stop rod helps with repeatability for small production runs.

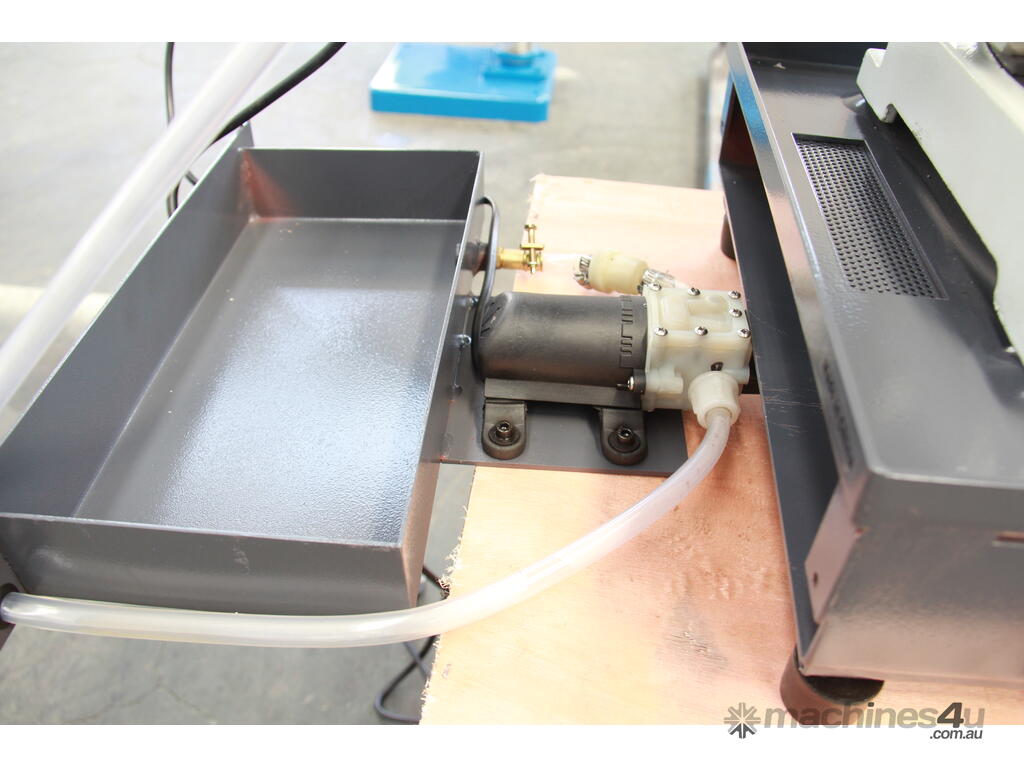

The flood coolant system maintains high cut quality and helps both the saw and its blades last longer.
SKU 188025
Model CS-9
Max. Blade size 9"/225mm
Cut circular 90° 2.36"/60mm
Cut rectangular 90° 1.97"x1.97"/50x50mm
Cut circular 45° 2.1"/52mm
Cut rectangular 45° 1.97"x1.97"/50x50mm
Blade Speed 46 rpm
Vice Opening 2.8"/70mm
Power 750W/1 HP (1PH)
Packing size 71x50x62 cm
N.W./G.W. 63/75 kg
