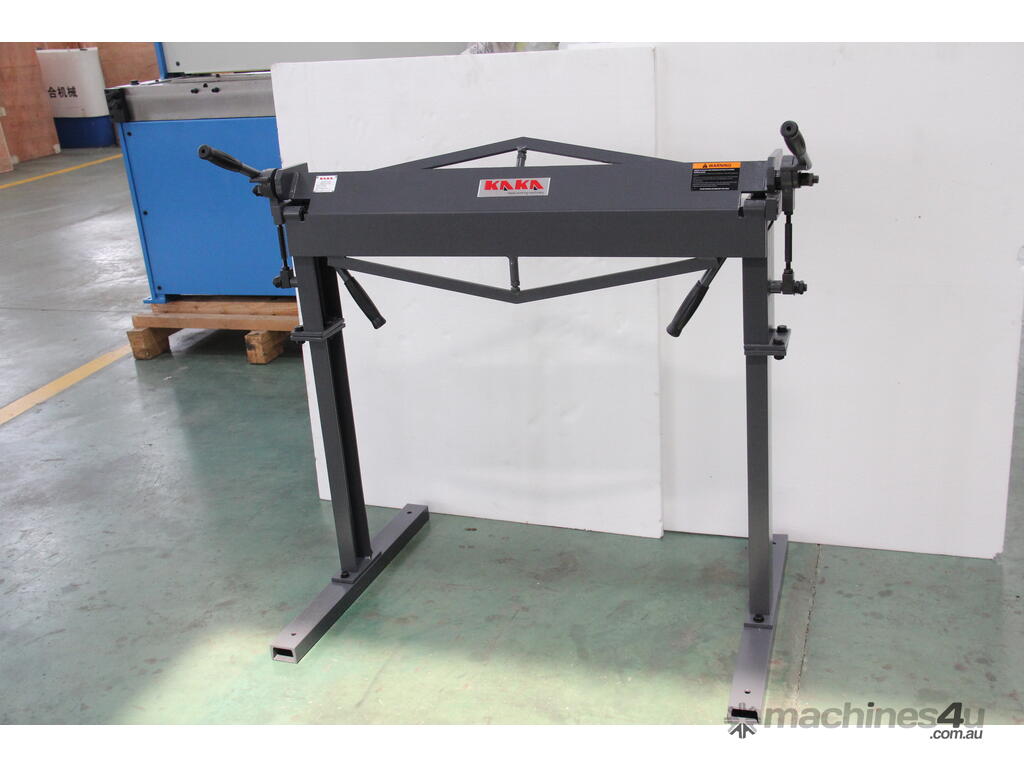

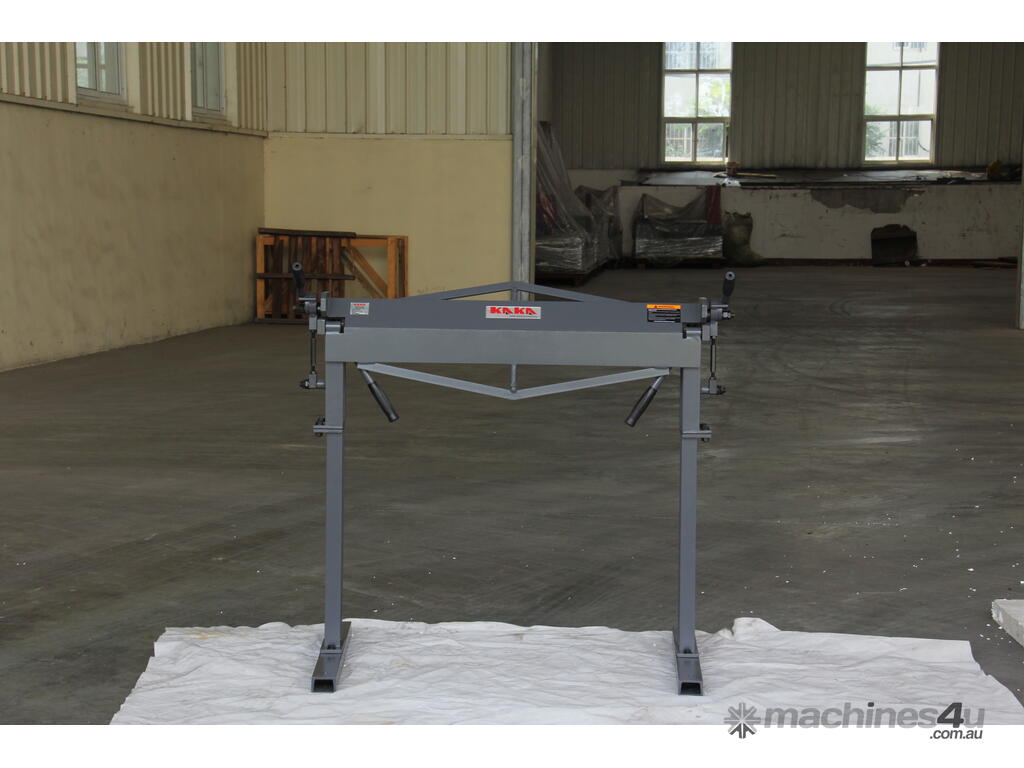

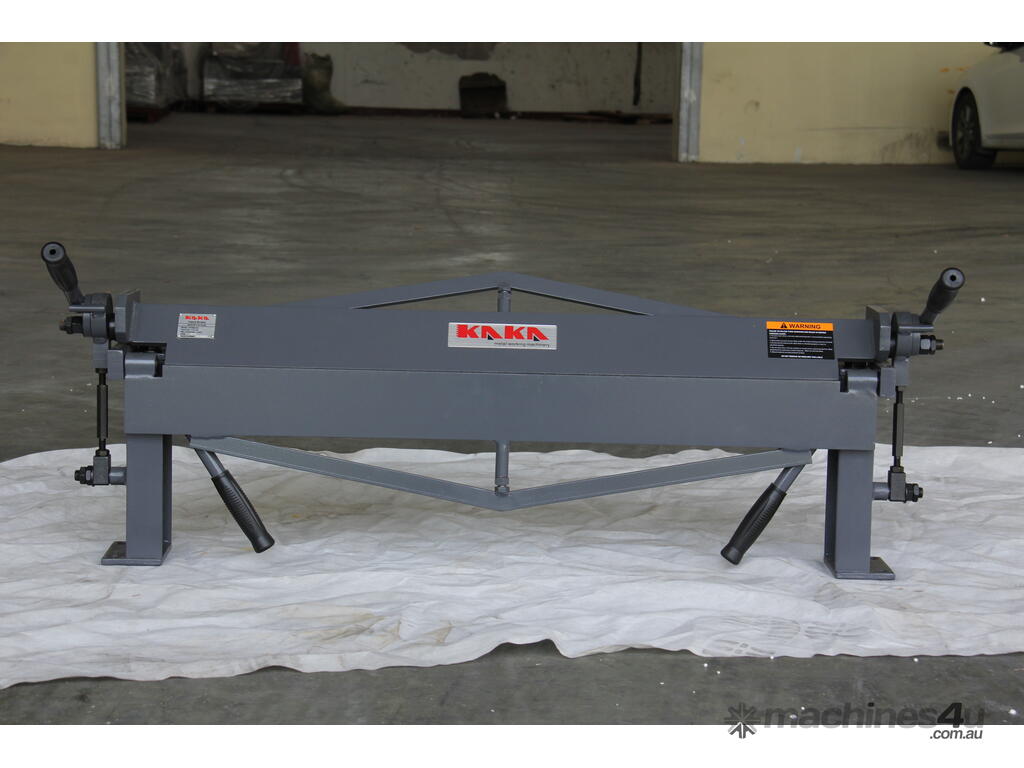

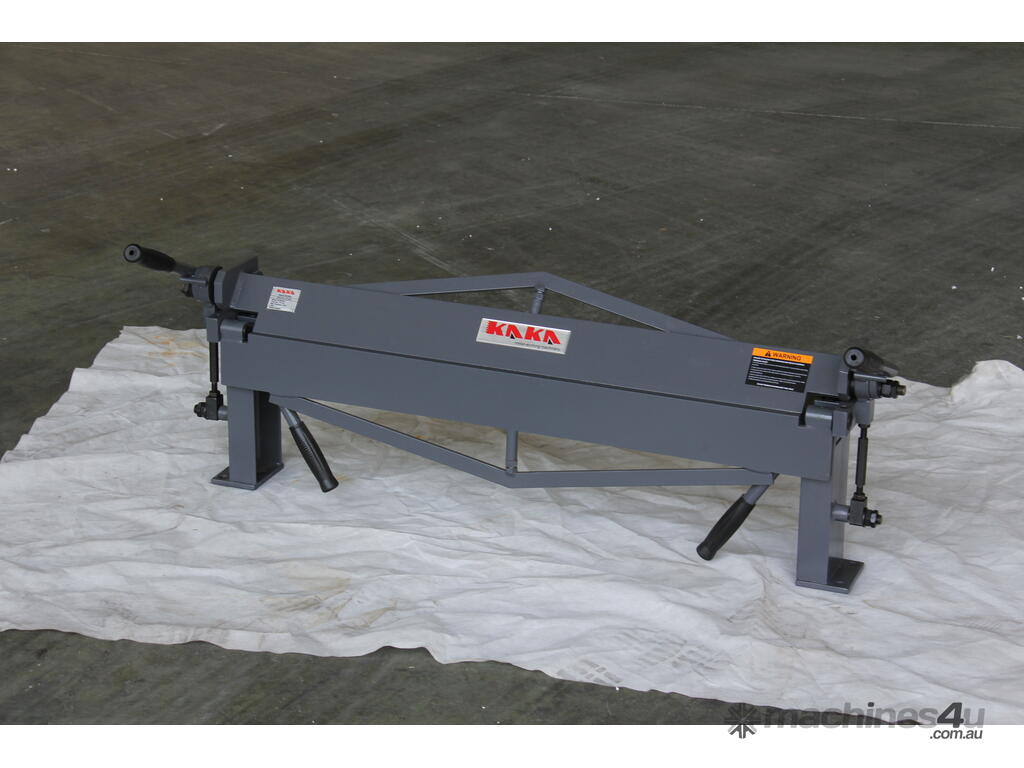

KAKA 36" Straight Brake, Sheet Metal Folding Machine
Easy operation sheet metal bender, ideal tools for fabrication shop that does light duty sheet metal bending or home use for DIY
Features:
1. The straight brake max. bending up to 2.5mm (18“ width)
2. 36" bending width
3. Up to 120° bending angle

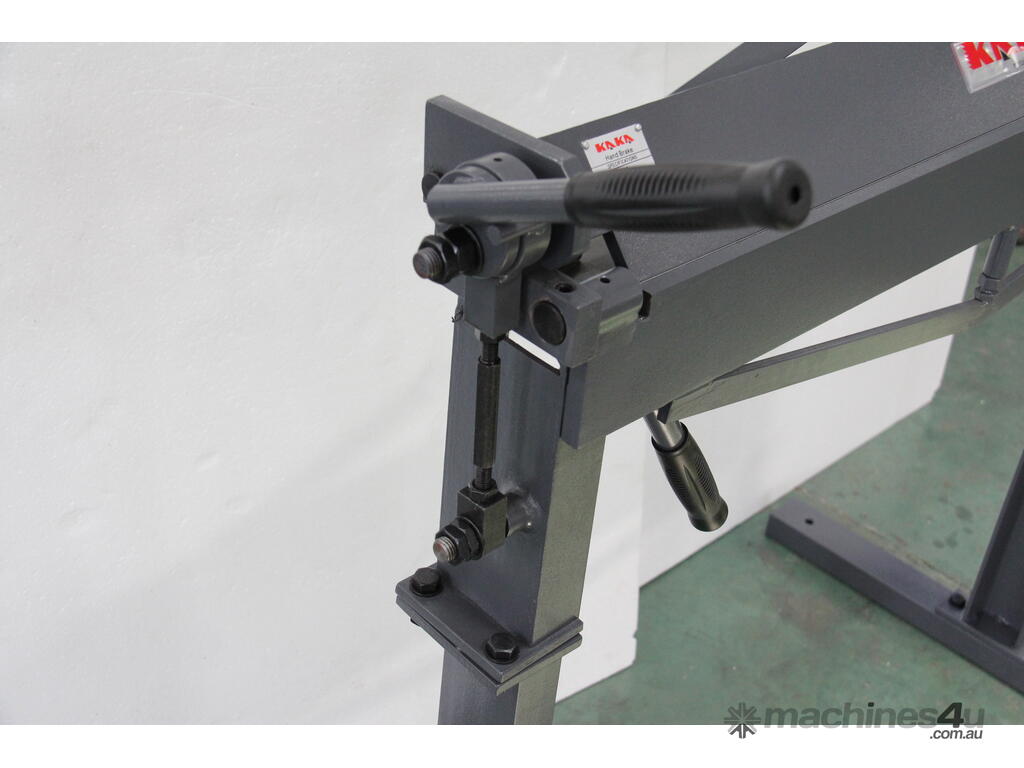

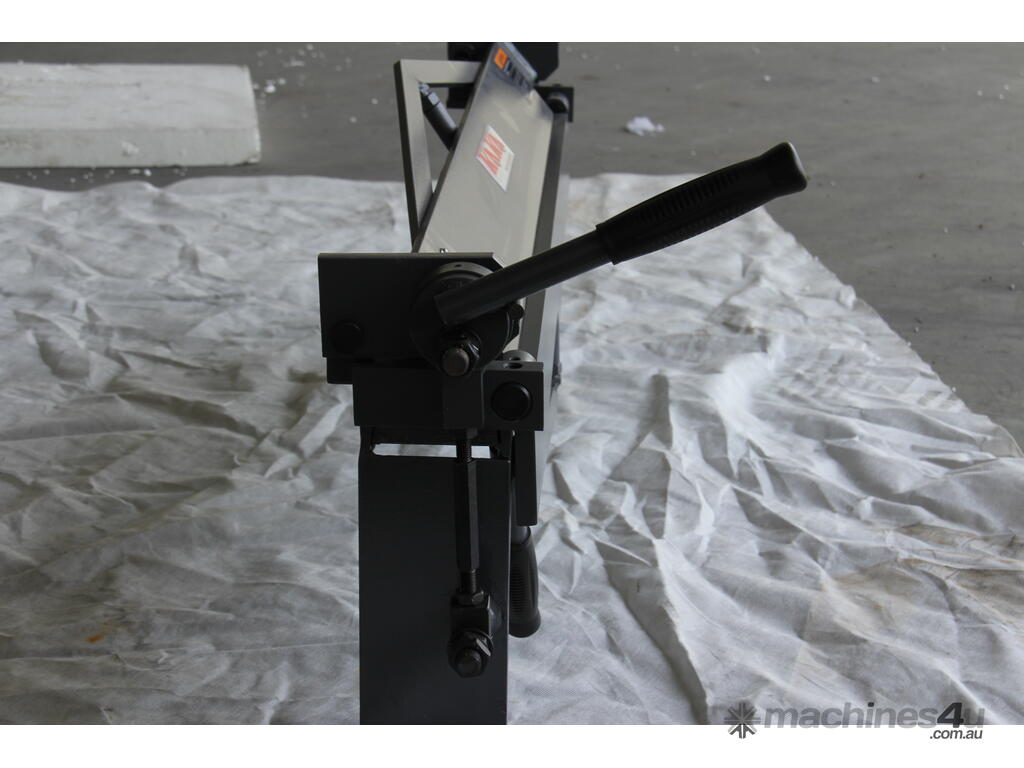

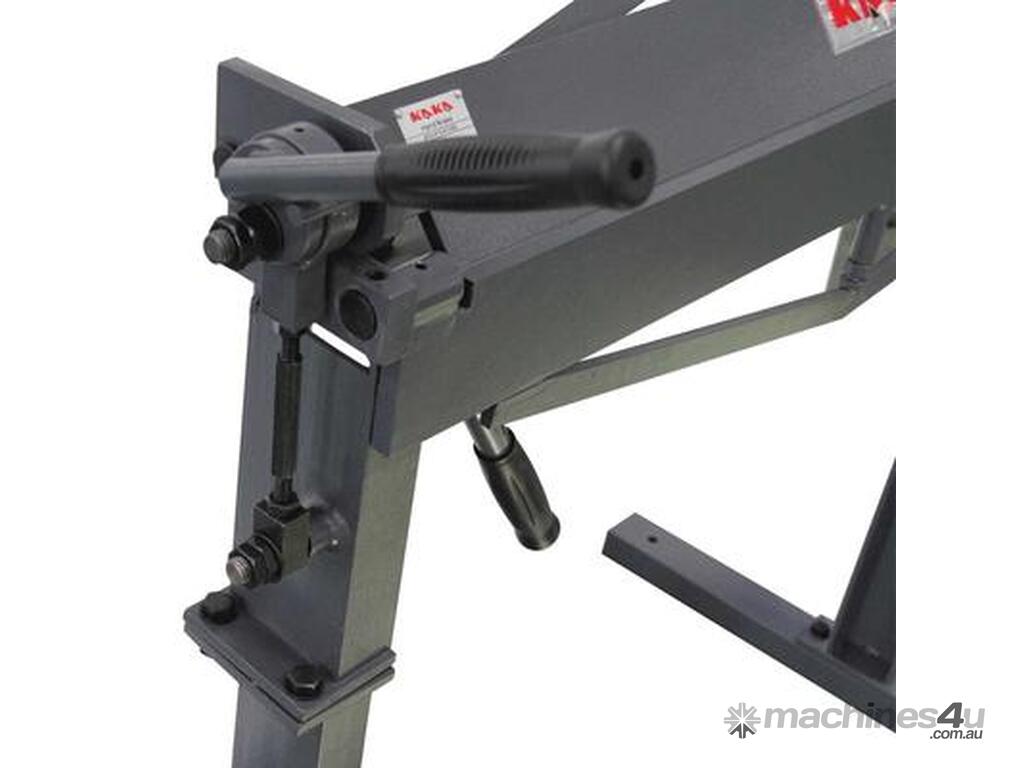

4. Right and left cam lever to clamp the material
5. Could adjust the clamping pressure
6. Fully welded structure with a stand.
*** Optional width, 72" straight brake, please contact us for the price and availability.***
Specifications:
Item No. 173136
Model 36"
Bending width 915 mm
Thickness Up to 12 Gauge Sheet Metal at 18?
Up to 16 Gauge Sheet Metal at 36?
Up to 16 Gauge Mild Steel at 18?
Up to 20 Gauge Mild Steel at 36?
Up to 22 Gauge Stainless Steel
Angle 0-120°
Packing size
123x24x50 cm Body
72x14x16 cm stand
N.W./G.W. 68/75 kg
