KAKA Industrial Exhaust Pipe Bender EPB-3, Hydraulic Swager and Expander

An ideal machine tool for exhaust jobs. Include a full set of tooling

4.0kW powerful motor runs on 240V power

Up to 10T pressure max. bend 3" tube

Knee pedal control, easy operation

Comes with hydraulic swager & expander

Front swivel caster with brake, easy to move to different working positions.

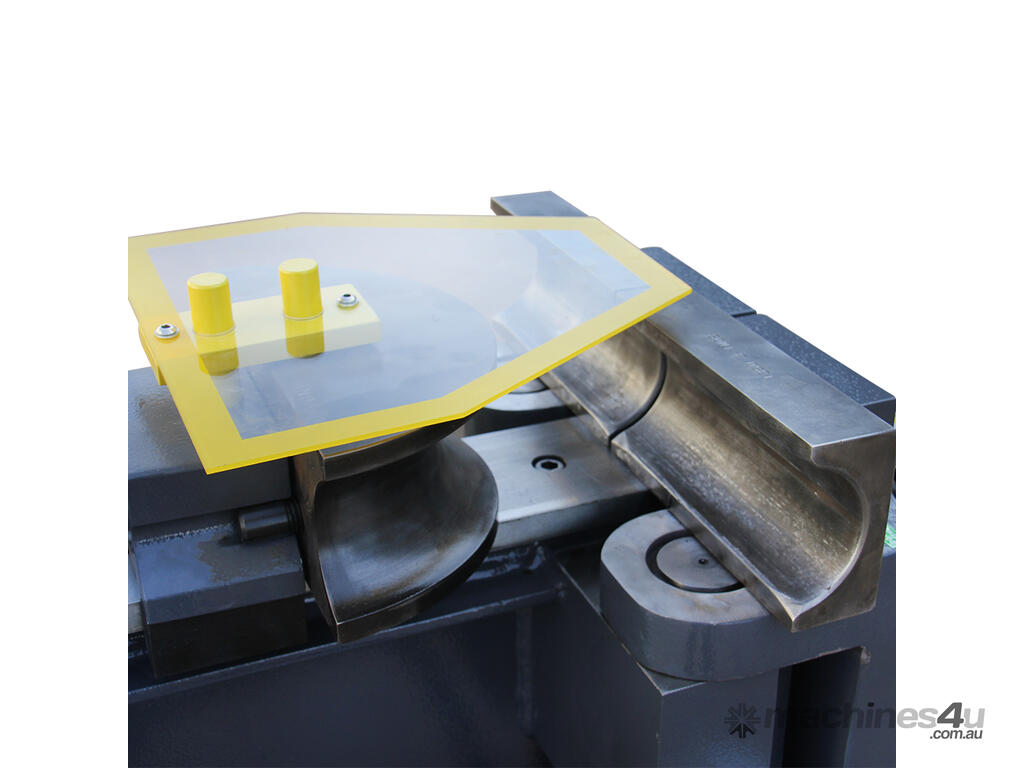

Bending die retainer



Tooling list


Item. Desc.
5530 5" Radius Die 3"
5412 5" Radius Die 2-1/2"
5414 5" Radius Die 2-1/4"
5200 5" Radius Die 2"
4414 4" Radius Die 2-1/4"
4200 4" Radius Die 2"
3134 3" Radius Die 1-3/4"
3112 3" Radius Die 1-1/2"
1350 Full Back Shoes 3" (2)
4412 Full Back Shoes 2-1/2" (2)
4211 Full Back Shoes 2-1/4" (2)
1200 Full Back Shoes 2" (2)
1134 Full Back Shoes 1-3/4" (2)
1112 Full Back Shoes 1-1/2" (2)
4410 Half Shoe 2-1/2"
4416 Half Shoe 2-1/4"
1045 Half Shoe 2"
1040 Half Shoe 1-3/4"
1038 Half Shoe 1-1/2"
1750 Collect 2-1/2"
1725 Collect 2-1/4"
1720 Collect 2"
1734 Collect 1-3/4"
1712 Collect 1-1/2"
853 Flare Tool 1-1/2" ~ 3"
550 Male Ball Die 1-3/4": Swage 2"
552 Male Ball Die 2": Swage 2-1/4"
553 Male Ball Die 2-1/4": Swage 2-1/2"
554 Male Ball Die 2-1/2": Swage 2-3/4"
555 Female Ball Die 1-3/4" ~ 2"
556 Female Ball Die 2-1/4" ~ 2-1/2"
112 Swage Die 1-1/2"
134 Swage Die 1-3/4"
508 Arbor 1-3/8" ~ 3-1/2"
498 Arbor 1-1/2" ~ 1-3/4"
499 Arbor 1-3/4" ~ 3-1/2"
474 Segment 1-3/4" ~ 2-1/8"
475 Segment 2-1/8" ~ 2-1/2"
476 Segment 2-1/2" ~ 3"
815 Die Holder
816 Die Holder Pin
855 Die Pins M18
1079 Full Shoe Spacer
1080 Half Shoe Spacer
782 Reducing Die 2-1/2" ~ 2-1/4"
790 Reducing Die 3" ~ 2-3/4"
97050 Die Spring
870 O-Ring Kit
