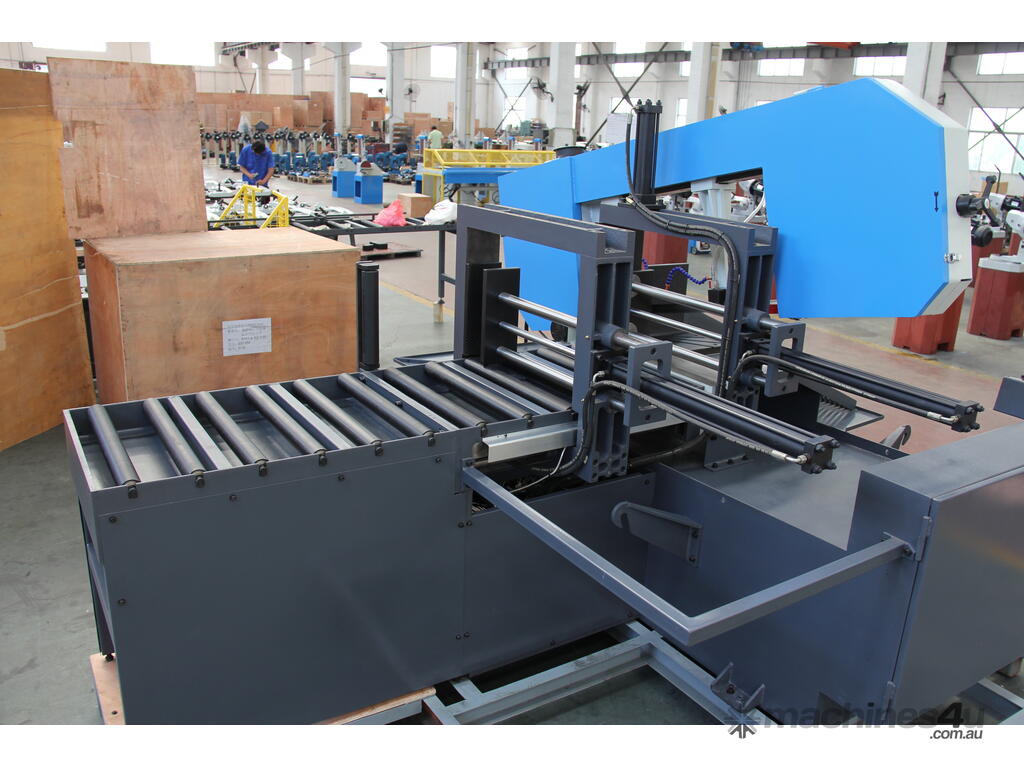

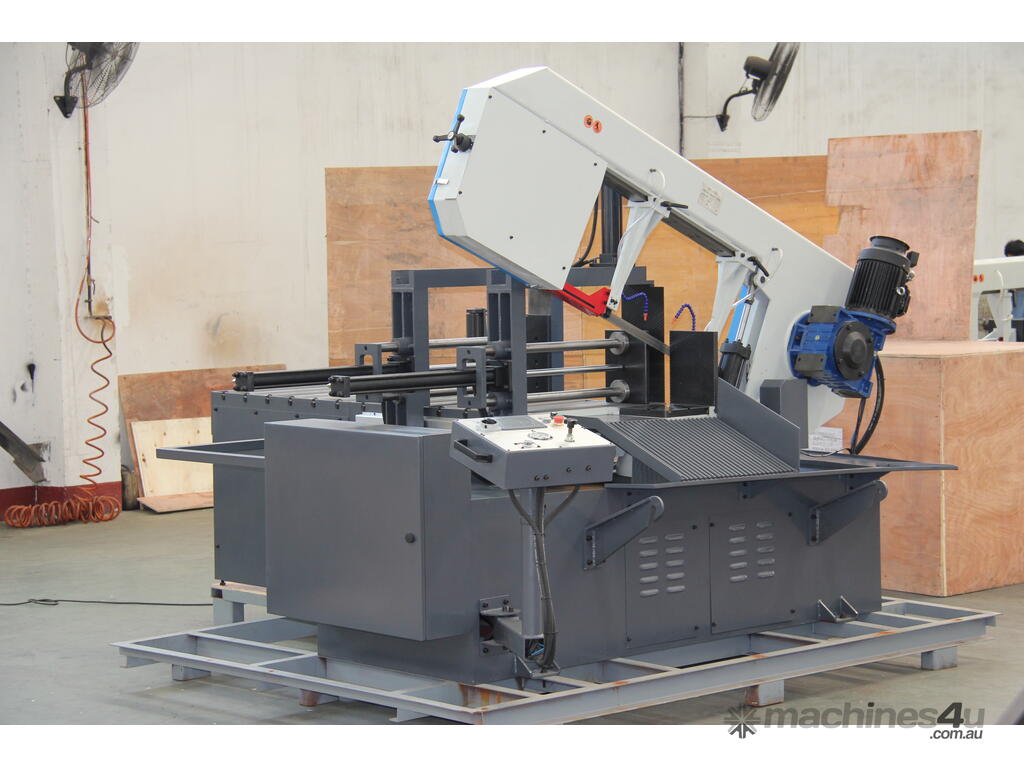

KAKA Industrial Metal Cutting Band Saw BS-2614G

KAKA INDUSTRIAL CNC METAL CUTTING BAND SAW

The model BS-2614G, an automatic band saw machine, angle cutting

* Runs on 415V/3PH power, servo 5.5 kW motor with variable cutting speed
* PLC control, with a touch screen controller
* Hydraulic clamping vice
* Automatic feeding and clamping control by touch screen
* Safety switch on blade tension device
* CE safety standard
* M42 band saw blade

Specifications:

SKU: 188126
Model: BS-2614G
Cut circular 90°: 460mm
Cut rectangular 90°: 650x350 mm
Cut circular 60° Right: 310mm
Cut rectangular 60° Right: 310x350 mm
Cut circular 45° Right:460mm
Cut rectangular 45° Right: 460x350 mm
Blade Speed: 23-95 rpm, variable speed
Blade size: 41x1.3x5220mm
Motor: 5.5 kW, servo motor
Drive: Gear
Packing size: 303x228x222 cm
N.W./G.W.: 2430/2730 kg
