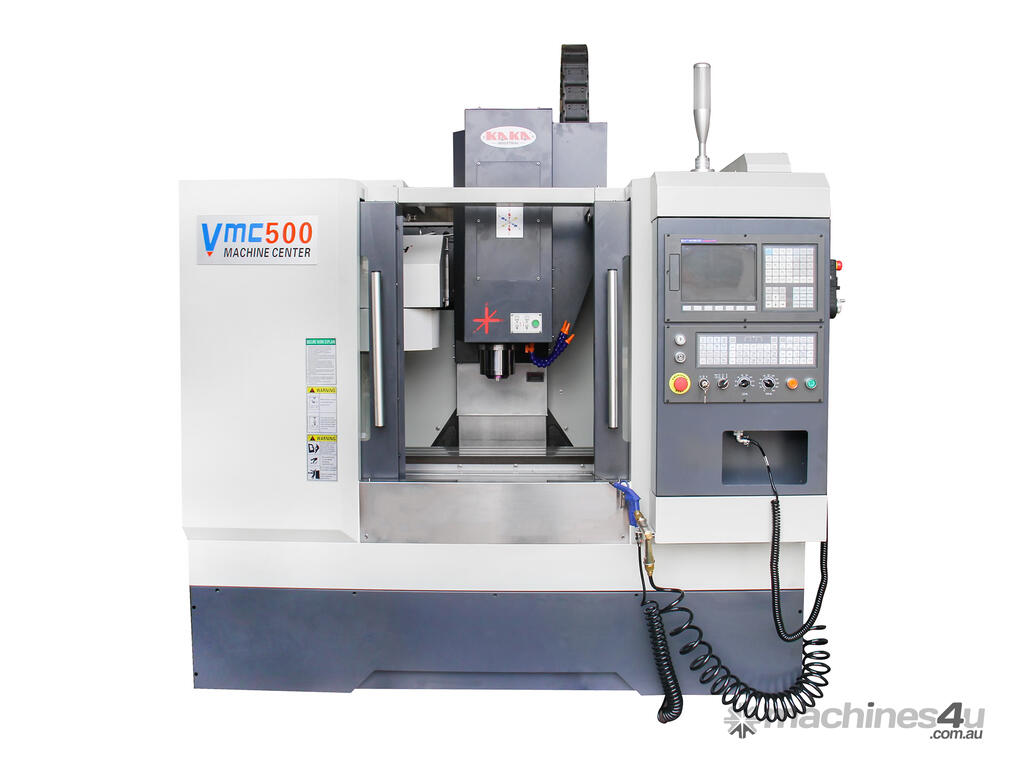

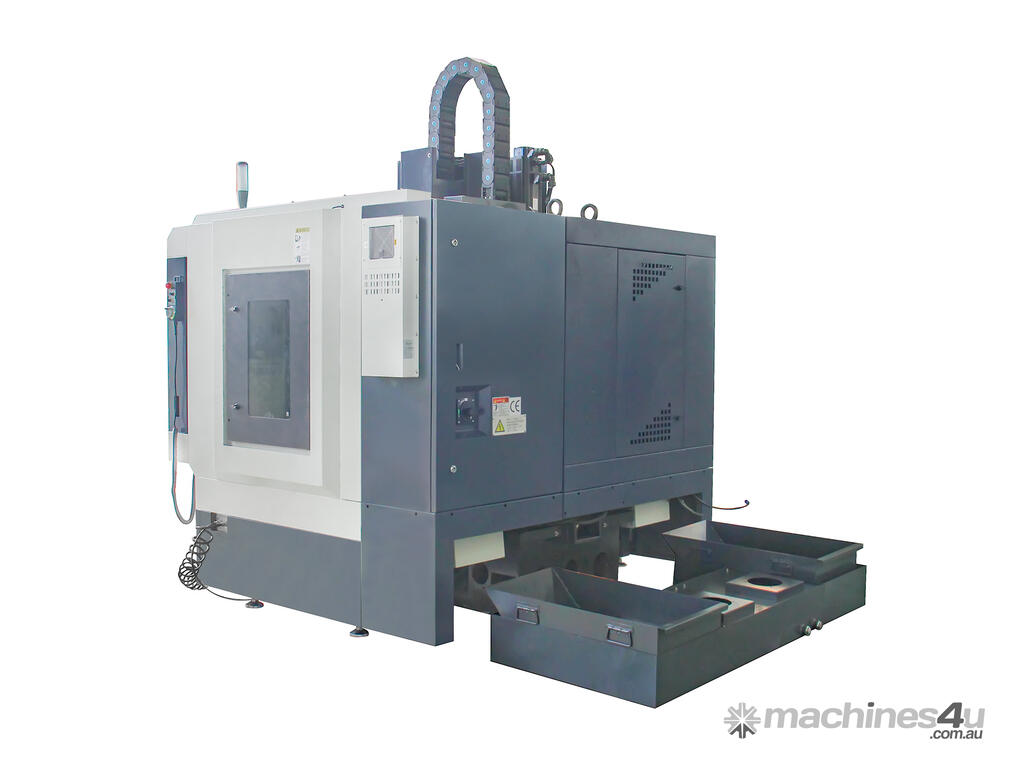

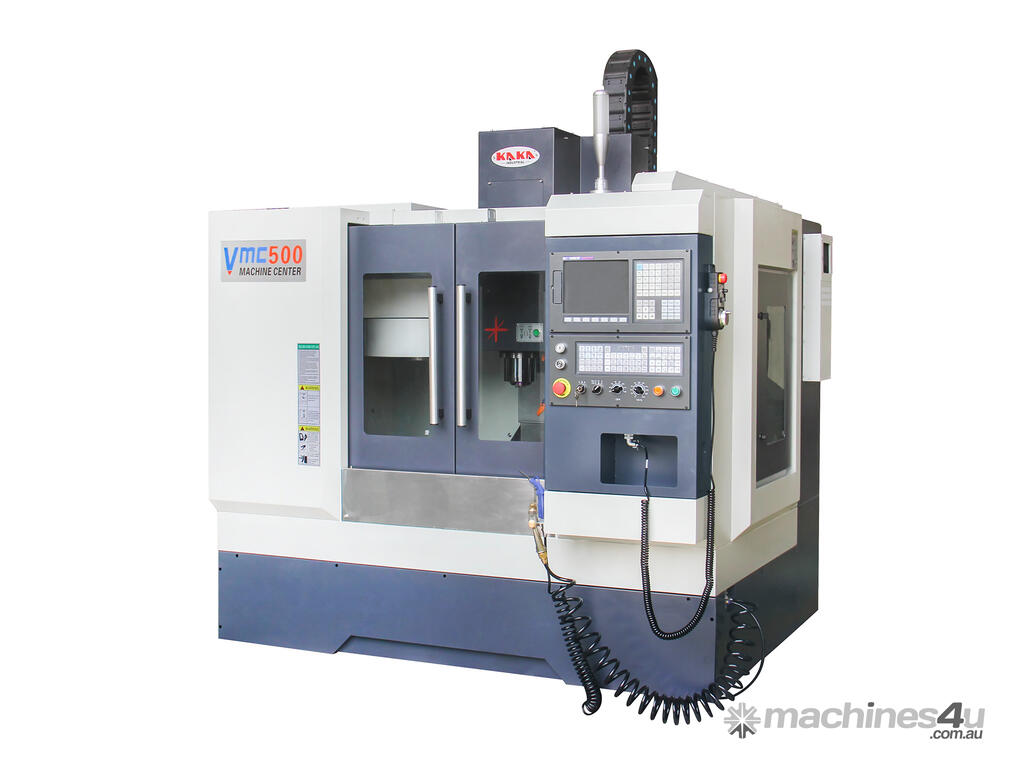

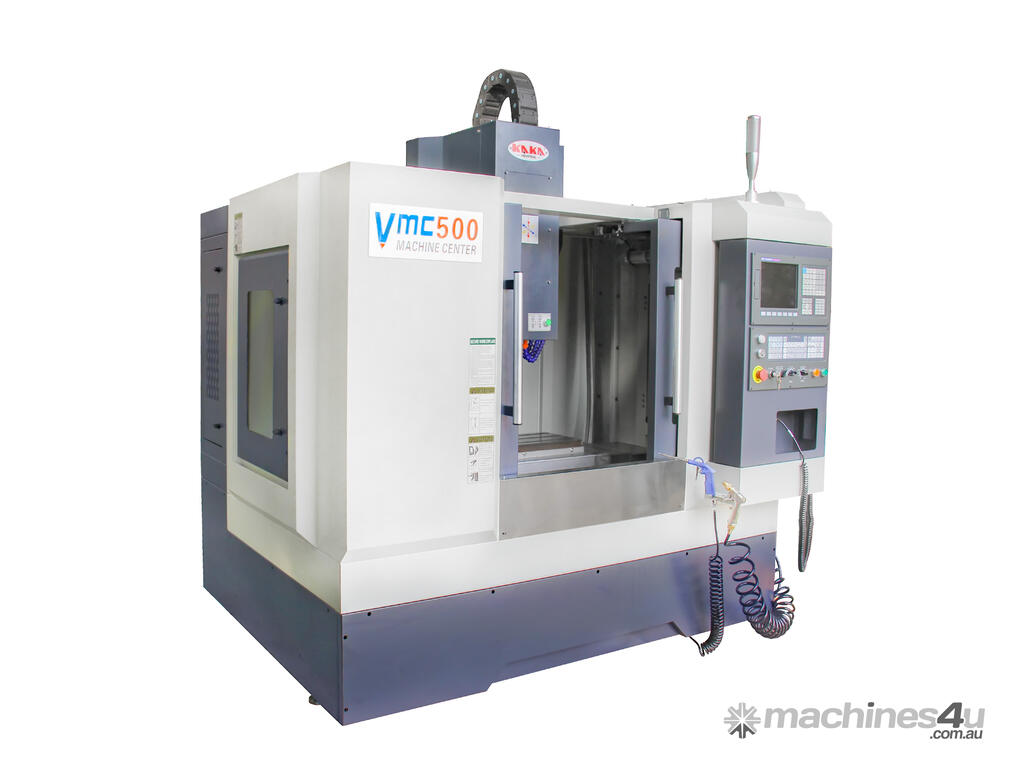

Kang Industrial Vertical Machining Center

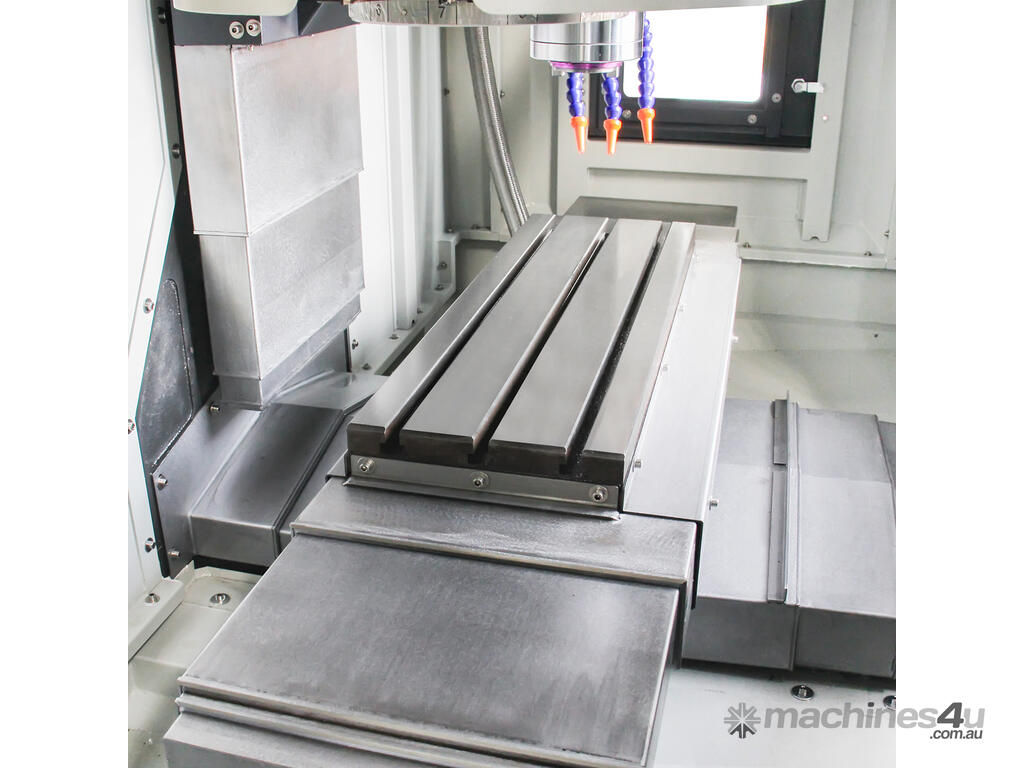

3-Axis CNC Center, table size 800x260mm
Features

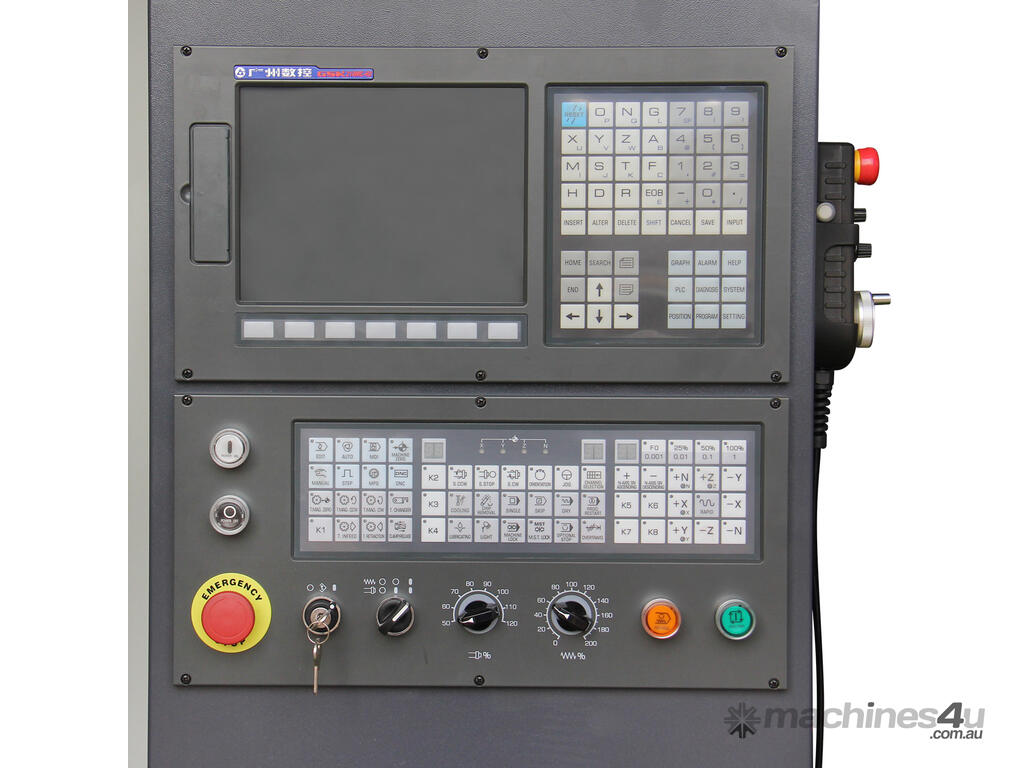

GSK CNC System
8000 rpm spindle speed

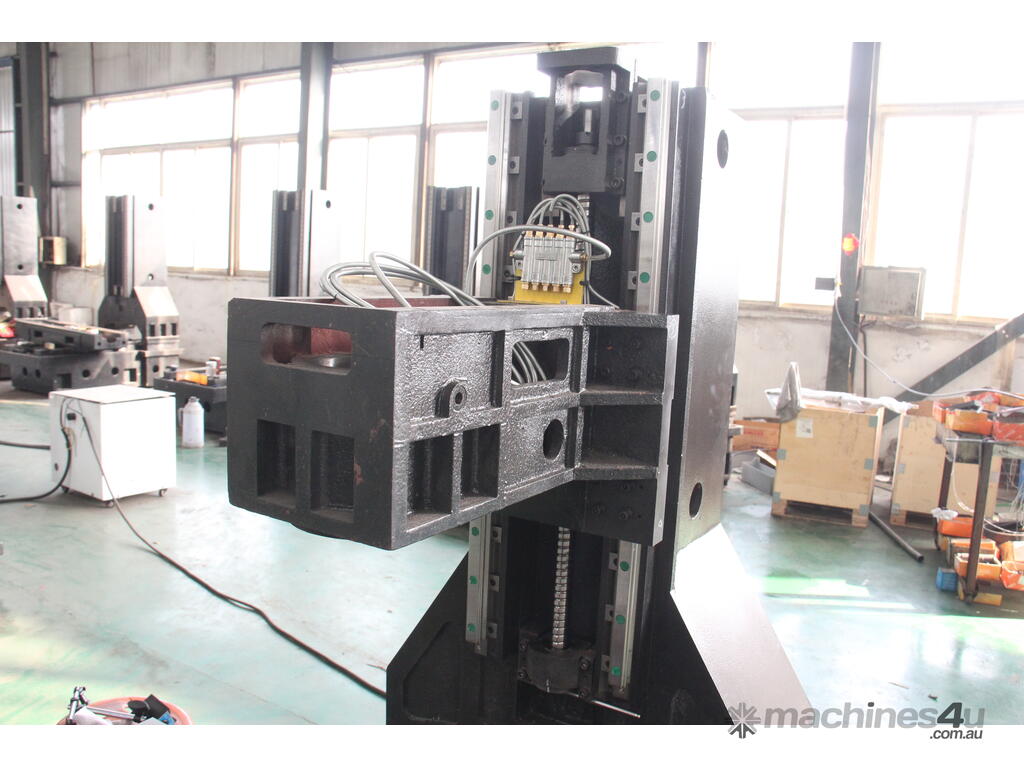

HIWIN line rails
12 Tools in Tool Magazine
Tool changing time (T-T), 6s
Specifications
SKU 162401
Model VMC500
Table size 800*260 m
T-slot(N*W*D) mm
Max. load bearing of the worktable 200 kg
able to ground 780
X-axis travel 500
Y axis travel 350
Z axis travel 450
Distance from column front to Spindle center 350
Distance from tabletop surface to Spindle nose 90-540

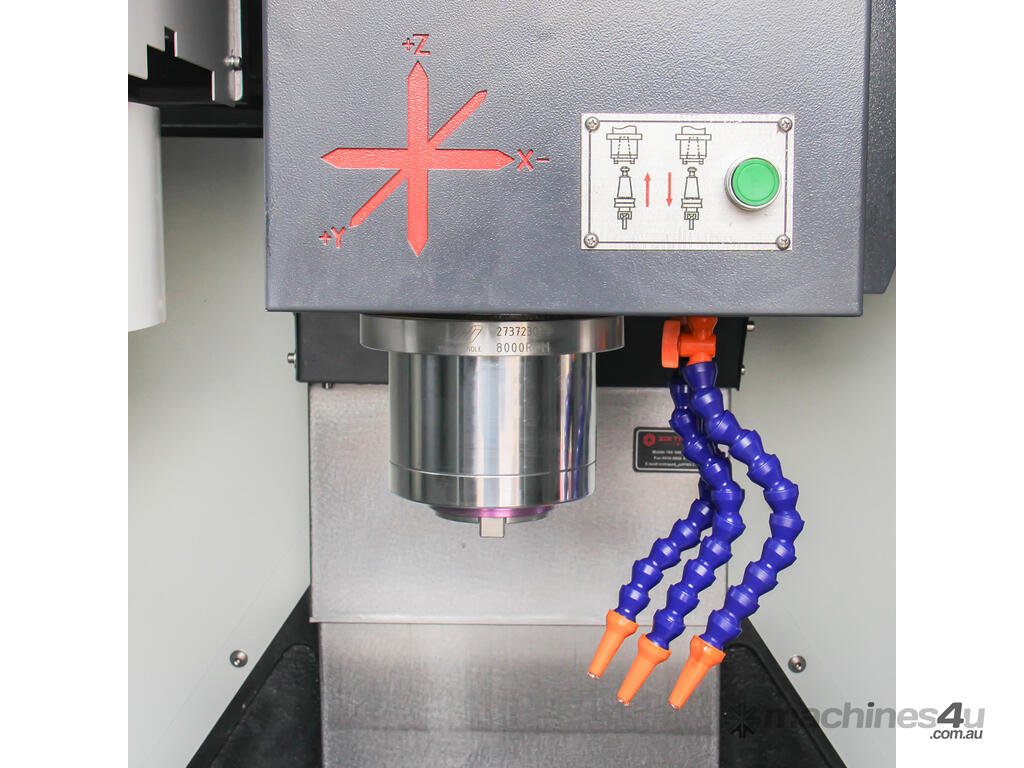

Spindle hole taper BT40-120
Spindle transmission mode Belt
Spindle power 3.7/5.5
Max. Spindle speed 8000
X axis: quantity/width/type 2/25/ ball
Y axis: quantity/width/type 2/30/ ball
Z axis: quantity/width/type 2/30/ ball
X-Y-Z /1.5-1.5-2.3
Max. feed speed 1-10000
Rapid feed speed (XYZ) 24/24/24
Positioning accuracy(XYZ) ±0.005/300
Re-positioning accuracy(XYZ) ±0.003/300

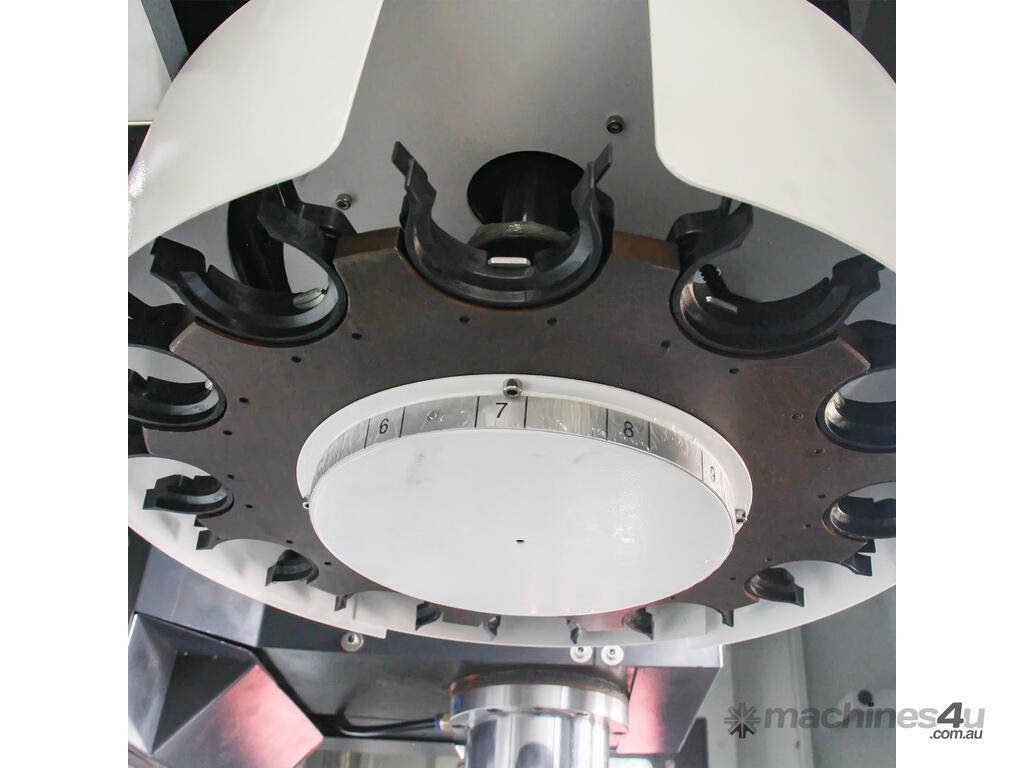

Tool Magazine? Carousel tool hanger? 12-position umbrella tool magazine
Tool magazine capacity 12 pcs
Tool changing time (T-T) 6 s
MAX.Tool Diameter?Full knife/be in the air/sky? 104/205 mm
MAX.Tool Length 250 mm
Machine weight 8 kg
Machine size L*W*H 2200*2100*2500 mm
Machine weight 2000 kg
