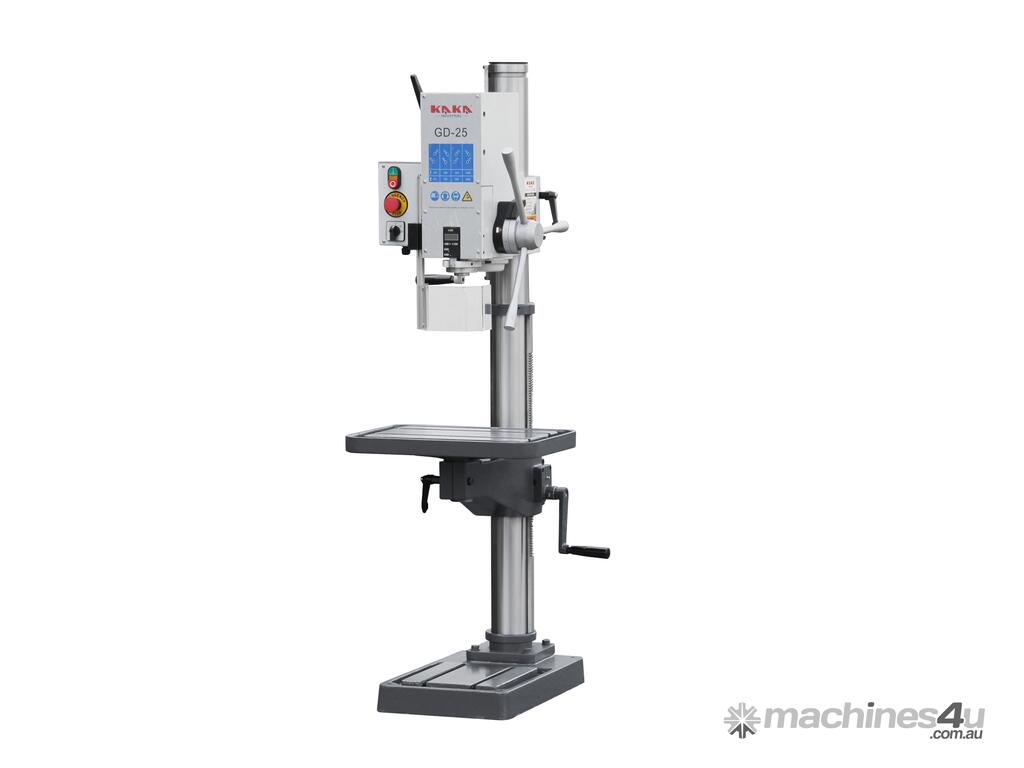

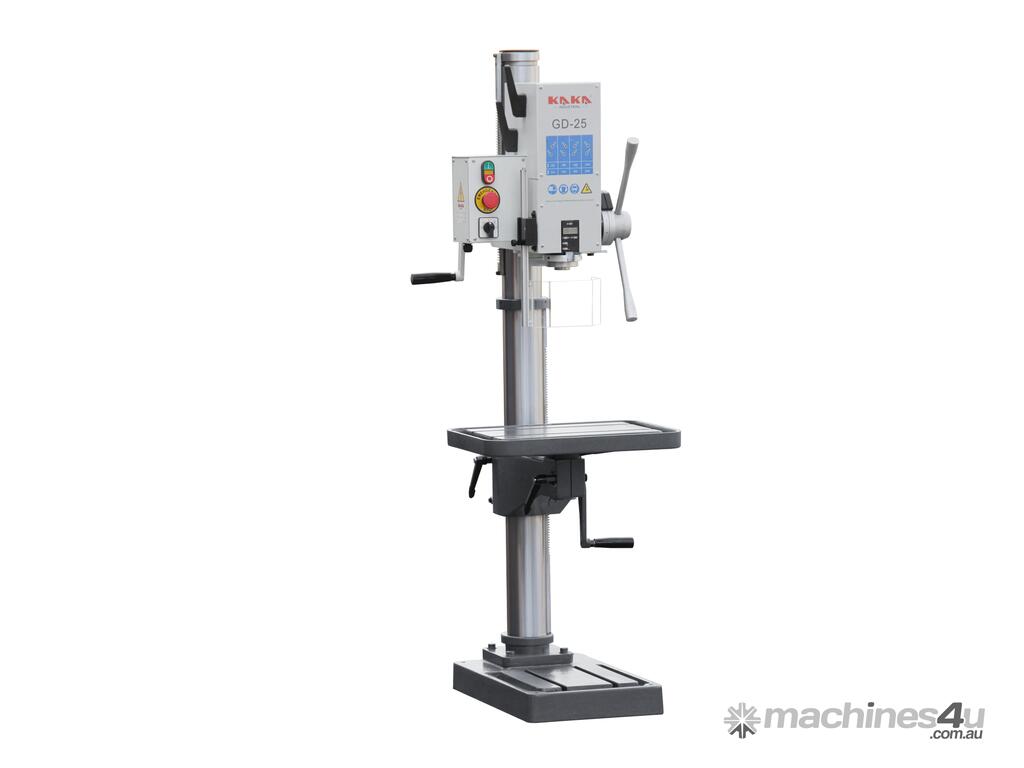

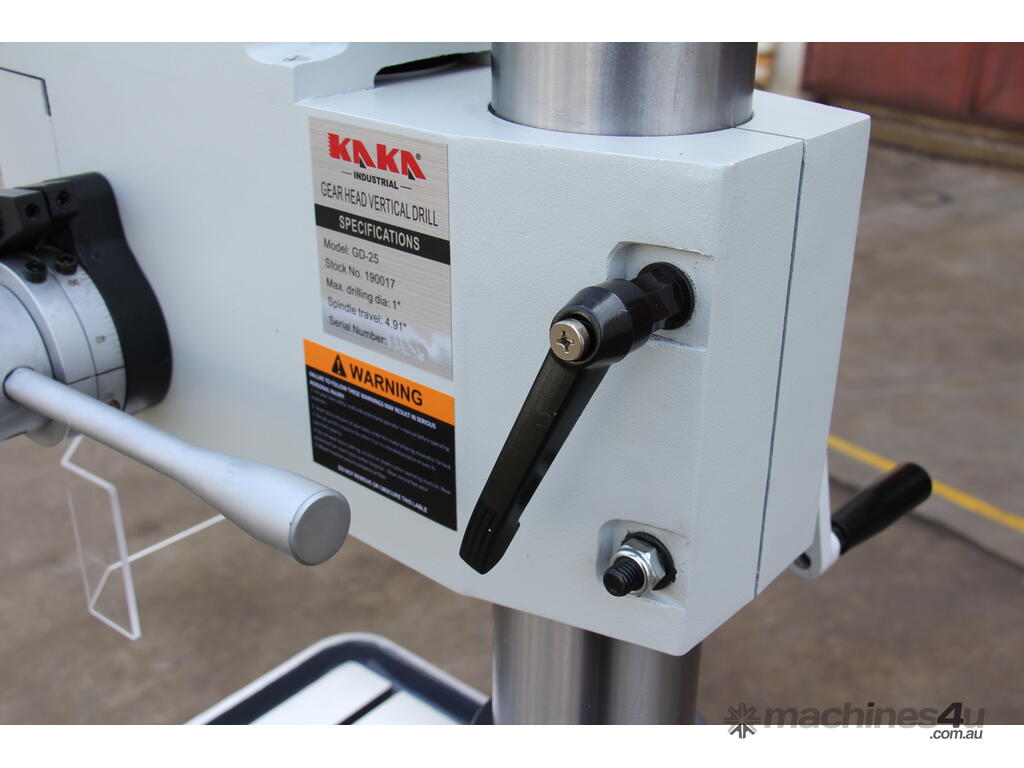

Kang Industrial Vertical Drill Machine GD-25
25mm drill capacity, MT3 Spindle taper, 8 drilling speed
Features
Industrial grade drilling machine geared head, 415V Motor

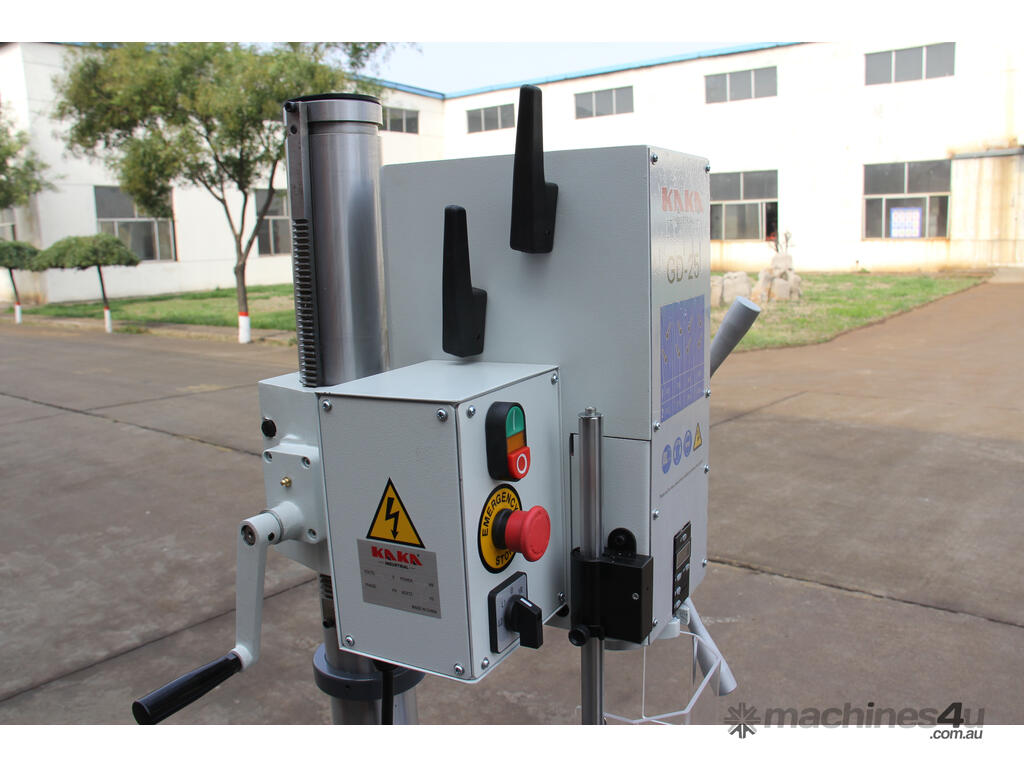

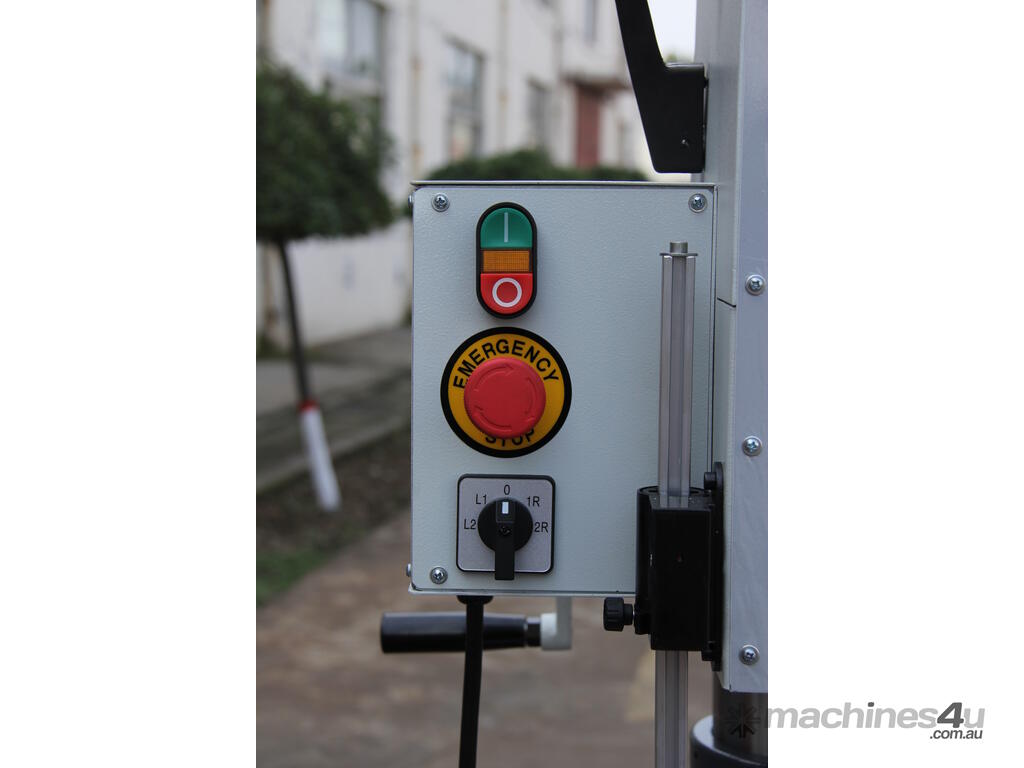

High / Low with forward & reverse switch, drilling & manual tapping
8 different drilling speeds by the speed lever, 105-2900 rpm
Interlocked spindle safety guard

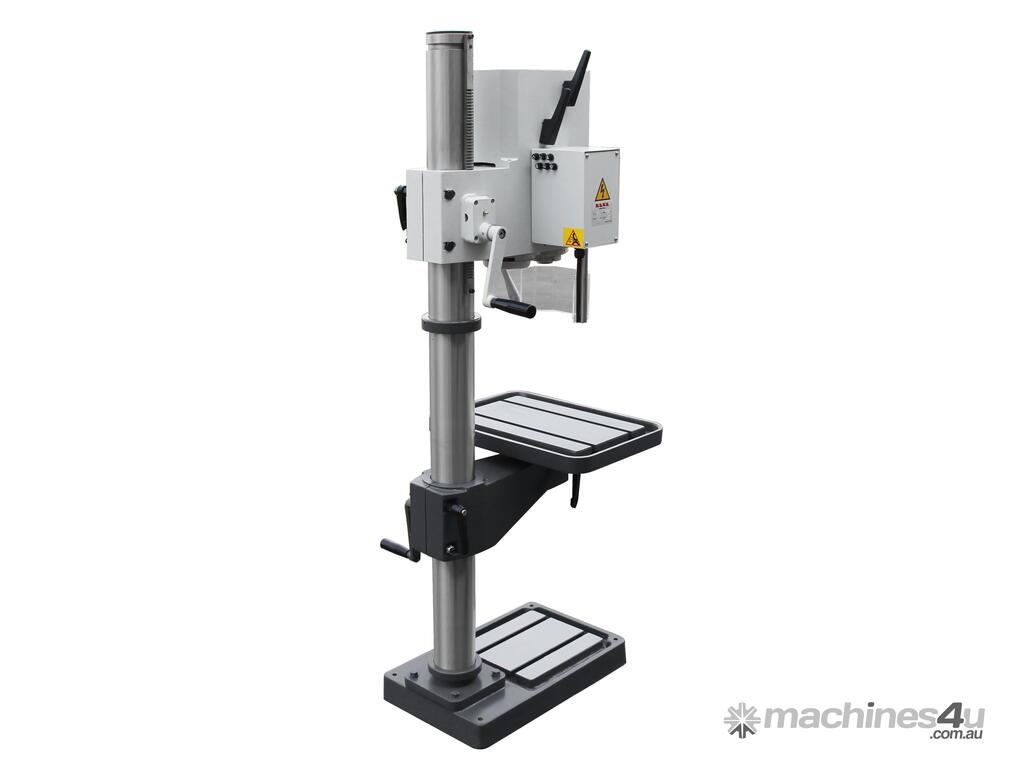

Sturdy 100mm dia. column reduces flexing to ensure accurate results

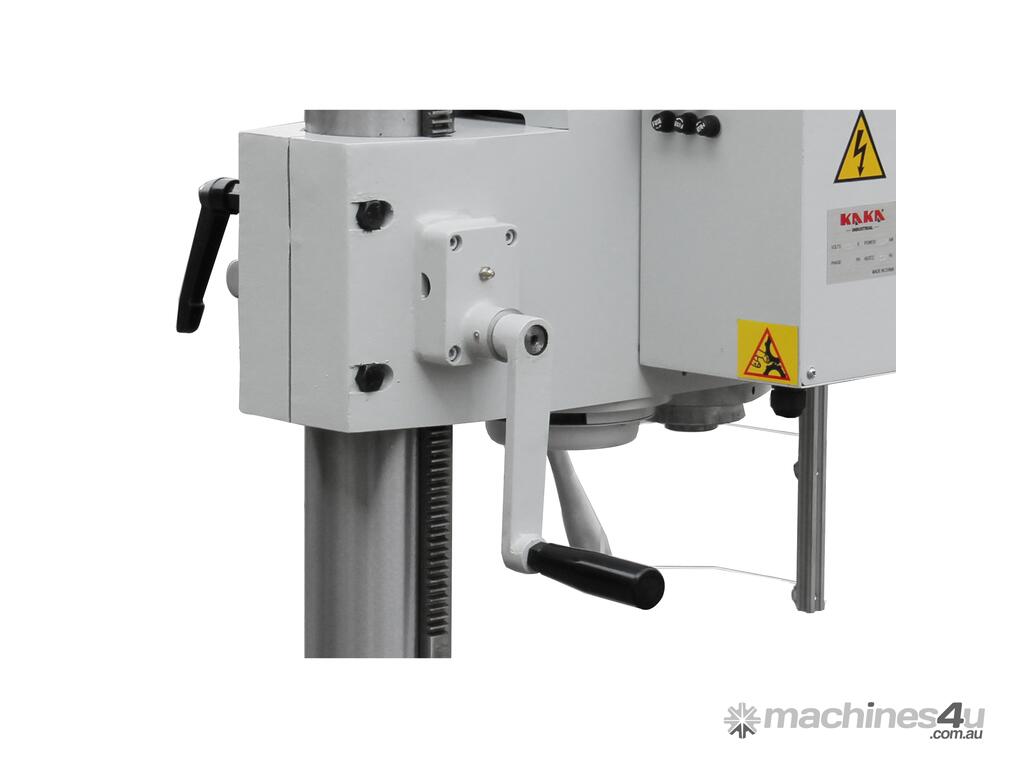

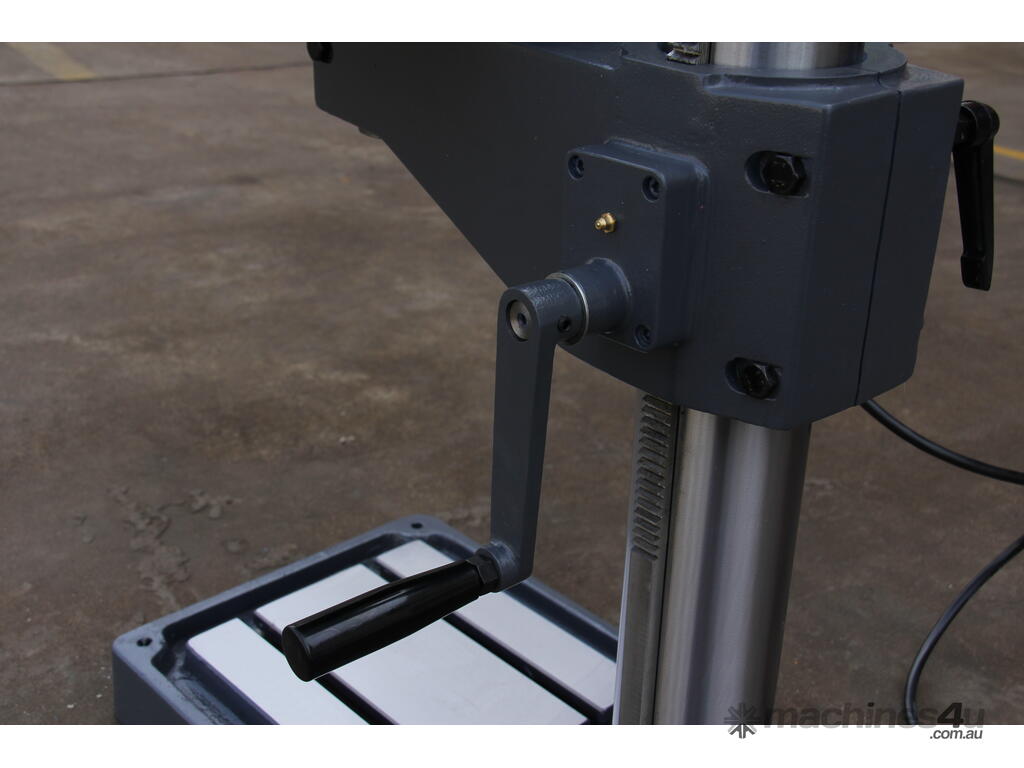

With rack and crank handle, easily adjust the head & table up and down on column
T slotted worktable rotates 360 degrees
T slotted base for big & high size material

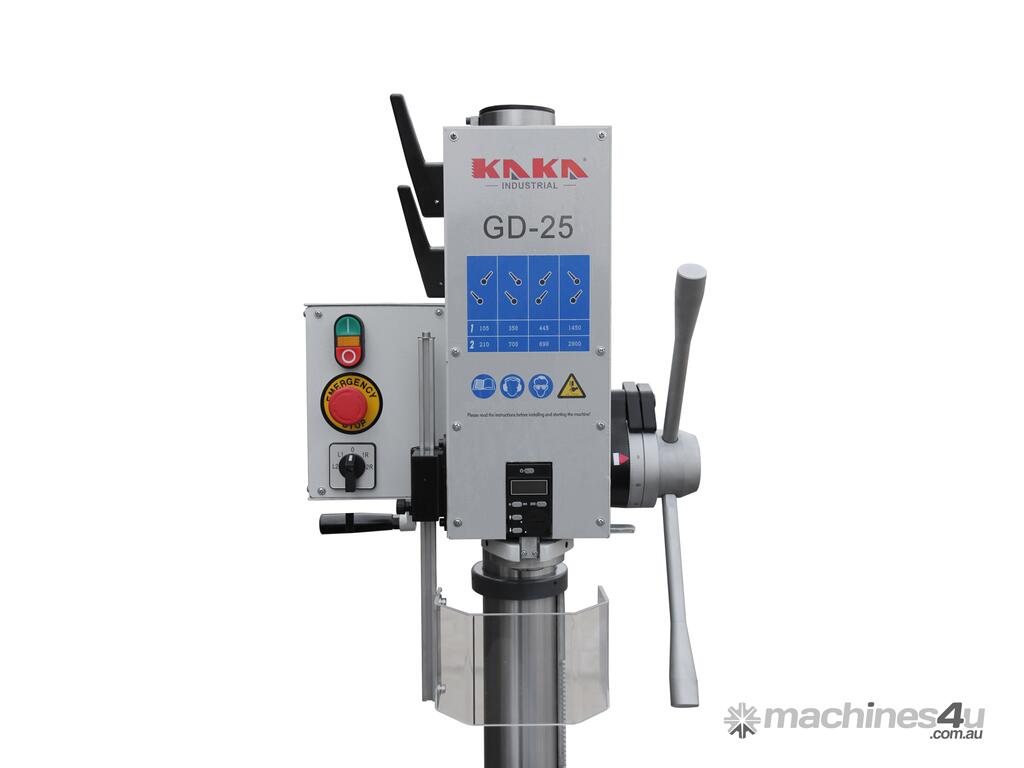

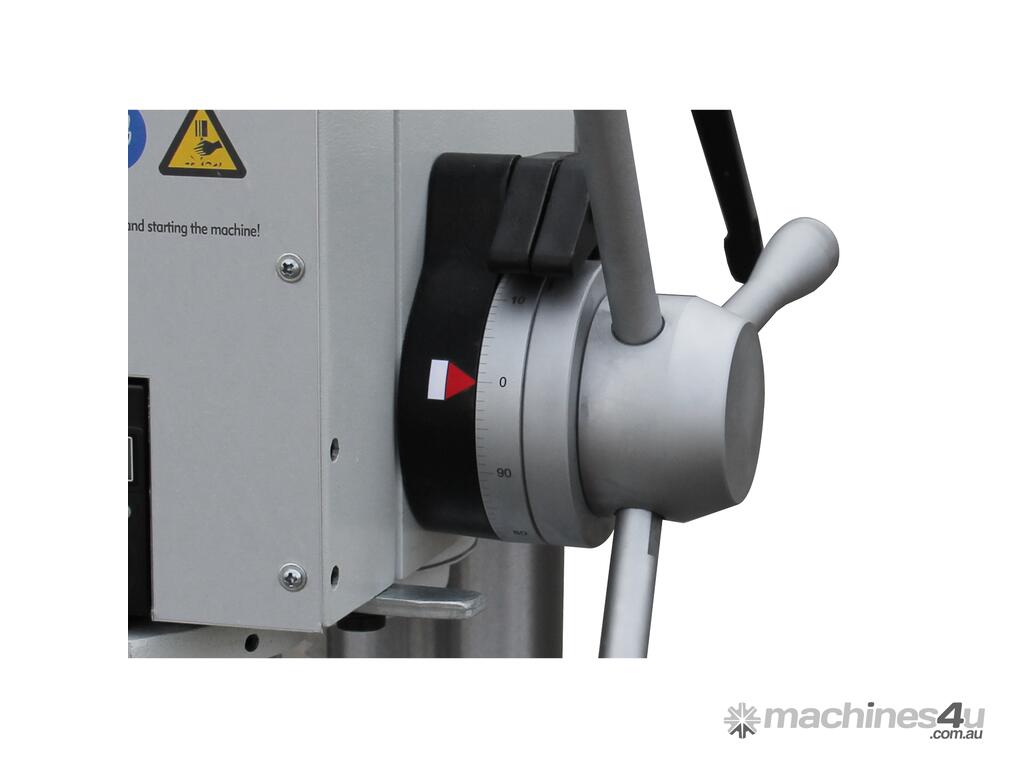

A digital depth reader to get drilling depth
Standard with Keyed drill chuck & arbor, Drill Drift, safety guard
Specifications
SKU 190017V415
Model GD-25
Max. drilling dia. 25 mm
Spindle taper MT3
Spindle travel 125 mmm
Tapping in Steel/Cast Iron M10/M16
Motor power 0.65/0.9 kW
Spindle speed 105, 210, 350, 445, 700, 890, 1450, 2900
Packing size 167x57x72cm
N.W./G.W. 210/245 kg
