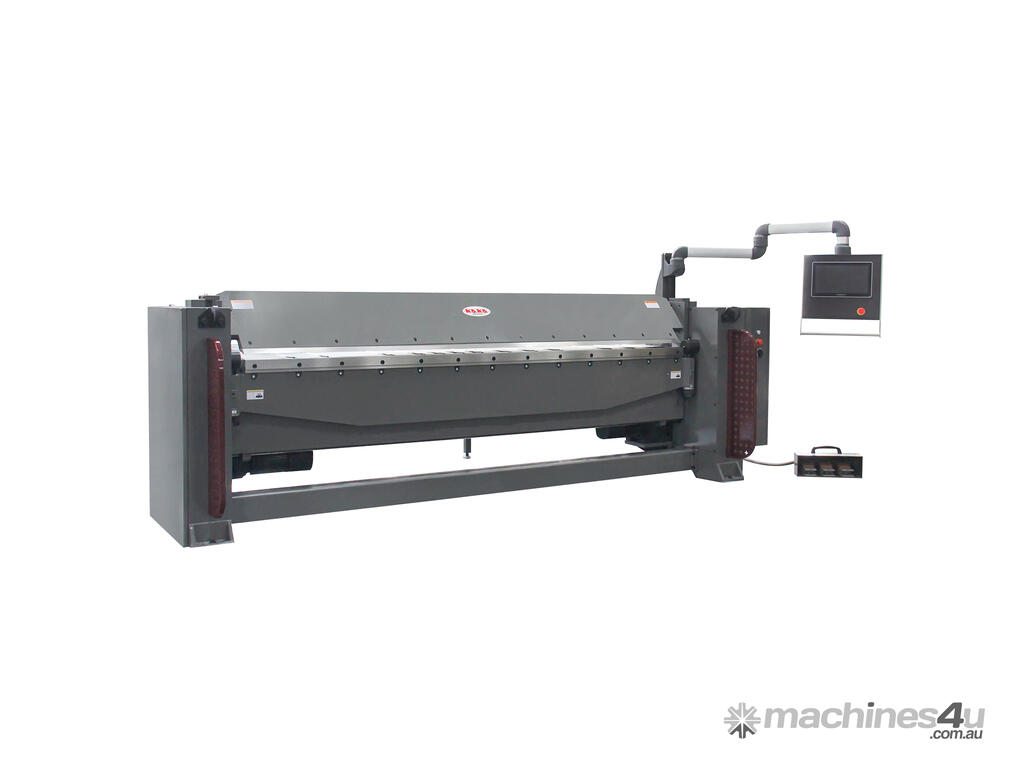

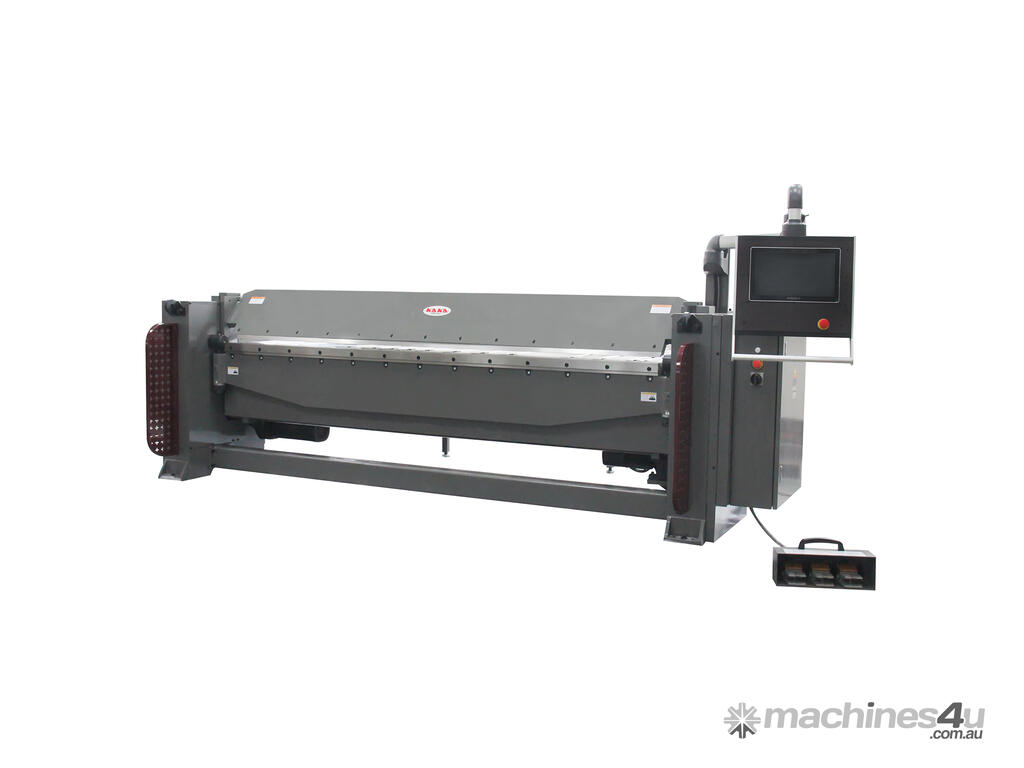

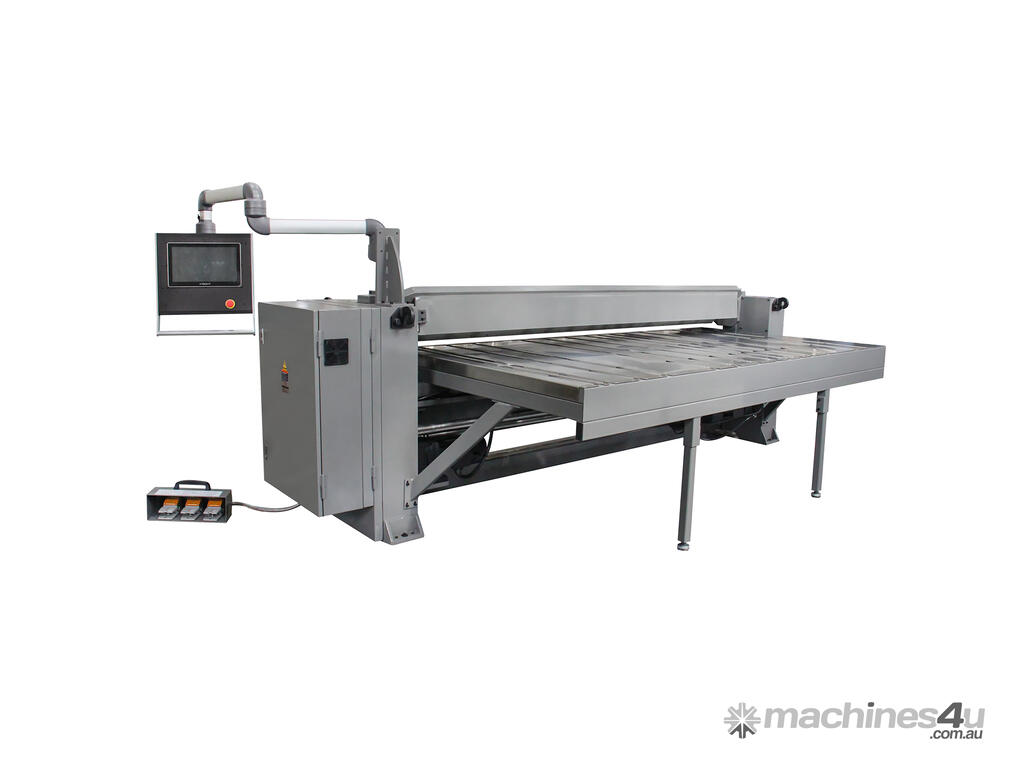

Kang Industrial CNC Roof Panel Bending Machine
Fully CNC Control, HMI-friendly operation
Max. bend 2mm thick plate at the full width 3100mm width
Upto 2000 programs storage, meet different bending request

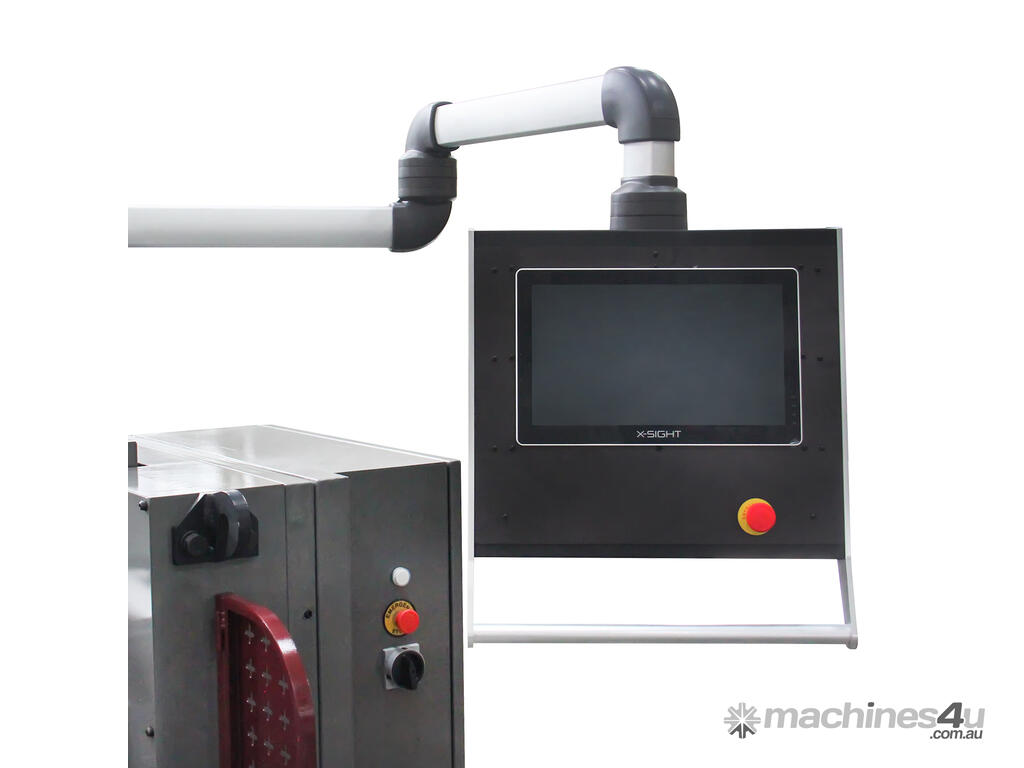

Design the bending on the touch screen immediately
Brake motor for clamping and bending, the machine will stop immediately at to pre-set angle
Specifications
SKU 173351
Model TFM3100x2E
Bending mild steel 2.0 mm
Bending stainless steel 1.2 mm
Bending width 3100 mm
Max. bending angle 0-135 degrees
Beam opening height 125 mm
Min. reverse bend 12.7 mm

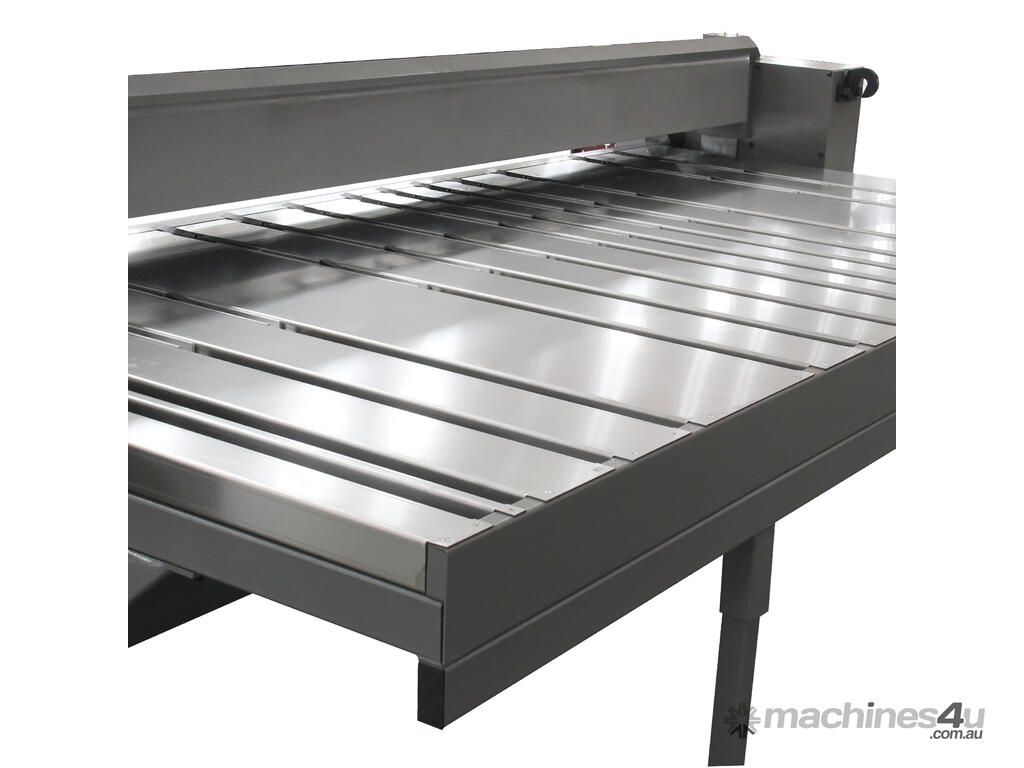

Max. table back gauge distance 1220 mm
Min. table back gauge distance 12.7 mm
Back gauge repeatability 0.1 mm
Back gauge table height 910 mm
Main motor 3.0 kW
Servo motor for back gauge 1.5 kW
Clamping motor 1.1 KW
N.W./G.W. 4280/4465 kg
Packing size 434x201x160 cm
