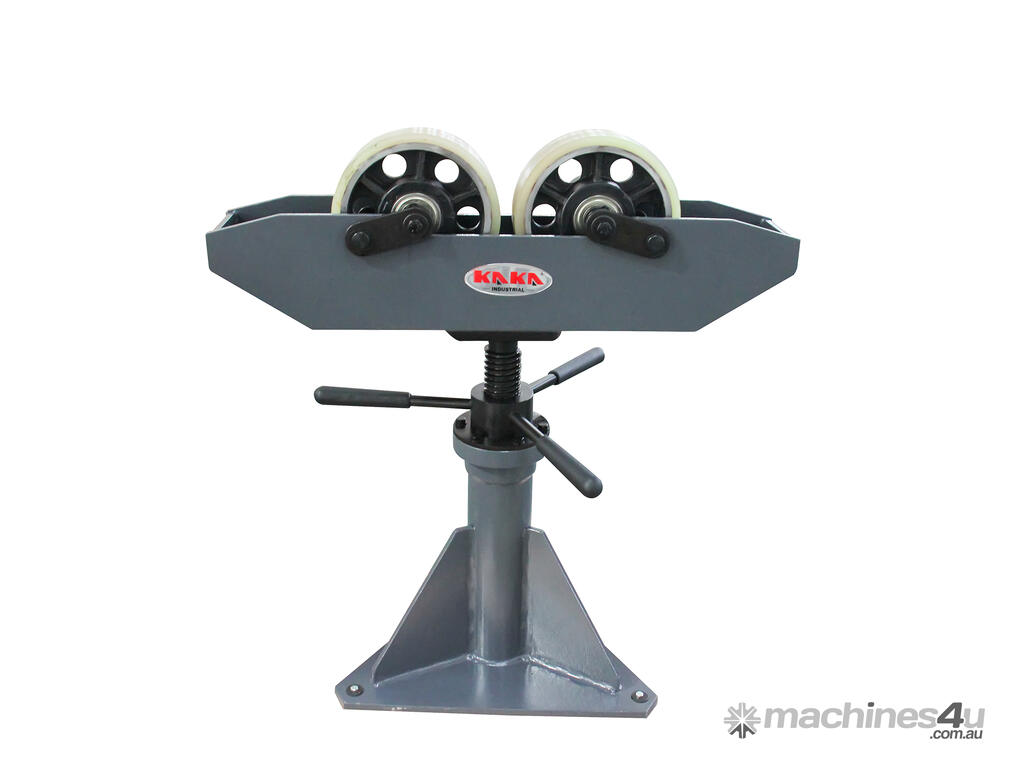

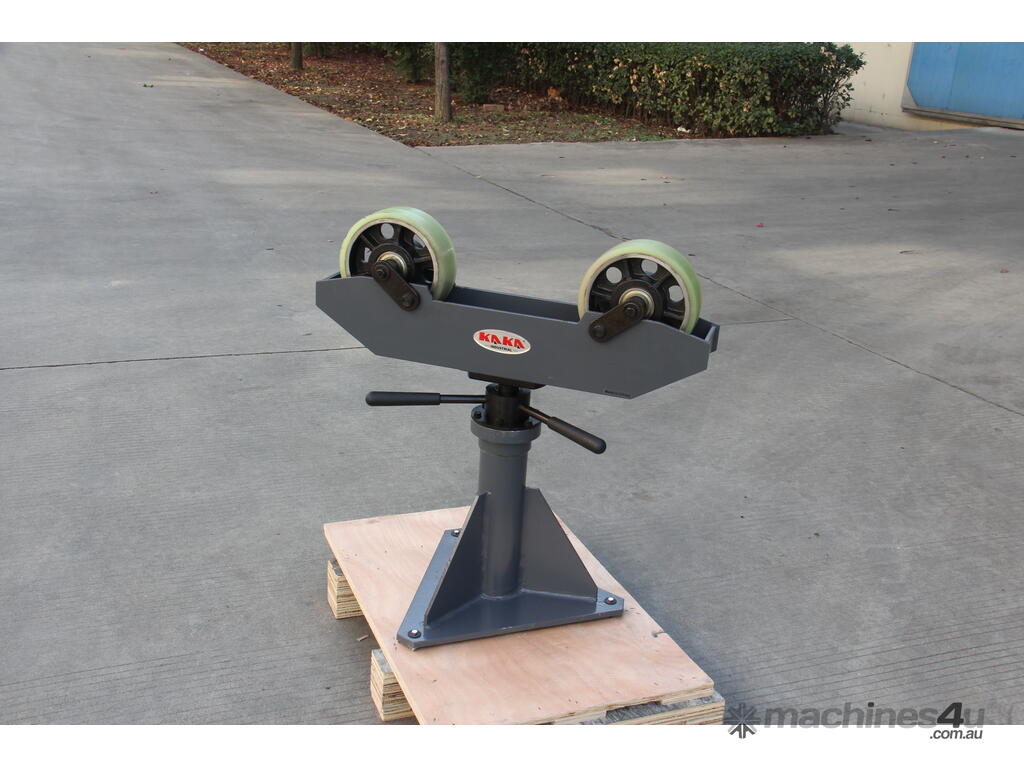

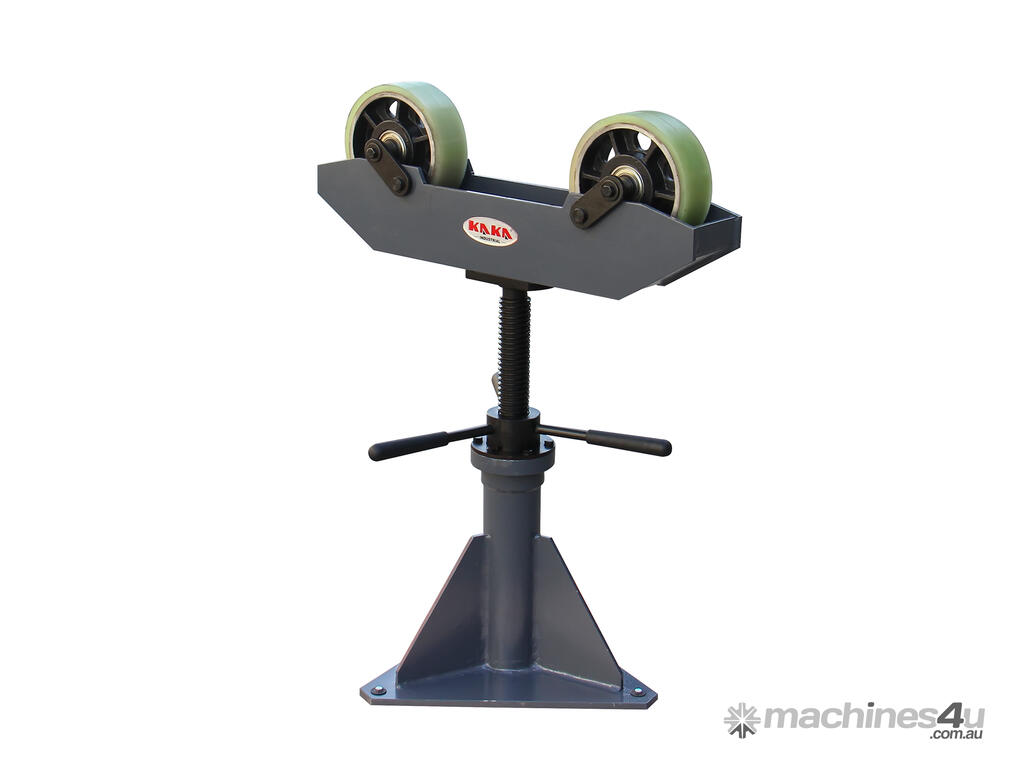

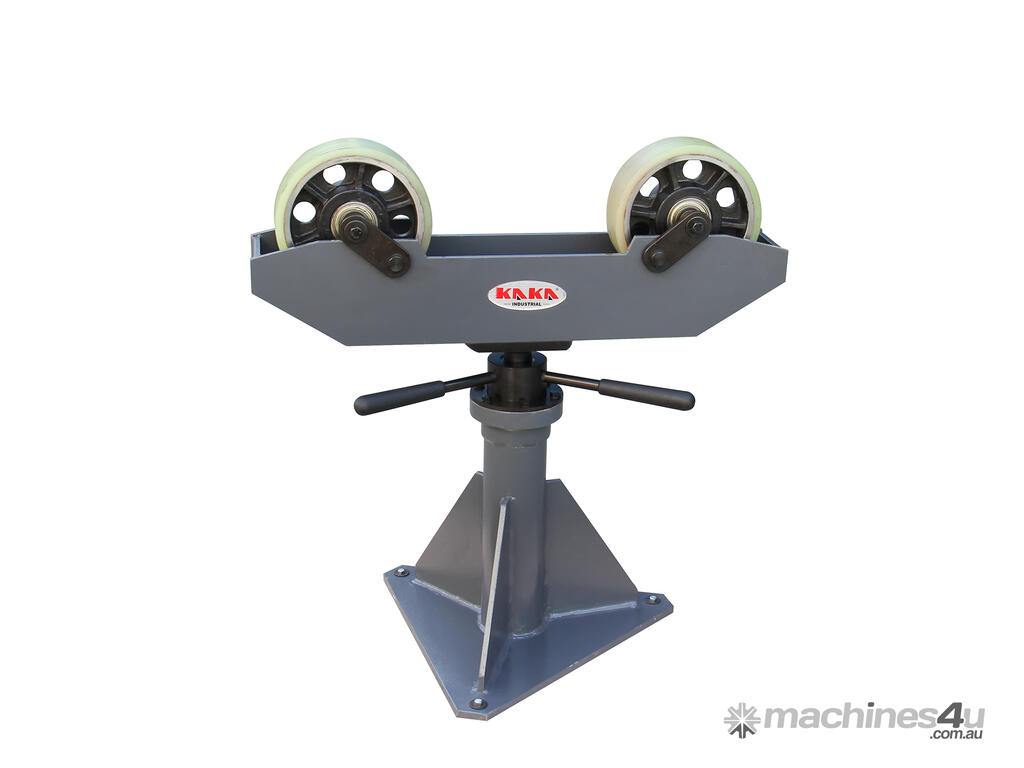

KANG INDUSTRIAL WELDING SUPPORT WTR2250
Accommodating Dia. ranging from 50-915mm
Loading capacity up to 2250 kg

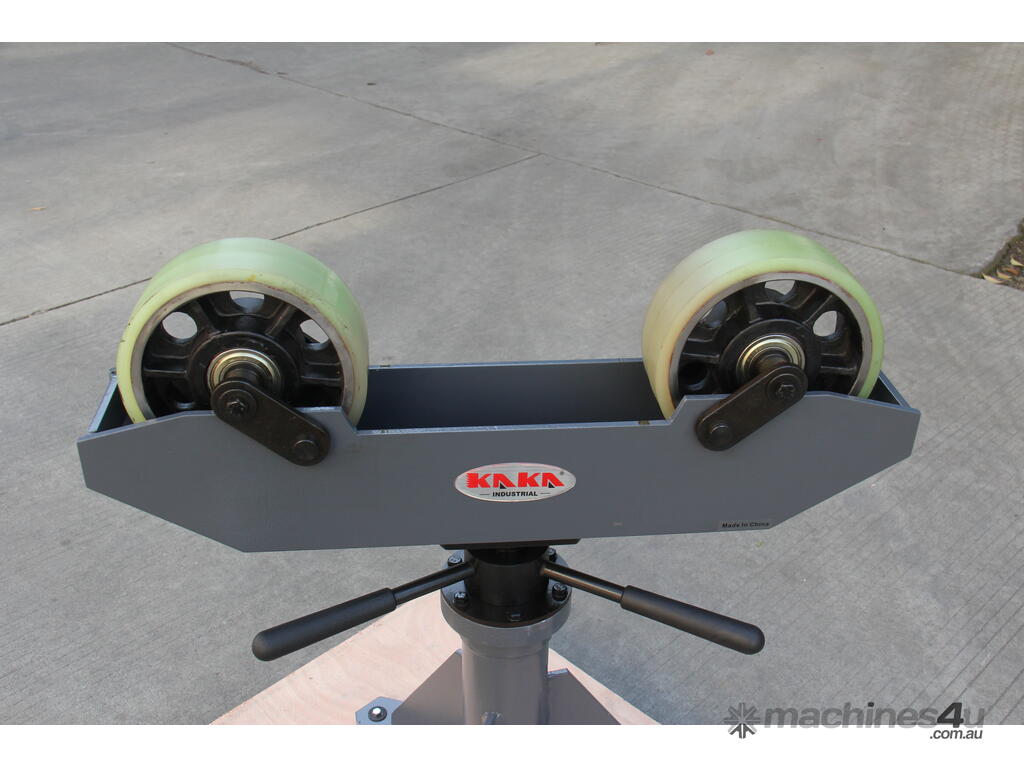

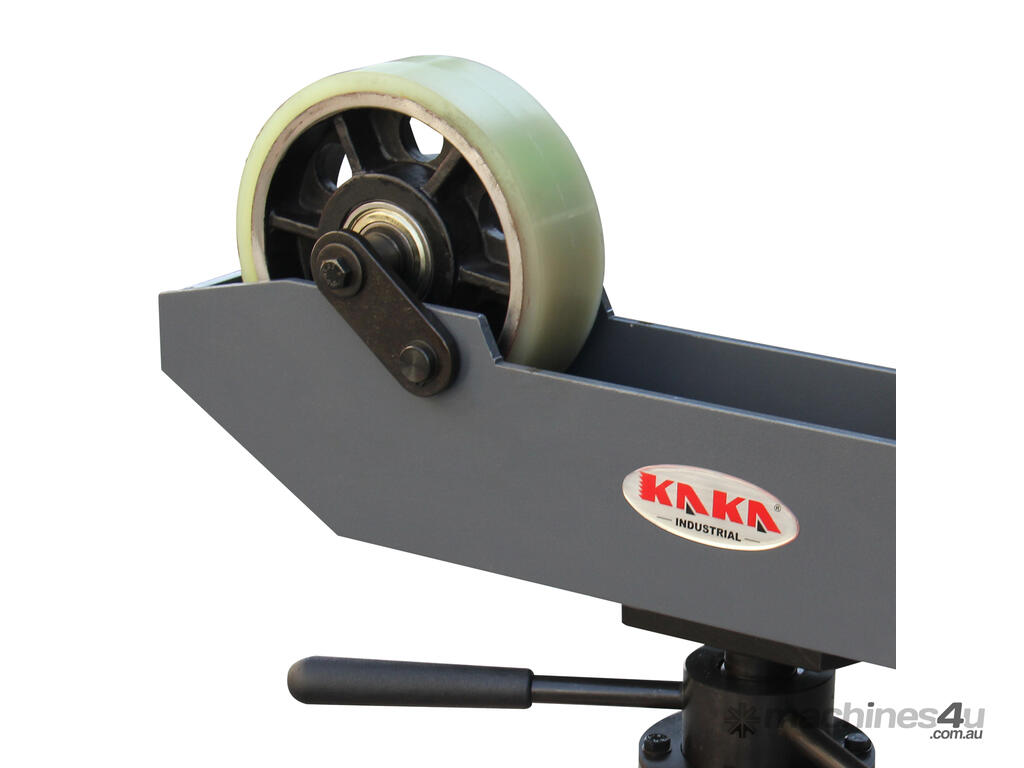

Equipped with 203mm polyurethane wheels
The roller assembly mounted on the screw-adjusted stand
Achieving vertical adjustment up to 205 mm, providing infinite height setting
Specifications
SKU 178401
Model WTR2250
Max. loading weight 2250 kg

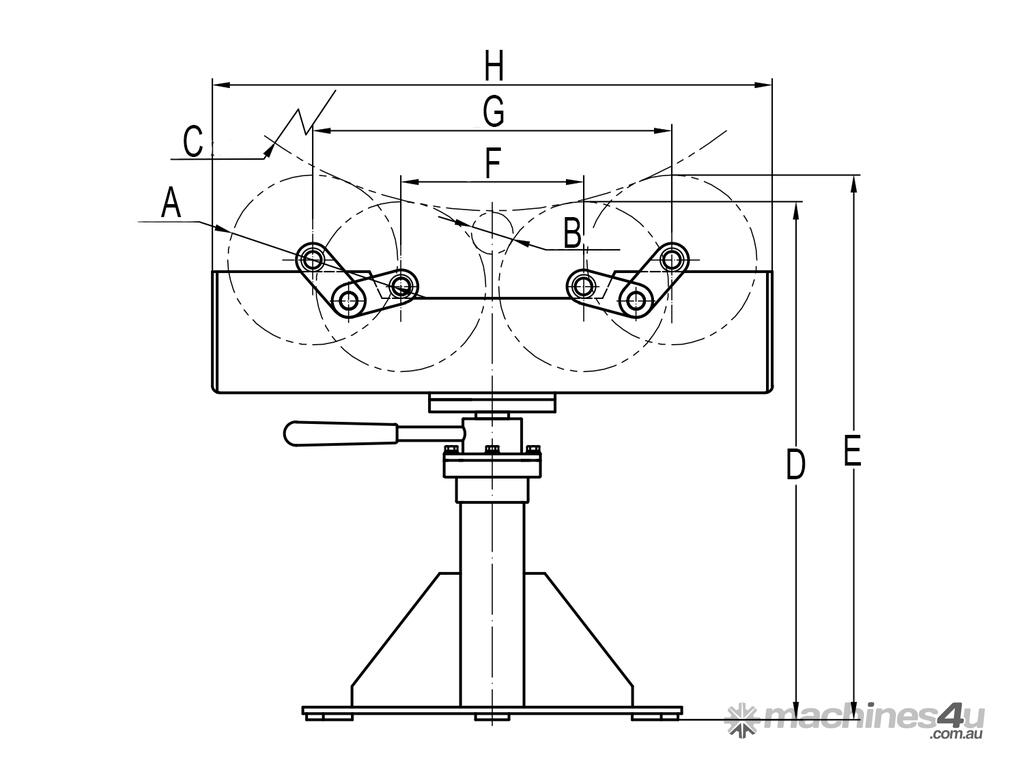

Wheel size (A) 203x65 mm
Loading dia. (B-C) 50-916 mm
Min. stand height (D-E) 712 mm
Center distance (F-G) 218-445 mm
Frame width 710 mm
Screw travel 205 mm
Packing size 80x54x85 cm
N.W./G.W. 65/78 kg
