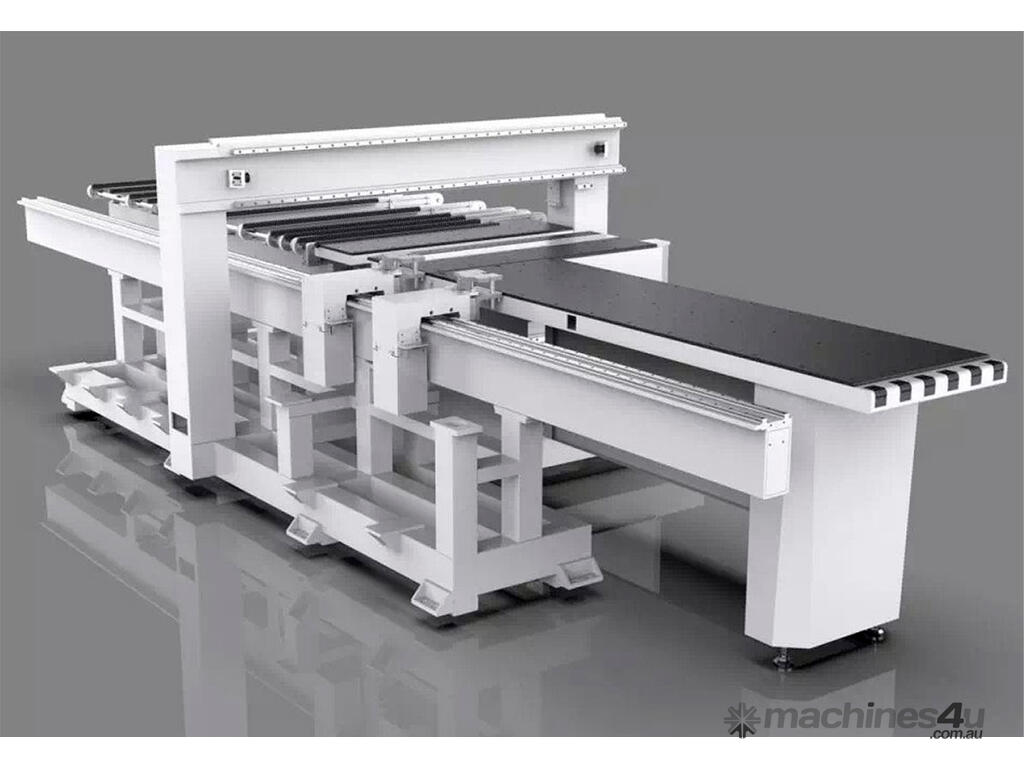

KDT. 6 sided boring, tool change routing. Outstanding performance

Super flexible and productive.
Auto loader and unloader, simple programming and barcode setting

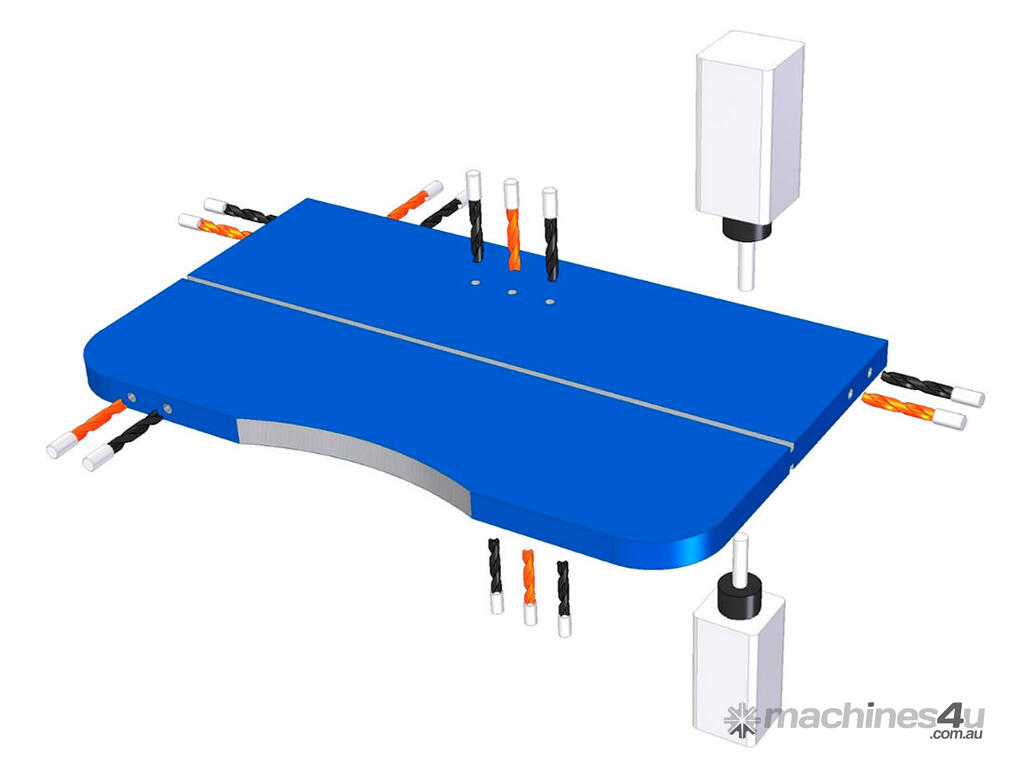

Drilling on all six sides of the panel - panel widths to 1200mm and lengths to 2800mm
Variable frequency drilling, panel sizing detection, super fast auto clamp repositioning. ( up to 140m/min)
Belt conveyor dust conveyor
Six sides NC drilling center has double-drill packages for simultaneous processing and more efficiency. Single-handed operation, small workload, can be connected with a variety of split software. It is mainly used for six faces (hinge holes, through holes, semi-through holes) of various kinds of artificial boards, horizontal drilling, and can simultaneously process symmetrical hole positions, also can do hogging and milling with small spindles.

1 5 station ATC for spindle, easier handle hogging, milling, lamella and other craft;
2 5.5KW routing spindle, stronger and quickly in hogging and milling;
3 double air flotation table positions flexibly according to the hole position to improve the drilling accuracy
4 double positioning modemore accurate and efficient positioning of different panels.

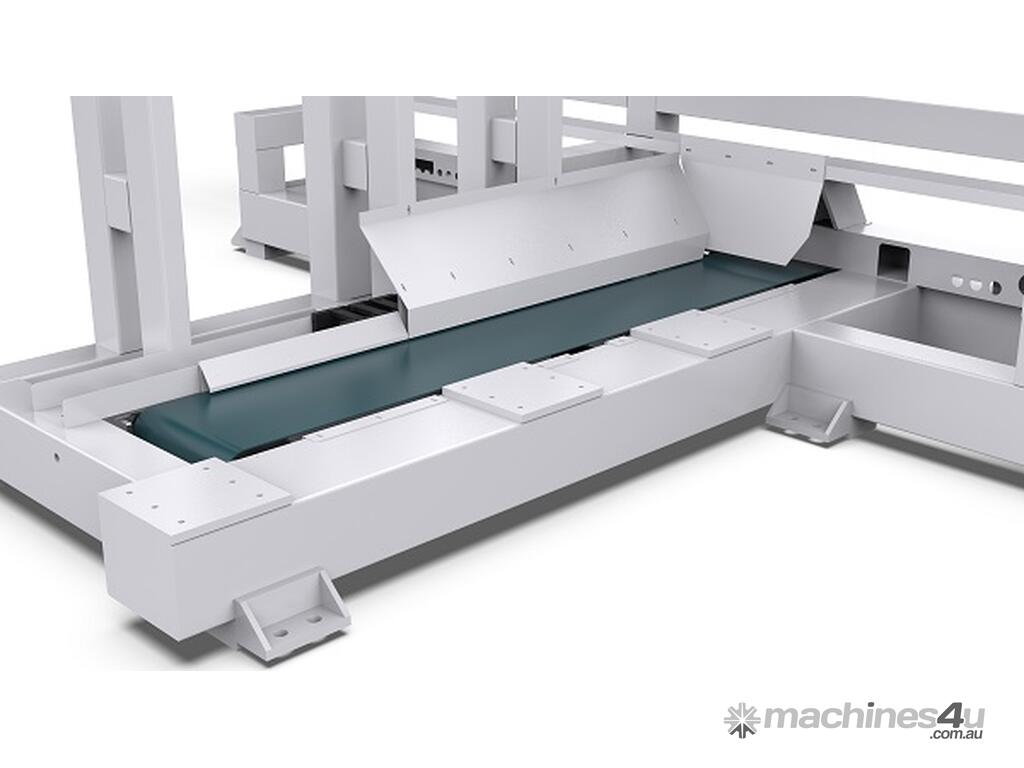

?adopt belt conveyer dust collection?centralized remove all dust which fall into machine.
6 Software can simulate processing pathpredict the processing time?

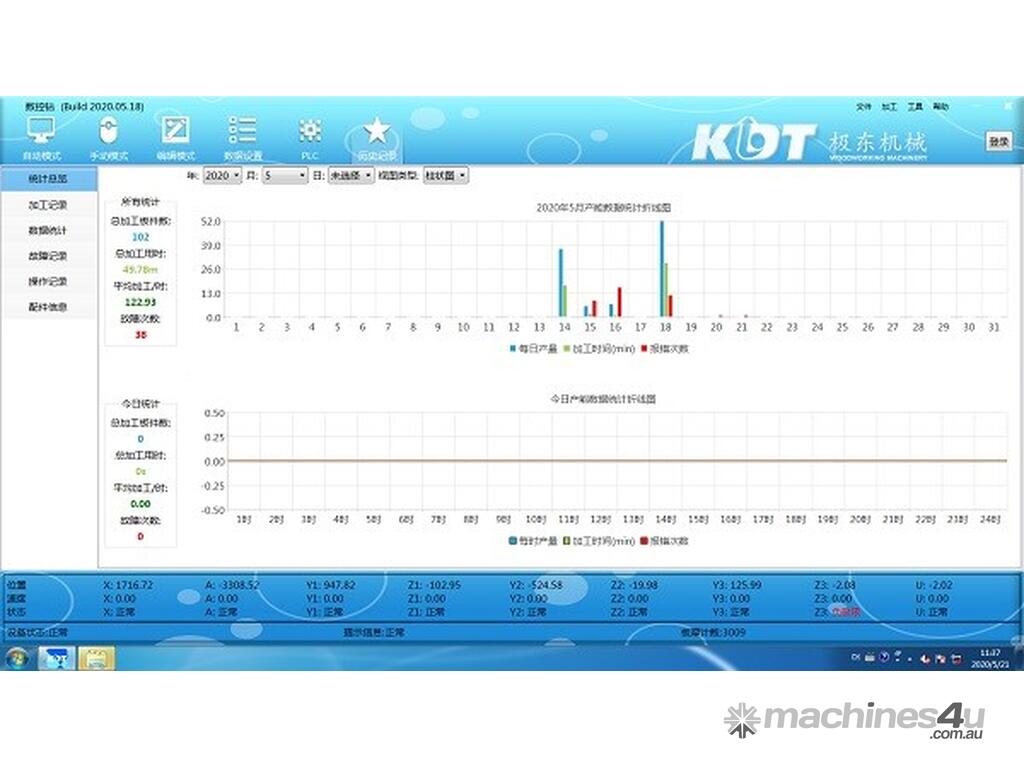

7 Processing record statistics,view production progress in real time.

Pricing is ex the LEDA Warehouse / stock location and excludes delivery from there to your factory, Commissioning costs and GST

TRADE INS WELCOME and COMPETITIVE Finance options available T.A.P.
Contact us for details
