KINGSLAND MULTI 140 MADE IN ENGLAND

KINGSLAND MULTI 140 PUNCH & SHEAR, MADE IN OUR FACTORY IN ENGLAND. BUY DIRECT FROM MANUFACTURER

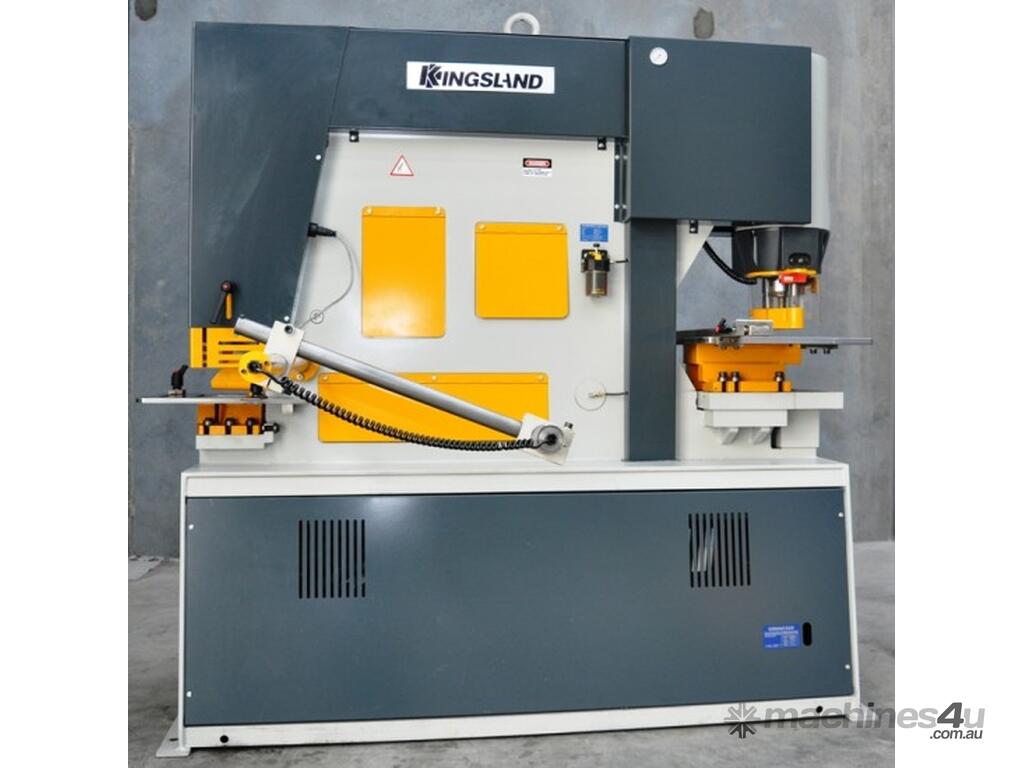

The KINGSLAND MULTI 140 machines are in the Kingsland tradition of well engineered, robust steelworkers, built for a long working life.

These MULTI machines are supplied with standard tooling including repetition support tables at punch, shear and notch stations and with easily adjusted hold-downs at all five work stations to safely control the operations.

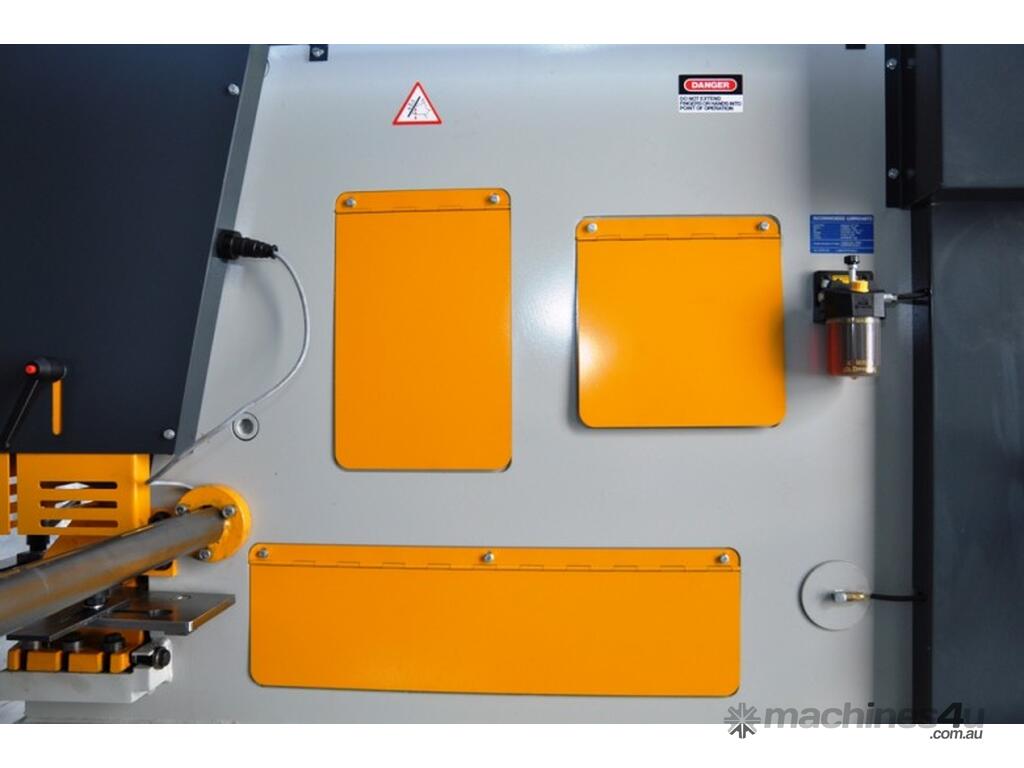

Comprehensive safety guards are fitted as standard on all work stations.

Free standing on a suitable floor, they just require electrical connection to be ready for work. For two operator utilization, the hydraulic system is activated by two shielded foot controls, one operating the punch end cylinder, the other operating the shear end cylinder. The shear cylinder provides the power to the 3 shearing stations and the notch stations.

The system gives accurate power inching at all five work stations and allows the machine to be stopped at any position giving safe and accurate tool setting and work positioning. Limit switches at both ends of the machine control stroke length at all stations.

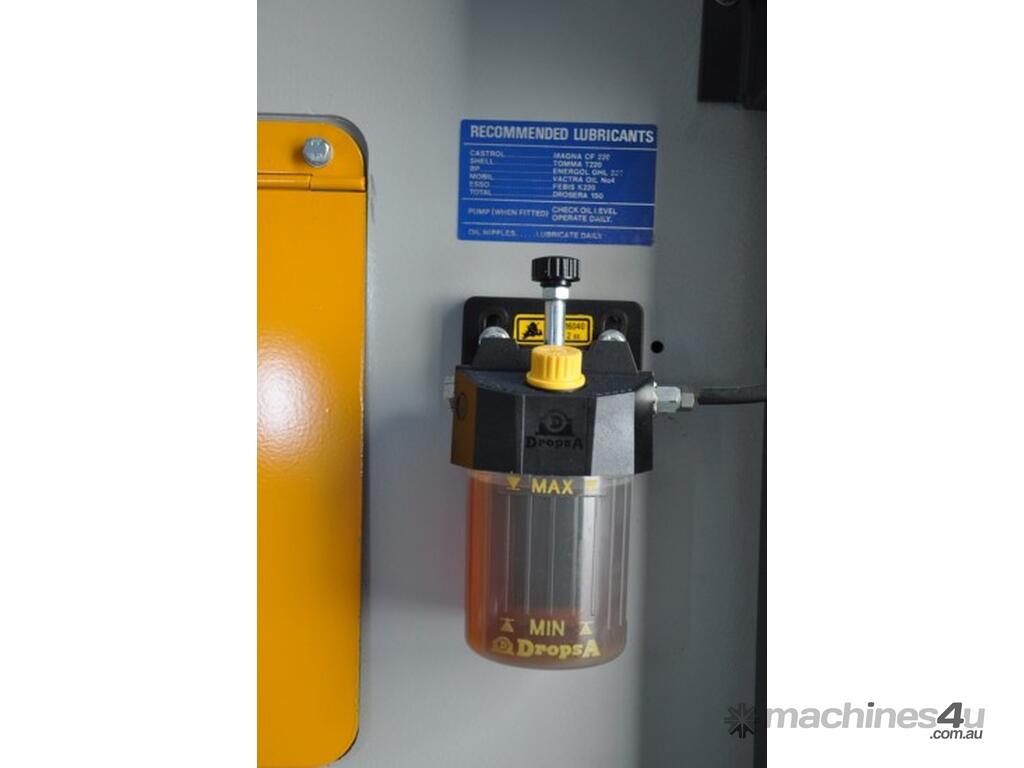

Centralized lubrication is metered by one-shot system, being only one feature of the low maintenance requirement.

The universal KINGSLAND MULTI machines are delivered with an extensive range of standard features:

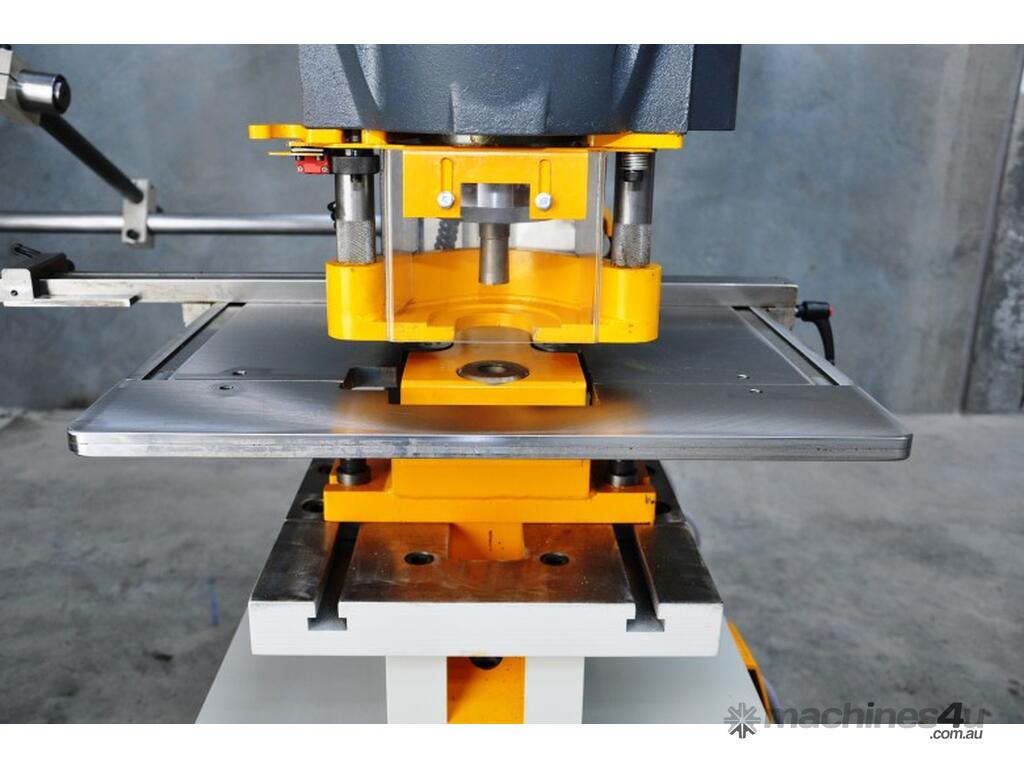

- Large punch table with multi-purpose bolster
- Removable table block for overhang channel.

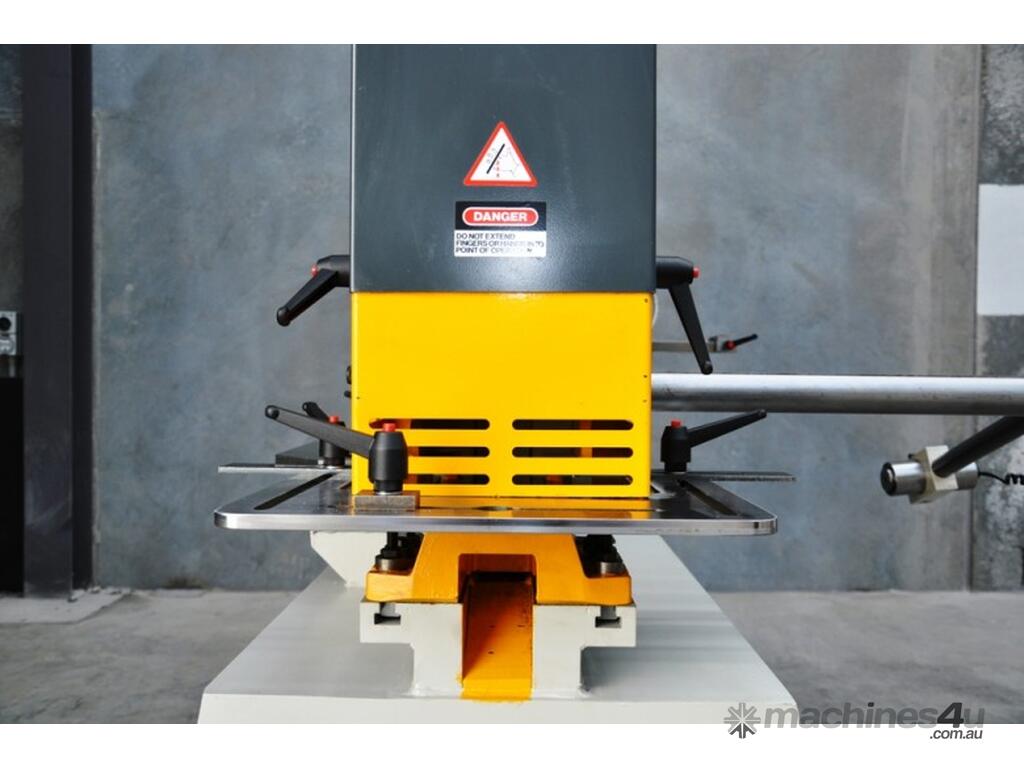

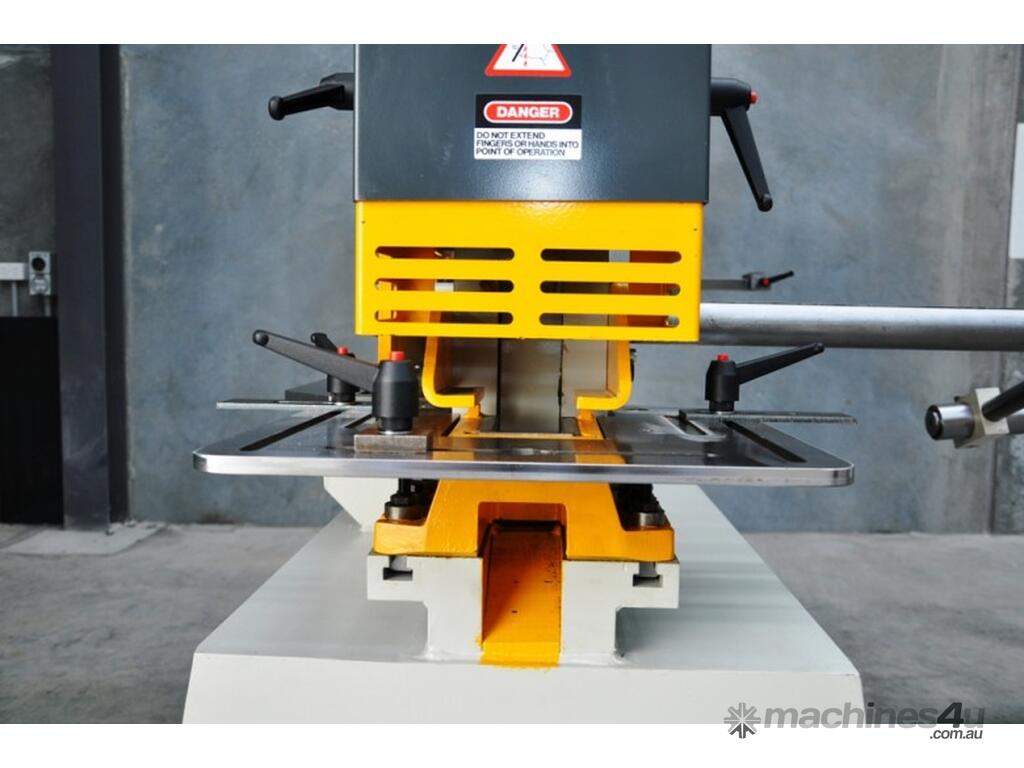

- Punch table, shear table and notch table standard equipment
- Power inching and adjustable strokes at punch & shear end
- Centralized pressure lubrication
- Wide variety of applications for large hole punching: bar bending, tube notching,...
- Miter cut flanges of angle under shear blade
- Work station guards standard fitment
- Two cylinder operation
- Overload relief on hydraulic system
- Interchangeable bearings, seals and valves readily available in Australia.
- Machines with very low maintenance

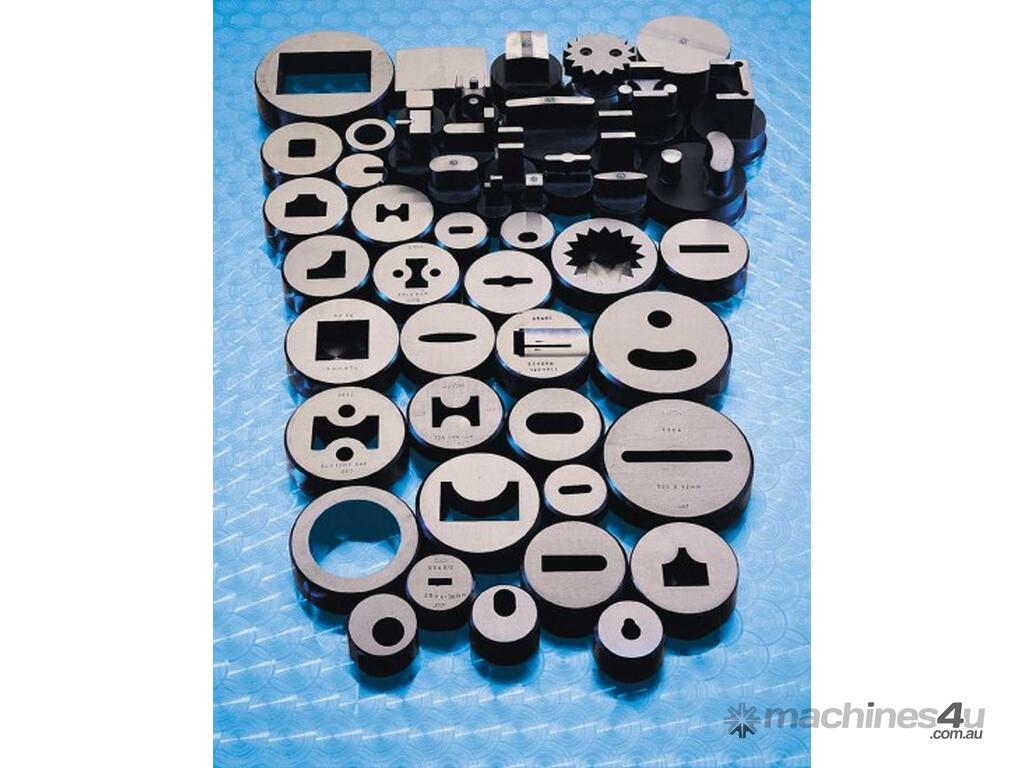

- Punch adapters
- Swing away punch stripper unit
- One low volt halogen lamp on a movable magnetic base
- Fine adjustment facility to the punch stroke
- Measuring scales in the notch table
- 1.0m long touch and cut ruled length stop

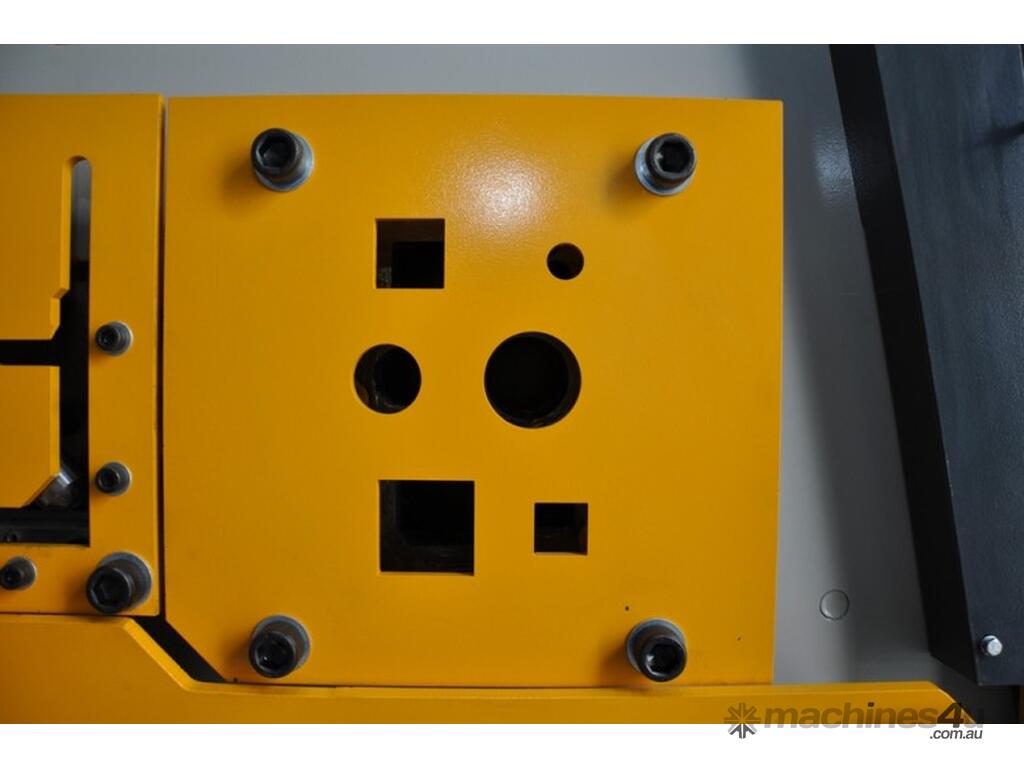

- Universal die bolster
- Heavy-duty support tables with guides at shear station and notch station
- Heavy-duty punch table with guides and backstop
- Shear body blade with 4 cutting edges

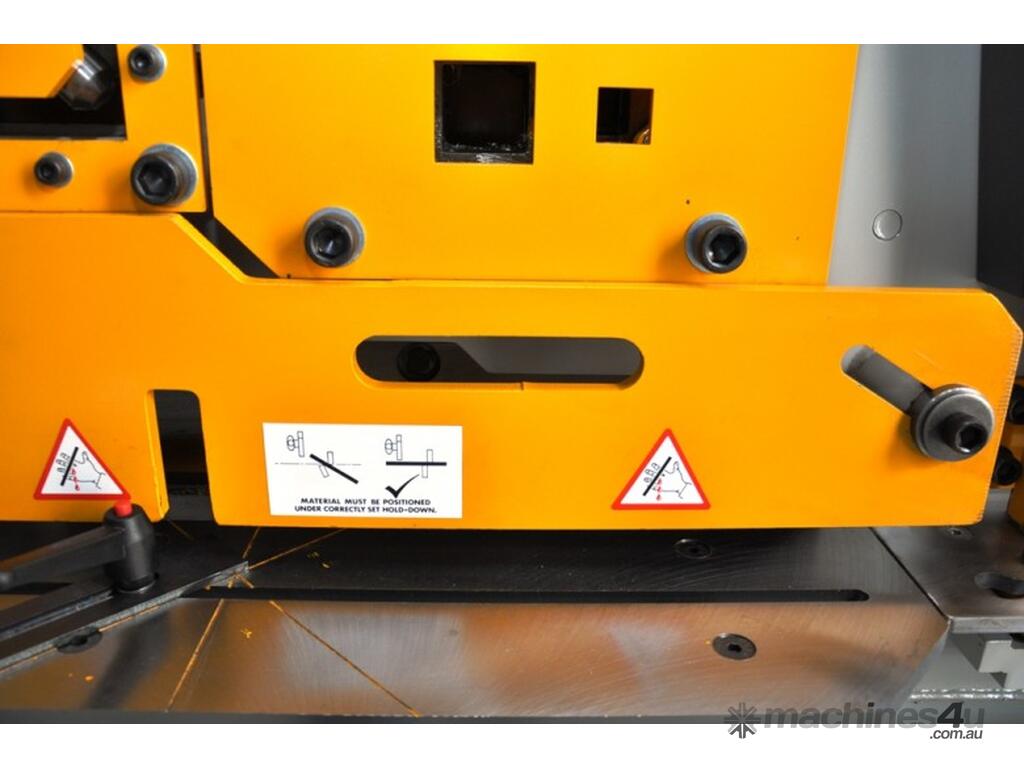

- Mechanical Hold down for shear
- Section arm & body blade with 1 cutting edge

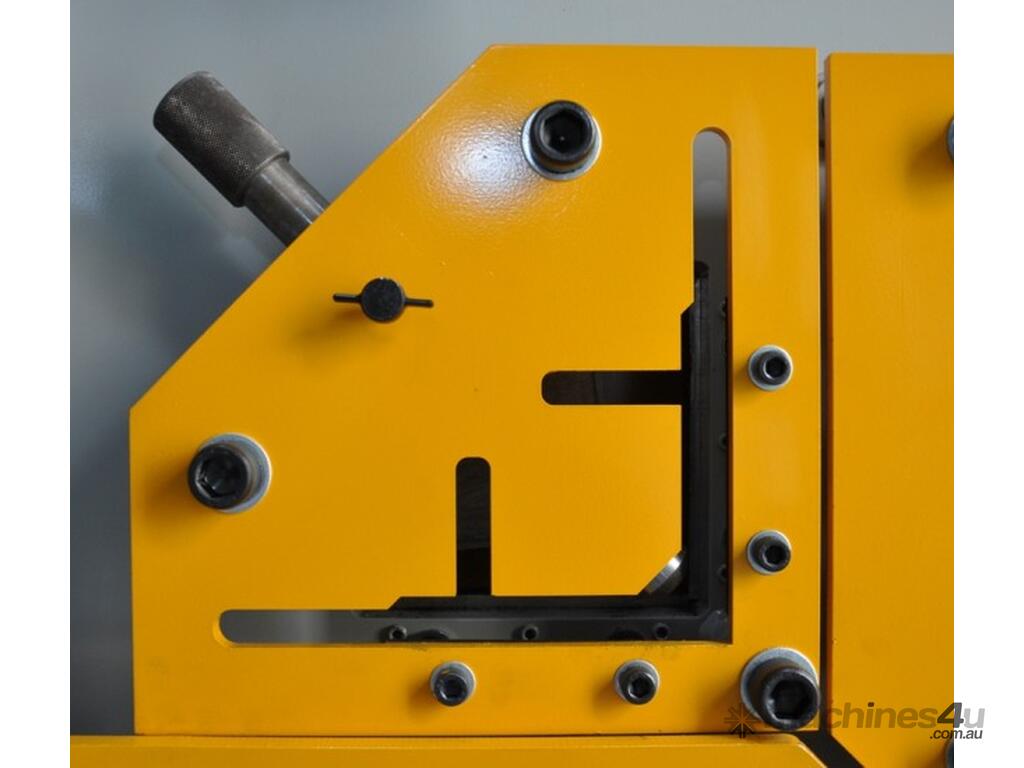

- Angle cutting arm & body blades with 4 cutting edges
- Rectangular notch bolster blades with 4 cuttings edges
- Service toolkit
- Work station guards
- Instructions, operating and maintenance manual.

Machine specifications:
Model: MULTI 140
Maximum pressure: 140 Ton

Punching Station
Maximum Capacity: 39 x 25mm
Diameter x Thickness: 57 x 17mm
Stroke Length: 80mm
Standard Throat Depth: 355mm

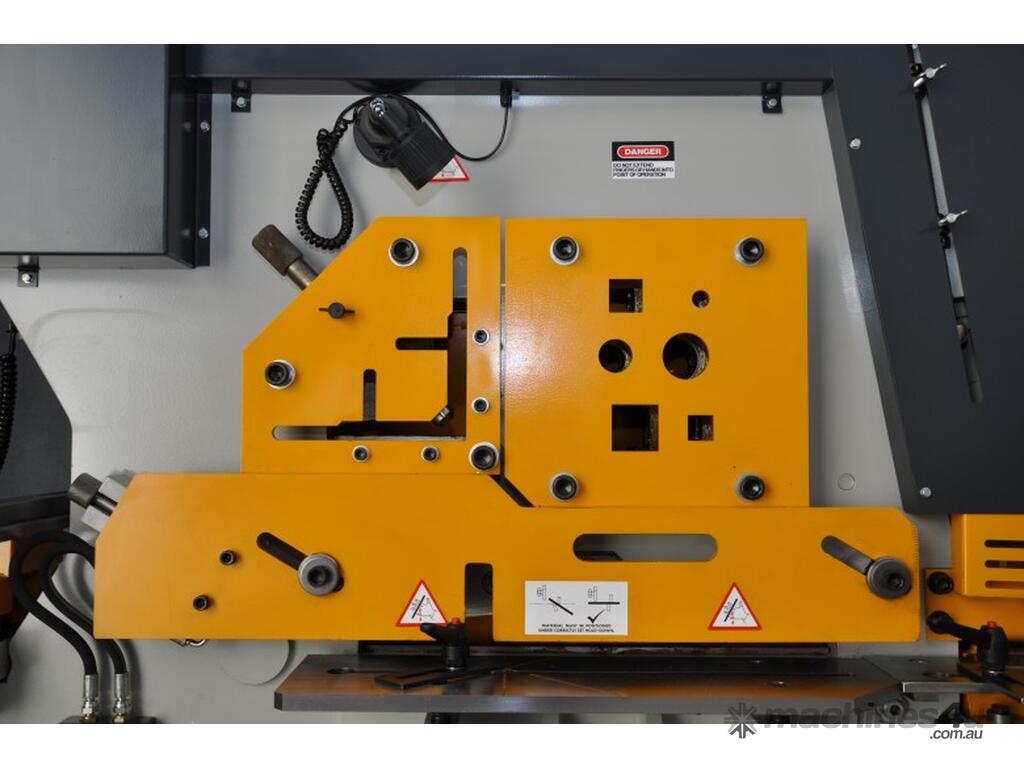

Shearing Station
Flat Bar – Max Thickness: 400 x 25mm
Flat Bar – Max Width: 600 x 20mm
Angle Flange Trim – Max 45º: 120 x 15
Working Height: 900mm

Angle Cutting
90º Cut: 150 x 18mm
45º Mitre (true int/ext): 80 x 10mm

Section Cutting
Round/Square: 55mm

Notching
Material Thickness: 13mm
Width - Rectangle: 60mm
Depth - Rectangle: 100mm

Technical Data
Motor Power: 9Kw
Weight: 3300Kgs
Machine dimensions: 200 x 80 x 203


Optional Hydraulic hold down $2700.00 + gst moreprice
