KINGSLAND Punch & Shears

***BUY DIRECT FROM THE MANUFACTURE KINGSLAND***

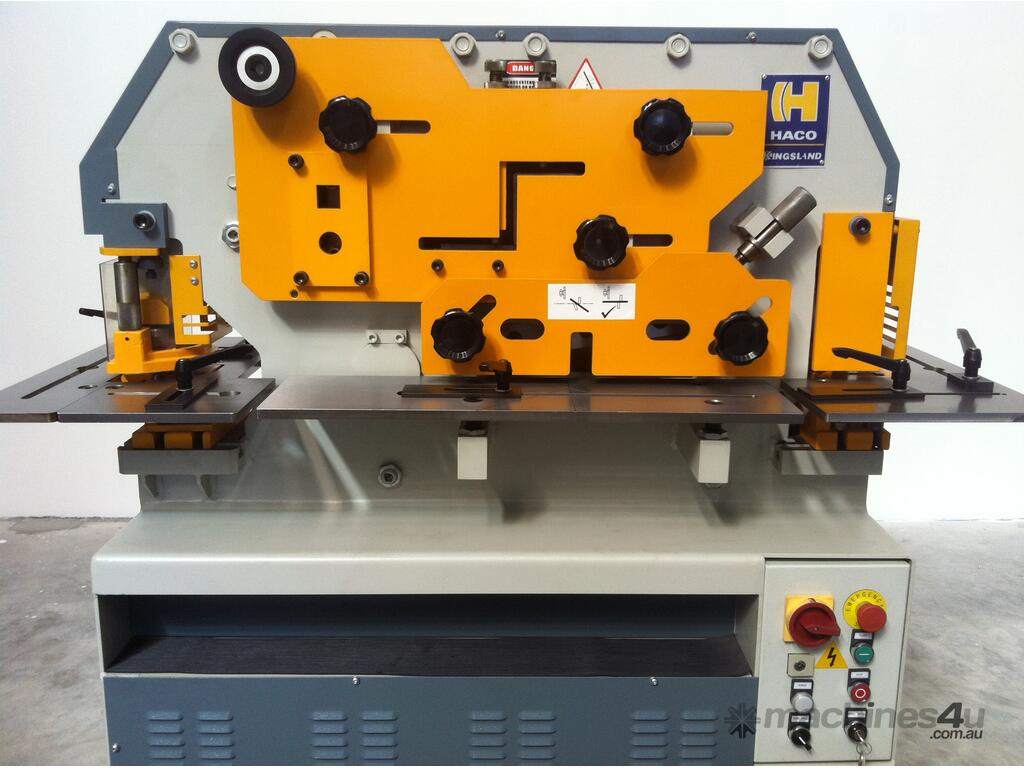

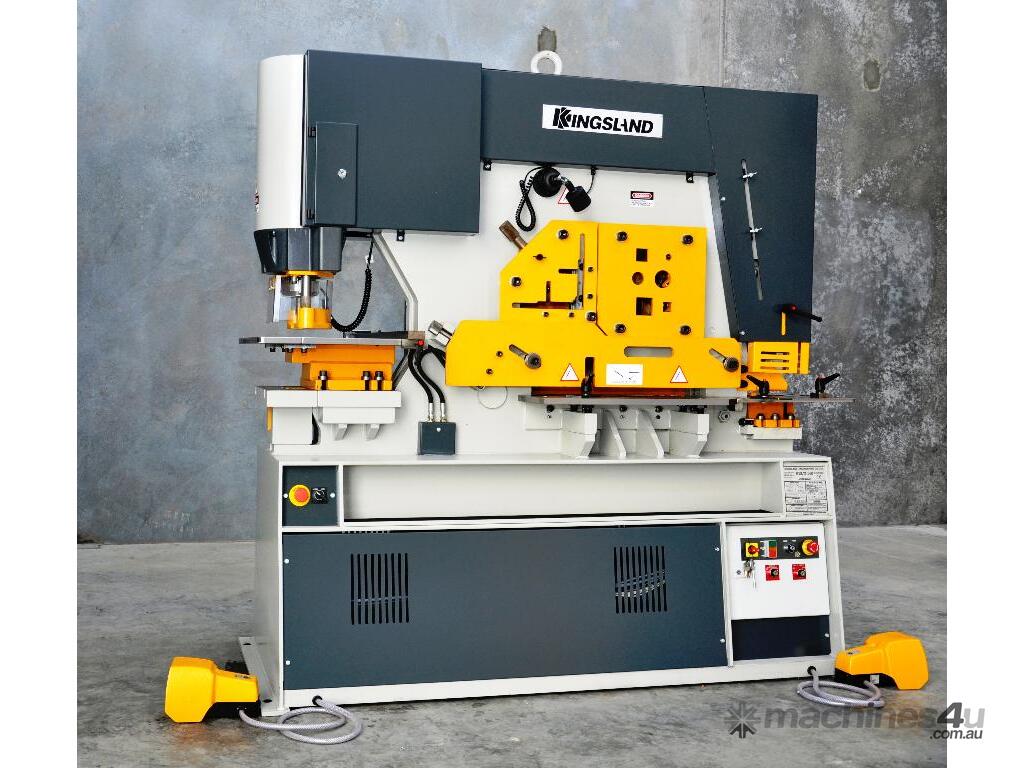

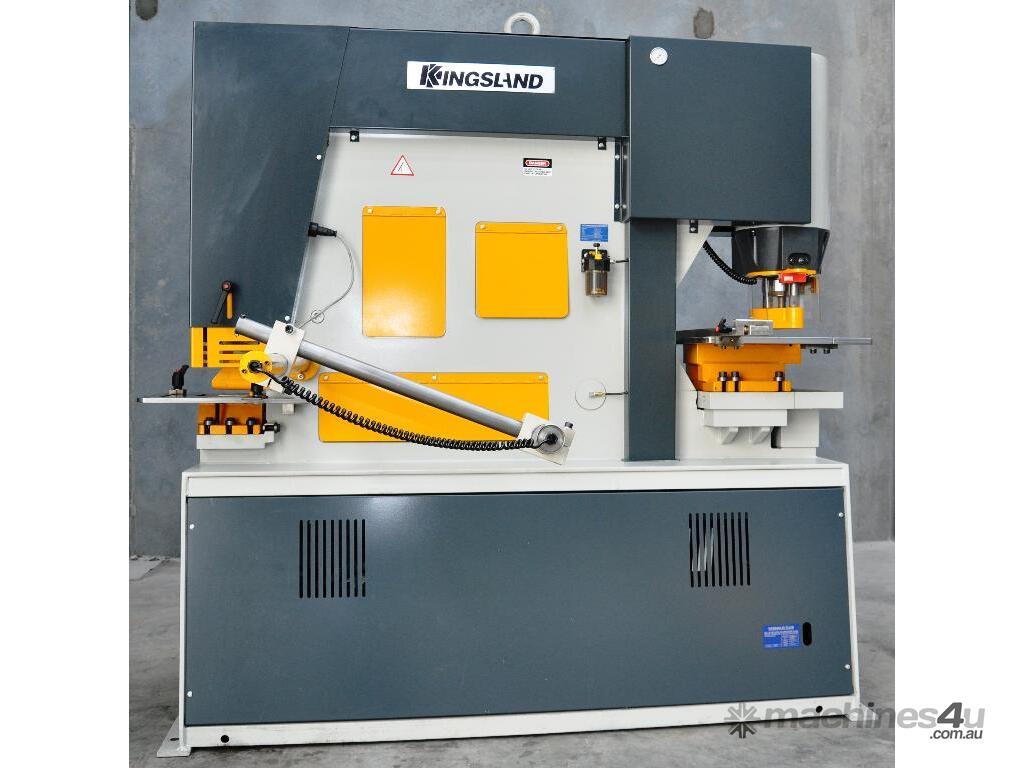

The Kingsland Punch & Shear machines are universal hydraulic steelworkers with 5 workstations and are developed for production purposes with maximum efficiency. They range from 50T up to 200T.

They are designed and manufactured using long experience in the manufacturing industry of hydraulic steelworkers.

On all COMPACT models, the hydraulic circuit is activated by a shielded food-pedal, and on all MULTI models, the hydraulic system is activated by two shielded foot controls, one operating the punch cylinder, the other operating the cylinder for the shear and the notch stations.
The system gives accurate power inching at all work stations and allows the machine to be stopped at any position giving safe and accurate tool setting and work positioning.

Limit-switches allow accurate adjustment of the stroke length for maximum efficiency. All machines have an automatic stroke return function.

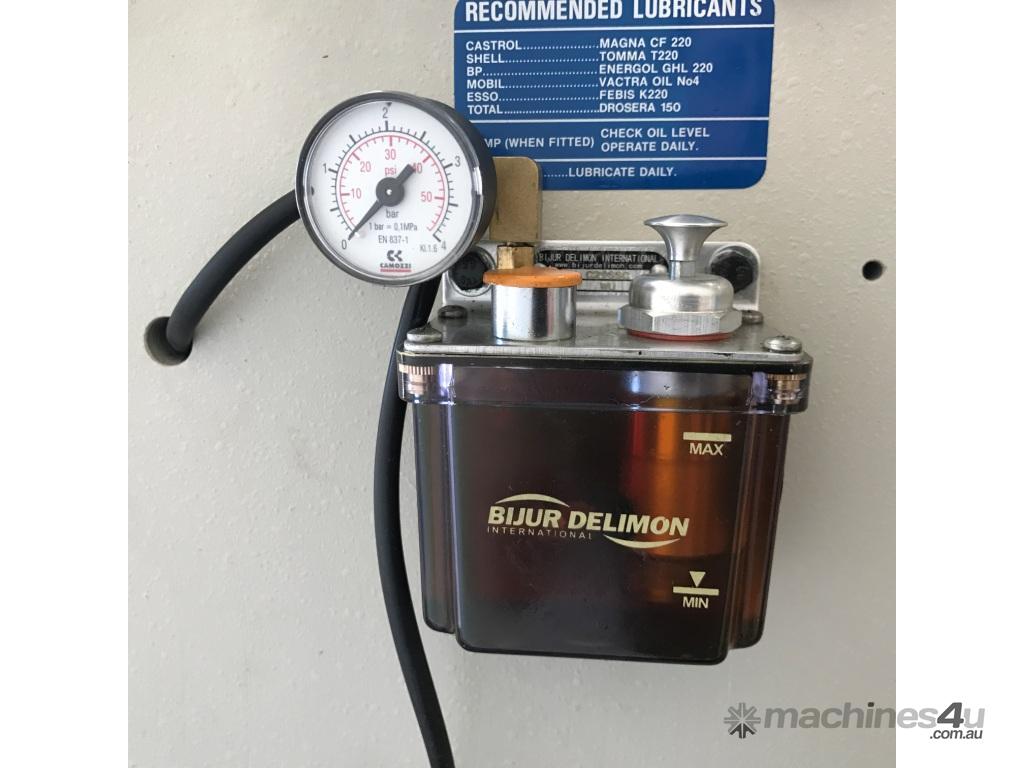

Machines are equipped with centralised pressure lubrication being one feature of the low maintenance requirements.

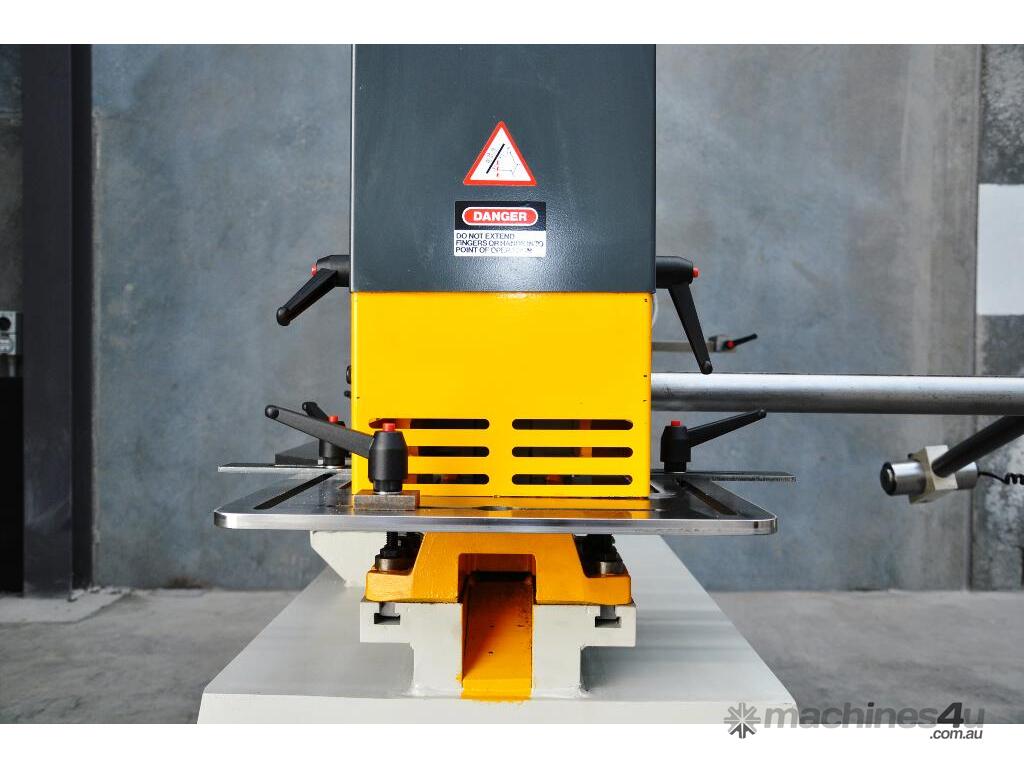

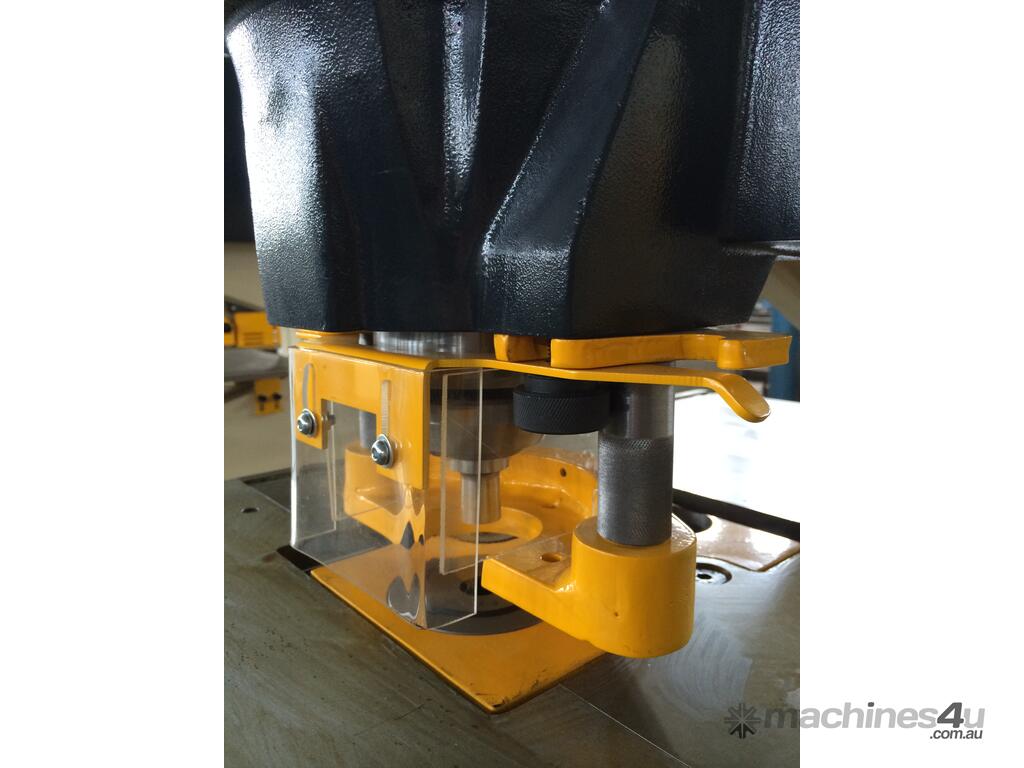

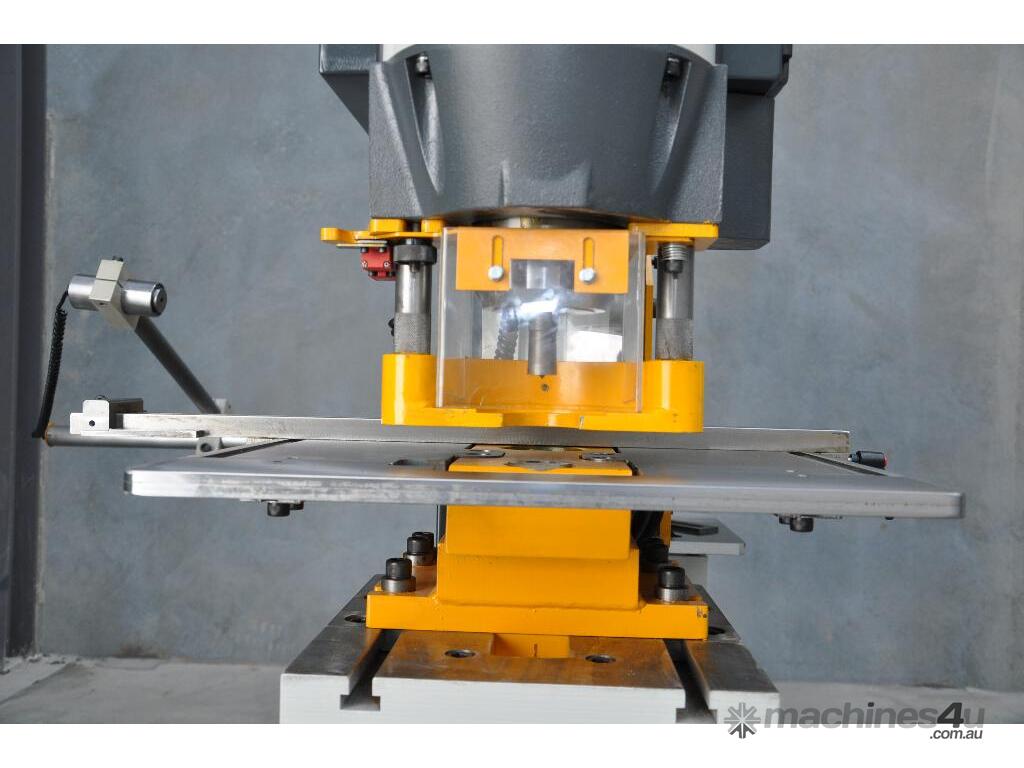

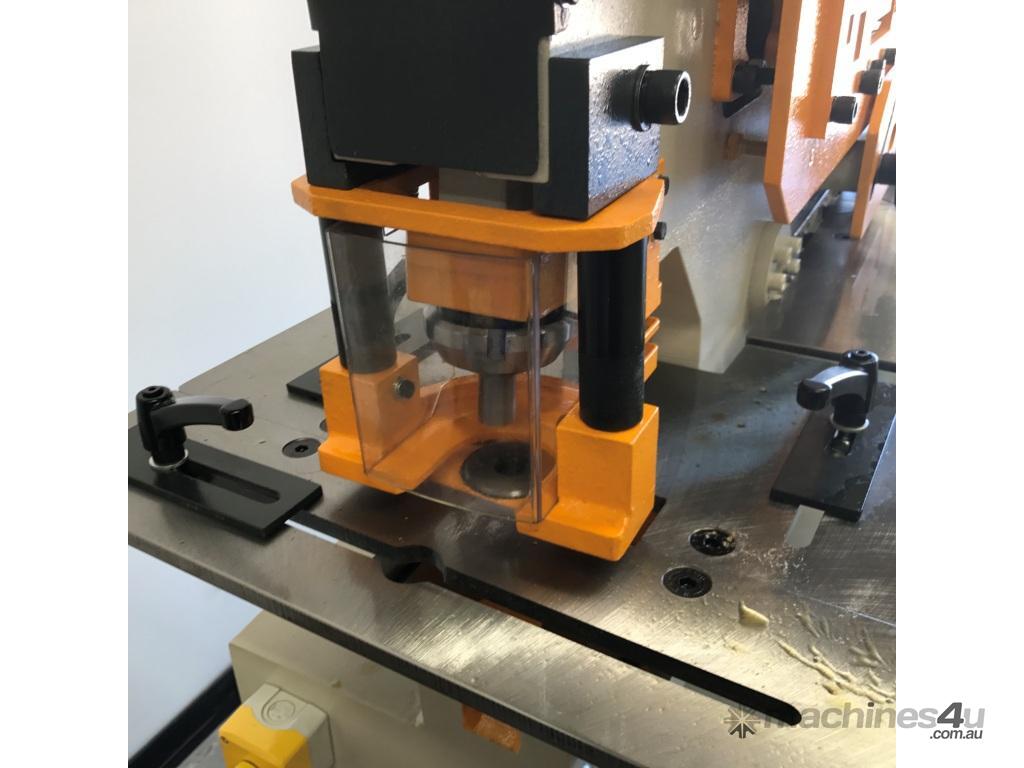

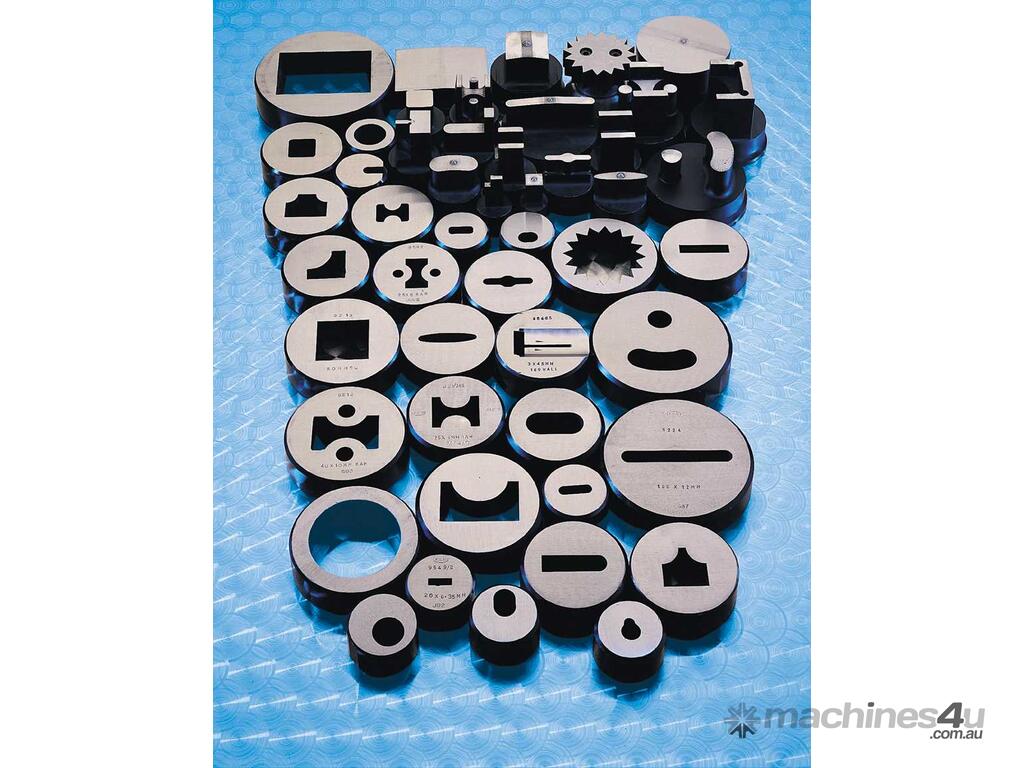

The large punch bed area has a removable front block and is designed to give a very wide range of punching applications

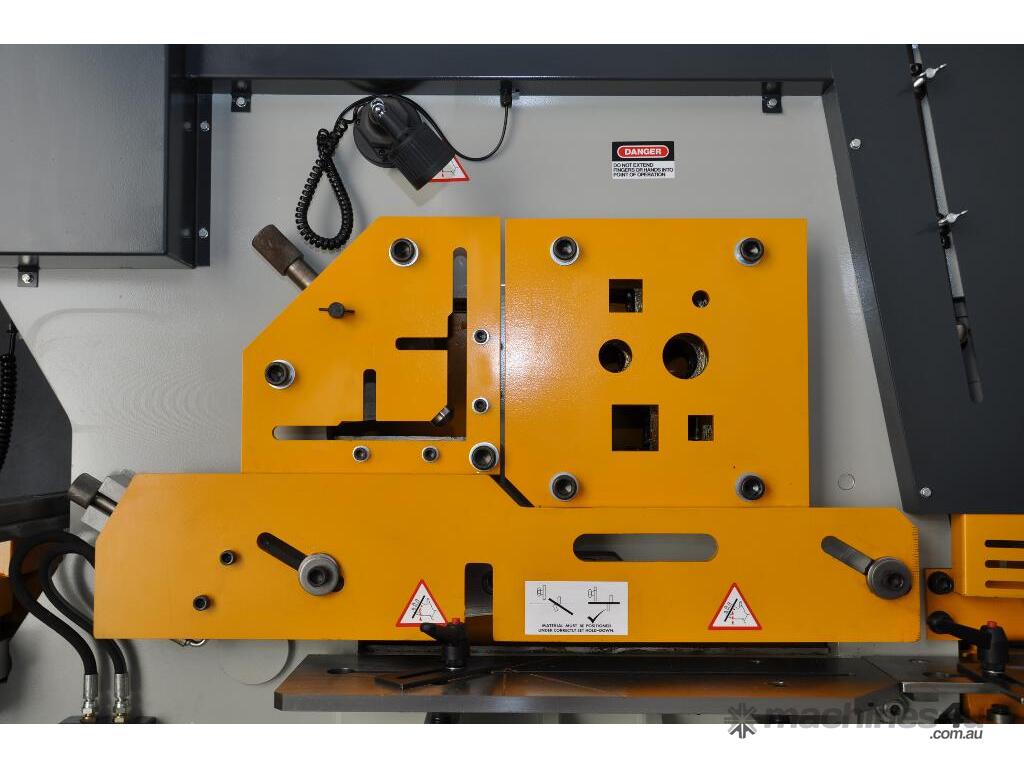

The angle station, provides large capacity angle cutting at 90º and 45º. Angles between 45º and 90º can be achieved by first cutting at 90º and then flange trimming to the required angle in the shearing station.

The shearing station is fitted with a simple mechanical hold down, and on some models with a hydraulic hold-down, which is adjustable to any thickness of material within the capacity of the machine. The shear feed table with adjustable guides is fitted to allow accurate feeding of materials. The guide can be adjusted to allow miter cutting up to 45º for flat bars or to trim the flanges of angle

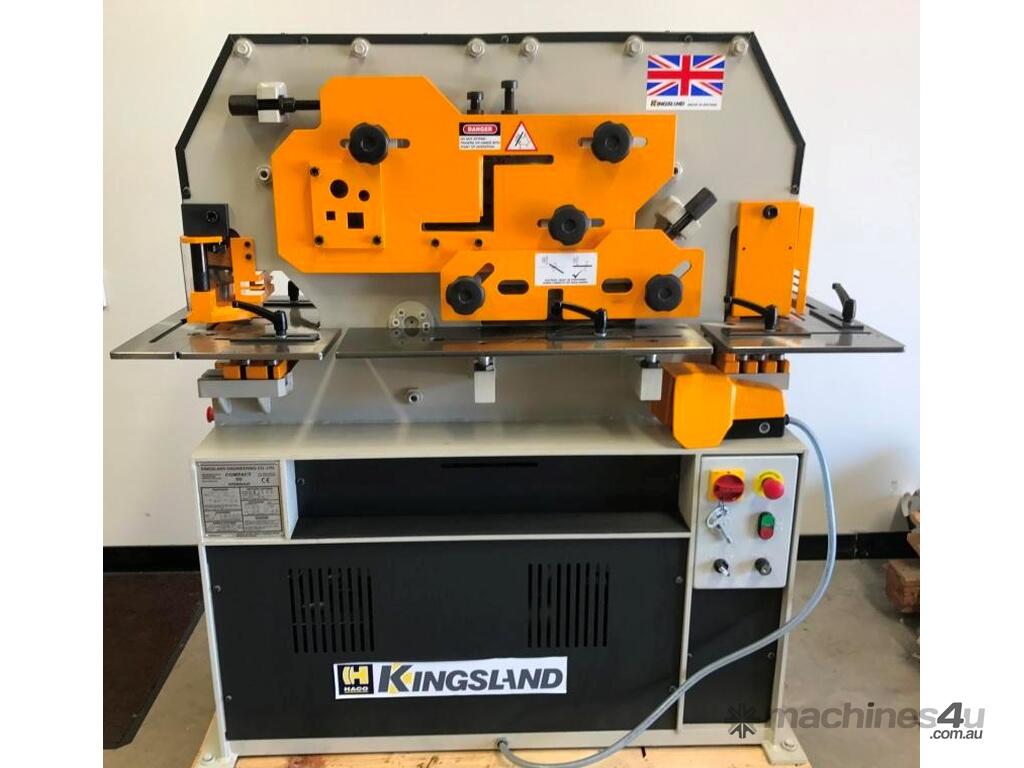

The notching stations are fitted as standard with a rectangular notch table with adjustable back stops, allowing repetitive positioning. The Compact 40 has only 4 workstations and so has not nothing station.

The machines are fitted as standard with blades for cutting round and square bars. With extra equipment, the machines are able to cut, in this aperture, channel, joists, T-sections and many other special profiles.

Free standing on a suitable floor, they just require electrical connection to be ready for work.
