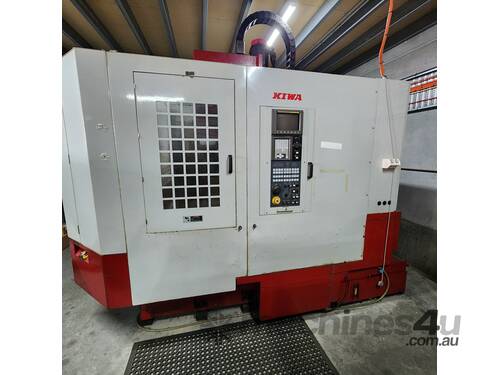

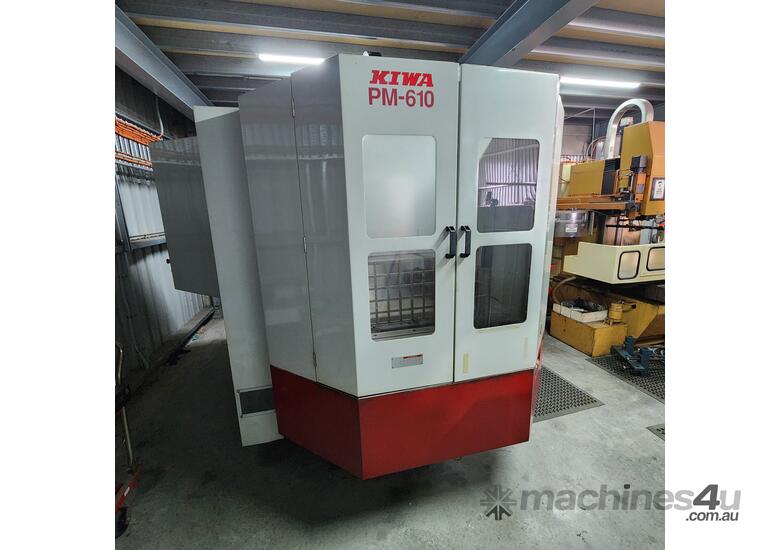

Used KIWA PM-610
Priced to sell. Requires home position and ATC position reset.
Specs:

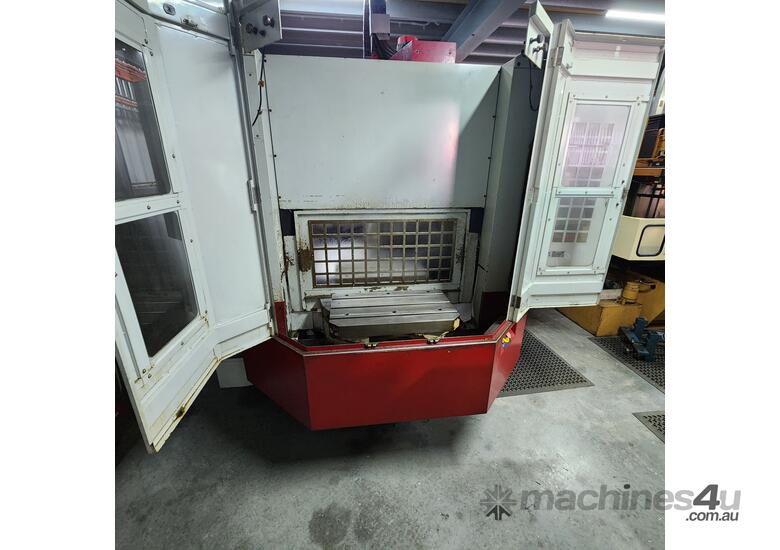

Working area on table: 700 x 420mm x 2 pallets
Axis travel - Column longitudinal travel (X axis): 610mm
Axis travel - Column crosswise travel (Y axis): 410mm
Axis travel - Spindle head vertical travel (Z axis): 500mm
Distance between table surface and spindle nose: Max 650mm / Min 150mm
Distance between column and spindle centre: 450mm
Positioning rapid traverse: 36,000mm/min 1,417ipm
Cutting feed rate: 1 - 4,000mm/min 0.04 - 157ipm
AC servo motor (X, Y): 1.4kW
AC servo motor (Z): 2.8kW
Spindle taper: 7/24 NT#40
Spindle speed command: 1rpm ( programmable with 5 digit S code)
Spindle speed: Max 12,000rpm
Spindle motor: AC 9kW/12.2HP (30min) or AC 7.5kW/10.2HP (cont.)
Coolant pump motor for cutting: CHK 2-60/2
Coolant pump for chip disposal: CHK 4-40/4
Coolant tank: 330 lit
Lubrication pump motor: 3W
ATC - Tool selection system: Memory Random
ATC - Number of tools: 32 pcs (1 pcs in the spindle)
ATC - Max tool diameter: 95mm
ATC - Max tool length: 300mm
ATC - Max tool weight: 6kg
ATC - Power supply: Air pressure : 5kg/cm2 / 71.1lb/in2 (Air compressor capacity: more than 2HP)
ATC - Type of pull-stud: MAS-I

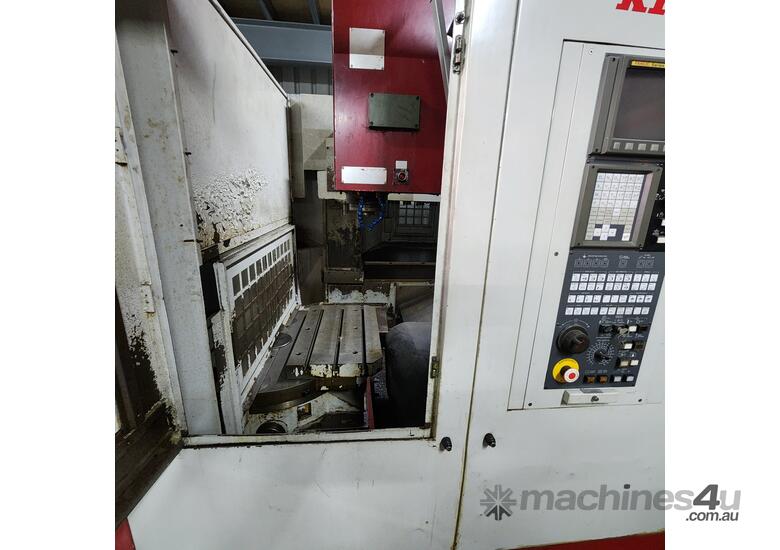

Numerical Control System: FANUC 21-MB
Optional Features included: Work Light, Spindle Through Coolant
Required floor space (L x W): 2,575 x 3,255mm (3,730 x 4,110mm with doors opened)
Overall machine height: 2,577mm
Net weight: 7,000kg
