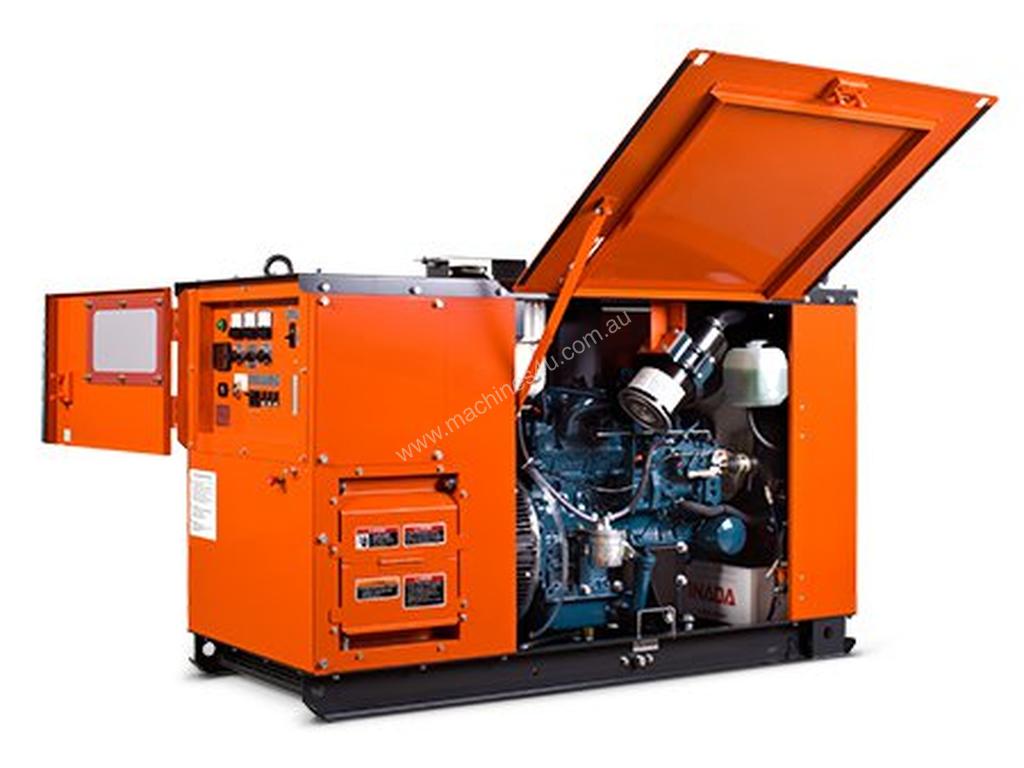

Set Fuel Diesel
Fuel Tank Capacity (L) 37
Operating Hours 10.9 Full Load
Starting System Electric
Weight (kgs) 455kgs
Sound Levels 73dBA 7m
Dimensions (mm) 1423 x 650 x 971

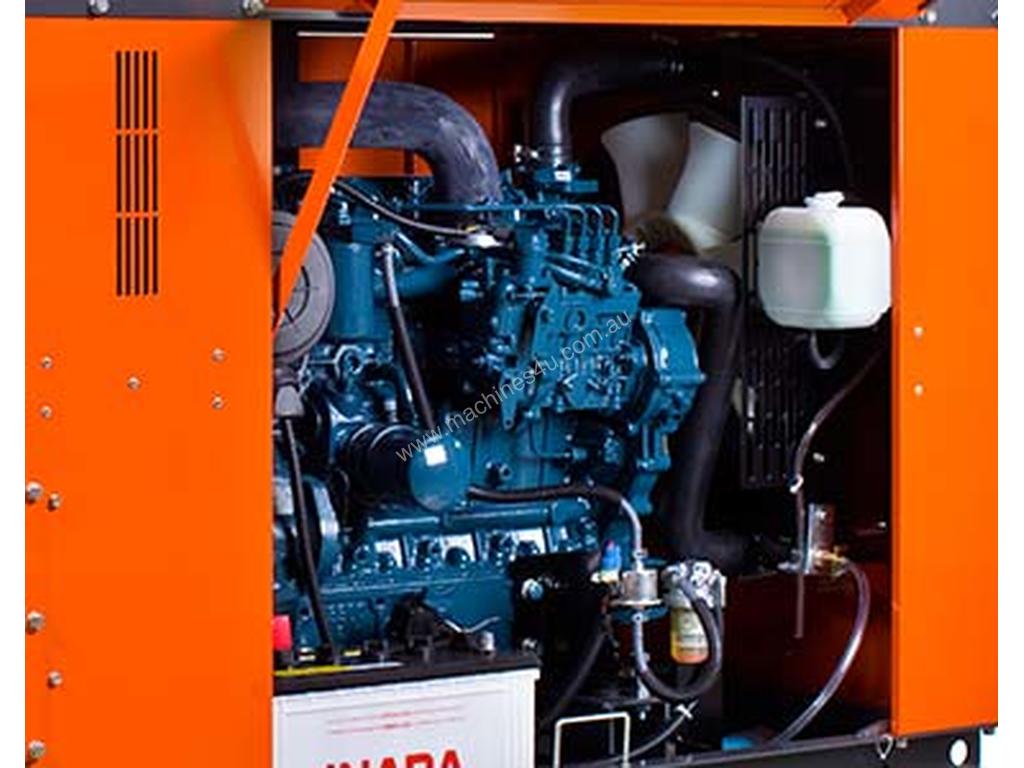

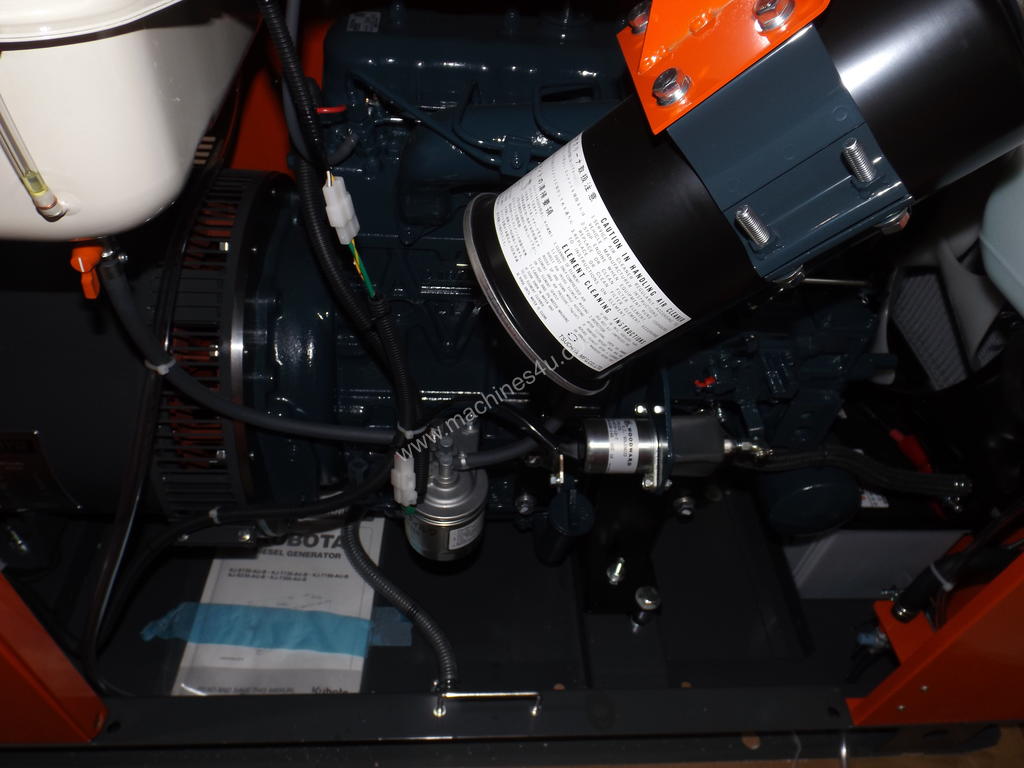

Engine Model D1703
Type Vertical Water Cooled
Displacement (cc) 1647
No of Cylinders 3
Bore & Stroke (mm) 87 x 92.4
Rated Output 12.6kW 1500rpm
Alternator Type Revolving Field
Rated Output 12.5kVA(10.0kW)
Voltage 240/415
Frequency 50Hz
Current 17.4Amps per phase
