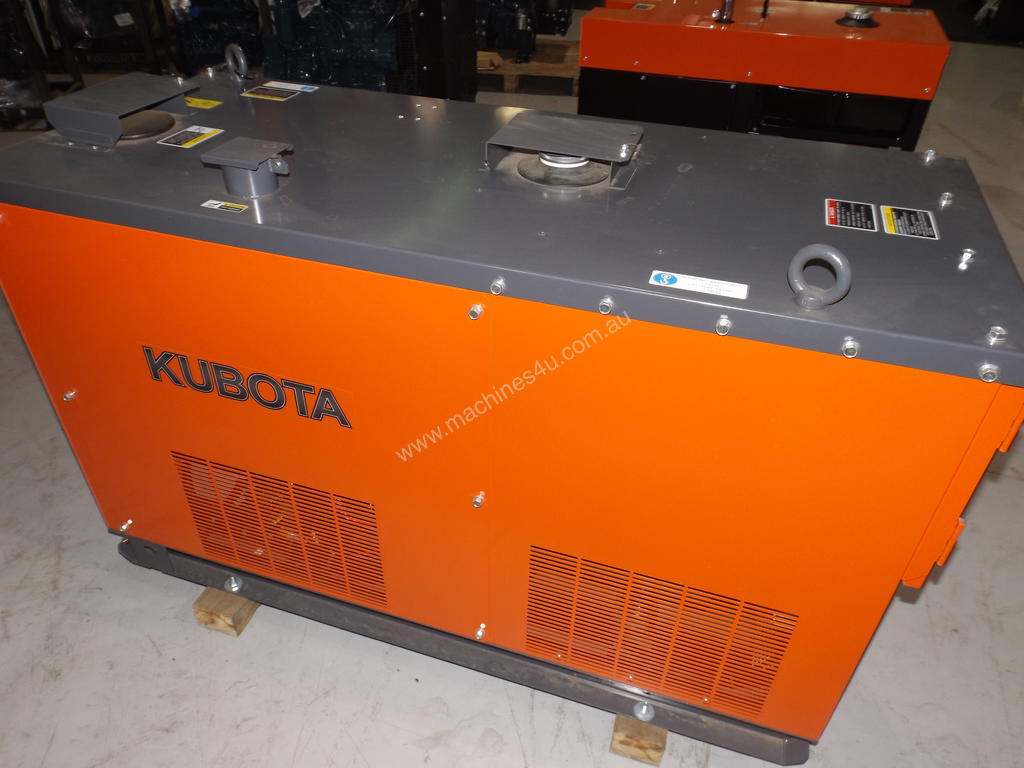

Set Fuel Diesel
Fuel Tank Capacity (L) 68
Operating Hours 8.8 Full Load
Starting System Electric
Weight (kgs) 710
Sound Levels 73dBA 7m
Dimensions (mm) 1730 x 830 x 1046

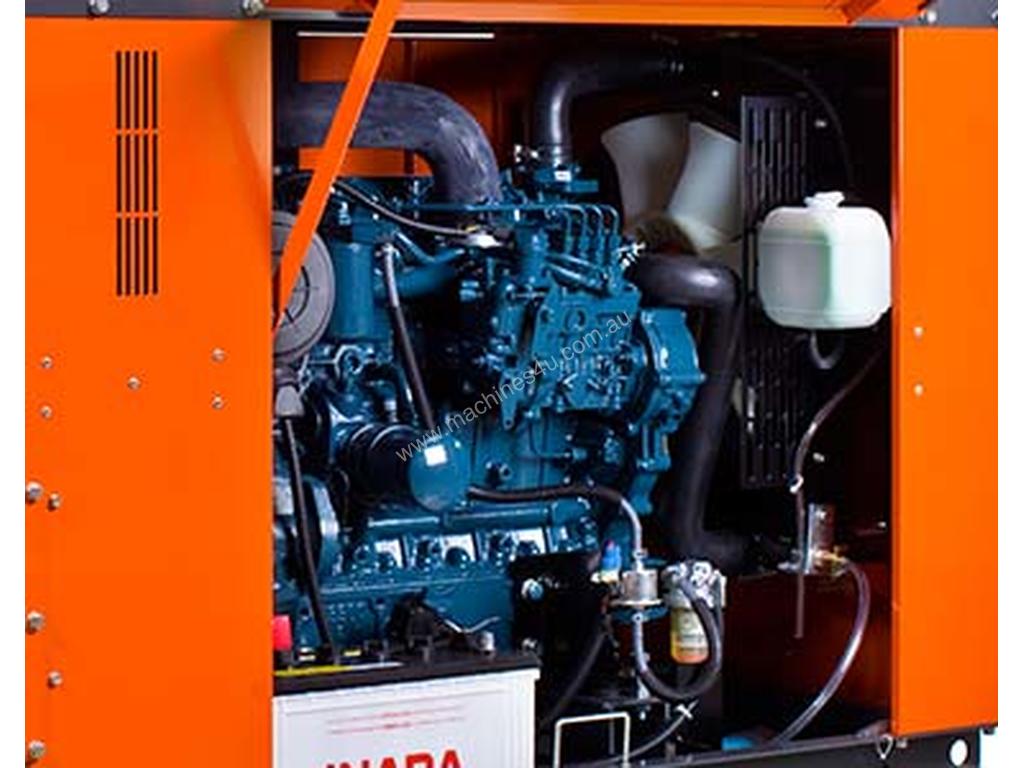

Engine Model V3300
Type Vertical Water Cooled
Displacement (cc) 3318
No of Cylinders 4
Bore & Stroke (mm) 98 x 110
Rated Output 26.8kW 1500rpm
Alternator Type Revolving Field
Rated Output 30.0kVA(24.0kW)
Voltage 240/415
Frequency 50Hz
Current 41.7Amps per phase
Poles 4

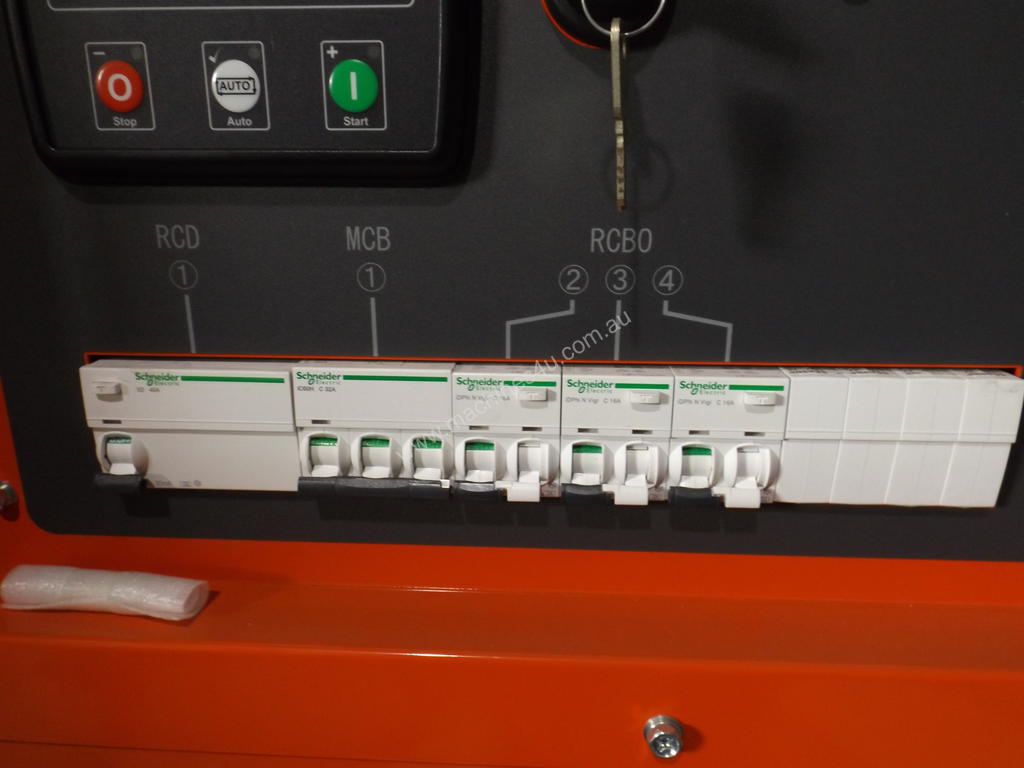

Voltage Regulation AVR
